主要功能
當效能 、穩定性、可靠度對您的監控系統至關重要時,您需要的是專為您的需求所量身打造的產品。
|
|
|
|

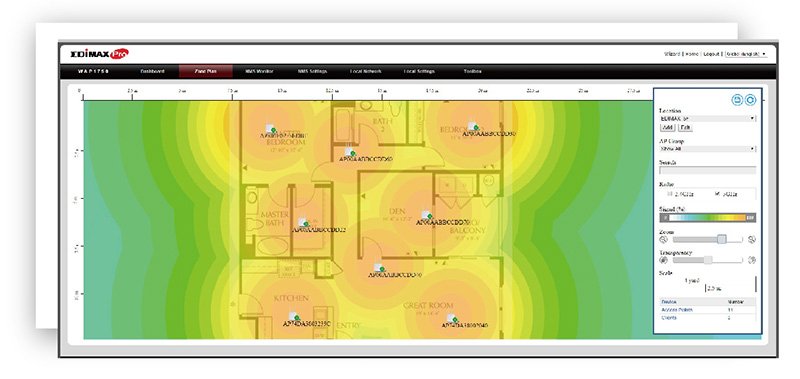

Central Network Management Suite
|
HARDWARE | |

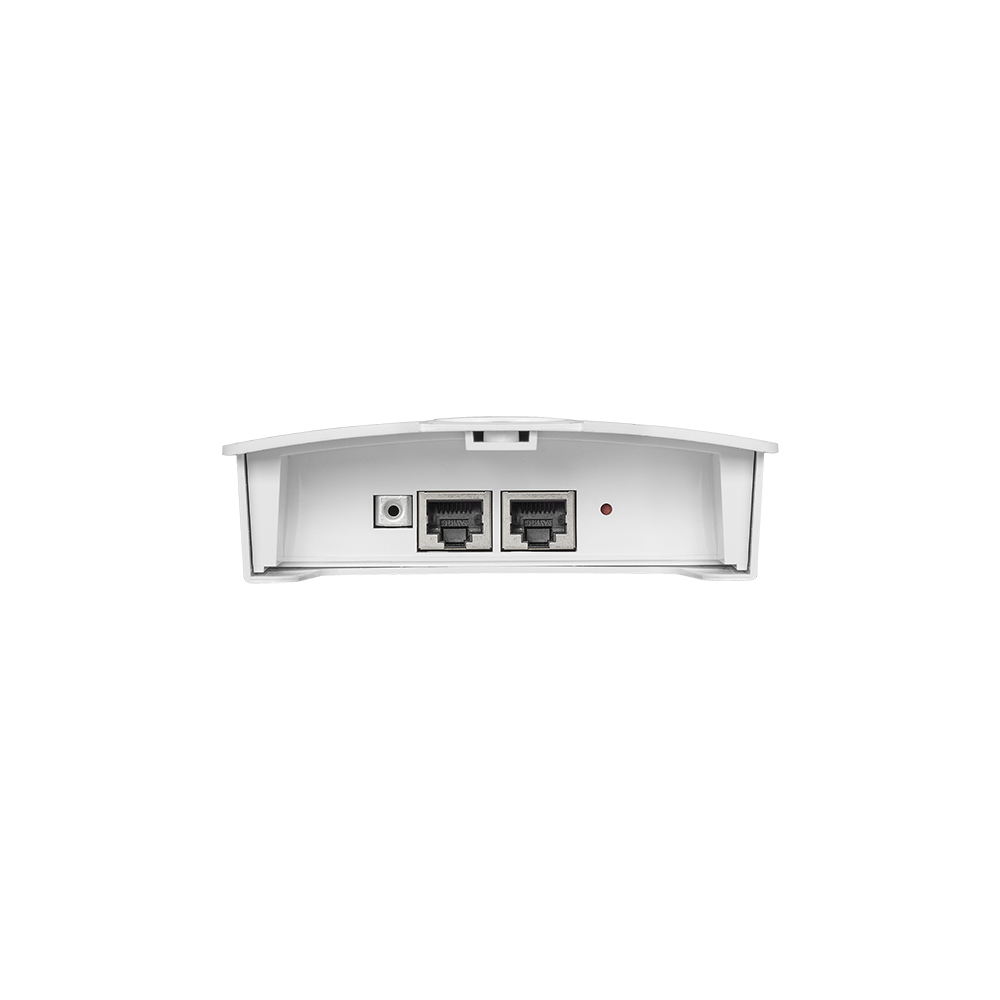

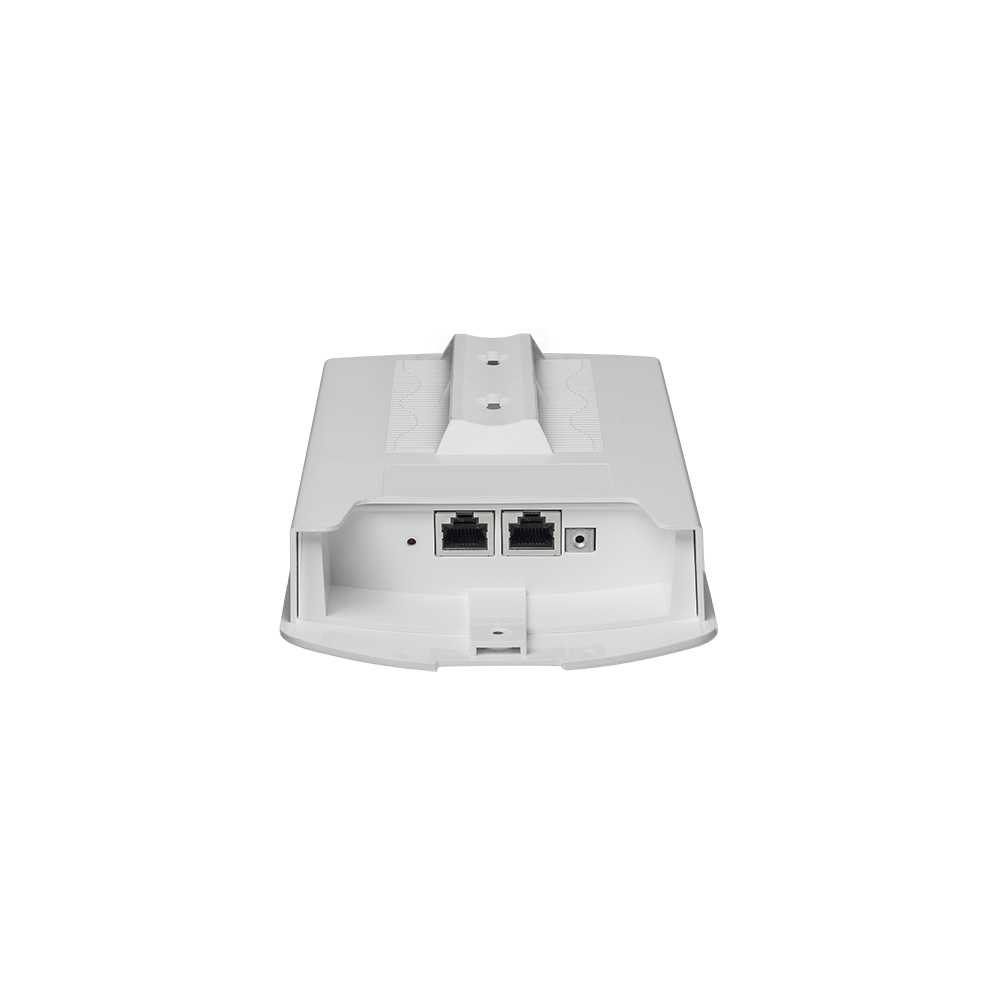

LAN Interface | Giga x 2 |
PoE | LAN 1 : Standard IEEE802.3af/at PoE in LAN 2 : Standard IEEE802.3af PoE out |
Antenna | Built-in x 4 (2 x 2.4GHz Omni / 2 x 5GHz Directional) Gain: 5.6dBi (2.4GHz), 14dBi (5GHz) |
Power | IEEE 802.3af /at |
Dimensions(L x W x H) | 27.18 x 12.09 x 3.5 cm |
Weight | 595g |
Power Consumption (Full Loading) | 15 Watt |

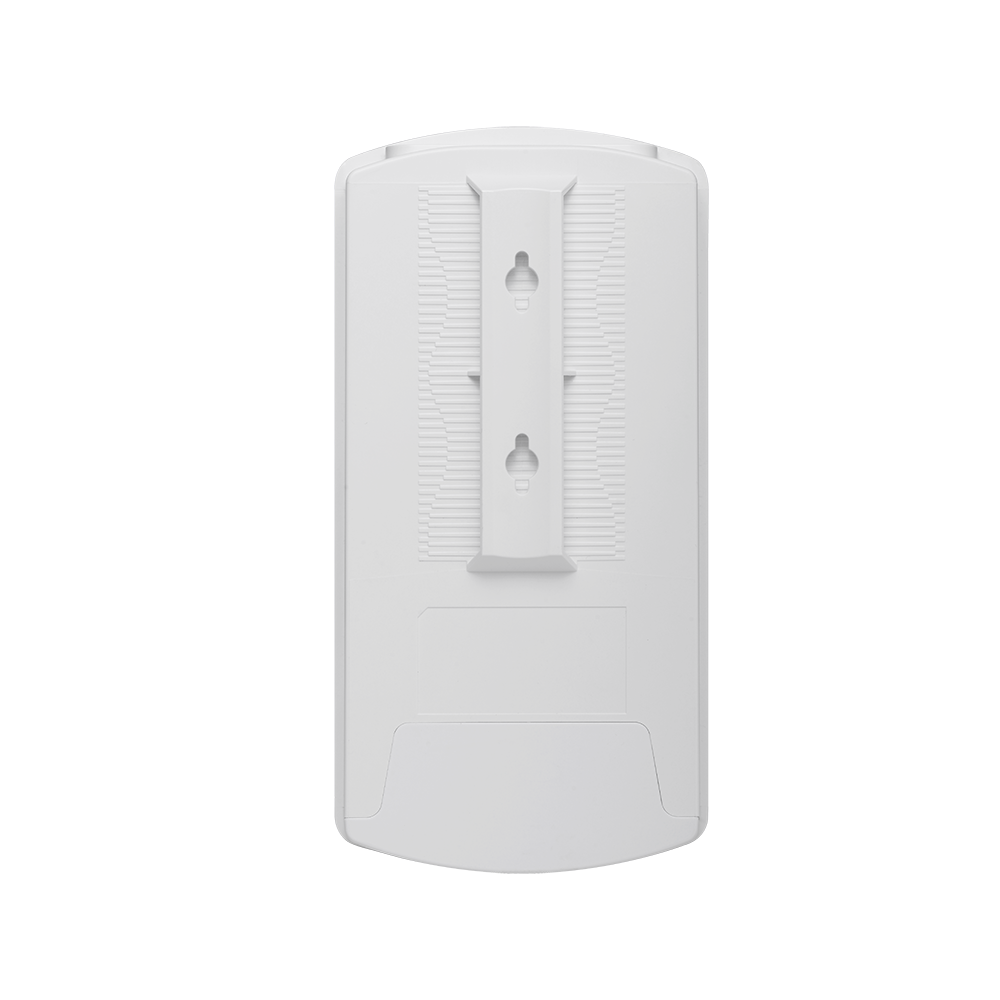

Mounting | Pole / Wall |
Reset | Reset |

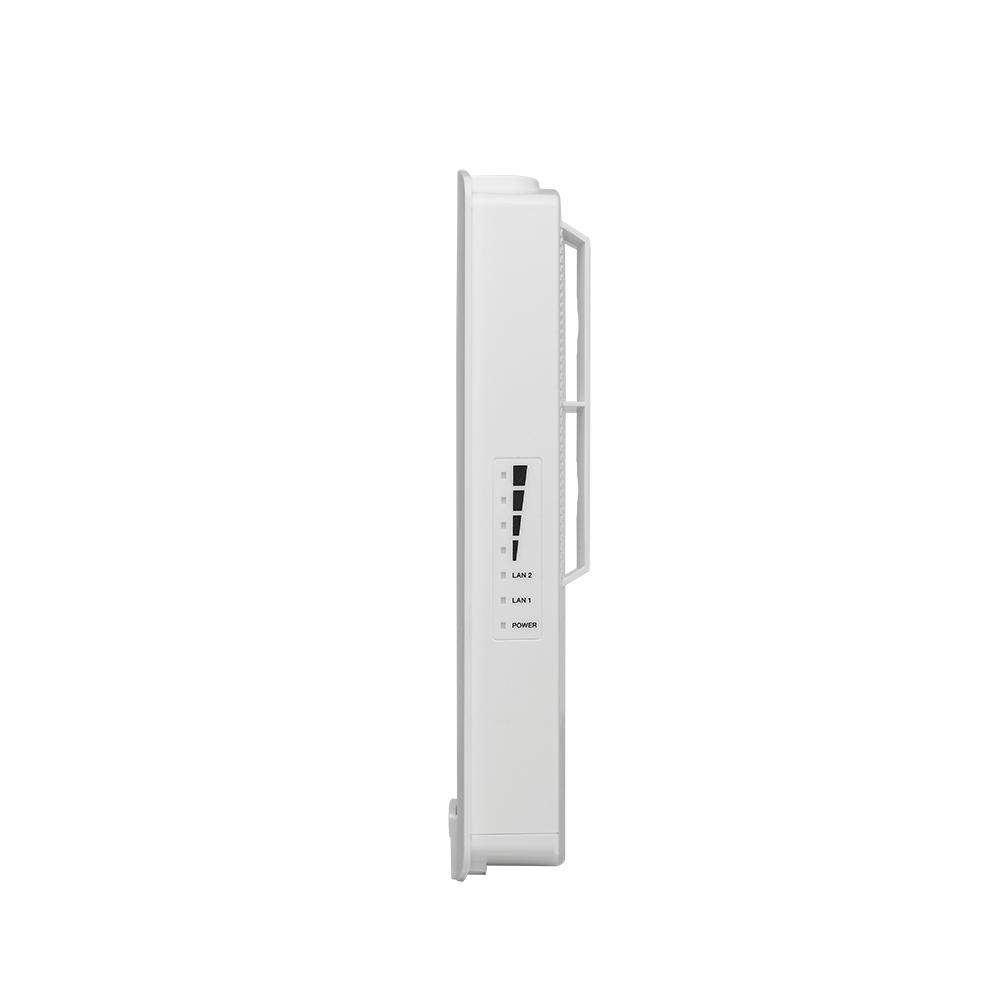

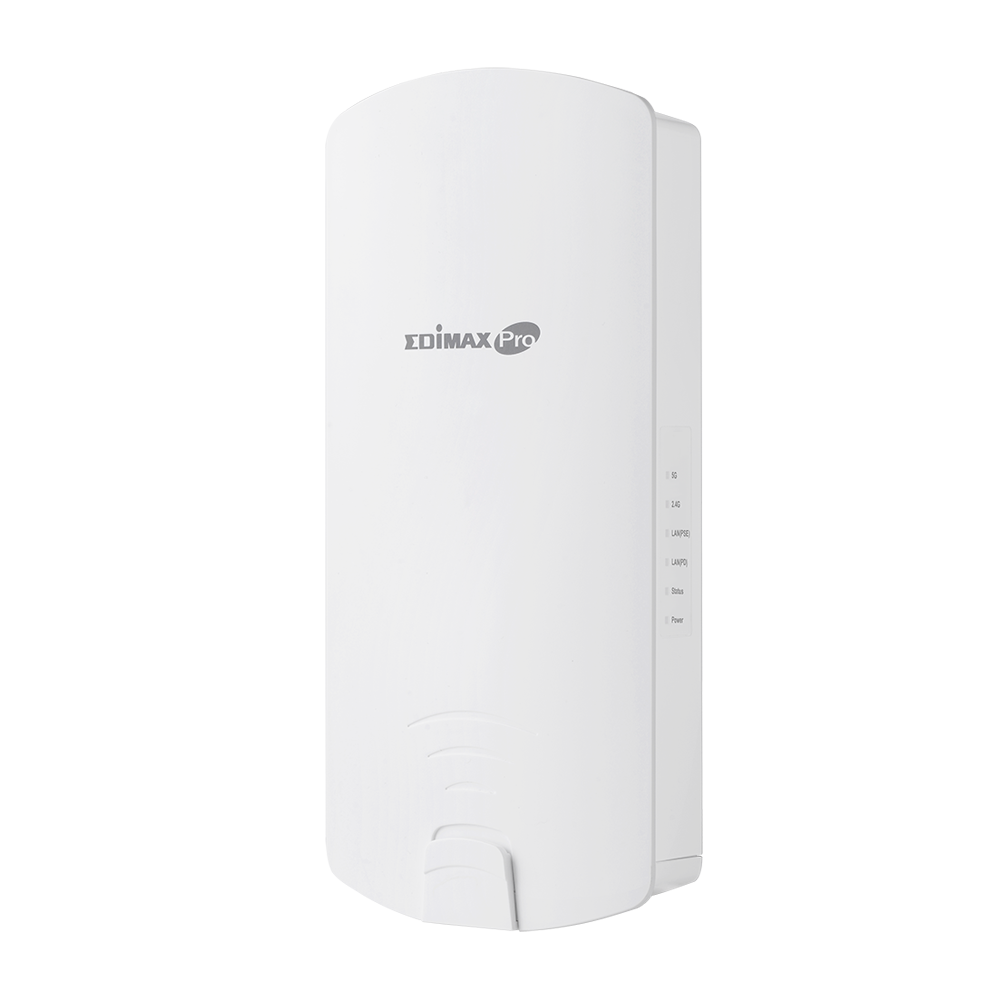

LED Indicator | Power, Status, LAN1, LAN2, 2.4G, 5G |
Environmental Conditions | Operating Temperature: -40°C (-40°F) to 60°C (140°F) Operating Humidity: 90% or Less |
Power Saving | 802.3az |
Internal Buzzer | Y |
Housing | Outdoor IP55 Weatherproof Rated |
WIRELESS | |
Standard | 802.11 a/b/g/n/ac Concurrent Dual-Band |
No. of Radios | 2 |
Receiver Sensitivity | ≤ -93dBm |
Certification | NCC |
Fast Roaming | Y |
Number of SSIDs | 16 (2.4GHz) + 16 (5GHz) |
PERFORMANCE | |
Maximum Data Speed | 400 + 866Mbps |
Concurrent Clients | Up to 100 Per Radio |
RF SPECIFICATONS | |
Frequency Band |
|
Operation Channels |
|
Transmit Power |
•802.11b |
Receiver Sensitivity |
•802.11b |
SECURITY | |
Encryption | WEP / WPA / WPA2 |
Wireless L2 Isolation | Y |
Station Isolation | Y |
IEEE 802.1x Authenticator | Y |
EAP Authentication | PEAP |
Hidden SSID | Y |
MAC Address Filter | Y |
Wireless STA | Y |
Rogue AP Detection (w/ Edimax Pro Network Management Suite (NMS)) | Y |
SOFTWARE | |
Wireless Mode | Standalone AP/ Client Bridge |
802.1q VLAN | Y (VID = 1-4095) |
Spanning Tree | RSTP |
QoS | WMM (802.11e) Max Associated Station No. |
Pass-Through | IPv6 and VPN (PPTP, L2TP/IPsec) |
DSCP (802.1p) | Y |
Multicast Rate up to 54Mbps | Y |
MANAGEMENT | |
Deployment | Standalone AP/ Client Bridge |
Configuration | HTTP / HTTPS SNMP v1, v2c, v3 CLI (Telnet, SSH) |
RADIUS Server | Built-In |
Auto-Channel | Y |
Private MIB | Y |
