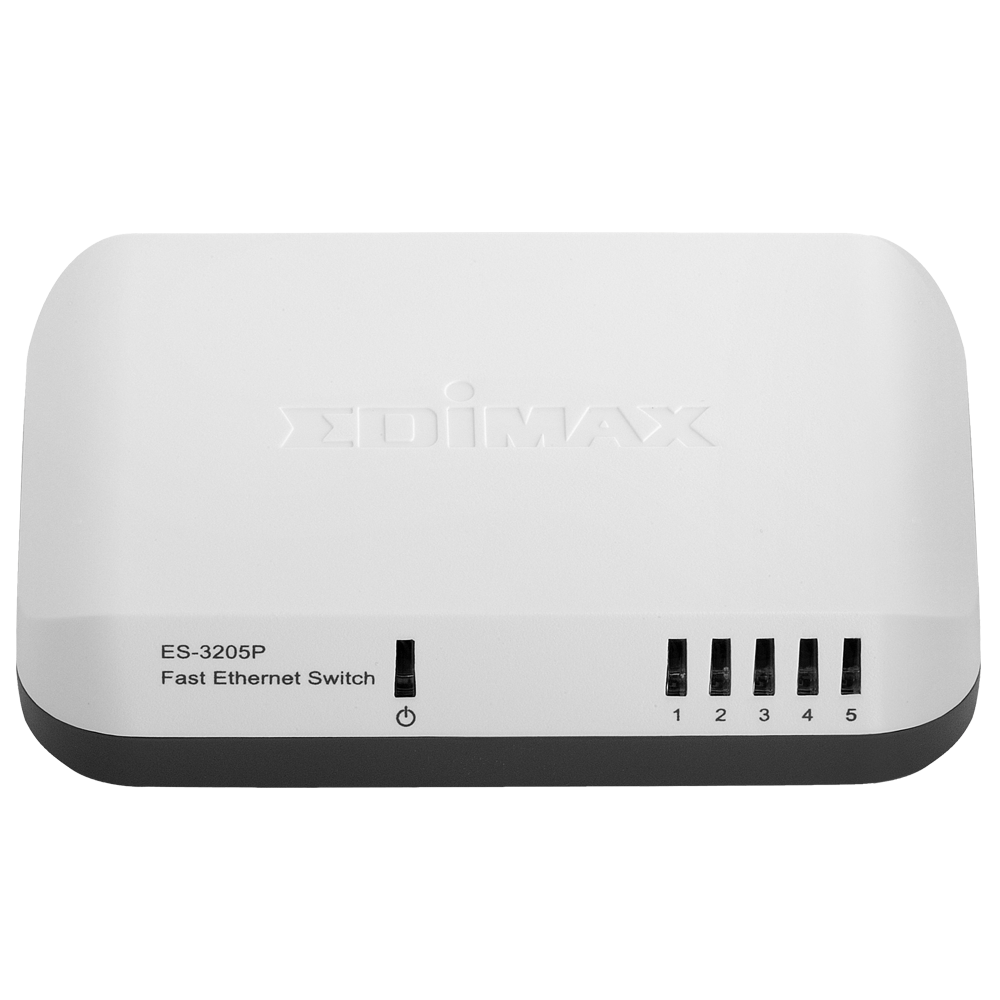

5 Ports Fast Ethernet Switch

ES-3205P

(For Middle East Only)

  • Complies with the IEEE 802.3 and IEEE 802.3u standards.
  • Provides Store-and-Forward architecture , Full Wire Speed forwarding and filtering rates
  • Supports Auto-MDI/MDI-X, full/half duplex modes and auto-negotiation.
  • Supports flow control and Non-blocking architecture



200Mbps Full Duplex Transmission
Edimax ES-3205P is a high speed fast Ethernet switch for home and small business. ES-3205P not only complies with  IEEE 802.3/802.3u 10/100Mbps Ethernet standard but also supports full duplex transmission. The full duplex feature can double the network throughput on every port. It is used for high speed server or switch-to-switch connections. The maximum throughput of every port can reach up to
200Mbps .

Supports Wire-speed and Flow Control
The ES-3205P built-in non-blocking and store-and-forward architecture feature your network with full-wire speed connections. It accommodates with flow control for full duplex mode and back pressure for half-duplex mode which ensure reliable data transfer and help to prevent data lost. Use ES-3205P to create a high-speeds network and benefit from it's ultimate performance and
reliability.

Supports Auto-MDI/MDI-X and Auto Sensing
ES-3205P supports PnP (plug and play) installation and auto-MDI/MDI-X function. You can connect ES-3205P with computers or Ethernet devices without any configuration. You also can use either straight-through or cross-over Ethernet cable and combine 10 and 100Mbps devices into ES-3205P.
The switch will automatically detect the right cable and speed for your device.

Power Saving
With new generation power saving mode, ES-3205P can reduce power consumption. It is the best solution for home and small business.



HARDWARE INTERFACE

FUNCTIONS

POWER ADAPTER

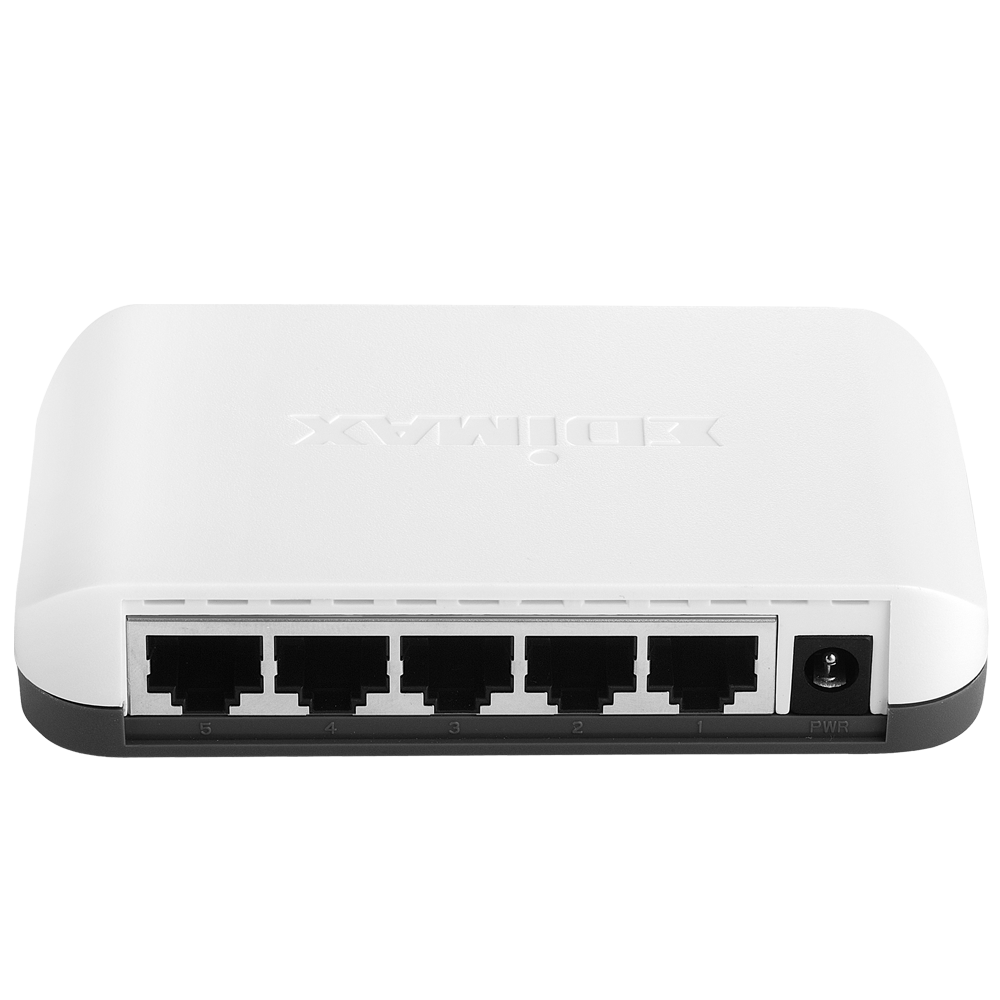

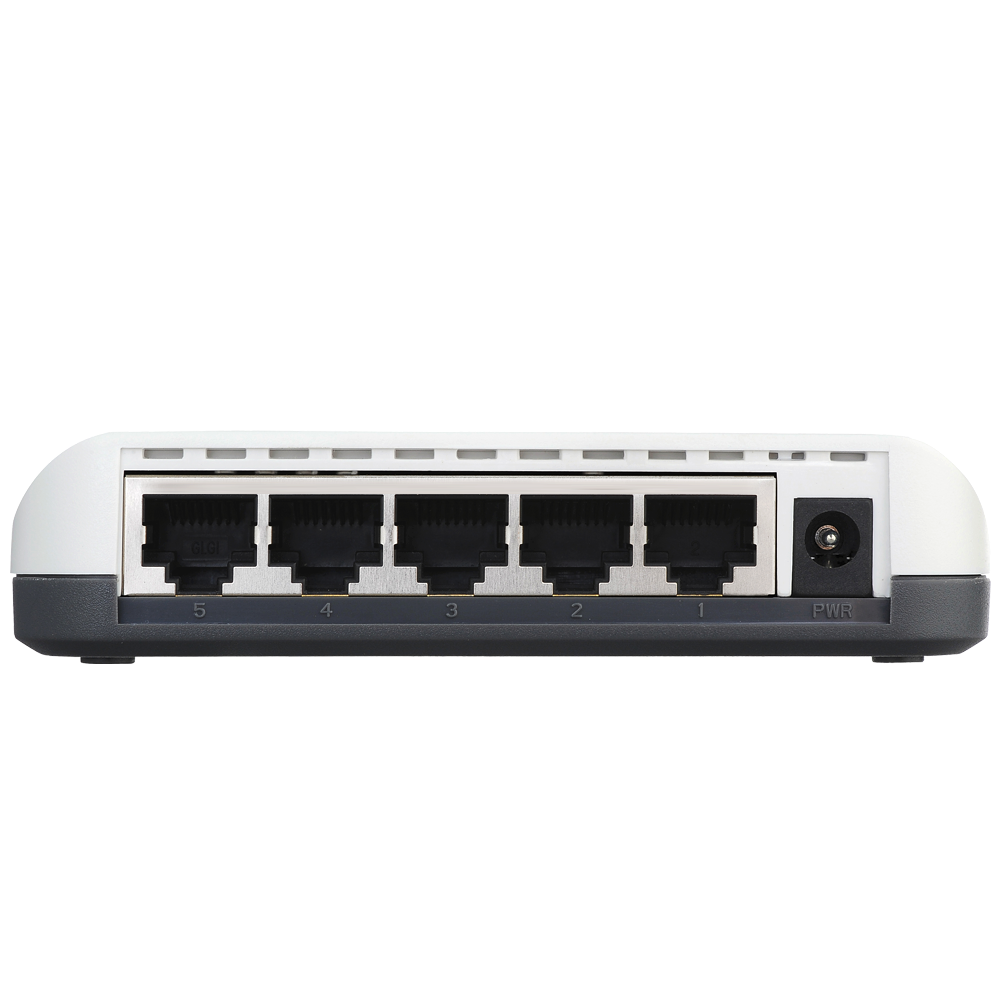

  • 5 x RJ-45 Fast Ethernet LAN Ports
  • LED Indicators: Power, LNK/ACT for LAN
  • Power
  • Non-Blocking
  • Store-and-Forward architecture
  • Full wire speed filtering
  • Auto-MDI/MDI-X and auto learning
  • Auto-negotiation
  • DC 5V, 0.6A

STANDARD

HUMIDITY & TEMPERATURE
MEMORY BUFFER
  • IEEE802.3 and IEEE802.3u
  • IEEE802.3x
  • 10-95% (Non-condensing)
  • 0~45 Degree Celsius
  • 384K bits
MAC Address

DIMENSION

CERTIFICATIONS
  • 2K
  • 111 x 68 x 25 mm
  • CE, FCC

NETWORK SETUP DIAGRAM AND RELATED PRODUCTS

An example to setup ES-3205P:









  • Connect the ES-3205P to your Router or cable/ xDSL modem.
  • Connect a computers to ES-3205P.
  • You can also connect Print Server, NAS and IP CAMERA to ES-3205P.
