AC1200 Dual-Band Home Roaming Wi-Fi Upgrade Extender - EDIMAX

AC1200 Dual-Band Home Roaming Wi-Fi Upgrade Extender

RE11S

  • Home Roaming Wi-Fi Upgrade Extender so your Wi-Fi is always connected for seamless, fast roaming Wi-Fi.
    - No hassle with switching Wi-Fi network name and password.
    - Reliable Wi-Fi that stays connected when you move around your home.
      (Works with any Edimax Gemini series devices which support home roaming Wi-Fi.)
  • Home Wi-Fi in Every Room to provide the best Wi‑Fi everywhere in your home.
  • Faster 802.11ac Speeds: AC1200 concurrent dual-band Wi-Fi with speeds (2.4GHz 300Mbps & 5GHz  867Mbps).
  • Upgrade Home Wi-Fi to 11ac: Upgrade your single-band 2.4GHz Wi-Fi to dual-band with better coverage without replacing your router.
  • Three Modes in One: Wi-Fi Extender, Access Point or Wi-Fi Bridge.
  • Easy Setup: One press of the WPS (Wi-Fi Protected Setup) button with zero configuration for easy wireless connections.
​   Edimax Smart Wi-Fi Roaming


The Gemini RE11S extender builds an intelligent home roaming Wi-Fi signal with one Wi-Fi name and password. The upgrade extender works with any Edimax Gemini whole home devices and automatically detects and switches your Wi-Fi device to the best available Wi-Fi signal for a more natural, seamless experience. Freely move in your home without signal drops or losing connections.

It’s designed to upgrade and extend your Wi-Fi without replacing your existing router and features supercharged 802.11ac speed. Just plug and play to instantly upgrade an 11n network to dual-band 11ac wireless with speeds up to 1200Mbps (300Mpbs on 2.4GHz + 867Mbps on 5GHz) – ideal for video streaming.



Seamless Roaming with One Wi-Fi Name

Fast, reliable roaming for a seamless connection while you move around your home. The Gemini RE11S uses the same Wi-Fi name/password and automatically switch intelligently.

Edimax Gemini RE11 AC1200 Dual-Band Home Wi-Fi Roaming Kit, Wi-Fi Extender/Access Point/Wi-Fi Bridge, smarter Wi-Fi with signal SSID setup
Works with any Edimax Gemini devices, such as Gemini RE11, which support home roaming Wi-Fi.

The Best Home Wi-Fi in Every Room

The Gemini RE11S keeps detecting the Wi-Fi signal quality for your Wi-Fi devices, and ensure they’re always connected to the best Wi-Fi signal. It is a great upgrade kit for you to build an ultra-fast whole home Wi-Fi coverage. No buffering or losing connection in every room of your home.

Always stay connected to the best Wi-Fi signal.

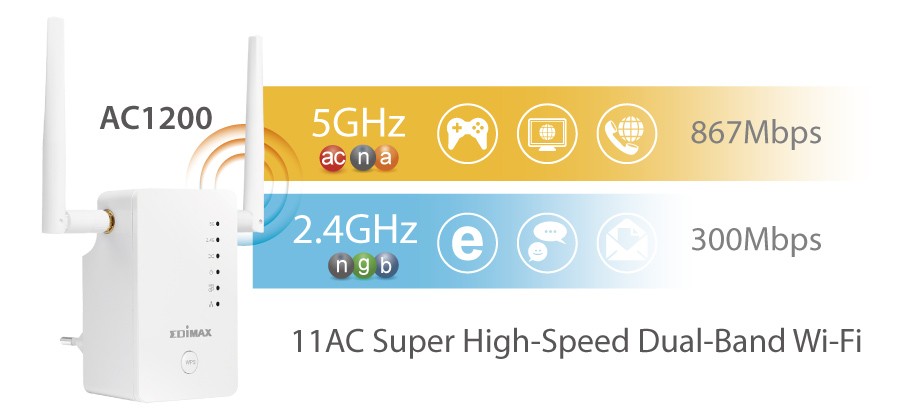

Faster 802.11ac Speeds

Upgrade your single-band 2.4GHz Wi-Fi to 802.11ac dual-band Wi-Fi with 5GHz ideal for video streaming. Get the latest 11ac high-speed up to 1200Mbps (N300 + AC867Mbps), and extend both 2.4GHz and 5GHz wireless connections at the same time.

Edimax Gemini RE11 AC1200 Dual-Band Home Wi-Fi Roaming Kit, Wi-Fi Extender/Access Point/Wi-Fi Bridge, AC1200

Easy Home Wi-Fi 11ac Upgrade

Just plug in the Gemini RE11S to upgrade your single-band 2.4GHz Wi-Fi to dual-band with better coverage, without replacing your router and with zero configuration required.​
Upgrade home Wi-Fi to 11ac and no replacing your existing 11n router.

Three Modes in One

The Gemini RE11S can work as Wi-Fi extender, access point or Wi-Fi bridge. Just configure the mode you need for your network environment using the smart iQ Setup wizard and enjoy surfing the web.

Edimax Gemini RE11 AC1200 Dual-Band Home Wi-Fi Roaming Kit, Wi-Fi Extender/Access Point/Wi-Fi Bridge, 3-in-1 mode

Smart iQ Setup

Features user-friendly browser-based iQ Setup for smart, automatic and quick installation. iQ Setup automatically detects the available Wi-Fi networks nearby and helps you establish a connection in a few seconds.

*Wi-Fi Extender mode only.

Edimax Gemini RE11 AC1200 Dual-Band Home Wi-Fi Roaming Kit, Wi-Fi Extender/Access Point/Wi-Fi Bridge, Smart iQ Setup

Works with any Wi-Fi Router

Universal router compatibility and easy web-based iQ Setup for quick and easy installation.

Edimax Gemini RE11 AC1200 Dual-Band Home Wi-Fi Roaming Kit, Wi-Fi Extender/Access Point/Wi-Fi Bridge, Universal Compatibility, works with any wi-fi router

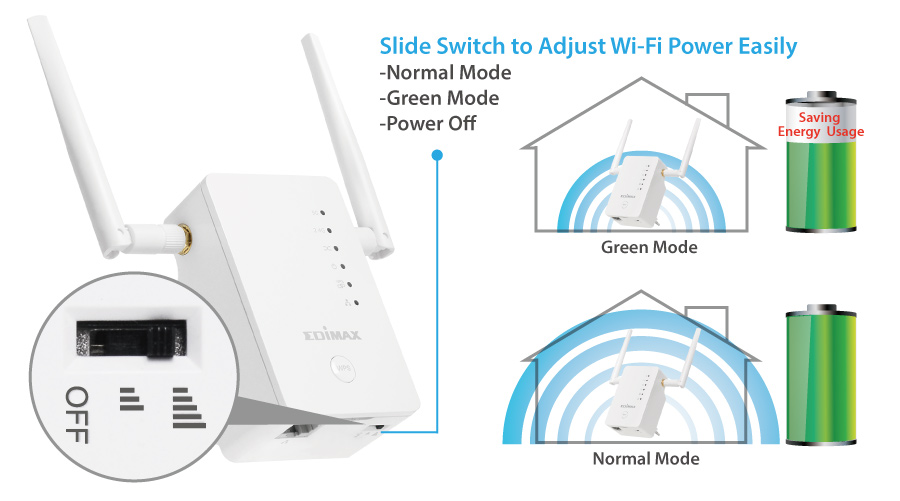

Green Wi-Fi Power Switch

Featuring a new hardware switch to adjust between normal and green Wi-Fi transmit power (the strength of the Wi-Fi signal), or switch off the power with one click. If you only need Wi-Fi in a smaller house, just switch to green mode to reduce power by 75% and conserve energy.​

Edimax Gemini RE11 AC1200 Dual-Band Home Wi-Fi Roaming Kit, Wi-Fi Extender/Access Point/Wi-Fi Bridge,Universal Compatibility, Green Wi-Fi Power Switch, green mode, normal mode, power off

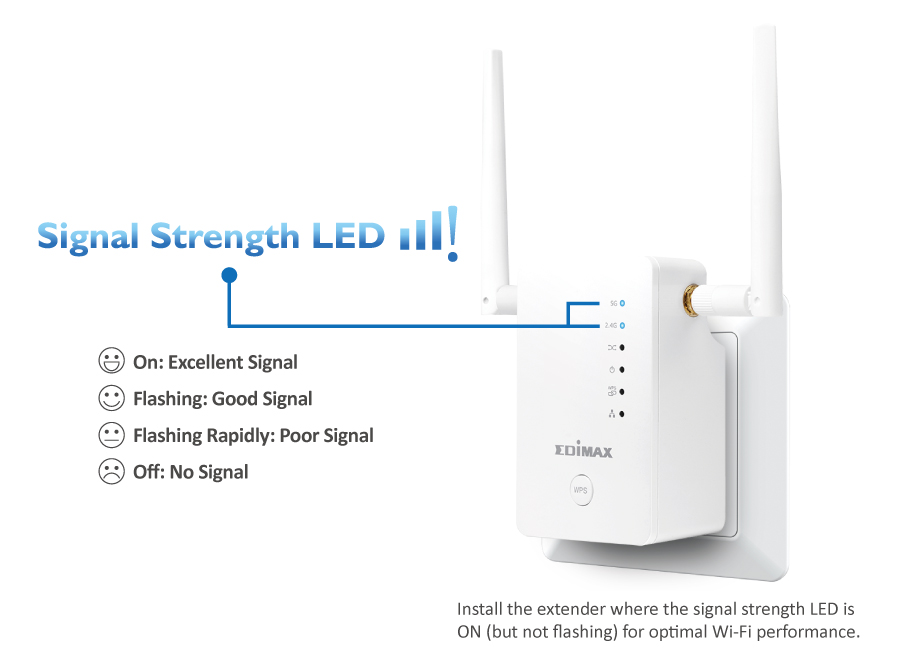

Find the Best Wi-Fi Location

Designed with a signal strength LED which lets you see the Wi-Fi signal strength received from the router and helps you to find the best setup location.

*Wi-Fi Extender or Wi-Fi Bridge mode only.​

Edimax Gemini RE11 AC1200 Dual-Band Home Wi-Fi Roaming Kit, Wi-Fi Extender/Access Point/Wi-Fi Bridge, Signal Strength Indicator


Gemini Series Wi-Fi Roaming Products

Gemini RG21S

Gemini AC2600 MU-MIMO Wi-Fi Roaming Router

Gemini RE11 Kit

Gemini AC1200 Wi-Fi Roaming Range Extender Kit

Gemini RE11S

Gemini AC1200 Wi-Fi Roaming Range Extender

Gemini RE23S

Gemini AC2600 Wi-Fi Roaming Range Extender



SPECIFICATIONS

HARDWARE
Interface
  • 10/100/1000Mbps Ethernet LAN port
  • LED Indicator: 5GHz, 2.4GHz, Roaming, Power, WPS, LAN
  • 1 x Slide switch
  • 1 x AC plug (EU, UK, US, or AU)
Button
  • WPS button
Power Adapter
  • Built-in 5V, 1.5A power module
Antenna
  • 2 x External detachable antennas
Dimensions
  • 59 (W) x  91 (H) x 40 (D) mm  (power plug & antennas are excluded)
Weight
  • 130g
WIRELESS
Standards
  • IEEE 802.11ac (up to 867Mbps)
  • IEEE 802.11n (up to 300Mbps)
  • IEEE 802.11a (up to 54Mbps)
  • IEEE 802.11g (up to 54Mbps)
  • IEEE 802.11b (up to 11Mbps)
Frequency
  • 5GHz and 2.4GHz concurrent dual-band
Maximum Data Speed
  • 5GHz: up to 867Mbps
  • 2.4GHz: up to 300Mbps
Security
  • 64/128-bit WEP, WPA-PSK and WPA2-PSK encryption
  • WPS (Wi-Fi Protected Setup) Configuration
Others
Certification
  • CE, FCC, IC, RoHS
Management
  • Multi-language user interface
  • Firmware upgradable
  • Smart iQ Setup, no CD required
System Requirements
  • Existing wireless home network (2.4GHz/ 5GHz) for Wi-Fi extender/Wi-Fi bridge mode, or Cable/xDSL modem router for access point mode
  • Mobile device or computer with IEEE802.11ac/ a/ b/ g/ n Wi-Fi capability and web browser for software configuration (Internet Explorer, Google Chrome, Firefox, Opera or Safari latest version)
Environment
  • Operating Temperature: 0℃~40℃ (32℉ ~104℉)
  • Operating Humidity: 10%~90% non-condensing
Package Contents
  • One Gemini RE11S Home Roaming Wi-Fi Extender
  • One Ethernet cable
  • Quick installation guide
  • CD with multi-language QIG and user manual
  • Access key card
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
