Gemini RE11 Whole Home Wi-Fi Upgrade Kit
Expand Your Whole-Home Reliable Wi-Fi Coverage

RE11

  • Play and Plug in AP-Mode: plug and play with auto-grouping management
  • Smarter Wi-Fi: Fast, reliable roaming for a seamless connection
  • Stronger Singal: Always connected to the best Wi-Fi signal
  • Faster Speed: Upgraded 11ac dual-band Wi-Fi ideal for video streaming with high-speed capacity up to 1200Mbps (N300 + AC867Mbps)
  • Universal Compatibility: Works with any router, zero configuration​
  • Smart iQ Setup: Smartphone, tablet or web-browser setup with no CD or computer required
  • Green Wi-Fi Power Switch: Switches between normal & green Wi-Fi power and turn off when not in use
  • Signal Strength LED Indicator: Finds the best location for optimal Wi-Fi coverage


Edimax Smart Wi-Fi Roaming: Gemini Series   Edimax Smart Wi-Fi Roaming


Being different to a general range extender network configuration, Gemini RE11 is a whole home Wi-Fi system that uses multiple access points​ to provide your home with fast, reliable coverage for a seamless roaming connection.

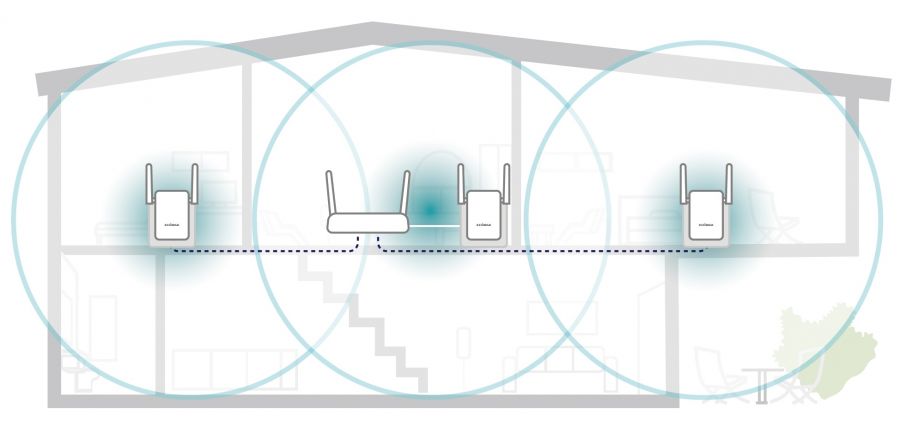

Plug and Play in AP-Mode

Gemini RE11 in AP-Mode is designed to be super easy to configure with plug and play auto-grouping management. Moreover, additional Gemini RE11S can be easily added to get even better whole-home Wi-Fi coverage.

The first RE11S plugs into your existing cable or DSL modem. Additional RE11S just need to be powered!​

See more about how to set the first RE11S into AP-Mode here.

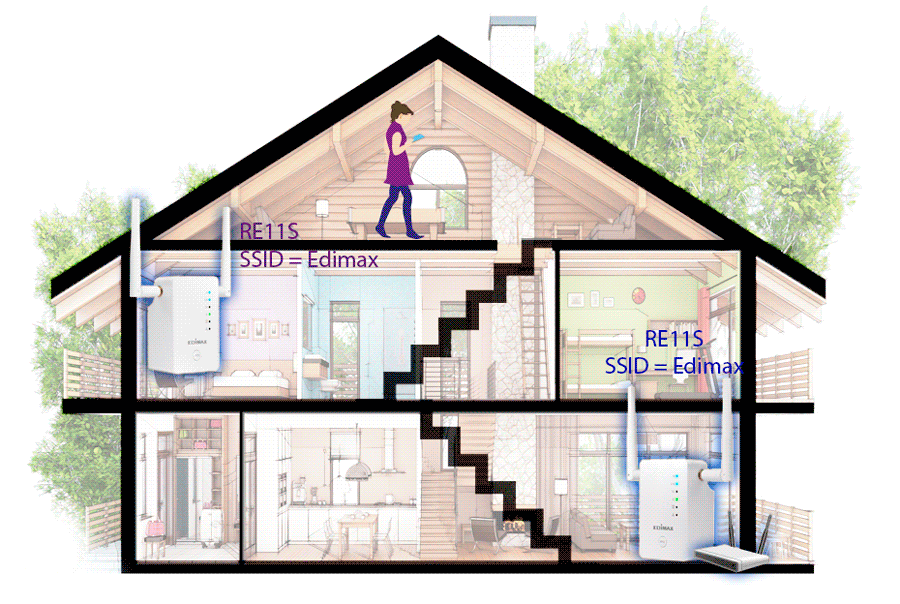

Smarter Wi-Fi with a Single Network

Fast, reliable roaming for a seamless connection while you move around your home. Hassle-free while switching SSIDs (network name). The RE11S uses the same SSID and switches automatically and intelligently.​
Edimax Gemini RE11 AC1200 Dual-Band Home Wi-Fi Roaming Kit, Wi-Fi Extender/Access Point/Wi-Fi Bridge, smarter Wi-Fi with signal SSID setup

Stronger Signal for Connected Homes

RE11S extenders keep detecting the Wi-Fi signal quality for your Wi-Fi devices, and ensure they’re always connected to the best Wi-Fi signal.Edimax Gemini RE11 AC1200 Dual-Band Home Wi-Fi Roaming Kit, Wi-Fi Extender/Access Point/Wi-Fi Bridge, stronger signal for connected home

Faster 11ac Speeds

Upgrade your single-band 2.4GHz Wi-Fi to 802.11ac dual-band Wi-Fi with 5GHz ideal for video streaming. Get the latest 11ac technology with high-speed capacity up to 1200Mbps (N300 + AC867Mbps), and extends both 2.4GHz and 5GHz wireless connections at the same time.
Edimax Gemini RE11 AC1200 Dual-Band Home Wi-Fi Roaming Kit, Wi-Fi Extender/Access Point/Wi-Fi Bridge, AC1200


Upgrade for Your Home 11n Router to 11ac

Just plug in the Edimax RE11S to upgrade your single-band 2.4GHz Wi-Fi to dual-band with better coverage, without replacing your router and with no configuration required.
Edimax Gemini RE11 AC1200 Dual-Band Home Wi-Fi Roaming Kit, Wi-Fi Extender, Access Point, Wi-Fi Bridge, plug and play, easy upgrage, zero configuration

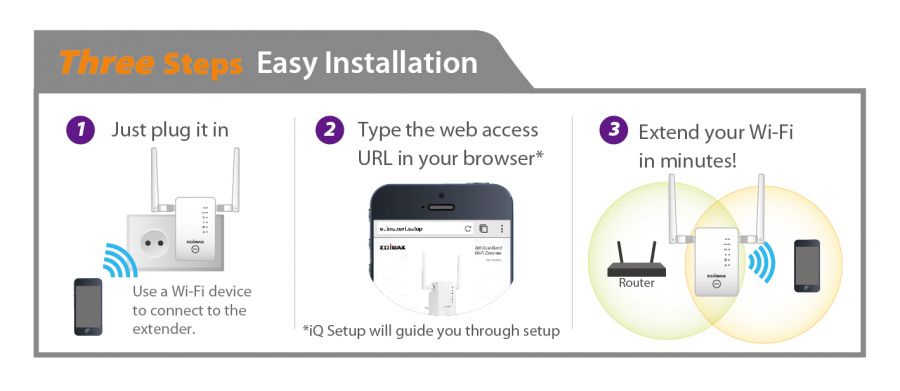

Smart iQ Setup

Features user-friendly browser-based iQ Setup for smart, automatic and quick installation.
iQ Setup automatically detects the available Wi-Fi networks nearby and helps you establish a connection in a few seconds.
Edimax Gemini RE11 AC1200 Dual-Band Home Wi-Fi Roaming Kit, Wi-Fi Extender/Access Point/Wi-Fi Bridge, Smart iQ Setup




Works with any Wi-Fi Router

Universal compatibility and easy web-based iQ Setup for quick and easy installation.
Edimax Gemini RE11 AC1200 Dual-Band Home Wi-Fi Roaming Kit, Wi-Fi Extender/Access Point/Wi-Fi Bridge, Universal Compatibility, works with any wi-fi router



Detachable Antenna

Designed with a detachable antenna, to provide flexibility and high performance connections for your wireless network.
Edimax Gemini RE11 AC1200 Dual-Band Home Wi-Fi Roaming Kit, Wi-Fi Extender/Access Point/Wi-Fi Bridge, detachable antenna

Green Wi-Fi Power Switch

Featuring a new hardware switch to adjust between normal and green Wi-Fi transmit power (the strength of the Wi-Fi signal), or switch off the power with one click. If you only need Wi-Fi in a smaller house, you can switch to green mode to reduce power by 75% and conserve energy.
Edimax Gemini RE11 AC1200 Dual-Band Home Wi-Fi Roaming Kit, Wi-Fi Extender/Access Point/Wi-Fi Bridge,Universal Compatibility, Green Wi-Fi Power Switch, green mode, normal mode, power off

Friendly Signal-Strength Indicator

Designed with a signal strength LED which lets you see the Wi-Fi signal strength received from the router* and guides you to find the best setup location.
Edimax Gemini RE11 AC1200 Dual-Band Home Wi-Fi Roaming Kit, Wi-Fi Extender/Access Point/Wi-Fi Bridge, Signal Strength Indicator


Gemini Series Wi-Fi Roaming Products

Gemini RG21S

Gemini AC2600 MU-MIMO Wi-Fi Roaming Router

Gemini RE11 Kit

Gemini AC1200 Wi-Fi Roaming Range Extender Kit

Gemini RE11S

Gemini AC1200 Wi-Fi Roaming Range Extender

Gemini RE23S

Gemini AC2600 Wi-Fi Roaming Range Extender



SPECIFICATIONS

HARDWARE
Interface
  • 10/100/1000Mbps Ethernet LAN port
  • LED Indicator: 5GHz, 2.4GHz, Roaming, Power, WPS, LAN
  • 1 x Slide switch
  • 1 x AC plug (EU, UK, US, or AU)
Button
  • WPS button
Power Adapter
  • Built-in 5V, 1.5A power module
Antenna
  • 2 x External detachable antennas
Dimensions
  • 59 (W) x  91 (H) x 40 (D) mm  (power plug & antennas are excluded)
Weight
  • 130g
WIRELESS
Standards
  • IEEE 802.11ac (up to 867Mbps)
  • IEEE 802.11n (up to 300Mbps)
  • IEEE 802.11a (up to 54Mbps)
  • IEEE 802.11g (up to 54Mbps)
  • IEEE 802.11b (up to 11Mbps)
Frequency
  • 5GHz and 2.4GHz concurrent dual-band
Maximum Data Speed
  • 5GHz: up to 867Mbps
  • 2.4GHz: up to 300Mbps
Security
  • 64/128-bit WEP, WPA-PSK and WPA2-PSK encryption
  • WPS (Wi-Fi Protected Setup) Configuration
Others
Certification
  • CE, FCC, IC, RoHS
Management
  • Multi-language user interface
  • Firmware upgradable
  • Smart iQ Setup, no CD required
System Requirements
  • Existing wireless home network (2.4GHz/ 5GHz) for Wi-Fi extender/Wi-Fi bridge mode, or Cable/xDSL modem router for access point mode
  • Mobile device or computer with IEEE802.11ac/ a/ b/ g/ n Wi-Fi capability and web browser for software configuration (Internet Explorer, Google Chrome, Firefox, Opera or Safari latest version)
Environment
  • Operating Temperature: 0℃~40℃ (32℉ ~104℉)
  • Operating Humidity: 10%~90% non-condensing
Package Contents
  • One Gemini RE11S Home Roaming Wi-Fi Extender
  • One Ethernet cable
  • Quick installation guide
  • CD with multi-language QIG and user manual
  • Access key card



PACKAGE CONTENT
  • 2 x RE11S Wi-Fi range extenders
  • 1 x Ethernet cable
  • CD with multi-language QIG & user manual
  • Quick installation guide (QIG)
  • Access key card


HARDWARE INTERFACE


Edimax Gemini RE11 AC1200 Dual-Band Home Wi-Fi Roaming Kit, Wi-Fi Extender/Access Point/Wi-Fi Bridge, hardware interface
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
