Wireless Network Management Software
(Free of License Fees)

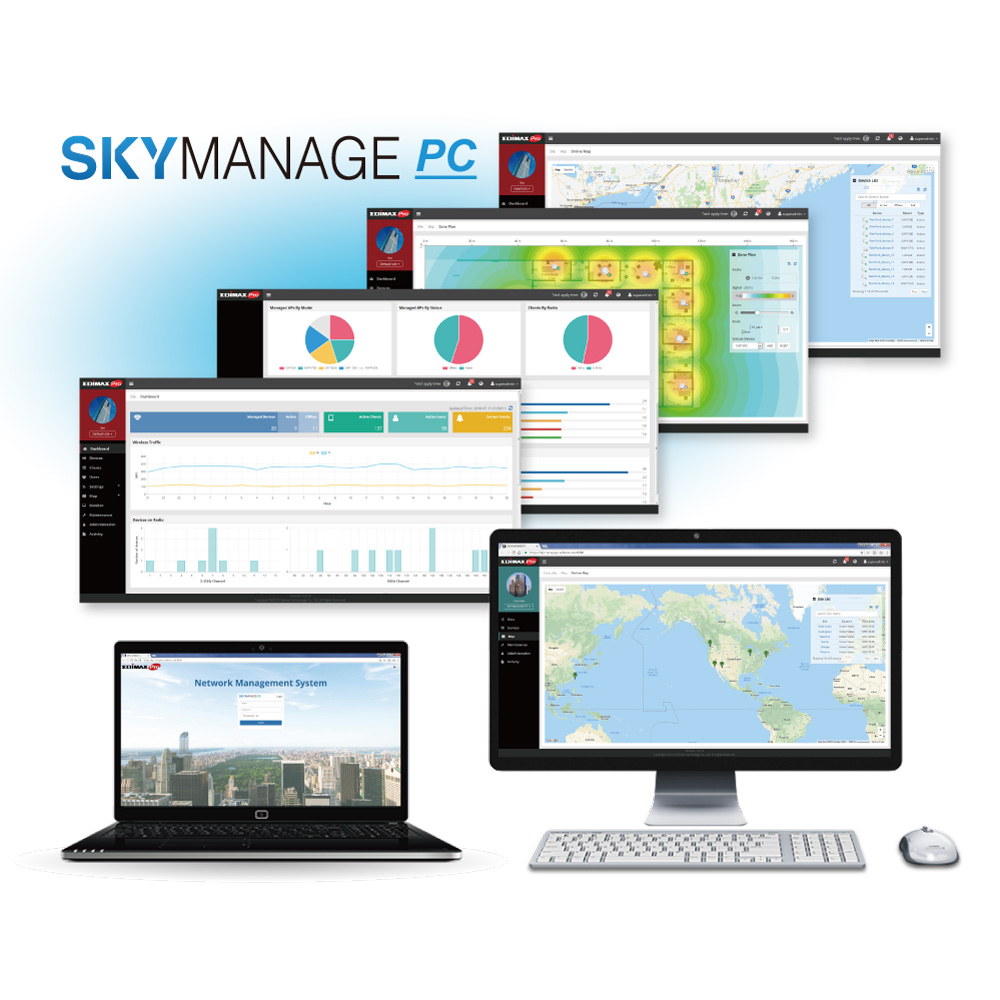

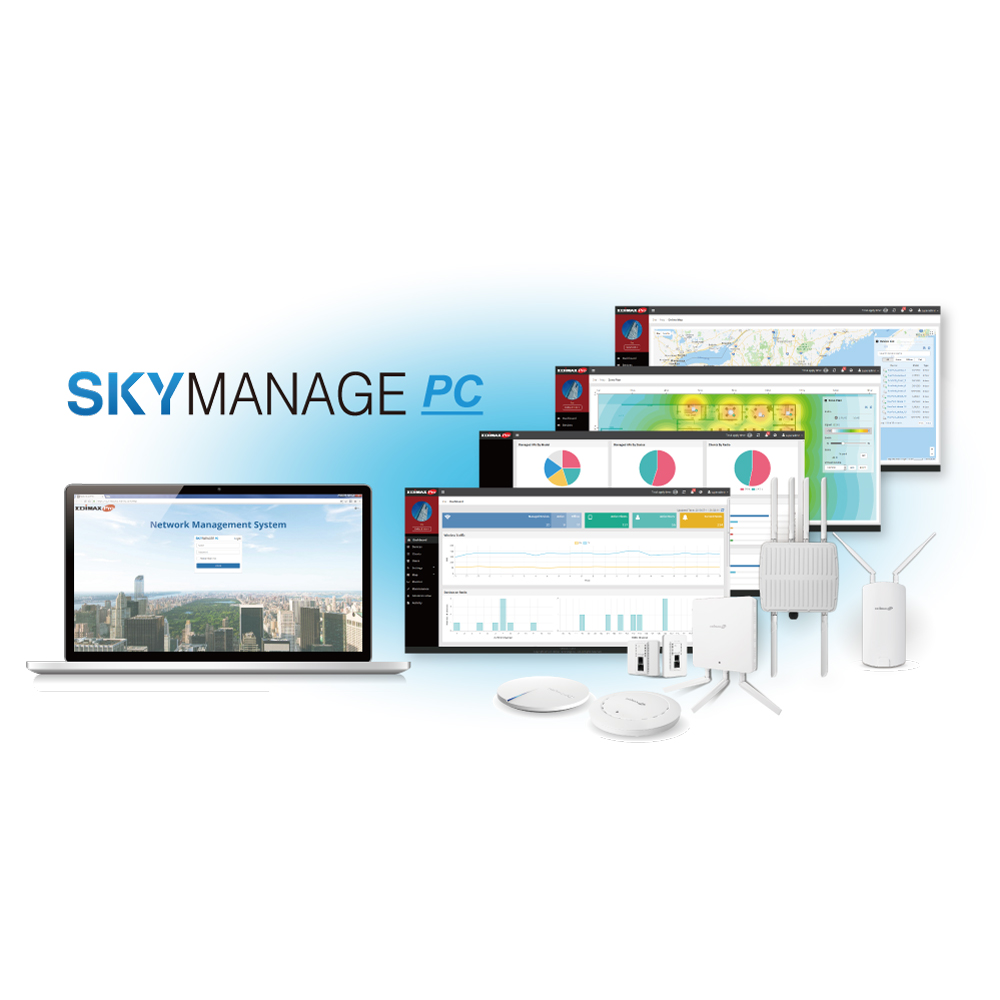

SKYMANAGE PC

Edimax Pro for small and medium business (SMB) Wi-Fi and networkingEdimax Pro Logo
Simplified Wireless Network Management for Businesses, Hospitality, or Schools with Multi-Site Locations.
  • Centralized, Remote AP Management with Windows web-based Wi-Fi network management software.
  • Easy, Flexible, Scalable WLAN Configuration to manage up to 250 Edimax Pro APs and up to 10 multiple sites with multi-tenant capability.
  • Easy Installation with easy setup wizard and auto-discovery utility to locate APs on the network.
  • Private-Cloud Virtual AP Controller , software can be installed on virtual cloud server such as AWS (Amazon Web Service) as a private-cloud AP controller
  • Easy-to-Use Graphical Status, Reports and Tools including real-time dashboard overview, zone plan and Google Maps.
  • Built for Businesses and Projects, ideal for SMB environments such as offices, hotels, schools, resorts, retailers, shopping malls, community, residential, etc.
  • Quick Setup and Optimized Wi-Fi Network Performance
  • Supported APs: Edimax Pro CAP, WAP, OAP & IAP series


Simplified Wireless Network Management

for Businesses, Hospitality, or Schools with Multi-Site Locations



Edimax Pro SkyManage PC Centralized, Remote AP Management


Centralized, Remote AP Management

Installed on a local PC or installed on a cloud server* such as AWS for remote management. SKYMANAGE PC helps network administrators to easily manage and monitor the connected Edimax Pro access points and Wi-Fi clients across multiple sites with multi-tenant capability.


Edimax Pro SkyManage PCf Easy, Flexible, Scable WLAN Configuration


Easy, Flexible, Scalable WLAN Configuration

​Supporting up to 250 access points and 10 multiple sites with easy configuration wizard and access point auto-discovery utility, the SKYMANAGE PC enables the system integrator or network administrator to effectively and efficiently deploy fully functional wireless networks with flexibility and scalability. Additionally, multiples sites and AP groups can be configured and added in the network or update their settings at one time.


Edimax Pro SkyManage PC Private-Cloud Virtual AP Controller


Private-Cloud Virtual AP Controller *

​Easily accessible through any standard web browser, SKYMANAGE PC software is able to implement on virtual cloud server as a private-cloud*. A Wi-Fi network management application which allows the admin remotely access to manage the Wi-Fi networks and access points from anywhere, anytime.  *Need to be installed in cloud virtual server service such as AWS which is not included with the software.


Edimax Pro SkyManage PC Easy-to-Use Graphical Status, Reports and Tools


Easy-to-Use Graphical Status, Reports and Tools

​Intuitive interface and graphical dashboard showing the network status for easy configuration and quick access to key performance and monitoring information. Network administrators can use site images, zone plan and Google Maps for visual overviews of network setup, with easy drag-and-drop features to plan and simulate AP deployment to determine the best coverage areas for your APs.


Edimax Pro SkyManage PC Built for Business and Projects


Built for Business and Projects

​Easy to use and view real-time status and historical data with a dashboard overview web UI for the connected APs and clients across multiple sites. With rich features including traffic management, RF performance configuration, spectral analysis, Airtime Fairness, Band steering, auto channel, guest portal and more, SKYMANAGE PC is ideal for the demands of small-to-medium business environments including offices, hotels, schools, resorts, retailers, shopping malls, community, residential, etc., and system integrator projects.


Edimax Pro SkyManage PC No License Fees at Lower Total Cost of Ownership


​No License Fees at Lower Total Cost of Ownership

​SKYMANAGE PC is free to use and no licensing cost. Total cost of ownership (TCO) of wireless network deployment with the SKYMANAGE PC impresses even the most cost-restricted organizations. Guaranteed to provide unmatched WLAN ROI (Return of Investment).

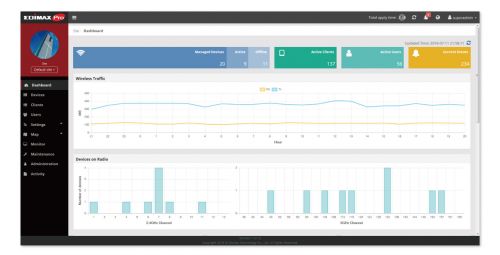

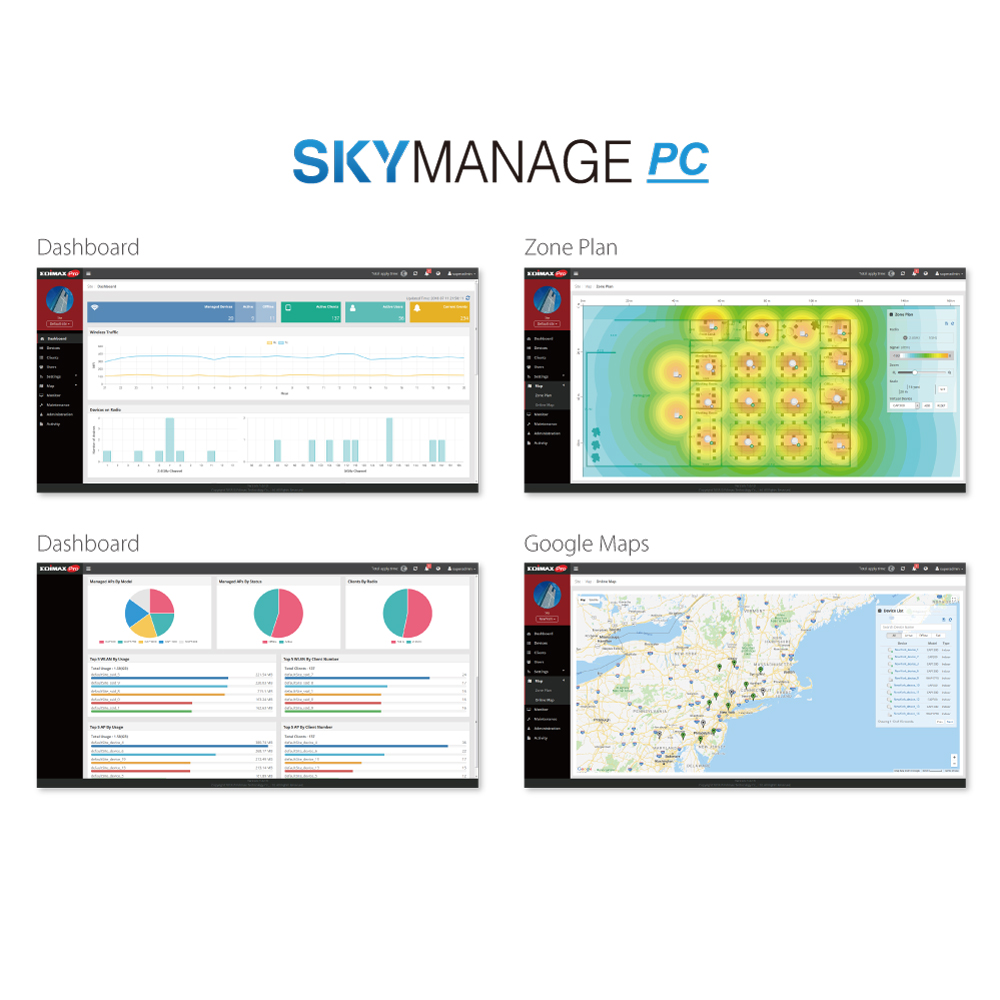

Dashboard

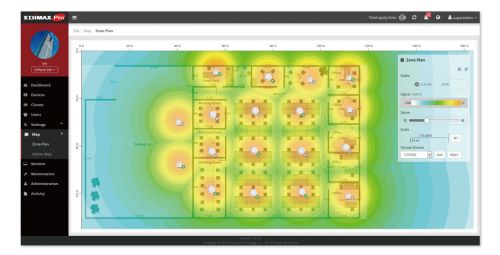

Zone Plan

Edimax Pro SkyManage PC Intuitive Interface and graphical dashboard, Zone plan, Google Maps for AP deployment

Edimax Pro SkyManage PC Intuitive Interface and graphical dashboard, Zone plan, Google Maps for AP deployment

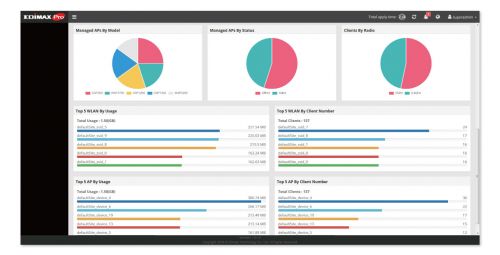

Dashboard

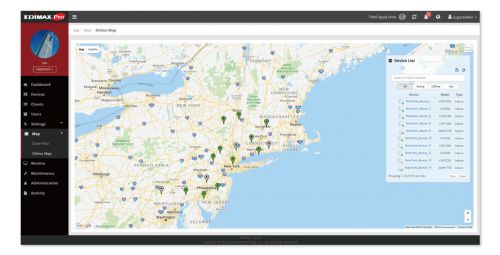

Google Maps

Edimax Pro SkyManage PC Intuitive Interface and graphical dashboard, Zone plan, Google Maps for AP deployment Edimax Pro SkyManage PC Intuitive Interface and graphical dashboard, Zone plan, Google Maps for AP deployment

Built for Business or Projects



Edimax Pro SkyManage PC Multi-Site for Business

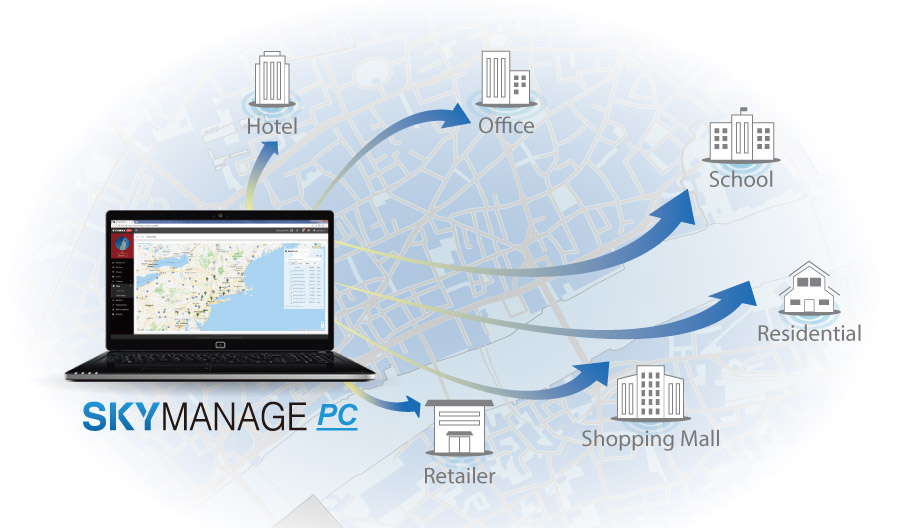

Edimax Pro SkyManage PC Multi-Site for SI Projects

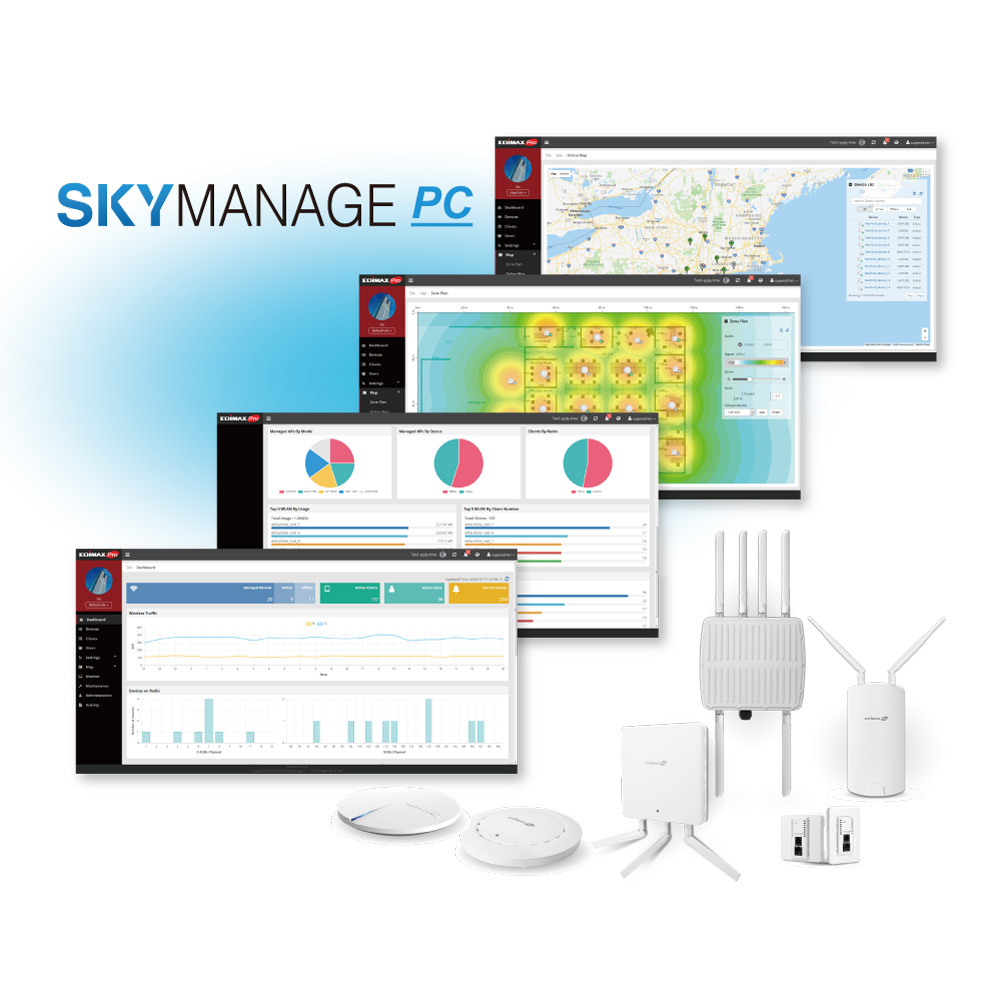

Supported Access Points

Edimax Pro CAP, WAP, IAP and OAP series access points

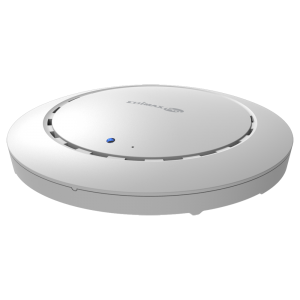

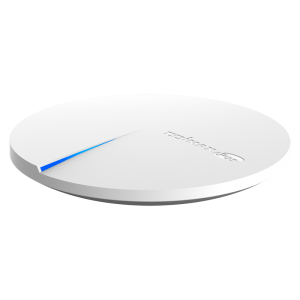

Ceiling-Mount Access Point

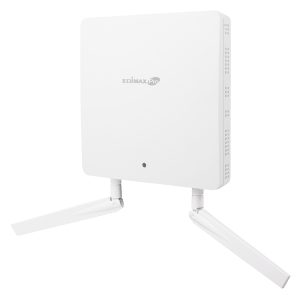

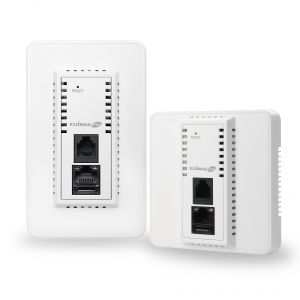

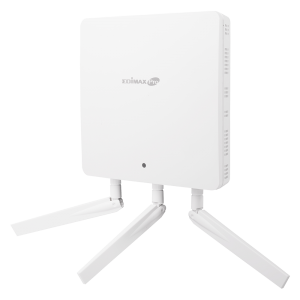

In-Wall & Wall-Mount Access Point

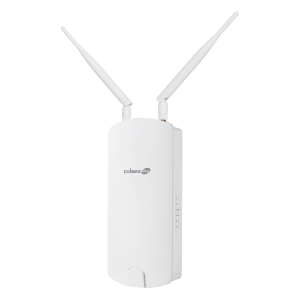

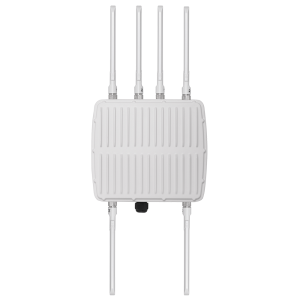

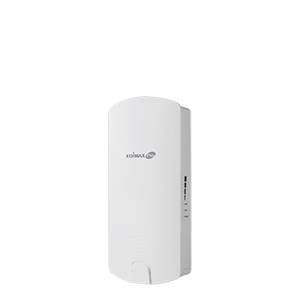

Outdoor Access Point

*The software is free and provided “As Is” without warranty, service, or support. Please contact Edimax authorized distributor to download the software.



SPECIFICATIONS

MANAGEMENT
Inerface Windows Web-Based
Setup Wizard V
AP Provision V
Dashboard V
Multiple Sites V
Multiple Tenant V
Device List V
Wireless Client List V
Guest User List V
Wireless Scheduling V
Activities V
Bluk Firmware Upgrade V
Supported AP Models All Edimax Pro CAP / WAP / IAP / OAP Series Access Points
SETTINGS
Radio V
WLAN V
Radius V
Advance V
VLAN V
Time & Date V
Administration V
Override Settings V
Bulk Configurations V
Save & Apply V
STATISTICS
Radio Channel
Network Traffic Tx / Rx
Client Numbers V
System CPU / Memory Usage
DEPLOYMENT
L3 AP Management V
AP Planning V
Locate AP Buzzer / LED / Reboot
Zone Plan V
Google Maps V
RADIO RESOURCE MANAGEMENT
Auto Channel V
AirTime Fairness V
Band Steering V
802.11 r/k Roaming V
WIRELESS QOS
Traffic Shaping (Per-SSID) V
SECURITY
Wireless L2 Isolation V
TLS Protocol V1.2
NMS Security Key V
NAT Traversal V
GUEST NETWORK
Gust Portal V
Guest Access V
FUNCTION ITEMS
Managed AP 250
Managed Sites 10
WLAN SSIDs 16 + 16
Schedule 20
Admin 5
SYSTEM REQUIREMENT
CPU Intel Core i5
Memory 8GB RAM
Storage 20GB Free HD Space
Operation System Windows 7 or Higher, 64-bit
Software Web Browser (Internet Explorer 10 or above, Firefox 34.0 or above, Chrome 31.0 or above), Java 8



*The software is free and provided “As Is” without warranty, service, or support. Please contact Edimax authorized distributor to download the software.

*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
