Powerful Outdoor Solution with High Speed AC1300 for Modern Business

The OAP1300 features an IP56 rated weatherproof housing and provides a premium wireless solution designed for SMBs which demand elite network performance. The product features the latest 2 x 2 IEEE 802.11ac technology for wireless speeds up to 1300Mbps. A wall or pole-mounted design and industrial-grade build quality combined with user-friendly operation and extensive feature set, make an ideal high-performance solution for demanding day-to-day enterprise outdoor long range Wi-Fi and Point-to-Point applications such as WISP clients, Internet sharing, wireless surveillance in multi-tenant units (MTUs) and multi-dwelling units (MDUs) with PoE and easy installation mounting kits.

For businesses that demand security, flexibility and speed – the Edimax Pro series has a wide range of potential applications from office environments to schools, campuses, hotels and hospitals. Multiple SSIDs can be configured for different departments or user groups and a built-in RADIUS server provides additional verification with a scalable AP array architecture for central management of multiple access points. High-density capacity for up to 200 simultaneous clients (100 clients per band), ideal for BYOE workplaces or other environments with a high volume of clients and wireless devices, and fast roaming allows for seamless transitions between multiple access points. Power over Ethernet (PoE) support and an intuitive web-based management interface provide deployment flexibility and extensive management options for company MIS departments and network administrators.

When performance and security are critical for your business, you need products that are engineered for your industry. The Edimax Pro series is designed to help your business and provide the connectivity that you rely on every day, with safety and effectiveness guaranteed, and the OAP1300 offers the highest level of wireless performance on the market today.



KEY FEATURES

• 802.11ac Wave 2 High Speed Dual-Band: IEEE 802.11ac concurrent dual-band with 1300Mbps wireless speed.
• Multi-Device (MU-MIMO): Efficient MU-MIMO (Multiple User - Multiple Input Multiple Output) technology serves multiple devices simultaneously.
• Easy Installation: Wall-mount or pole-mounted design with easy installation kit.
• Rugged Construction: IP56 weatherproof housing can perform normally under rigorous weather.
• Designed for High Density Usage: Supports up to two hundred users simultaneously (one hundred users per band), ideal for crowded environments and BYOE (Bring Your Own Everything) workplace Wi-Fi connection.
• Multiple SSIDs for Security Management: Supports up to 32 SSIDs (16 x 2.4GHz & 16 x 5GHz) ideal for multiple departments, user groups, customers or guests.
• Fast Roaming: Roams smoothly between APs without lag or interruption, ensuring top performance for video and voice streaming applications.
• Wide Coverage & High Sensitivity: Adjustable RF output power and high receiver sensitivity for wide coverage across large spaces.
• Seamless Mobility: 1.5x greater coverage than typical APs for blanket coverage to ensure seamless connectivity for Wi-Fi devices across enterprise environments.
• Power over Ethernet In/Out: Supports IEEE 802.3at PoE and IEEE 802.3af PSE, PoE out (802.3af) to power another PoE device such as IP camera or outdoor AP.
• Built-in Lighting Arrester: Built-in withstands up to 10 kA current provides lightning protection for your wireless equipment.
• Built-In RADIUS Server: With management for up to 256 user accounts.
• Central Management: Edimax Pro Network Management Suite (NMS) for easy and intuitive web-based central management. AP built-in with NMS that supports AP array architecture.
• Works with Office 1-2-3 Wi-Fi System/Master AP: The Office 1-2-3 system is a simple, secure, complete and expandable office  Wi-Fi solution. OAP1300 with upgradeable firmware (OAP1300 Office +1) for full Office 1-2-3 system compatibility, the integration supports guest, employee and device networks to offer a perfect solution for office with outdoor area or warehouse.

​





​High Performance Design with High-Speed 1300Mbps Dual-Band 11ac

State-of-the-art IEEE 802.11ac wireless technology delivers the Giga-fast  Wi-Fi speeds that today’s fast-moving modern business environments demand. And simultaneous 2.4GHz & 5GHz dual-band coverage means maximum flexibility for mobile-centric business productivity applications. Speeds up to 400Mbps on the 2.4GHz band and 866Mbps on the 5GHz band can handle even the most bandwidth intensive tasks, perfect for audio, video and voice applications and significantly faster than traditional 802.11n Wi-Fi. Additionally Edimax Pro series products feature other high-performance design features such as solid capacitors for significantly longer lifespans than traditional non-solid alternatives, generating less heat and delivering increased stability. Durable, robust and ready for business environments.​




​Wide Coverage & Multiple SSIDs

With adjustable RF output power and high receiver sensitivity, Edimax Pro access points are equipped to provide wide coverage where it’s needed the most. Suitable for large spaces across office floors, shop floors, hospital wards, or conference rooms, get the wireless coverage that staff and systems need to operate efficiently. Keep every corner of your business connected and differentiate user groups, departments or guests with up to 32 separate SSIDs with independent security. Wide, accessible Wi-Fi coverage with strong security to protect sensitive company information and supervise access to internal networks.




BYOE or BYOD Solutions & High Density Networking

Bring Your Own Everything (BYOE) or Bring Your Own Device (BYOD) is becoming an increasingly commonplace company trend in offices and enterprise environments worldwide. Employees are using their own smartphones, tablets and laptops with the latest cloud-connected productivity apps to get things done, and traditional 2.4GHz is crowded, so most of these devices need or support high-speed 5GHz Wi-Fi. And in offices, hotels, schools or other densely populated environments, access points need to cope with a high volume of users connecting to the network at any time, whether it’s customers or employees. Edimax Pro solutions support the latest 802.11ac 2.4GHz & 5GHz dual-band Wi-Fi along with high-density capacity to support up to a hundred users simultaneously, ideal for BYOE or BYOD workplaces and a large number of wireless devices.




Seamless Mobility

Typical wireless access points can effectively cover a 25m – 30m radius under normal usage. Now with the technological advances in Edimax Pro access points, we can extend effective coverage approximately 1.5x further, eliminating Wi-Fi dead zones completely and providing blanket coverage across enterprise environments. Wireless devices can stay seamlessly connected in environments where connectivity may be a critical component of efficiency and productivity, and benefit from mobility with high-speed connectivity across a range of wireless devices: smartphones, tablets and computers, throughout an entire organization.




Hotels, Offices, Schools, Hospitals and Hotspot Outdoor

Edimax Pro OAP1300 outdoor access points, with high-speed 11ac high-density networking for up to 200 simultaneous users (100 users per radio), are ideal for across university campus, stadiums, outdoor malls, hotels and along side rivers, highways, railways and or anywhere with large-scale outdoor Wi-Fi network use, with safety and effectiveness guaranteed.




Rogue AP Detection & Wireless Isolation

Rogue access point detection can identify any unauthorized SSIDs which may have been installed in an otherwise secure network with malicious intent, and L2 wireless isolation provides wireless security.




Easy and Intuitive Central Network Management: NMS

Work with Edimax Pro NMS (Network Management Suite)* web-based wireless network management software. Company MIS administrators can plan and manage Edimax Pro access points’ powerful functionality according to their office space using an easy, remote web-based interface which includes a dashboard, map view, traffic statistics and wireless client list for network-wide remote administration. RADIUS settings, WLAN group settings, access control, guest network settings and firmware upgrades can all be managed centrally from a single location to reduce network downtime, aid troubleshooting and optimize network performance. Graphical zone plans with Google Maps integration and setup wizards are also available for expanding and managing large networks with multiple access points, with custom floor plans, visual overviews and easy drag-and-drop icons for quick access to key performance and monitoring information.





​AP Array

Edimax Pro Network Management Suite (NMS) supports AP array architecture, which enables the central management of a group of access points. NMS can be installed on one access point and support up to 8 or 16 Edimax Pro access points (8 APs: CAP300, CAP1200; 16 APs: CAP1750, WAP1200, WAP1750, OAP1750) with no additional wireless controller required, reducing costs and facilitating efficient remote AP management. Access points can be deployed and configured according to requirements, creating a network powerful network architecture which can be easily managed and expanded in the future, with an easy to use interface and a full range of functionality for company MISs.
​​​



Easy Installation Kit

SPECIFICATIONS

HARDWARE

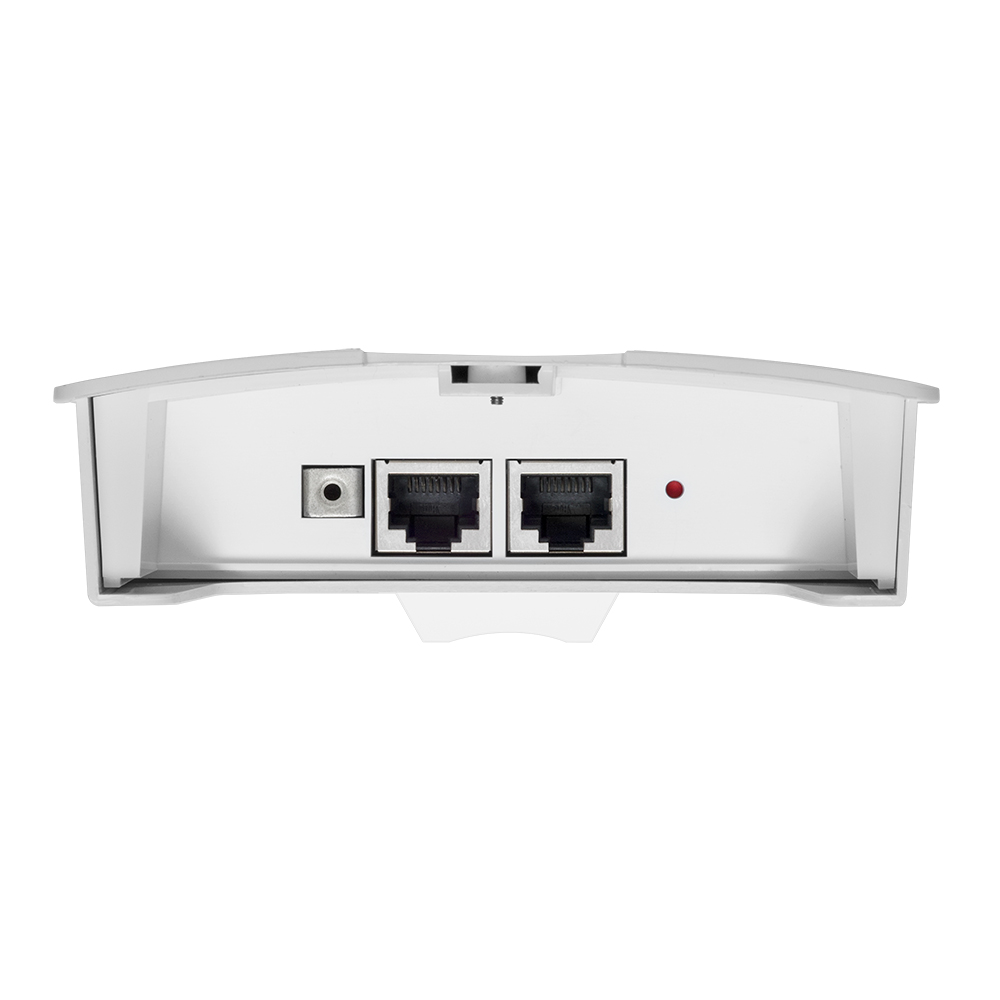

LAN Interface	Giga x 2
PoE	LAN1: PoE IN (802.3af/at) LAN2: PoE OUT (802.3af)

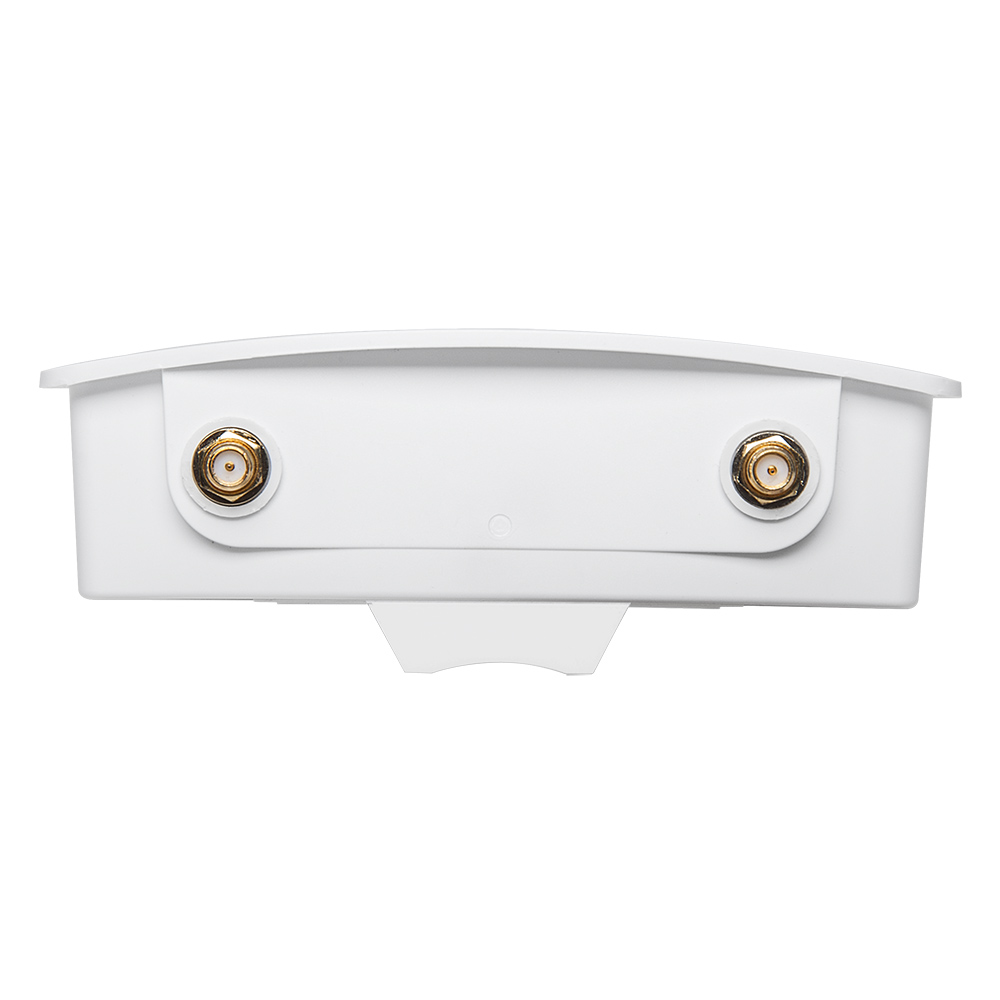

Antenna	Type: 2 x External Gain: 3.9dBi (2.4GHz), 4.4dBi (5GHz)
Power	802.3at (PoE Injector Optional)
Dimensions(L x W x H)	27.18 x 12.09 x 3.5 cm
Weight	592g
Power Consumption (Full Loading)	15W
Mounting	Pole / Wall
Reset	Reset
LED Indicator	Power, Status, LAN(PD), LAN(PSE) 2.4G, 5G
Environmental Conditions	Operating Temperature: -40°C (-40°F) to 60°C (140°F) Operating Humidity: 90% or Less
Power Saving	802.3az
Internal Buzzer	Y
Housing	Outdoor IP56 Weatherproof Rated
WIRELESS
Standard	802.11 a/b/g/n/ac Concurrent Dual-Band
No. of Radios	2
Receiver Sensitivity	≤ -93dBm
Certification	CE, FCC, IMDA
Fast Roaming	Y
Number of SSIDs	16 (2.4GHz) + 16 (5GHz)
PERFORMANCE
Maximum Data Speed	400 + 866Mbps
Concurrent Clients	Up to 100 Per Radio
RF SPECIFICATONS
Frequency Band	•Radio Ⅰ: 802.11b/g/n 2.412 ~ 2.484(GHz) •Radio Ⅱ: 802.11a/n/ac 5.18 ~ 5.24(GHz), 5.26 ~ 5.32(GHz), 5.5 ~ 5.7(GHz), 5.745 ~ 5.825(GHz) (The supported frequency band is restricted by local regulations.)
Operation Channels	•2.4GHz : US/Canada 1-11; 2.412 ~ 2.462GHz  Europe 1-13; 2.412 ~ 2.472GHz  Japan 1-14; 2.412 ~ 2.484GHz •5GHz : Country dependent for the following ranges:               US/Canada: Band 1: 36, 40, 44, 48; 5.180 ~ 5.240GHz Band 2: 52, 56, 60, 64; 5.260 ~ 5.320GHz Band 3: 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140; 5.500 ~ 5700GHz  Band 4: 149, 153, 157, 161, 165; 5.745 ~ 5.825GHz Europe: Band 3: 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140; 5.500 ~ 5700GHz
Transmit Power	•802.11b   20dBm@1Mbps   20dBm@2Mbps   20dBm@5.5Mbps   20dBm@11Mbps •802.11g   20dBm@6Mbps   20dBm@9Mbps   20dBm@12Mbps   19dBm@18Mbps 19Bm@24Mbps   18dBm@36Mbps   17dBm@48Mbps   17dBm@54Mbps •802.11gn (2.4G)   20dBm@MCS0/8/16   20dBm@MCS1/9/17   20dBm@MCS2/10/18 19dBm@MCS3/11/19   19dBm@MCS4/12/20   18dBm@MCS5/13/21   17dBm@MCS6/14/22   17dBm@MCS7/15/23 •802.11a   20dBm@6Mbps   20dBm@9Mbps   20dBm@12Mbps   19dBm@18Mbps   19dBm@24Mbps   18dBm@36Mbps   17dBm@48Mbps   17dBm@54Mbp •802.11an(5G)   20dBm@MCS0/8/16   20dBm@MCS1/9/17   19dBm@MCS2/10/18   19dBm@MCS3/11/19   18dBm@MCS4/12/20   17dBm@MCS5/13/21   16dBm@MCS6/14/22   15dBm@MCS7/15/23 •802.11ac   20dBm@MCS0   20dBm@MCS1   20dBm@MCS2   19dBm@MCS3   19dBm@MCS4   18dBm@MCS5   17dBm@MCS6   17dBm@MCS7   17dBm@MCS8   15dBm@MCS9 (CE: 20dBm or lower, FCC:23dBm or lower)
Receiver Sensitivity	•802.11b   ≤-93dBm@1Mbps   ≤-85dBm@11Mbps •802.11g   ≤-86dBm@6Mbps   ≤-70dBm@54Mbps •802.11gn (2.4G)   ≤-86dBm@MCS0   ≤-62dBm@MCS8   ≤-57dBm@MCS9 •802.11a   ≤-85dBm@6Mbp   ≤-68dBm@54Mbps •802.11an(5G)   ≤-85dBm@MCS0   ≤-64dBm@MCS7 •802.11ac   ≤ -85dBm@MCS0   ≤ -61dBm@MCS8   ≤ -54dBm@MCS9
SECURITY
Encryption	WEP / WPA / WPA2
Wireless L2 Isolation	Y
Station Isolation	Y
IEEE 802.1x Authenticator	Y
EAP Authentication	PEAP
Hidden SSID	Y
MAC Address Filter	Y
Wireless STA	Y
Rogue AP Detection (w/ Edimax Pro Network Management Suite (NMS))	Y
SOFTWARE
Wireless Mode	AP / WDS AP / WDS Bridge / Client
802.1q VLAN	Y (VID = 1-4095)
Spanning Tree	RSTP
QoS	WMM (802.11e) Max Associated Station No.
Pass-Through	IPv6 and VPN (PPTP, L2TP/IPsec)
DSCP (802.1p)	Y
Multicast Rate up to 54Mbps	Y
MANAGEMENT
Deployment	Standalone (AP Mode) Managed AP Mode: ​Managed by AP Controller (APC500), Edimax Pro Master AP with NMS  software Managed by Office 1-2-3 Master AP (with dedicated firmware of OAP1300 Office +1)
Configuration	HTTP / HTTPS SNMP v1, v2c, v3 CLI (Telnet, SSH)
RADIUS Server	Built-In
Auto-Channel	Y
Private MIB	Y
PACKAGE CONTENTS
Access Point	AC1300 Outdoor PoE Access Point
Antenna	2.4GHz/5GHz Omni x 2
Mounting Bracket	Wall-Mount & Pole-Mount Bracket Kit
Cable	Ethernet Cable
CD / Qick Installation Guide	CD (User Manual & Multi-Language Quick Installation Guide) / Printed English Quick Installation Guide
ACCESSORIES
Optional	GP-101IT IEEE802.3at PoE Injector
