The BR-6428nS V5 adopts the most popular wireless standard: IEEE 802.11n, which is also identified as generation Wi-Fi 4 and provides significantly improved coverage with its high-gain antennas. Operating as a router, access point, range extender or WISP, the BR-6428nS V5’s flexibility meets the demands of most networking applications. The smart Setup wizard makes installation as easy as a few clicks. Impressive performance makes the BR-6428nS V5 an excellent solution for home or small office environments.
The BR-6428nS V5 can work as 4 major modes for wireless networking, including router, access point, range extender, and WISP modes. No matter you want to use it simply over a router for Internet sharing, as an access point for transferring wired connection into wireless network, extending the signals to be a range extender, or sharing a wireless Internet connection with all your devices, just switch it for your network environment by using the smart setup wizard.
BR-6428nS V5 makes it easy to do more with your digital devices. Or, use Push ‘WPS’ Connect to add devices to your Wi-Fi network with a push of a button. And the simple browser-based installation with no CD makes router installation easy using an iPad, tablet, smartphone, or computer.
SPECIFICATIONS
HARDWARE | |
Interface | 1 x RJ-45 10/100Mbps WAN port, 4 x RJ-45 10/100Mbps LAN port |
Button | WPS/Reset |
LED Indicator | Power, Wireless , Internet, LNK/ACT for LAN, WPS |
Antenna | 2 x antennas |
Memory | 2 MB NOR Flash, 8 MB RAM |
Power Adapter | DC 9V/0.4A |
Dimensions / Weight | 153.8(W)mm x 107(D)mm x 25(H)mm, 150g |
WIRELESS | |
Standards | 802.11 b/g/n/ |
Frequency | 2.4GHz |
Maximum Data Speed | 2.4GHz: 300Mbps |
Receive Sensitivity | 11g (11Mbps): -79 ±2dBm, 11g (54Mbps): ‐68±2dBm 11n(20MHz, MCS7): ‐67±2dBm, 11n(40MHz, MCS7): ‐64±2dBm |
Transmit Power | 11n:16dBm ±1dBm, 11g:17dbm ±1dBm |

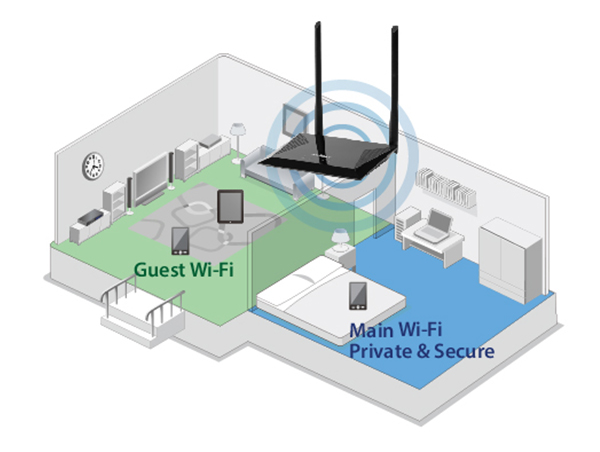

Guest Network | 2.4GHz guest network × 1 |
Security | WEP, WPA , WPA2, WPA-PSK & WPA2-PSK security Hardware & software WPS configuration |
SOFTWARE FEATURES | |
Management | Multi-language user interface Remote management, access control System status and security log Firmware upgradable Smart Setup, no CD required |
WAN | Protocol: Dynamic IP, Static IP, PPPoE Supports RJ-45 cable |
Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
DHCP | Server, Client, DHCP Client List, Address Reservation |
Dynamic DNS | DynDns |
Access Control | Bandwidth Control, Host List, Access Schedule |
Firewall Security | SPI Firewall, IP and MAC Address Binding, Wireless MAC Filtering |
Protocols | Supports IPv4 |
Guest Network | 2.4GHz guest network x 1 |
Operation Mode | Wi-Fi Router , Access Point, Range Extender, WISP |
OTHERS | |
Certification | CE, RoHS |
Environmental Condition | Operating humidity: 10 - 90% (non-condensing) Operating temperature: 32 - 104°F (0 - 40°C) |
