N300 Multi-Function Wi-Fi Router
Three Essential Networking Tools in One

BR-6428nC

  • 3-in-1 Router, Access Point, and Range Extender
  • Smart iQ Setup for smart, automatic and quick installation with no CD required
  • 9dBi High Gain Antenna: Enhances wireless range and coverage
  • Guest network: Provides connectivity while isolating guests from your primary network.
  • Wi-Fi Protected Setup (WPS) Button: For easy one-click setup


The BR-6428nC is a 300Mbps high-speed multi-function Wi-Fi solution which supports IEEE 802.11b/g/n standards and provides significantly improved coverage with the 9dBi antenna. Operating as a router, access point or range extender, the BR-6428nC’s flexibility meets the demands of any networking applications. The smart iQ Setup wizard makes setup and installation as easy as a few clicks. Impressive performance and a competitive price make the BR-6428nC a cost-effective solution for home or small office environments.

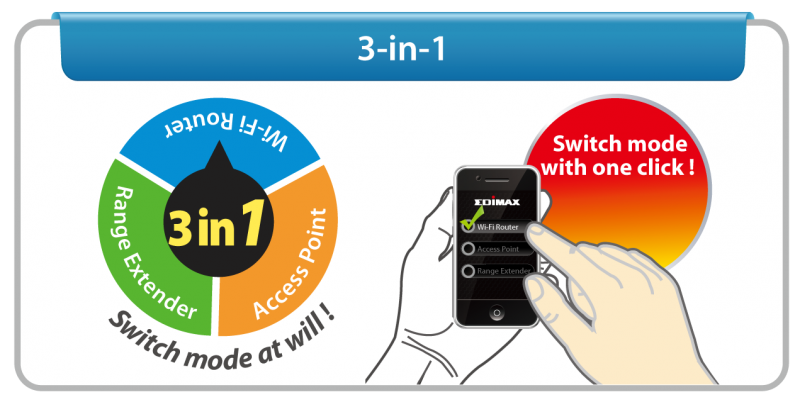

3-in-1 Router, Access Point and Range Extender

The BR-6428nC can work as router, access point or range extender. Just configure the mode you need for your network environment using the smart iQ Setup wizard and enjoy surfing the web.

Edimax BR-6428nC N300 Multi-Function Wi-Fi Router ,Three Essential Networking Tools in One, supports 3-in-1 router, access point and range extender modes

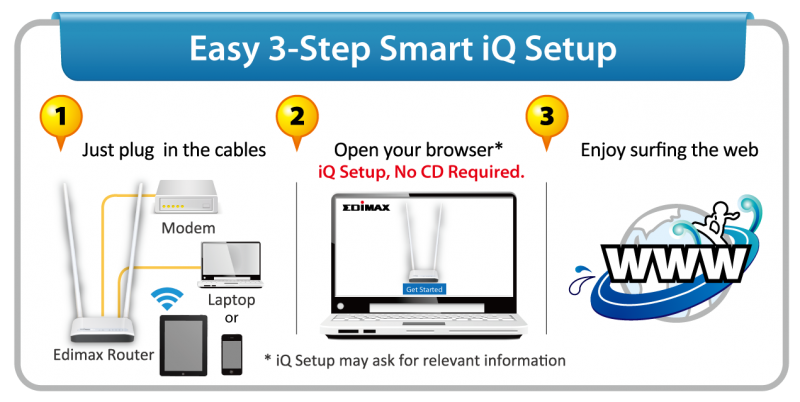

Smart iQ Setup

Features iQ Setup for smart, automatic and quick installation with no CD required.


Edimax BR-6428nC N300 Multi-Function Wi-Fi Router, Three Essential Networking Tools in One, supports Smart iQ Setup

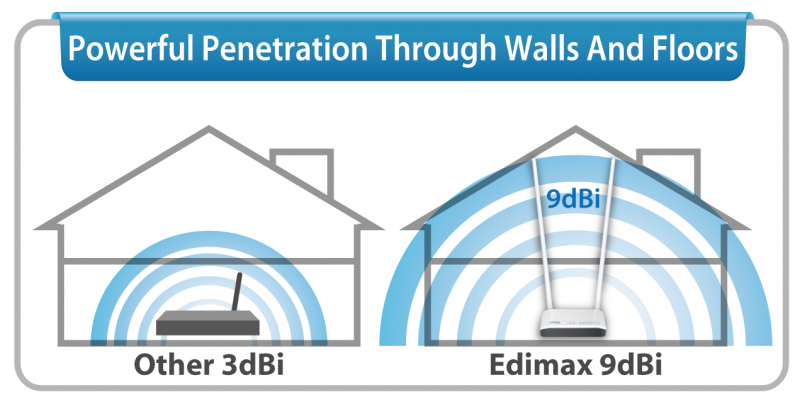

9dBi High Gain Antenna

Employs two 9dBi high gain antennas to enhance wireless range and coverage, providing powerful penetration through walls and floors.


Edimax BR-6428nC N300 Multi-Function Wi-Fi Router, Three Essential Networking Tools in One, with 9dBi high gain antenna for better coverage

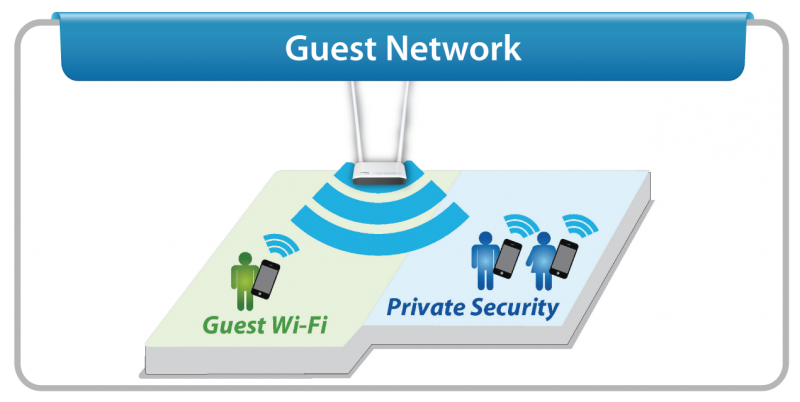

Guest Network*

Supports a guest network to provide connectivity while isolating guests from your primary network.
*Router mode only


Edimax BR-6428nC N300 Multi-Function Wi-Fi Router, Three Essential Networking Tools in One, supports guest network

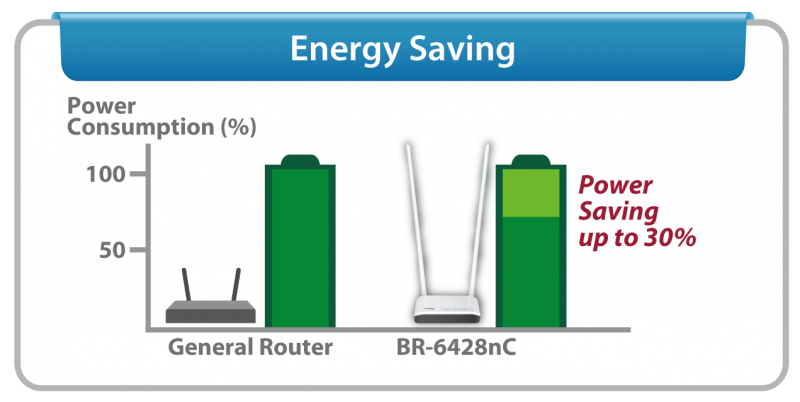

Green Technology

Designed with the latest green technology, the BR-6428nC uses 30% less power compared to other standard 300Mbps routers.


Edimax BR-6428nC N300 Multi-Function Wi-Fi Router, Three Essential Networking Tools in One, with green technology for energy saving

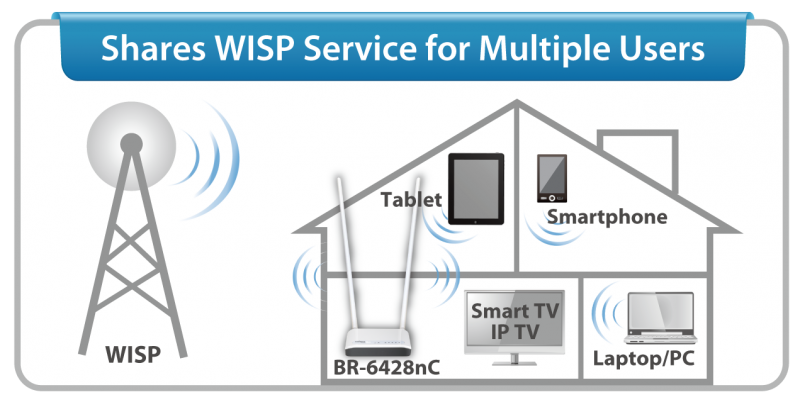

Wireless Internet Service Provider (WISP) Connection Mode

With WISP support, the BR-6428nC is able to share an Internet connection from a wireless ISP access point and convert it into a wired or wireless network for multiple users in your home or office.


Edimax BR-6428nC N300 Multi-Function Wi-Fi Router, Three Essential Networking Tools in One, supports WISP (Wireless Internet Service Provider) mode




Wi-Fi Protected Setup (WPS) Button

The BR-6428nC has a one-click Wi-Fi Protected Setup (WPS) button to help you set up and activate a secure wireless network in a snap.


Edimax BR-6428nC N300 Multi-Function Wi-Fi Router, Three Essential Networking Tools in One, supports WPS (Wi-Fi Protected Setup) button for easy one-click WPS setup




APPLICATION DIAGRAMS



Edimax BR-6428nC N300 Multi-Function Wi-Fi Router, Three Essential Networking Tools in One, supports 3-in-1 router, access point and range extender modes



SPECIFICATIONS
Functions
  • Supports router, access point & range extender modes
  • Port triggering for special applications
  • DDNS and SIP
  • Guest network
  • Virtual server and DMZ hosting
  • MAC/IP filter and URL blocking
  • Static routing
  • UPnP architecture
  • VPN pass-through (IPSec/PPTP)
  • Wi-Fi schedule control
Hardware Interface
  • 1 x RJ-45 Fast Ethernet WAN port
  • 4 x RJ-45 Fast Ethernet LAN port
  • LED Indicators: power, wireless, WAN, LNK/ACT for LAN
  • 2 x 9dBi detachable antenna
  • WPS/Reset button
Management & Installation
  • Intuitive user interface
  • System status and security log (web interface)
  • Firmware upgradeable
  • Smart iQ Setup, no CD required
  • Supports smartphone, tablet or laptop setup. (iOS 4 or Android 4 and above are required for smartphone or tablet setup.)
WAN
  • Supports WISP connection mode
  • Supports RJ-45 cable/xDSL modems
  • WAN protocol: PPPoE, static IP, dynamic IP, PPTP and L2TP
Output Power
  • E.I.R.P: < 20dBm
Receive Sensitivity
  • 11b(11Mbps): -83dBm±2dBm
  • 11g(54Mbps): -71dBm±2dBm
  • 11n(20MHz): -68dBm±2dBm
  • 11n(40MHz): -64dBm±2dBm
Security
  • NAT/NAPT IP sharing
  • WEP, WPA & WPA2 encryption
  • DHCP server/client
  • QoS for critical operations
  • SPI anti-DoS firewall
Memory
  • 4MB NOR Flash
  • 16MB RAM
Humidity & Temperature
  • Humidity: 10-90% (non-condensing)
  • Temperature: 0-40°C
Power Adapter
  • DC 5V, 1A
Dimensions
  • 135 (W) mm x 110 (D) mm x 28 (H) mm
  • Antenna: 385mm
Weight
  • 234g (antenna weight included)
  • Antenna: 38.5mm, 40g/pc
Certification
  • FCC, CE

​

​PACKAGE CONTENT

  • Multi-function Wi-Fi router
  • Quick installation guide
  • CD with multi-language QIG and user manual
  • Ethernet cable
  • Power adapter (5V, 1A)
  • 9dBi detachable antenna x 2


HARDWARE INTERFACE

Edimax BR-6428nC N300 Multi-Function Wi-Fi Router Three Essential Networking Tools in One, hardware interface

*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
