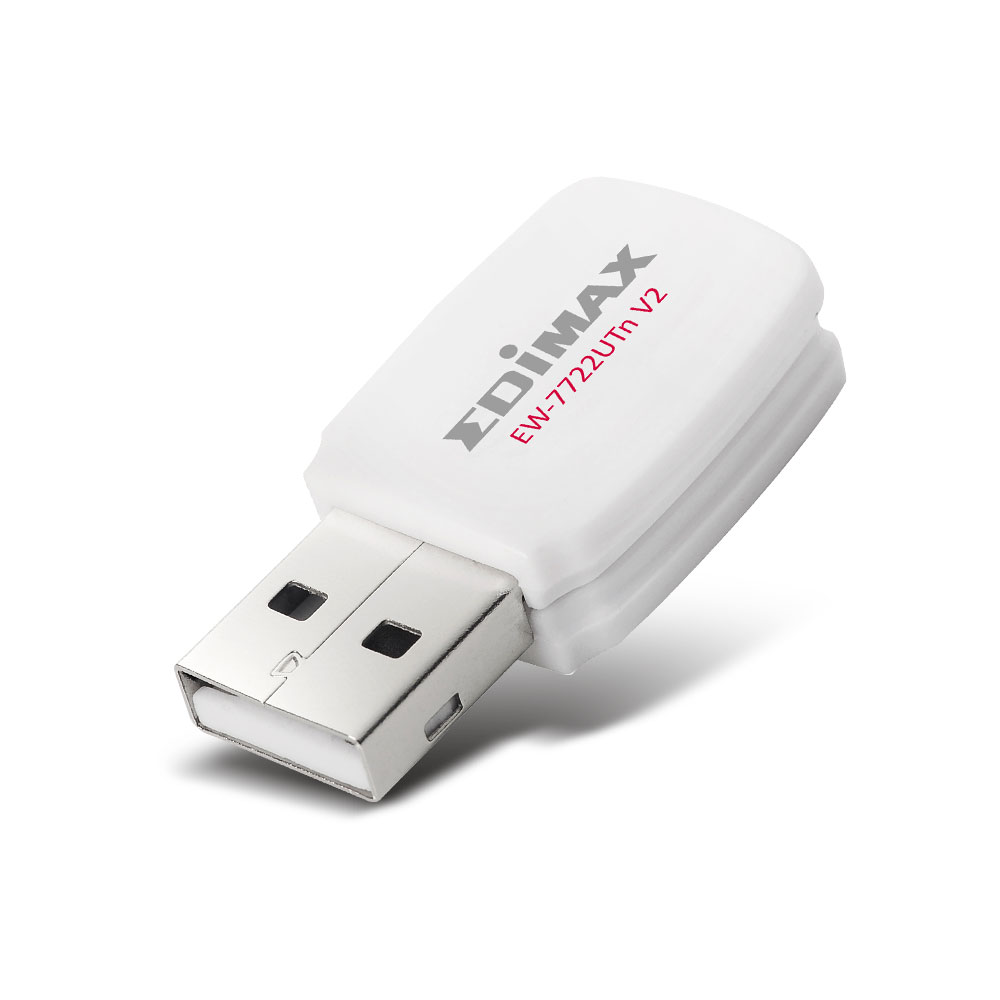

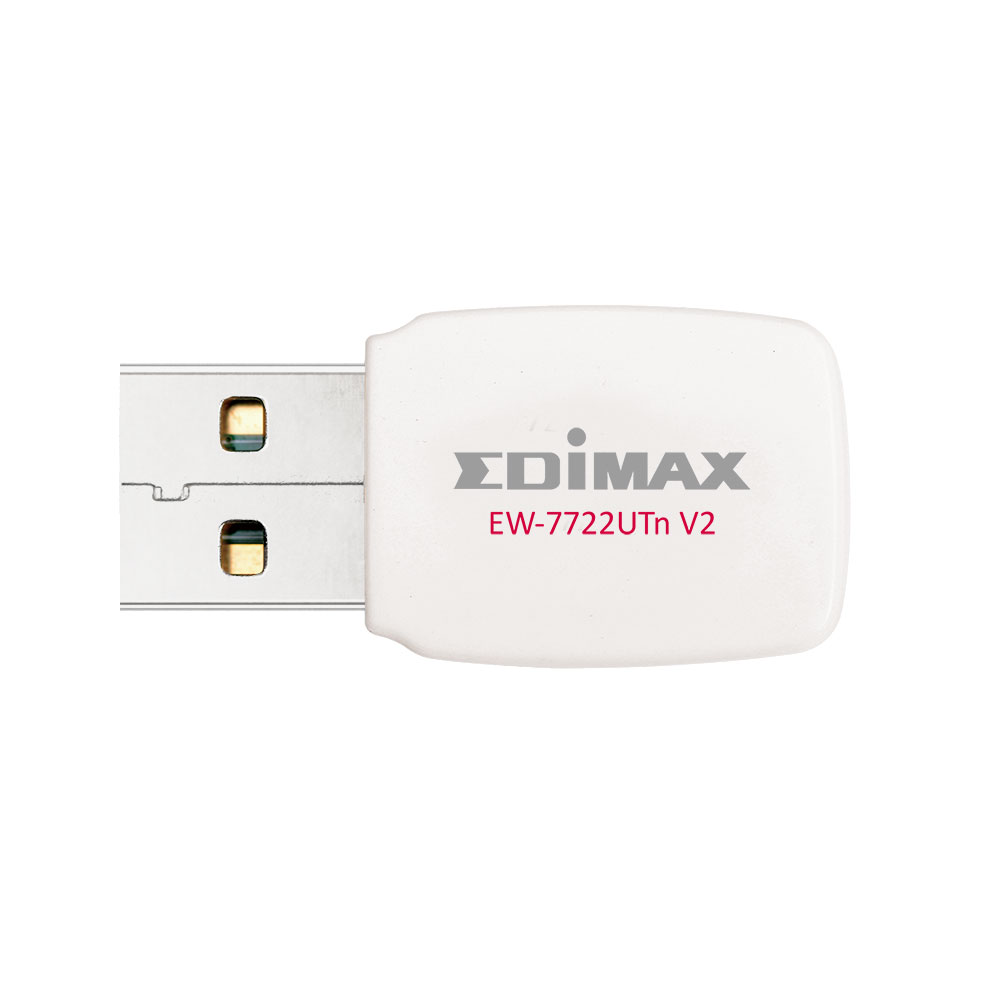

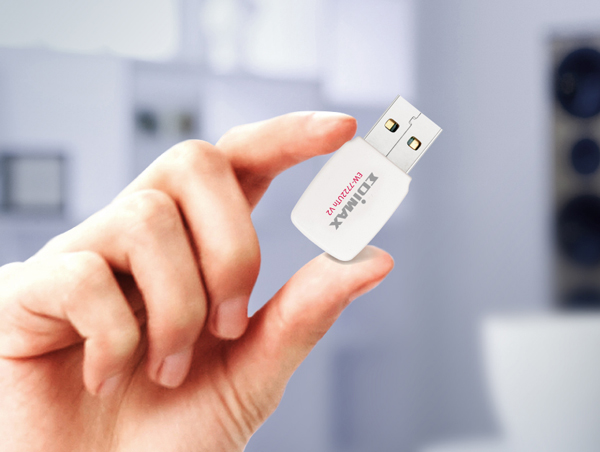

300Mbps Wireless Mini USB Adapter

EW-7722UTn V2

  • Complies with wireless 802.11b/g/n standards with data rates up to 300Mbps
  • Supports Green WLAN to reduce power consumption
  • Increases wireless coverage up to 5 times further**
  • Includes multi-language EZmax setup wizard
  • Supports 64/128-bit WEP, WPA , WPA2 encryption and WPS
  • Supports WMM
  • Supports software AP mode

Edimax EW-7722UTn V2 300Mbps Wireless Mini USB Adapter, Windows 10 supported Edimax EW-7722UTn V2 300Mbps Wireless Mini USB Adapter, Compatible with Raspberry Pi



The EW-7722UTn V2 is a high-speed wireless USB adapter that boasts maximum range and speed. This wireless USB adapter can achieve data transfer rates of up to 300Mbps when connected to wireless 802.11n devices, which is 5 times faster than a 802.11g connection. Enjoying high-speed wireless network access is as simple as plugging the Edimax EW-7722UTn V2 into your computer’s USB port. This is for sure the trendiest way to upgrade your wireless network connectivity.


Wireless 802.11n Standard (data rates up to 300Mbps)

The Edimax EW-7722UTn V2 gives you increased wireless coverage and higher data transmission rates. The latest wireless technology is built into this device to broaden its wireless coverage by 5 times and to reduce dead spots within the wireless range. The EW-7722UTn V2 complies with wireless IEEE 802.11b/g/n standards and can reach data transmission rates of up to 300Mbps when connected to wireless 802.11n devices. It also extends its wireless signal distance, and provides more reliable wireless connections than standard IEEE 802.11b/g wireless networks.

Green WLAN for Improved Energy Efficiency

The EW-7722UTn V2 has adapted a clever protocol for smarter management of power usage. This wireless USB adapter smartly adjusts its power output according to transmission distance and CPU offload. It drastically reduces power consumption when the connection is in idle. Designed with green WLAN technology, the EW-7722UTn V2’s power consumption can be reduced an average of 20% to 50%.

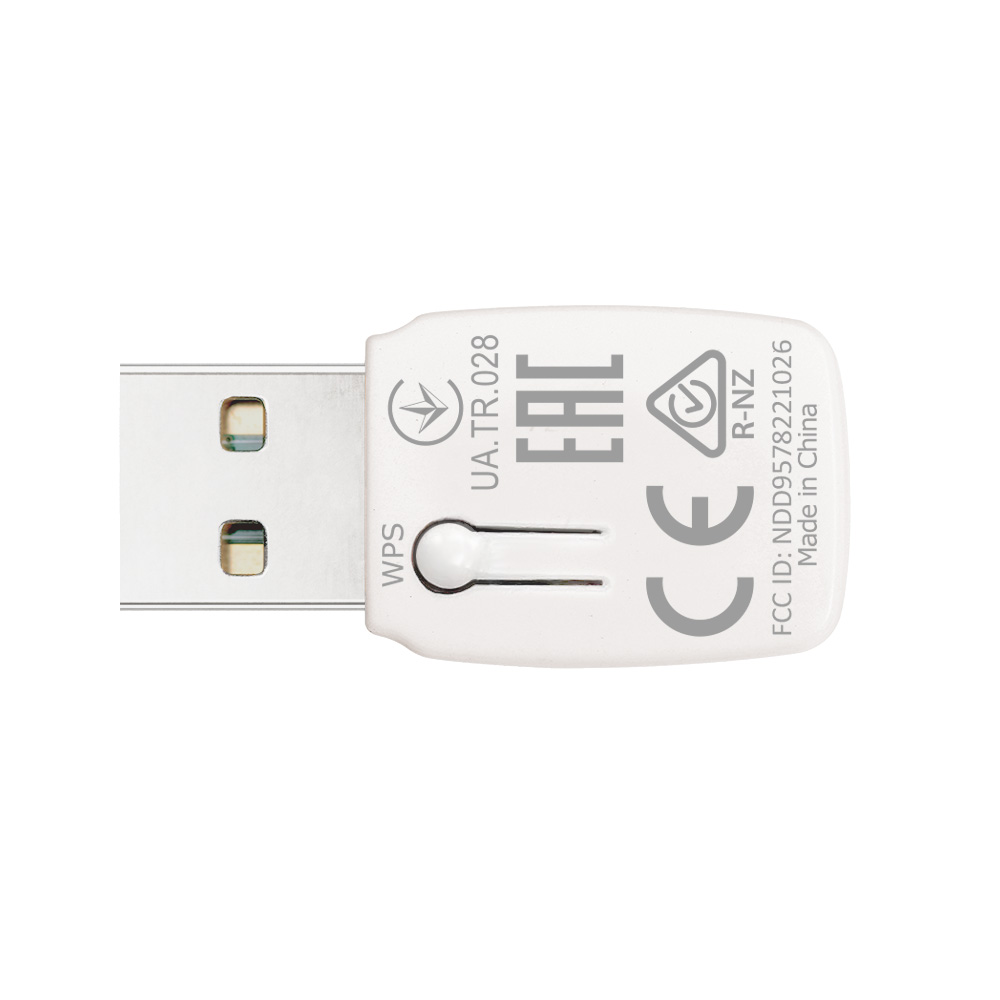

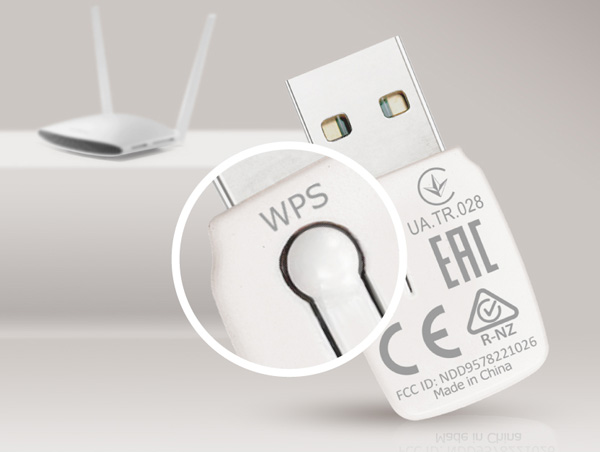

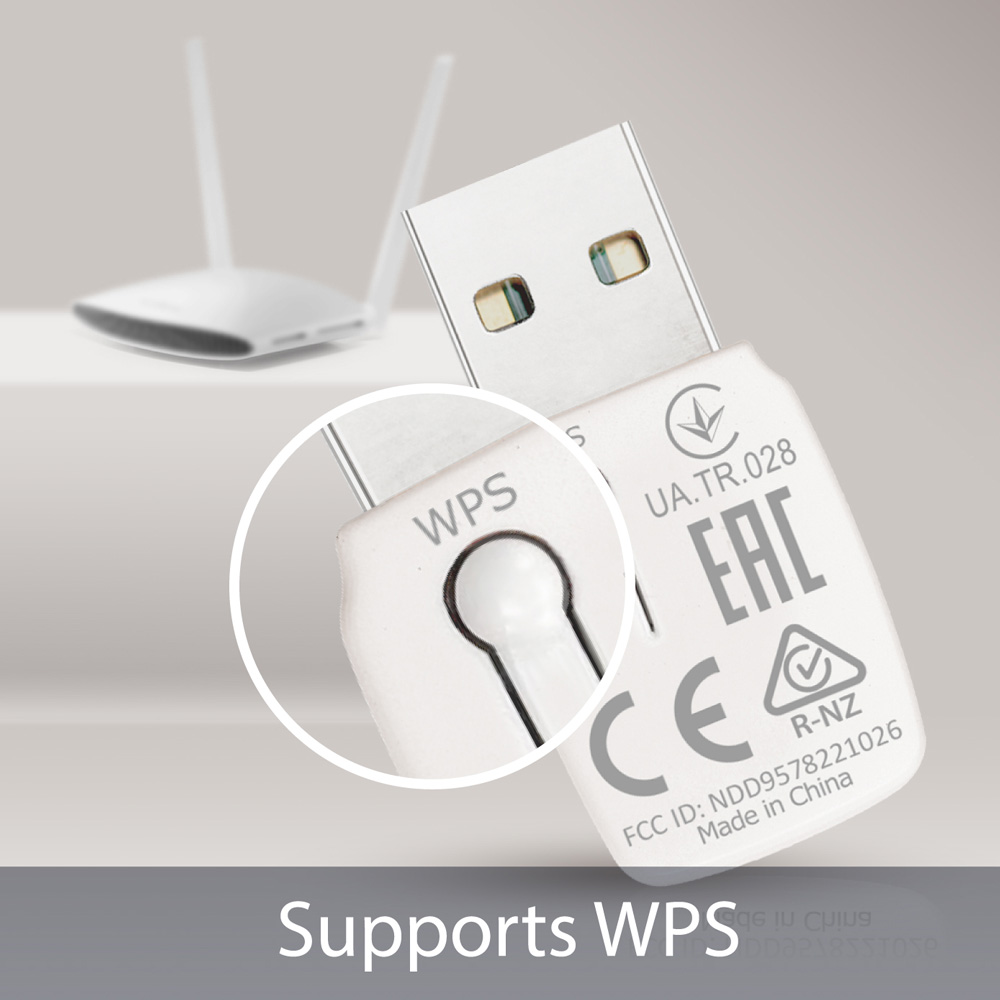

Features a Hardware WPS (Wi-Fi Protected Setup) Button

Wi-Fi Protected Setup (WPS) is a standard for easy and secure establishment of wireless networks. If the wireless device to which you wish to connect supports WPS, the Edimax EW-7722UTn V2 will automatically set up the wireless connection with a robust WPA data encryption and authentication. The Edimax EW-7722UTn V2 wireless USB adapter supports both hardware (push-button) WPS and software WPS configuration.

Features Multi-Language EZmax Setup Wizard*

The Edimax EW-7722UTn V2 includes an EZmax setup wizard—an application available in multiple languages that helps you to quickly connect the adapter to your wireless network.

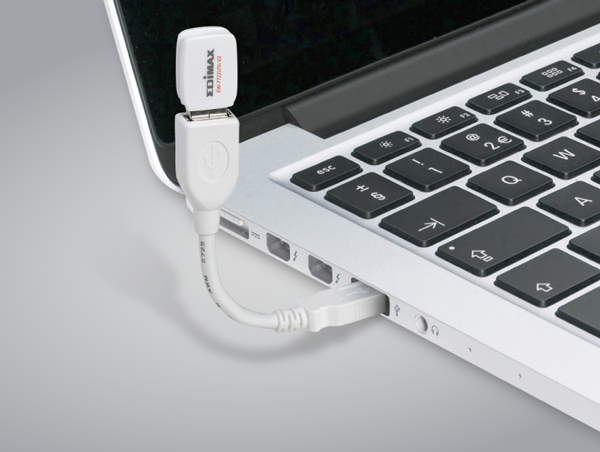

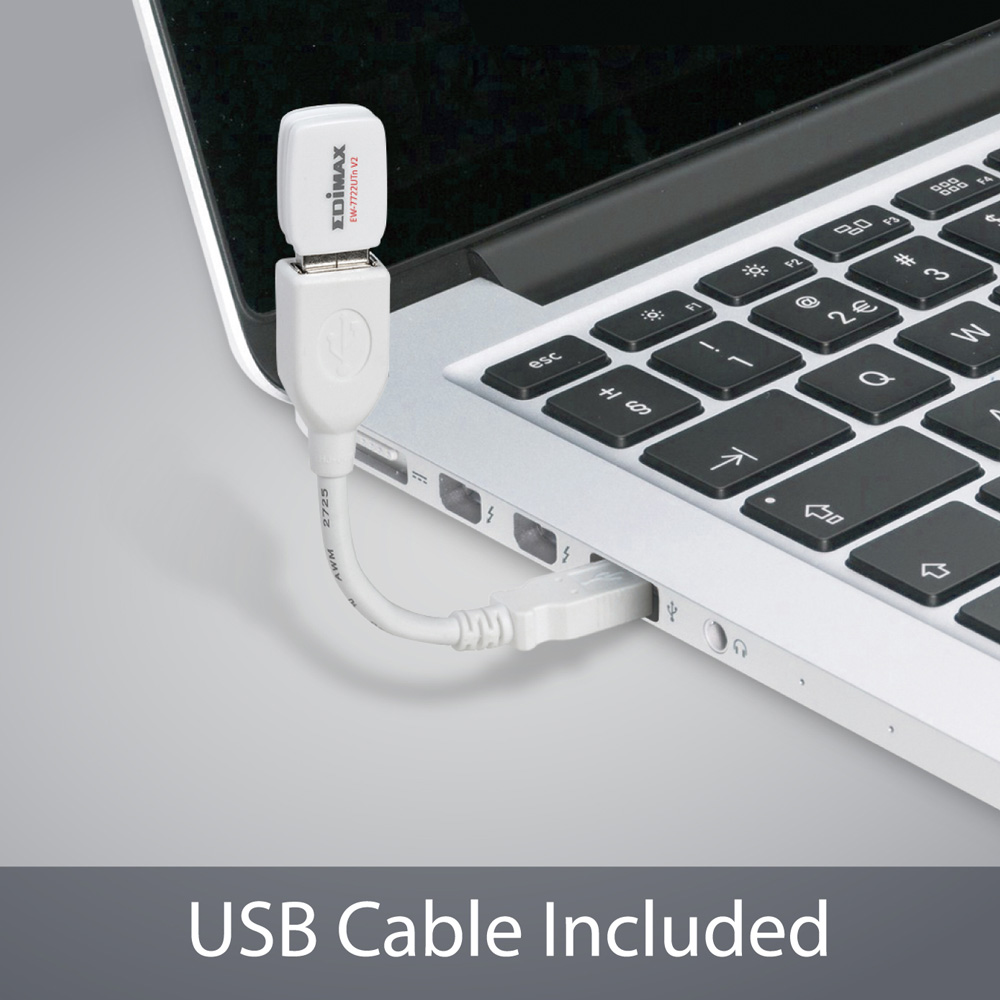

Hardwire USB Cable for Improved Wireless Performance

EW-7722UTn V2 comes with a free hardwire USB cable for improved wireless performance. When using the EW-7722UTn V2 with the hardwire USB cable, it provides better wireless performance at no extra cost.


APPLICATION DIAGRAM

  • Connect the EW-7722UTn V2 wireless adapter to your computer
  • Set up the wireless connection with the multi-language EZmax wizard
  • Connect to a 802.11b/g/n wireless access point or broadband router



SPECIFICATIONS

 HARDWARE
Interface
  • 1 x USB 2.0 Type A
Button
  • 1 x Hardware WPS Button
LED Indicator
  • 1 x Link/Activity LED
Antenna
  • 2 x Internal Antenna (2T2R)
Dimensions
  • 9.1 x 17.8 x 35.8 mm
 WIRELESS
Standards
  • 2.4GHz: IEEE 802.11b, 802.11g, 802.11n
Frequency Band
  • 2.4GHz: 2.4000 - 2.4835GHz*
    ​*Subject to local regulations
Operating Channel
  • 2.4 GHz
    • FCC : Channel 1-11
    • CE : Channel 1-13
Max. Data Rate/ Speed
  • 11b: 1/2/5.5/11Mbps
  • 11g: 6/9/12/24/36/48/54Mbps
  • 11n (20MHz): MCS0-07, up to 144Mbps
  • 11n (40MHz): MCS0-07, up to 300Mbps
Output Power
  • 11b : 16±1.5dBm
  • 11g : 14±1.5dBm
  • 11n : 13±1.5dBm
Security
  • 64/128-bit WEP, WPA, WPA2 and IEEE802.1x
  • Hardware and Software WPS configuration
OTHERS
Installation
  • Multi-language EZmax setup wizard
  • WPS Push-and-Connect hardware button setup
System Requirement
  • Windows XP/ Vista/ 7/ 8/ 8.1/ 10
  • Mac OS 10.09 or above
  • Linux
Environment
  • Temperature:
    • Operating Temperature: 32~104°F (0~40°C)
    • Storage Temperature: -4~140°F (-20~60°C)
  • Humidity:
    • Operating Humidity: 0~90% (NonCondensing)
    • Storage Humidity: Max. 95% (NonCondensing)
Certification
  • CE / RED (Europe)
  • FCC (U.S)
  • IC (Canada)
  • BSMI / NCC (TW)
  • RCM (Australia & New Zealand)

*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
