High Performance Selectable 2.4GHz and 5GHz Band with Max. Data Transfer Rate up to 433Mbps (5GHz) and 200Mbps* (2.4GHz).
(*The 256QAM technology increases the 2.4GHz data rate from 150Mbps (64QAM) to 200Mbps (256QAM) for 33% faster performance.)
Security that Matters
Equipped with the latest WPA3 protection means that you can rest assured that you are in a safe network environment.
Wide Compatibility
Tested with Windows and Linux, you will sure find it easy, power and smooth to use.
Go Stealth
Renowned compactness, users can insert the nano adapter into any USB port and leave it there. Nano sized for stealth and ease of carry. So tiny that you may forget it is there.
Works with Any Wi-Fi
Backward compliant with 802.11a/b/g/n standards, the EW-7811ULC supports any existing Wi-Fi routers, access points and range extenders.

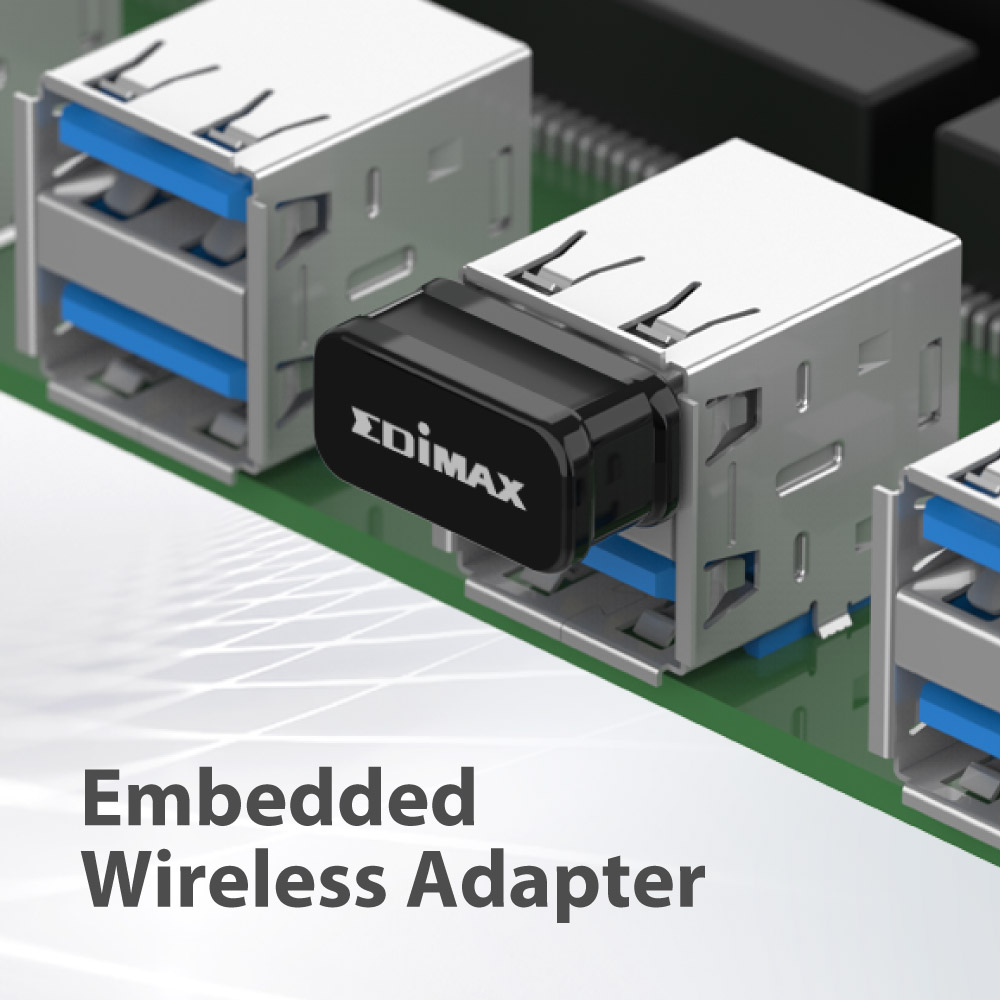

Embedded Wireless Adapter Solution for Industrial IoT
Tested by Millions
For over 10 years, millions of users and devices count on EDIMAX adapters to connect to the internet. Choose EDIMAX for reliability and ease-of-use.

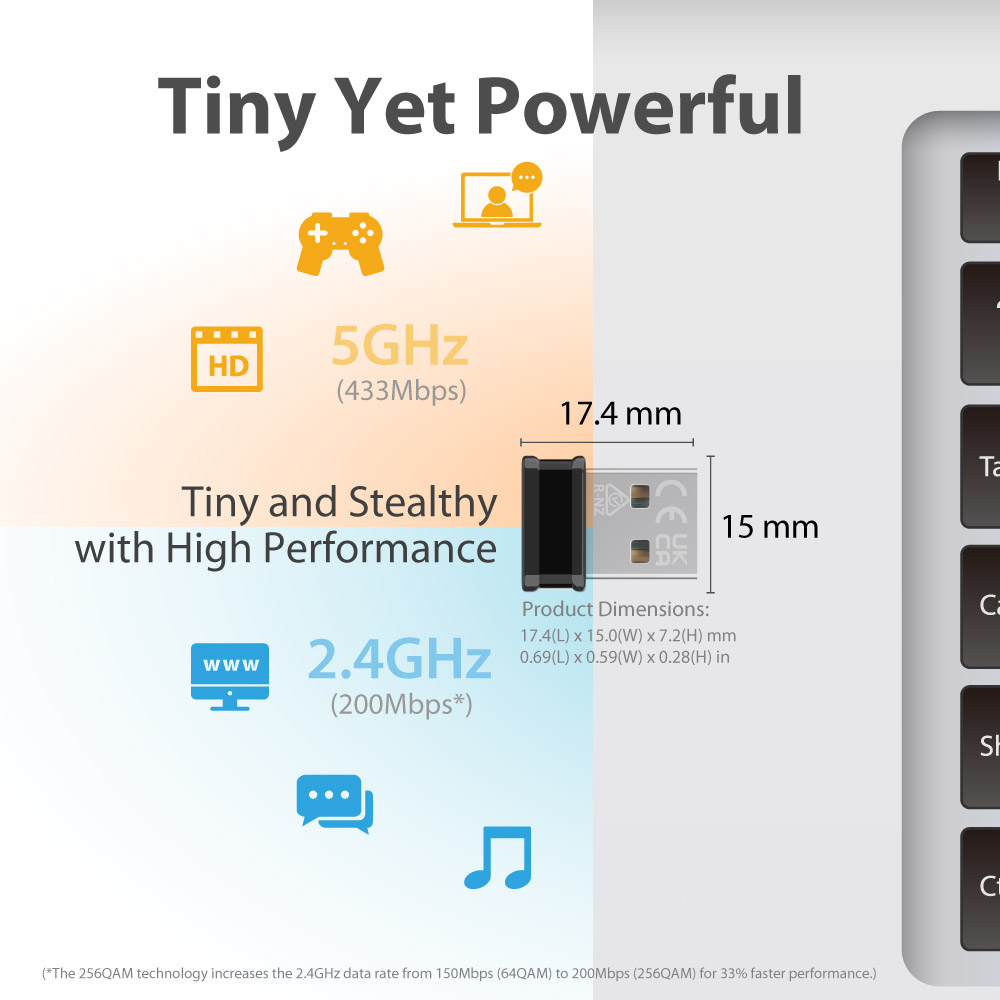

17.4(L) x 15.0(W) x 7.2(H) mm
(0.69(L) x 0.59(W) x 0.28(H) inches)
Weight
2g (0.07 ounces)
WIRELESS
Standard
2.4GHz: IEEE 802.11b/g/n
5GHz: IEEE 802.11a/n/ac
Frequency Band
2.4GHz: 2.4000~2.4835GHz
5GHz: 5.150~5.825GHz
*Subject to local regulations.
Maximum Data Rate / Speed
11a: Up to 54Mbps
11b: Up to 11Mbps
11g: Up to 54Mbps
11n (2.4GHz): Up to 200Mbps*
11ac (5Gz): Up to 433Mbps
* The EW-7811ULC with 256QAM technology increases the 2.4GHz data rate from 150Mbps (64QAM) to 200Mbps (256QAM) for 33% faster performance.
Transmit Power
2.4GHz:
11b(11Mbps): 17±1.5dBm
11g(54Mbps): 14.5±1.5dBm
11n(20MHz, MCS7): 15±1.5dBm
11n(40MHz, MCS9): 14±1.5dBm
5GHz:
11a(54Mbps): 14±1.5dBm
11n(20MHz, MCS7): 14±1.5dBm
11n(40MHz, MCS7): 14±1.5dBm
11ac(80MHz, MCS9): 13±1.5dBm
Receive Sensitivity
2.4GHz:
11b(11Mbps): -86±2dBm
11g(54Mbps): -71±2dBm
11n(20MHz, MCS7): -69±2dBm
11n(40MHz, MCS9): -60±2dBm
5GHz:
11a(54Mbps): -67±2dBm
11n(20MHz, MCS7): -65±2dBm
11n(40MHz, MCS7): -57±2dBm
11ac(80MHz, MCS9): -52±2dBm
Security
WPA3-Personal, WPA2, WPA, WEP, 802.1x
Software WPS (Wi-Fi Protected Setup. Driver installation and WPS supported Wi-Fi device are required.)
OTHERS
Supported Operating System
Windows 10/11
Linux: Kernel 2.6.18~5.11
*Additional version information may be announced on the EDIMAX website.
Environmental Condition
Temperature:
Operating Temperature: 0~40°C (32~104°F)
Storage Temperature: -20~60°C (-4~140°F)
Humidity:
Operating Humidity: 10~90% (Non-condensing)
Storage Humidity: Max.95% (Non-condensing)
Certification
CE, FCC, BSMI, NCC
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
