EDIMAX - Switches - Unmanaged - 5-Port Gigabit Desktop Switch (Internal Power)

5-Port Gigabit Desktop Switch (Internal Power)

ES-5500M V2

  • Connects smart TVs, Blu-ray players, game consoles, and media players to the network
  • Optimized performance for 1080p video, streaming audio, gaming, and VoIP applications
  • Supports port-based QoS for high, medium, and low priority connections
  • Supports IGMP snooping v1/v2
  • Supports jumbo frames up to 9K bytes
  • Supports IEEE 802.3az Energy Efficient Ethernet
  • Built-in full range 100-240V internal power supply


The ES-5500M V2 5-Port Gigabit Desktop Switch is designed to enhance network performance while maintaining a compact form factor. It boasts outstanding performance and high efficiency, and its store and forward packet-switching technology offers reliable data transfer, which makes it ideal for network connectivity in the SOHO environment.

The ES-5500M V2 is protected by a metal casing, and offers an easy and cost-effective gigabit Ethernet solution for users looking to extend home networks and fulfill their online gaming, multimedia transfer and streaming needs.

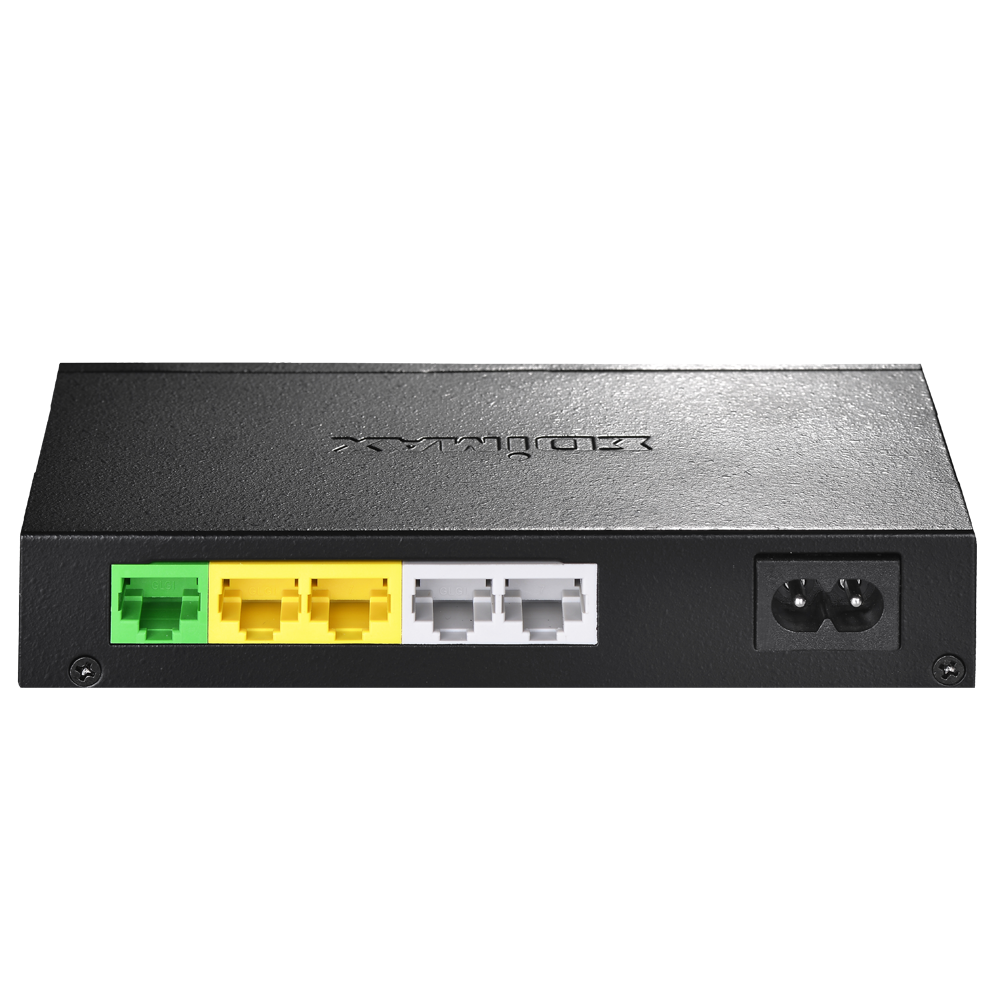

Optimize Bandwidth through VIP Ports

The ES-5500M V2 comes with port-based QoS, providing significantly more efficient downloads. Through prioritized bandwidth settings, users can experience better performance when surfing the Internet, gaming online, or streaming multimedia.


IEEE Energy Efficient Ethernet (EEE) Compliance

The ES-5500M V2 is environmentally friendly while still providing the fast Ethernet speeds critical for next-generation network applications. It complies with the IEEE802.3az standard, providing power saving functions to reduce energy consumption by up to 70%, thus helping businesses reduce costs.


Supports High-Speed Networking and Jumbo Frames

The ES-5500M V2 is an excellent solution for users looking to expand their gigabit Ethernet network, it offers gigabit speeds, high flexibility, and high bandwidth connectivity to servers, workstations and other attached devices. In addition, it also supports jumbo frames up to 9K in size, which improves network utilization when transferring large files.


Easy to Use

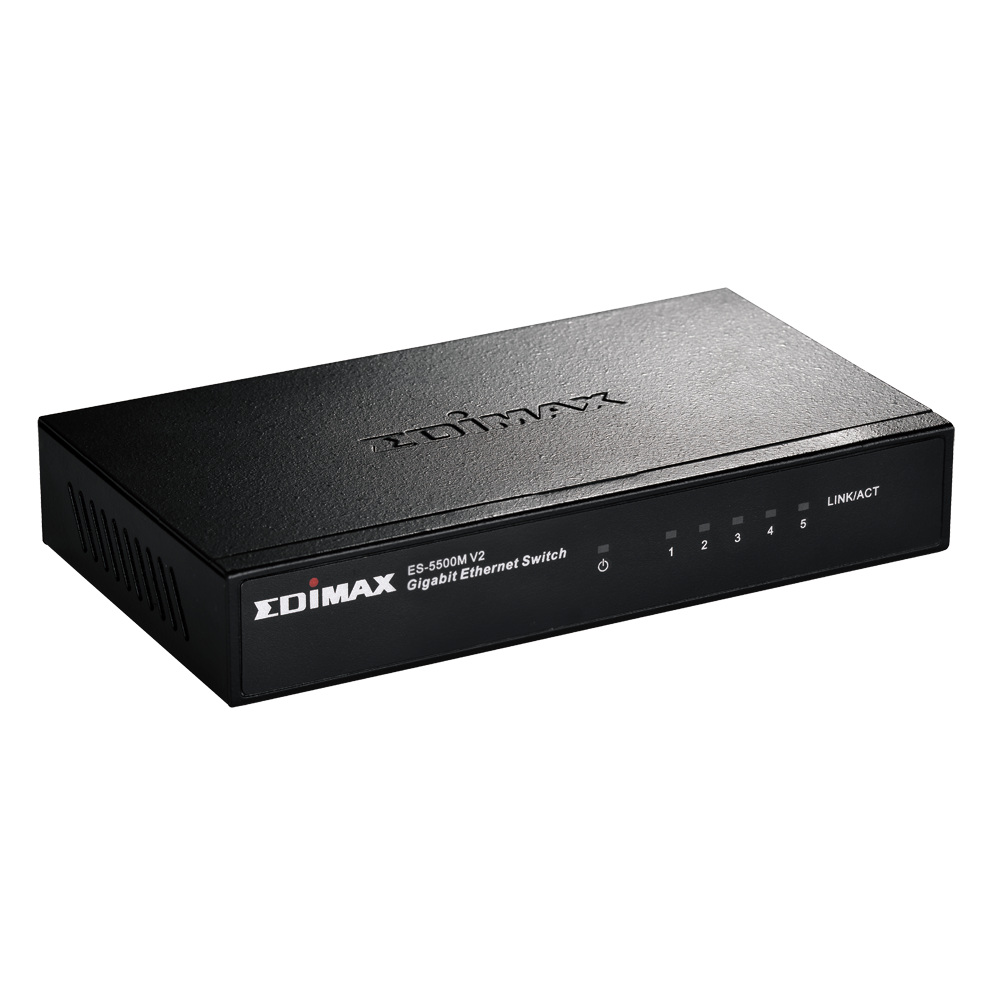

The ES-5500M V2 supports plug-and-play and all kinds of network protocols, so installation and network management are quick and easy. LED indicators provide port and switch information at a glance.


SPECIFICATIONS

HARDWARE
Ports 5 x RJ-45 10/100/1000BaseT ports
LED Indicator Per Port: Link/Act
Pert Unit: Power
Power Requirement 100~240V/AC, 50~60Hz
Power Consumption 3 Watts (Max)
Dimension 149 × 84 × 26 mm (L x W x H)
Weight 0.3kg
PERFORMANCE
MAC Address 2K
Buffer Memory 128K
Jumbo Frame 9K
Filtering / Forwarding Rates 1000Mbps port - 1,488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps
OTHERS
Standard IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3x Flow Control
IEEE 802.3az Energy Efficient Ethernet
Transmission Media 10BASE-T Cat. 3, 4, 5 UTP/STP
100BASE-TX Cat. 5 UTP/STP
1000Base-T Cat. 5E UTP/STP
Environmental Condition Temperature:
Operating: 0 to 40℃
Storage: -40 to 70℃
Humidity:
Operating: 10 to 90% RH (Non-condensing)
Storage: 5 to 90% RH (Non-condensing)
Certification CE, FCC Class B







*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
