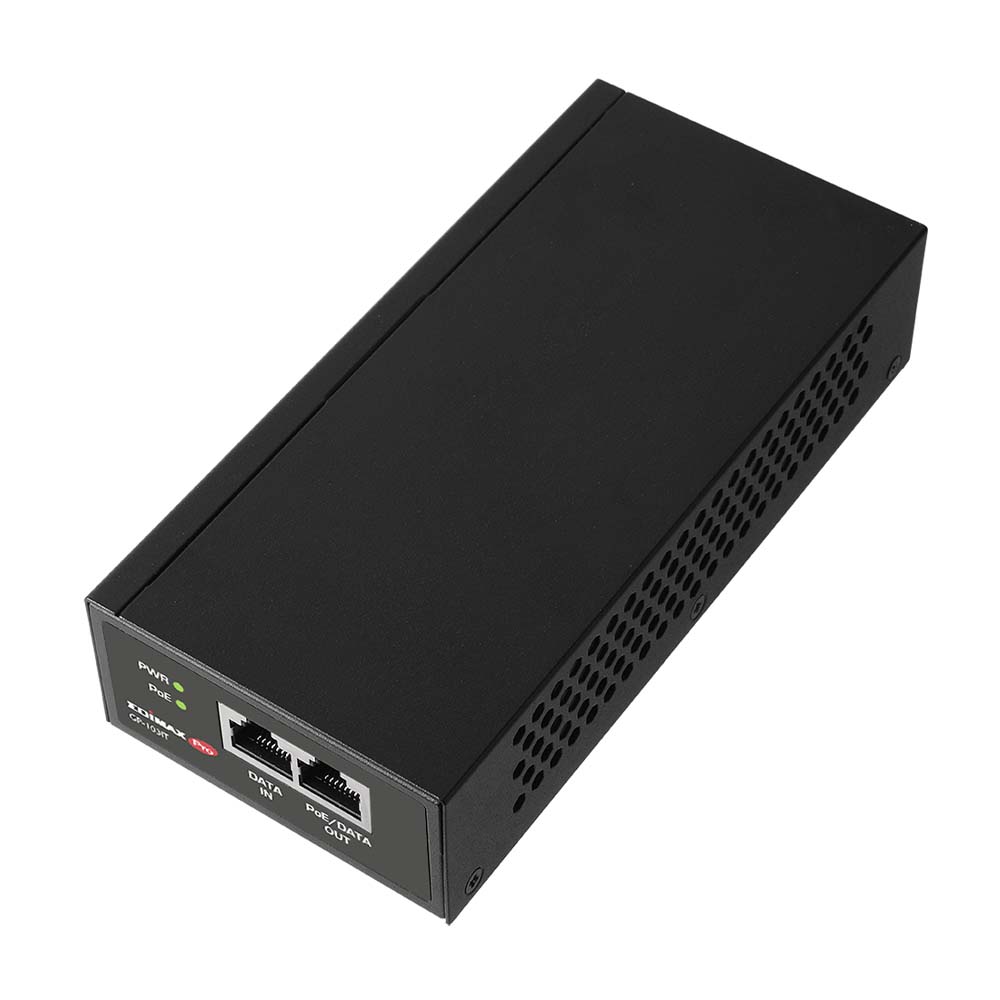

IEEE 802.3bt Gigabit 90W PoE++ Injector

GP-103IT

  • Complies with IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt Power over Ethernet (PoE) Standards
  • Adds PoE capability to a non-PoE Ethernet switch or router
  • Gigabit LAN ports provide high-speed connectivity
  • Supply PoE output 95W  to ensure Powered Device (PD) is able to be powered up to 90W
  • PoE short circuit protection to safeguard network devices
  • Delivers power and data to PoE device from up to 100 meters (328 feet) over a single Ethernet cable
  • Reduces installation and equipment costs
  • Easy plug-and-play desktop or wall-mounted installation




IEEE 802.3bt
Gigabit 90W PoE++ Injector

GP-103IT



Convert Non-PoE Gigabit to PoE++

Plug-and-Play, Flexible Wall-Mount Installation

EDIMAX GP103IT IEEE 802.3bt Gigabit 90W PoE++ Injector

High Power PoE Port

Built-in 90W power supply, it connects directly to the outlet through the power cord. It does not require an external large power adapter, making installation easier and saving space.

EDIMAX GP103IT IEEE 802.3bt Gigabit 90W PoE++ Injector

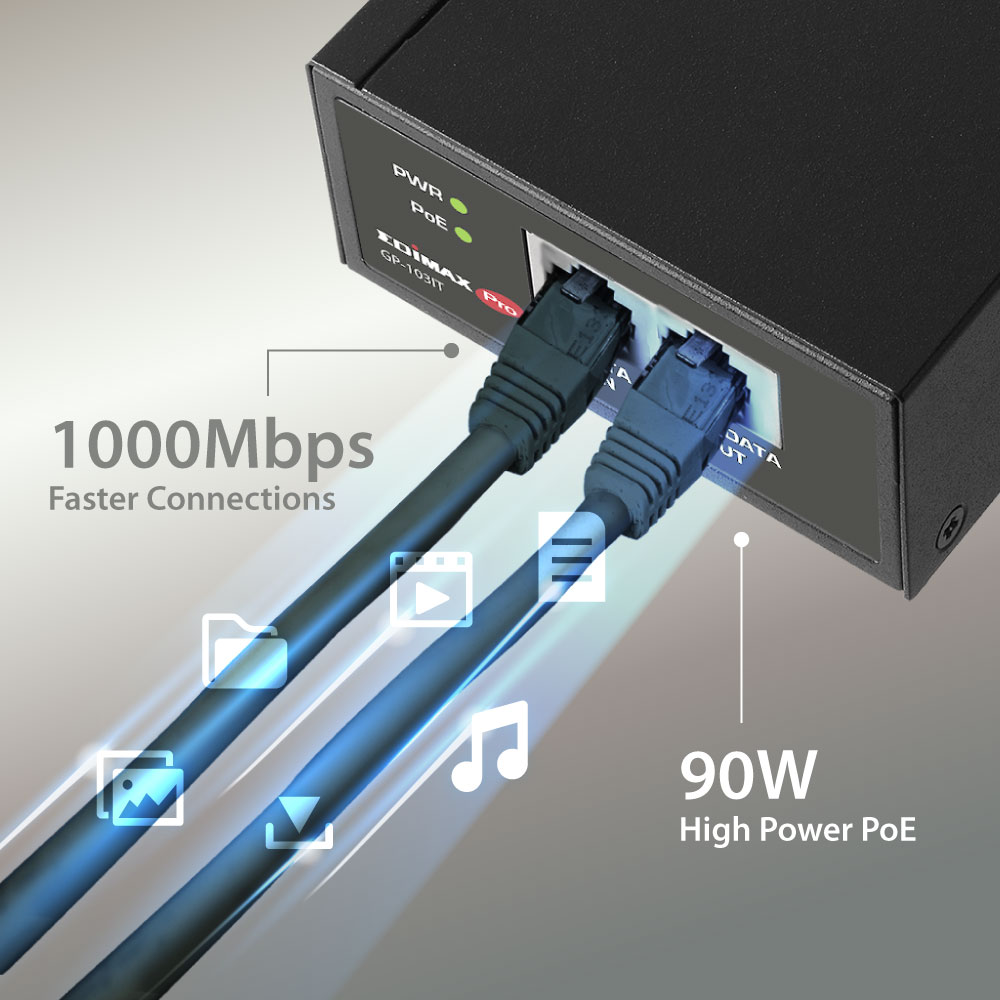

Gigabit Ports Ensure Faster Connections

Both the gigabit 10/100/1000 Mbps input and output port ensure faster, more reliable connections for all applications. Delivering power up to 100 meters (328ft.), perfect for IP cameras or access point deployment in large areas.

EDIMAX GP103IT IEEE 802.3bt Gigabit 90W PoE++ Injector

Easy Plug-and-Play

Just plug the Ethernet enabled device into the injector. No additional cables, software setup or configuration is required.

EDIMAX GP103IT IEEE 802.3bt Gigabit 90W PoE++ Injector

Fast and Simple Installation

Flexible Mounting Options
The convenient wall-mounting design saves space for a simple installation.

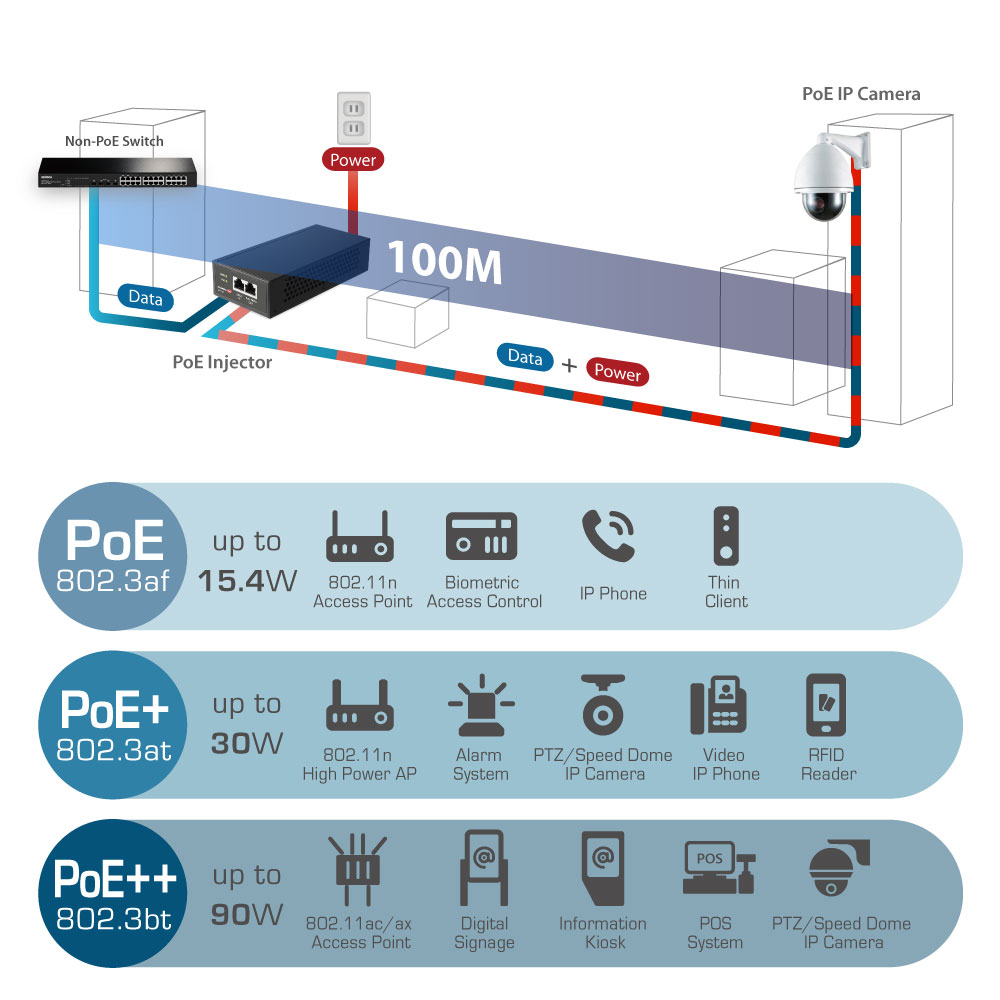

Extends High Power PoE++ for PTZ Camera over 328ft

EDIMAX GP103IT IEEE 802.3bt Gigabit 90W PoE++ Injector

Power Your PoE Devices

Complies with IEEE 802.3af (PoE), IEEE 802.3at (PoE+) and IEEE 802.3bt (PoE++) Standards and supports PoE PD (Power Device) up to 90W.

EDIMAX GP103IT IEEE 802.3bt Gigabit 90W PoE++ Injector
EDIMAX GP103IT IEEE 802.3bt Gigabit 90W PoE++ Injector for IP Surveillance

IP Surveillance

IP surveillance camera is now ubiquitous PoE supported with only one LAN cable which enables fast deployment and easy repositioning for business, office, residential environments.

EDIMAX GP103IT IEEE 802.3bt Gigabit 90W PoE++ Injector for Digital Signage

Digital Signage

Digital signage can quickly transmit information in schools, hospitals, department stores, stations, airports, and subways, and the content can be updated quickly to enhance users' real-time information.

EDIMAX GP103IT IEEE 802.3bt Gigabit 90W PoE++ Injector for PoE Devices

Other PoE Devices

Other PoE-enabled devices such as POS System, Information Kiosk, RFID readers, access controls, thin clients, alarms or sensors, benefits easy and cost-saving installation even when it is away from AC outlets.



SPECIFICATIONS

HARDWARE ​
Ports 1 x RJ-45 10/100/1000Base-T input port
1 x RJ-45 10/100/1000Base-T input port
LED Indicators AC Power (PWR)
PoE Power
Power Input  100-240V AC, 50-60Hz, 1.5A
Power Consumption 95W
Mounting Desktop / Wall-mount
Housing Metal
Fan  Fanless
Dimension   73(W) x 154(D) x 36(H)mm
Weight  568g
POWER OVER ETHERNET
Standard IEEE 802.3af (PoE)
IEEE 802.3at (PoE+)
IEEE 802.3bt (PoE++)
Power Output DC 54V/1.67A, up to 90W
Pin Assignment Pins 1,2, 4, 5 (+),  Pins 3, 6, 7,8 (-)
Output Power Voltage: 54V DC
Short Circuit Protection Yes
Over Circuit Protection Yes
PoE PD Auto Detection Yes
OTHERS
Standard IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
IEEE 802.3af Power Over Ethernet (PoE)
IEEE 802.3at Power Over Ethernet Plus (PoE+)
IEEE 802.3bt 4-Pair Power Over Ethernet Type 4 (PoE++)
Certification CE, FCC
Environmental Condition Operating Temperature: 32~104°F (0~40°C)
Storage Temperature: -4~158°F (-20~70°C)
Operating Humidity: 10~90% (NonCondensing)
Storage Humidity: 5~90% (NonCondensing)
Package Content Injector
Quick Installation Guide
Power Cord
Rubbert Pads
​Screws
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
