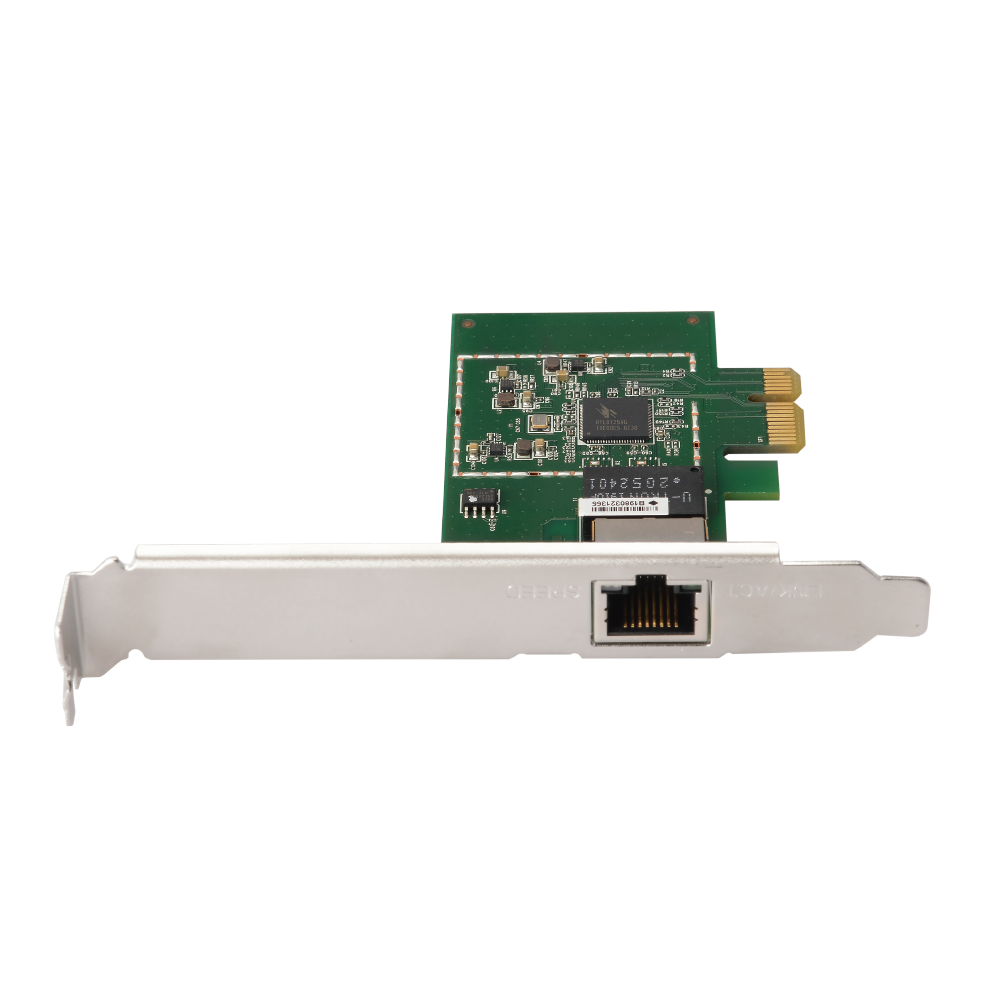

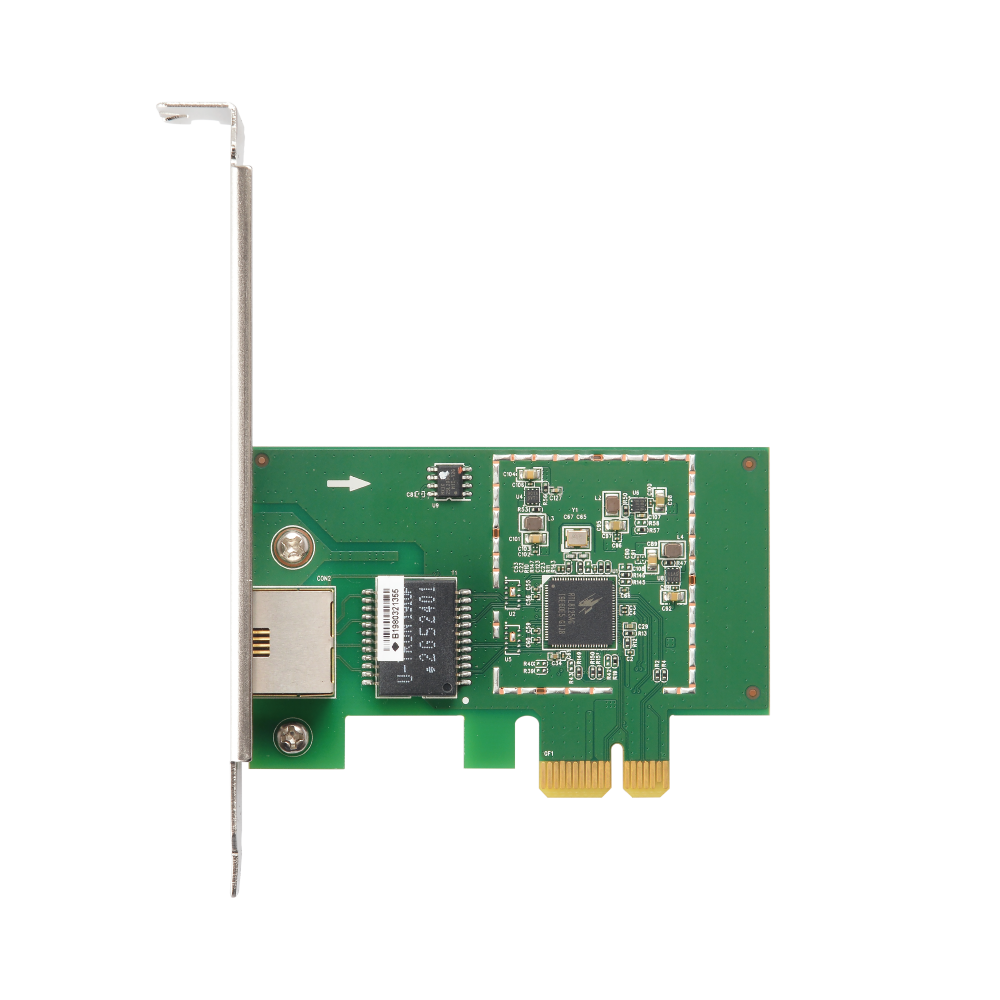

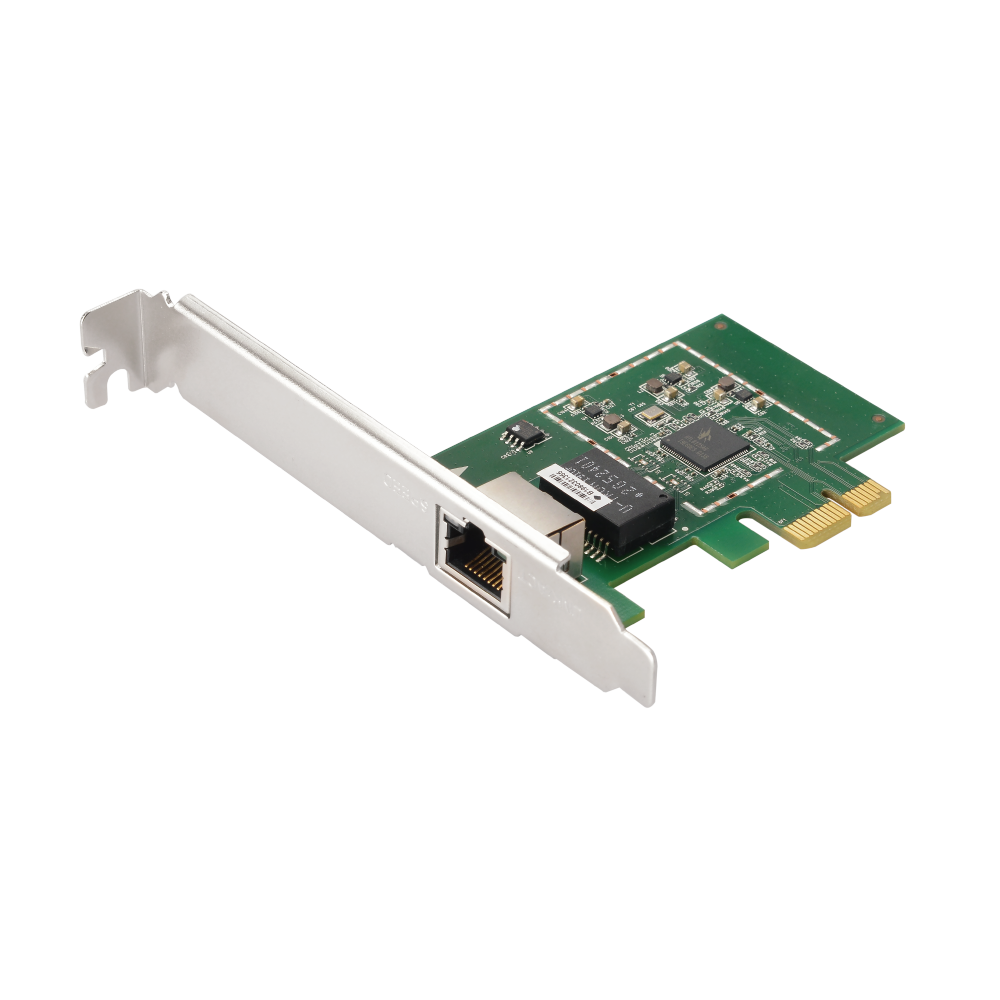

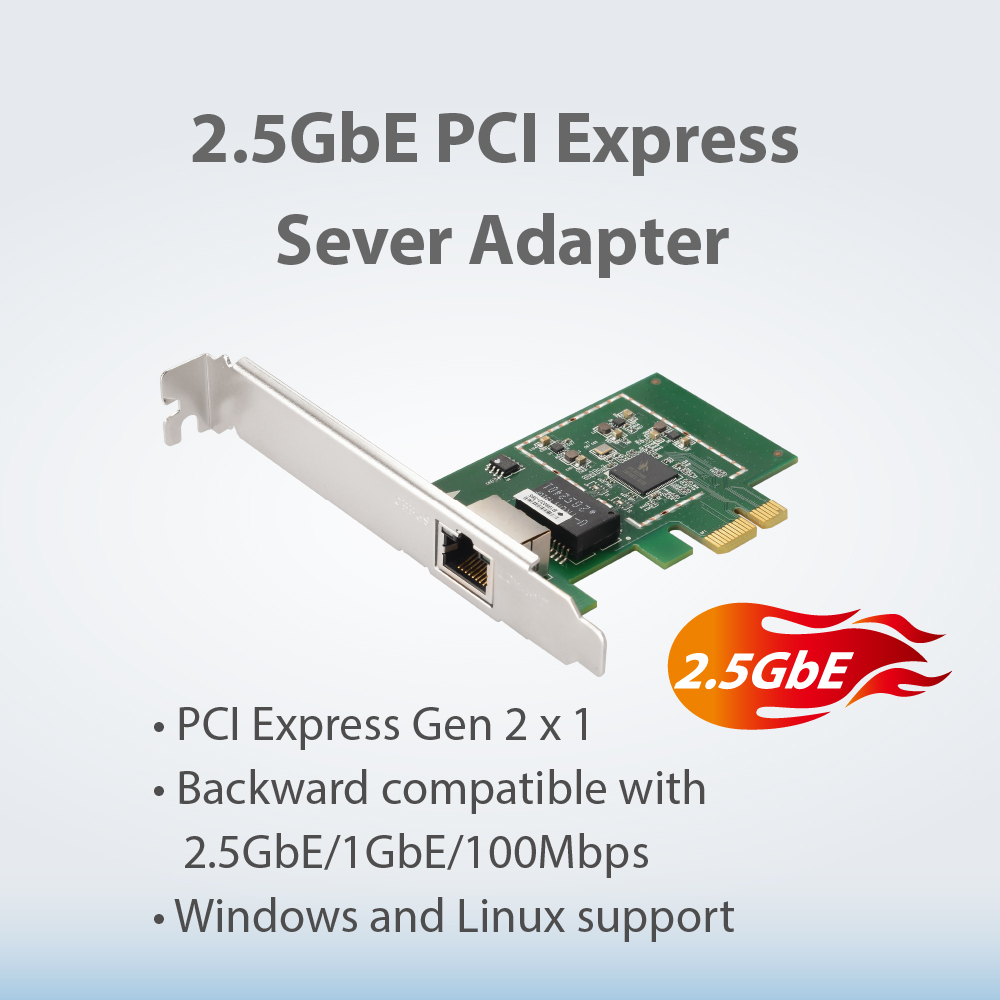

2.5 Gigabit Ethernet PCI Express Server Adapter
EN-9225TX-E
- PCI Express Gen 2 x 1
- Offers high speed 2.5Gbps transmission over CAT 5e or better cables
- Backward compatible with 2.5Gbps, 1Gbps and 100Mbps
- 9K jumbo frames
- IP, TCP, UDP checksum offloading
- Reduced CPU utilization and improved through
- Supports IEEE 802.1Q VLAN ID tagging and IEEE 802.1q QoS

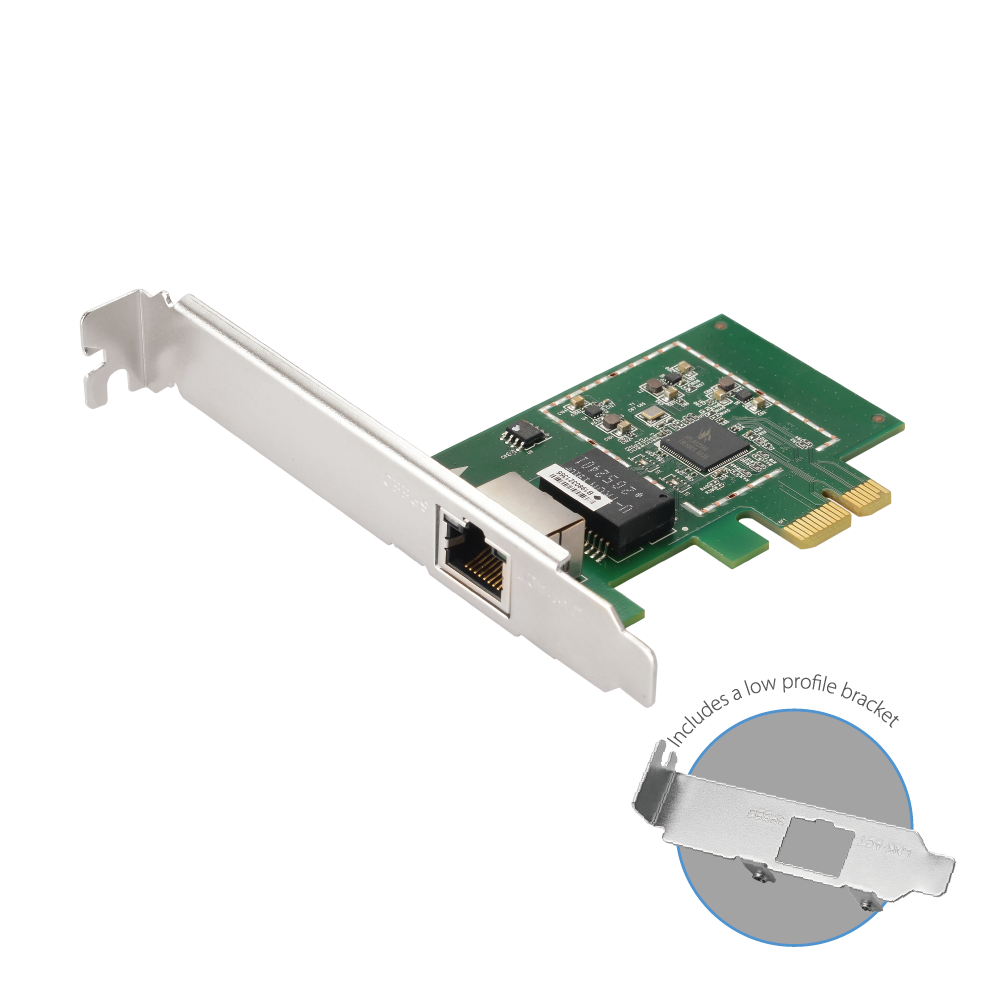

- Low profile bracket included
2.5 Times Faster.
No More All-Nighters.

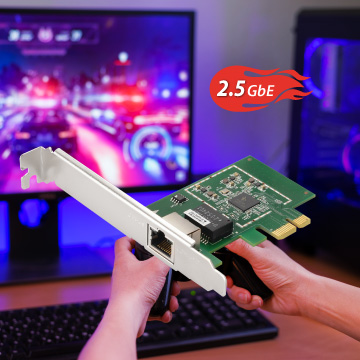

2.5GbE PCI-E Server Adapter. Play Flawlessly. Build Your Perfect Gaming Station.
2.5GbE Superior Network Speed
The EN-9225TX-E is a 2.5 Gigabit Ethernet PCI Express Server Adapter designed for the high-speed PCI Express bus architecture. It supports 3-speed 2.5G,1G, and 100Mbps network connection with auto-negotiation. The EN-9225TX-E provides an ideal selection as a convenient addition, upgrade or replacement for your server, workstation or computer network connection for high-performance, low-power consumption, and better-quality.
With the benefits of low-latency, high-throughput, and cost-effective, the EN-9225TX-E meets the bandwidth-intensive requirements such as large file transfers, HD video editing, and online gaming, while utilizes high-performance speeds and shared storage system to have improved server efficiency and network performance.

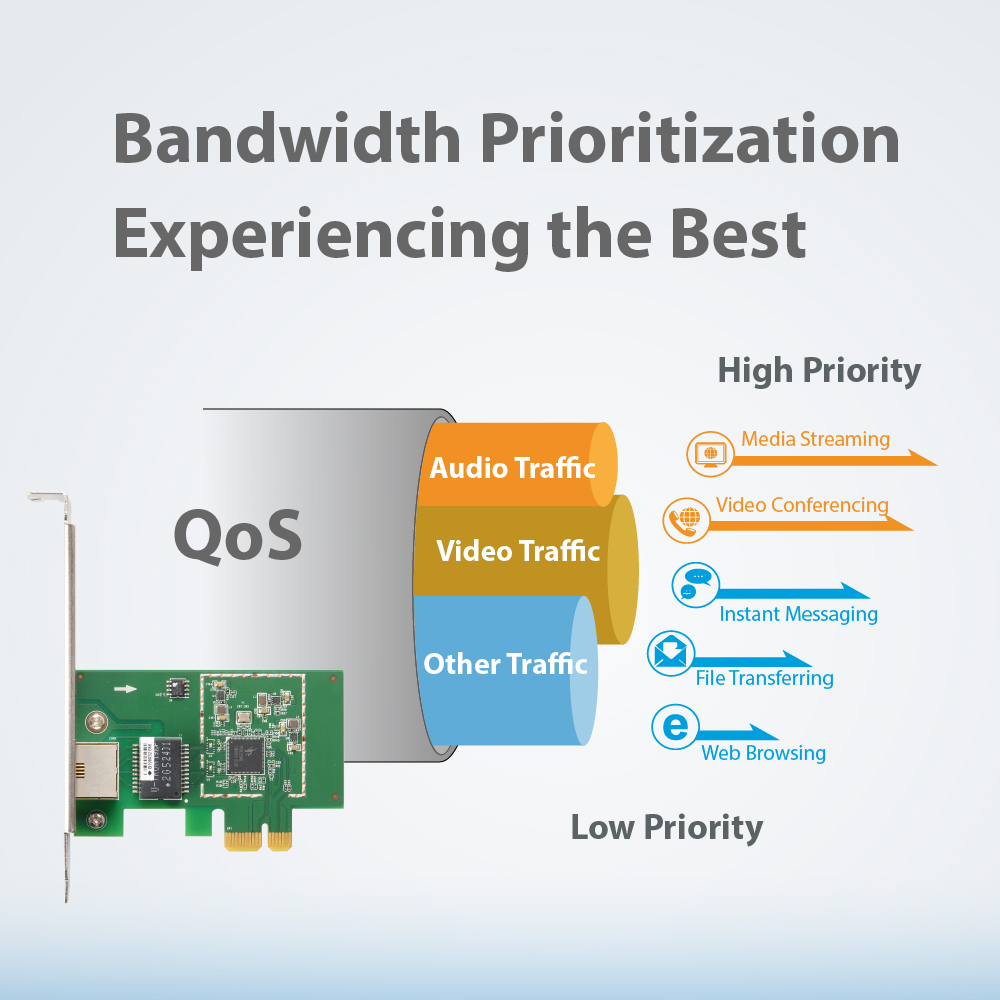

Prioritize Bandwidth for Experiencing the Best
The built-in Quality-of-Service (QoS) technology lets you prioritize applications for a smooth connection experience. With the EN-9225TX-E, you can enjoy latency-free traffic for gaming, video conferencing, or media streaming with ease.

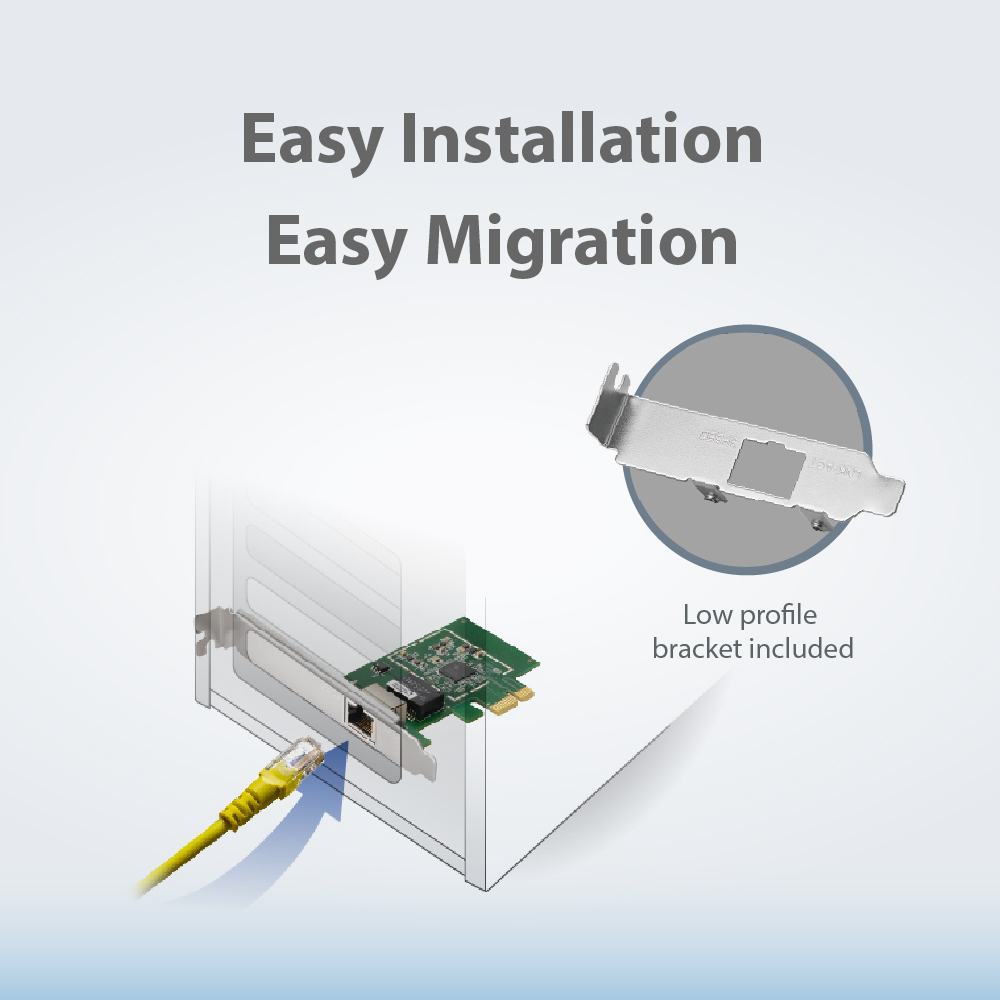

Easy Migration 2.5GbE Adapter
Equipped with one 2.5 Gigabit RJ45, the EN-9225TX-E is capable of providing 2.5 times better performance than existing Gigabit transmissions. The adapter is a capable server NIC for your networks that supports up to 20Gbps full-duplex bandwidth capacity. With the PCI Express rev. 2.0 specification x1 interface, the EN-9225TX-E provides an optimal PCI Express upgrade solution to the mainboard.
High Performance with Advanced Features
With the benefits of low-latency, high-throughput, and cost-effective, the EN-9225TX-E meets the bandwidth-intensive requirements such as large file transfers, HD video editing ,and online gaming, while utilizes high-performance speeds and shared storage system to have improved server efficiency and network performance.

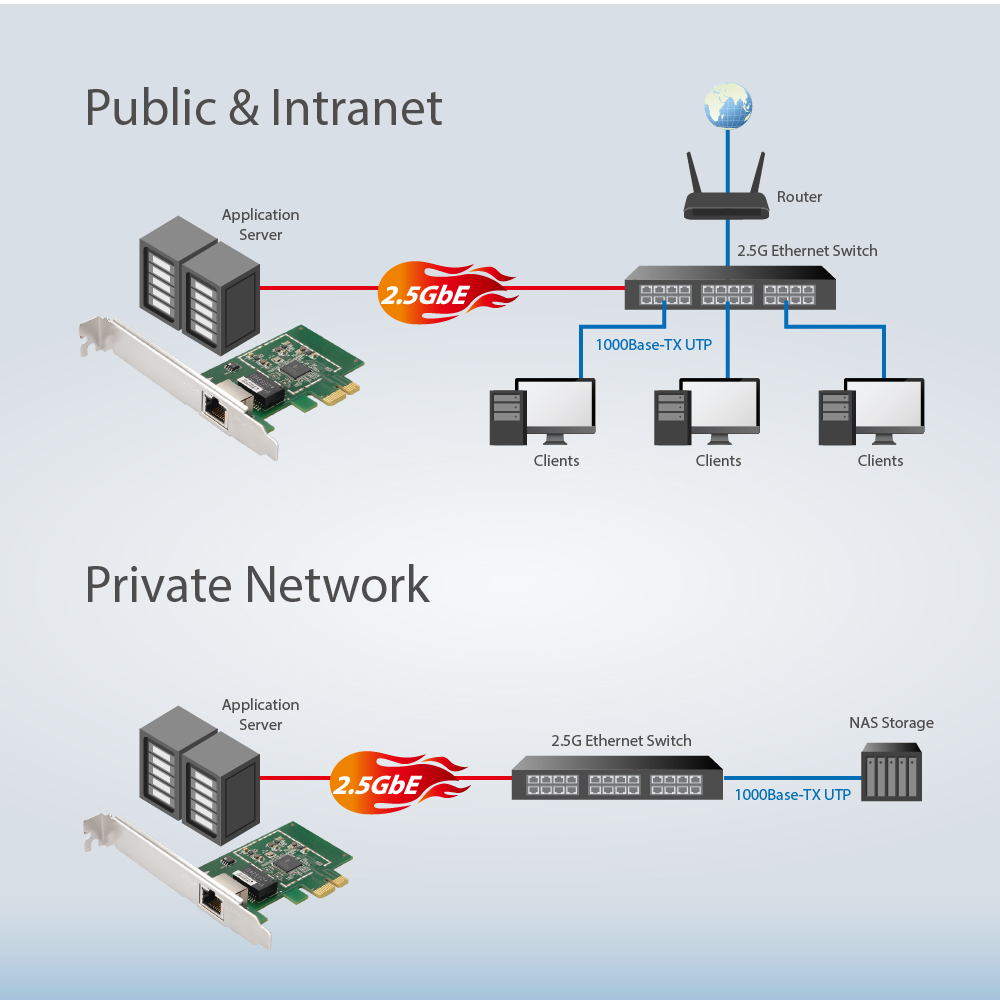

Application
EDIMAX 2.5GbE Network Solution

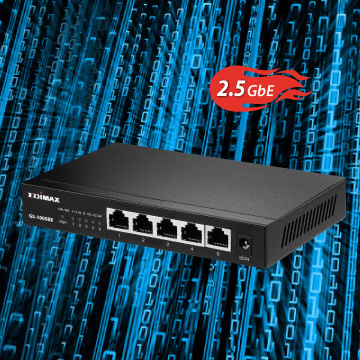

GS-1005BE
5-Port 2.5 GbE Switch, Metal Case with Wll-Mount Design

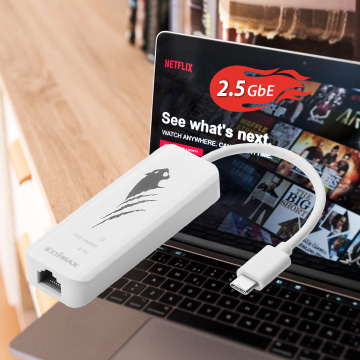

EU-4307
USB Type-C to 2.5GbE Network Adapter
EN-9225TX-E
2.5GbE PCI Express Server Adapter

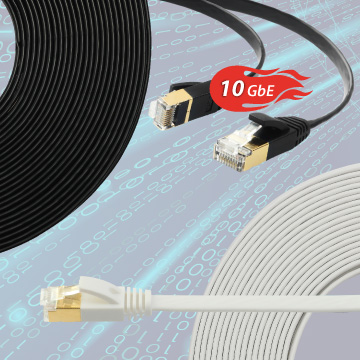

EA3 Series
CAT7 10GbE Shielded Flat Network Cable
SPECIFICATIONS
| HARDWARE | |
| Interface | PCI Express Gen 2 x 1 RJ-45 2.5G, 1G and 100Mbps LAN Port |
| LED Indicator | SPEED, LNK/ACT |
| Power Consumption | 3.678W |
| Dimension & Weight | 86.95 (W) x 54.49 (D) x 1.6 (H) mm , 38.8g |
| PERFORMANCE & FEATURE | |
| Jumbo Frame | 9K Bytes |
| Maximum Data Speed | 2.5Gbps, 1Gbps or 100Mbps |
| Additional Feature |
|
| NETWORK STANDARD & OS | |
| Standard |
|
| OS Compatibility |
|
| OTHERS | |
| Certification |
CE, FCC, IC, RCM, BSMI |
| Environmental Condition |
|
| Package Content |
|
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
