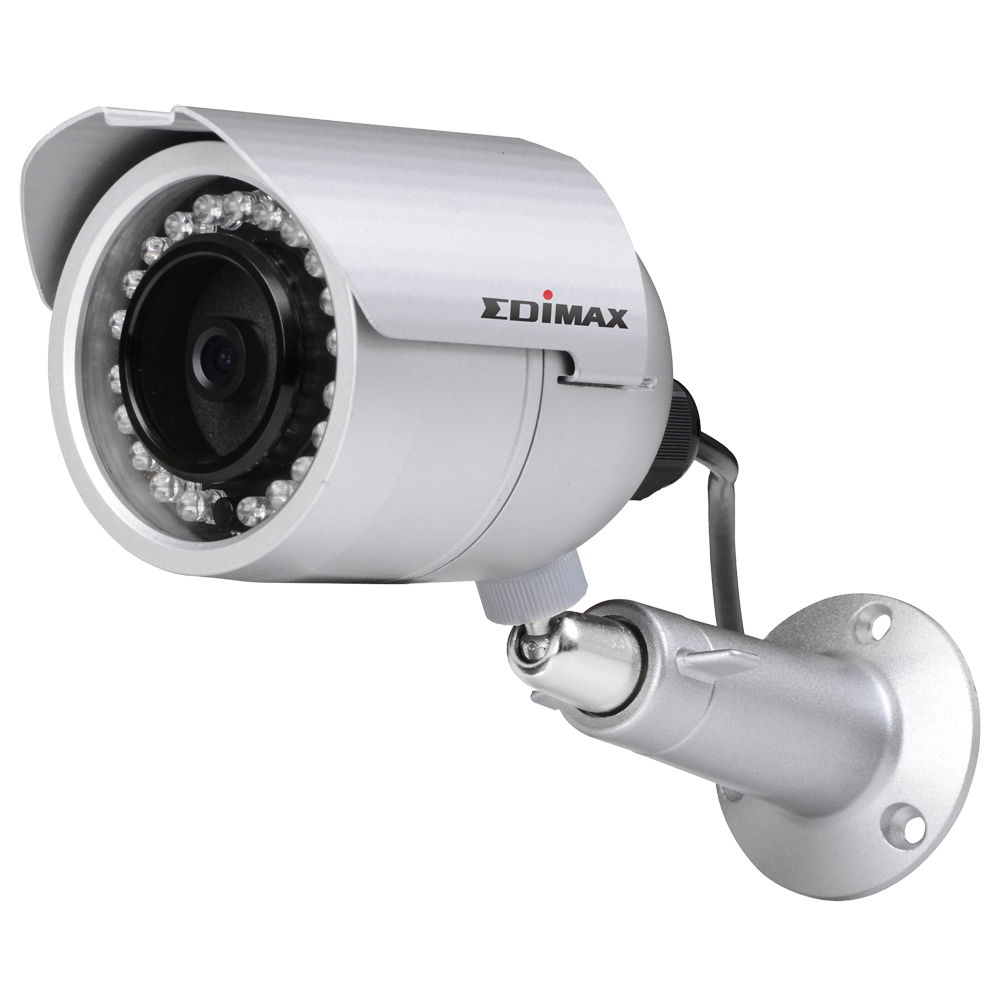

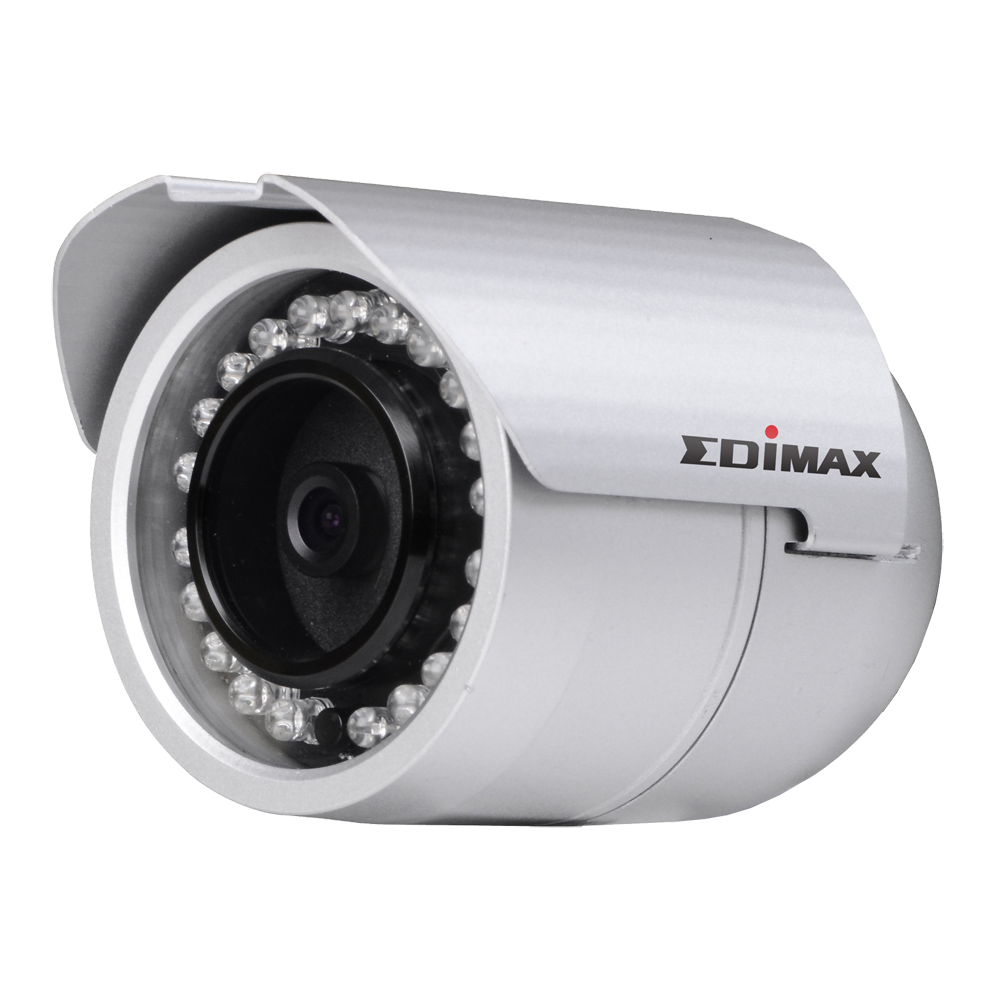

2Mpx Outdoor PoE True Day & Night Bullet Network Camera

IR-112E

  • Night vision with built-in IR LEDs (up to 15 meters)
  • Full HD 1080P (1920 x 1080) @10FPS & HD 720 (1280 x 720) @30FPS
  • H.264, MPEG-4 & M-JPEG multi-stream output
  • Supports IEEE802.3af Power over Ethernet (PoE) standard
  • IR LEDs with mechanical ICR for day and night monitoring
  • Simultaneous live monitoring and high resolution recording
  • 3GPP mobile application
  • IP66 weather–proof construction


The Edimax IR-112E is a 2 megapixel outdoor bullet network camera with an IP66-rated housing enclosure which protects the camera against rain and dust, ensuring operation under extreme weather conditions. Equipped with infrared LEDs, the IR-112E is easy to set up and is designed to produce crystal clear high resolution video at all times of day or night and in harsh outdoor environments.



High Quality Videos with Small File Sizes
With H.264 video compression technology, the IR-112E is records videos at high resolution and clarity, while at the same time keeping file sizes small. This allows for optimized network bandwidth and storage efficiency. The IR-112E records 1920 x 1080 resolution videos at 10 frames per second. The high resolution and frame rate allow the user to capture detailed videos covering an area several times larger than conventional network cameras.


Edimax IR-112E 2Mpx Outdoor PoE True Day & Night Bullet Network Camera Bullet Network Camera HD_images_videos










Night Vision
The IR-112E is equipped with a mechanical ICR, auto light sensor and built-in IR LEDs, providing night vision up to 15 meters. With these capabilities, the IR-112E can record crisp and clear videos and images in low light situations during the daytime or at night.


Edimax IR-112E 2Mpx Outdoor PoE True Day & Night Bullet Network Camera Bullet Network Camera IR-112E_Night_Vision_ICR.png










Waterproof
The IR-112E bullet network camera is equipped with a weatherproof (IP66) housing for outdoor applications.


Edimax IR-112E 2Mpx Outdoor PoE True Day & Night Bullet Network Camera Bullet Network Camera IR-112E_Weatherproof_IP66.png









Power over Ethernet
The IR-112E complies with the IEEE 802.3af Power over Ethernet standard, allowing power and data transmission over a single Ethernet cable and eliminating the hassle of installing an additional power cable and adapter.



Edimax IR-112E 2Mpx Outdoor PoE True Day & Night Bullet Network Camera Bullet Network Camera IR-112E_PoE_network_camera.png










Compact Bullet Lite Design
The IR-112E features a compact, rugged 73mm x 112mm design, blending into its surroundings without disturbing customers or employees.


Edimax IR-112E 2Mpx Outdoor PoE True Day & Night Bullet Network Camera Bullet Network Camera IR-112E_Compact_Bullet_design.png










MicroSD/SDHC Card Slot for Local Storage
A built-in SDHC/SD card slot supports MicroSD/SDHC cards up to 32GB for local storage and backup.


Edimax IR-112E 2Mpx Outdoor PoE True Day & Night Bullet Network Camera Bullet Network Camera IR-112E_MicroSD_SDHC_Card_Slot.png










Free 32-Channel Viewer Software and Viewer App
The IR-112E includes EdiView32 software, a 32-channel viewing, recording and management solution which allows simultaneous live monitoring and high-resolution video recording. Additionally, the EdiSecurity smartphone app enable users to see images anywhere from a smartphone, tablet, or computer.



Edimax IR-112E 2Mpx Outdoor PoE True Day & Night Bullet Network Camera Bullet Network Camera IR-112E_EdiView32_EdiSecurity_App.png












APPLICATION DIAGRAM



Edimax IR-112E 2Mpx Outdoor PoE True Day & Night Bullet Network Camera Bullet Network Camera IP_Surveillance_Application.jpg









 DIMENSIONS

Edimax IR-112E 2Mpx Outdoor PoE True Day & Night Bullet Network Camera Bullet Network Camera IR-112E_Dimensions.png



SPECIFICATIONS

Image Sensor

1/2.5" CMOS

Image Sensor

Focal Length / F-Number

Varifocal Lens, f = 3.6, F1.8

DC-Iris

-

View Angle

67.8° (Diagonal)

Day Night Operation / IR Distance

Mechanical ICR, IR 15 Meters

Pan / Tilt / Rotate

-

Video Compression

H.264 / MPEG-4 / M-JPEG

Max Resolution

Full HD 1080P (1920 x 1080) @10FPS

Special Features

Event Trigger

Motion Detection

Digital In / Out Points

-

Pre/Post-Alarm Buffer

5 Second Pre-Alarm/5 second Post-Alarm, up to 3MB

Digital Zoom

10x

RS-485 Support

-

Smartphone Monitoring

Free iPhone & Android App

Multiple Streaming

Yes

WDR Support

-

Storage

1 Micro SD Card Slot, up to 32GB

Audio Interface

-

Network

10BASE-T / 100BASE-TX, RJ45

Power Supply

DC 5V2AV* Jack Ø2.1/PoE (IEEE 802.3af)(*Power adapter not included.)

Operating Temperature

-20°C - 50°C

Dimensions (mm)

Ø73 (D) X 112 (L) mm

Weigh (g)

450 g

Weather-proof

Yes (IP66)

Vandal-proof

-

Certification (EMI, IP, RoHS)

CE/FCC/RoHS/IP66

ONVIF Support

Yes






 DIMENSIONS

Edimax IR-112E 2Mpx Outdoor PoE True Day & Night Bullet Network Camera Bullet Network Camera IR-112E_Dimensions.png

*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
