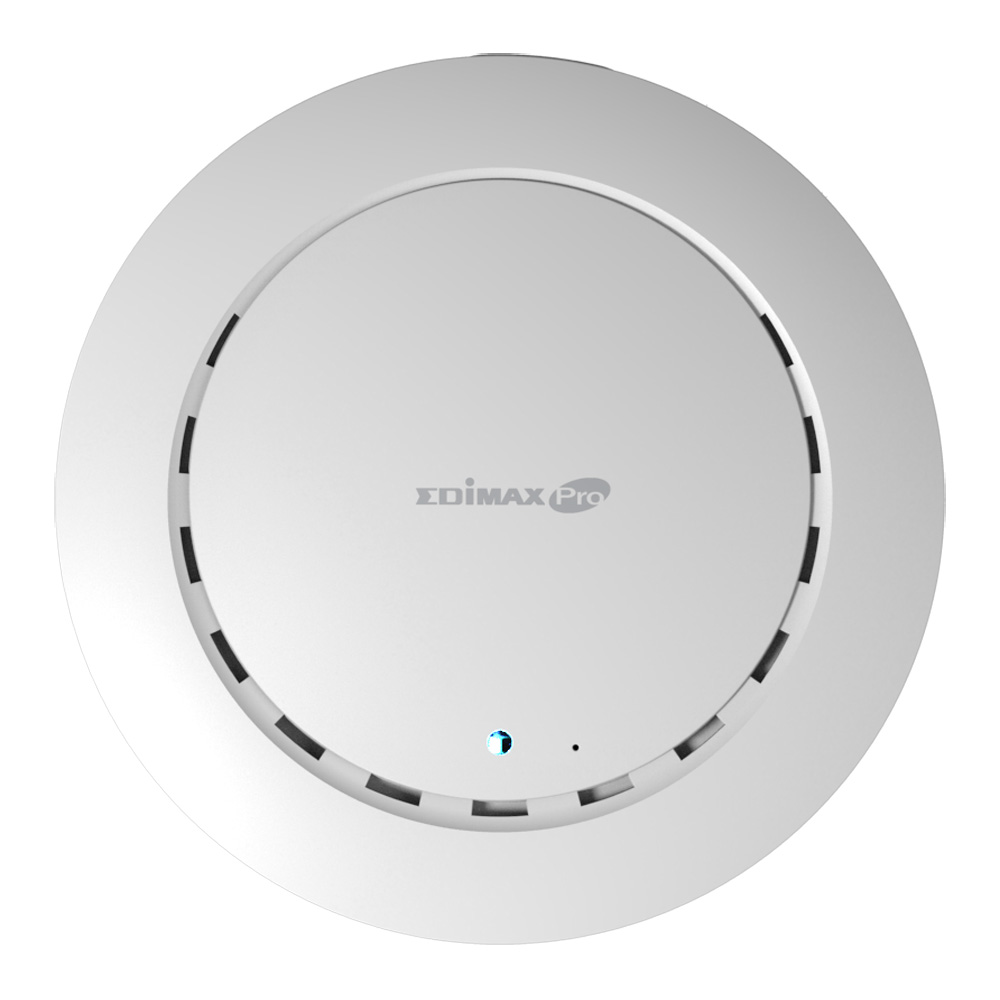

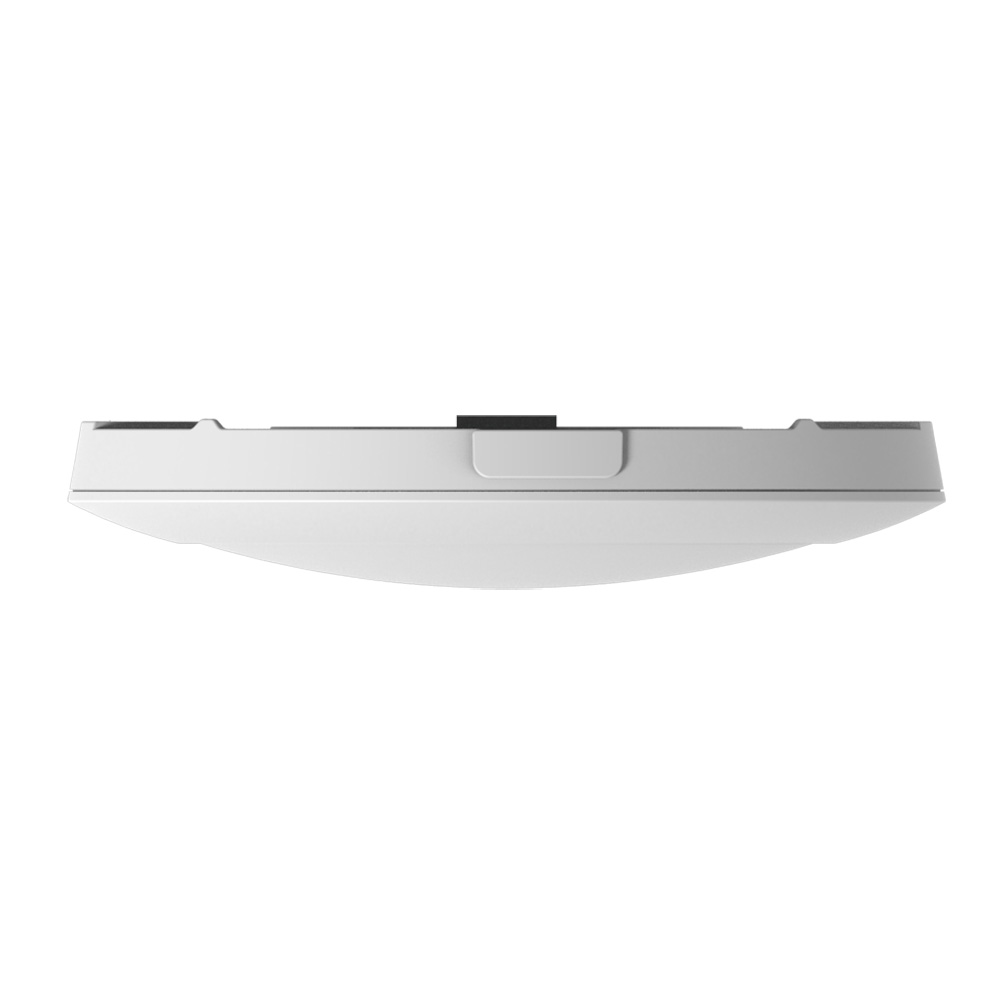

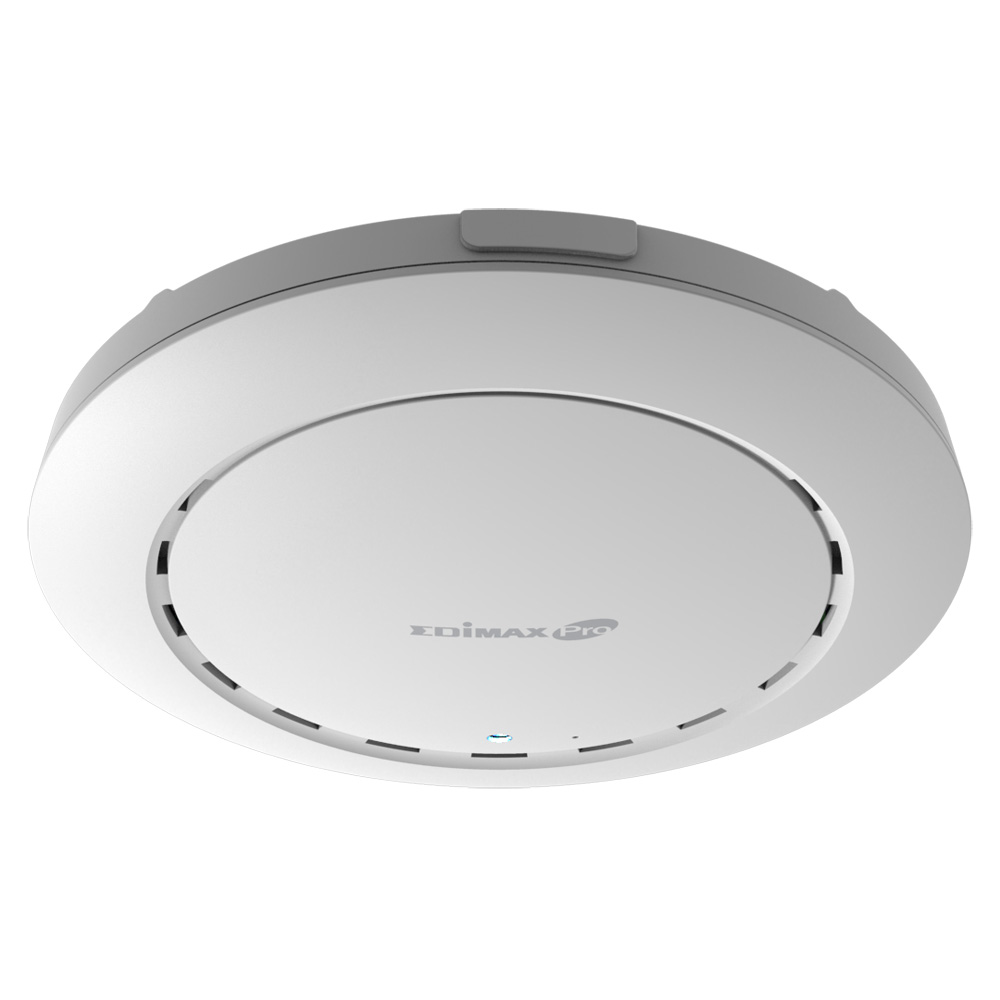

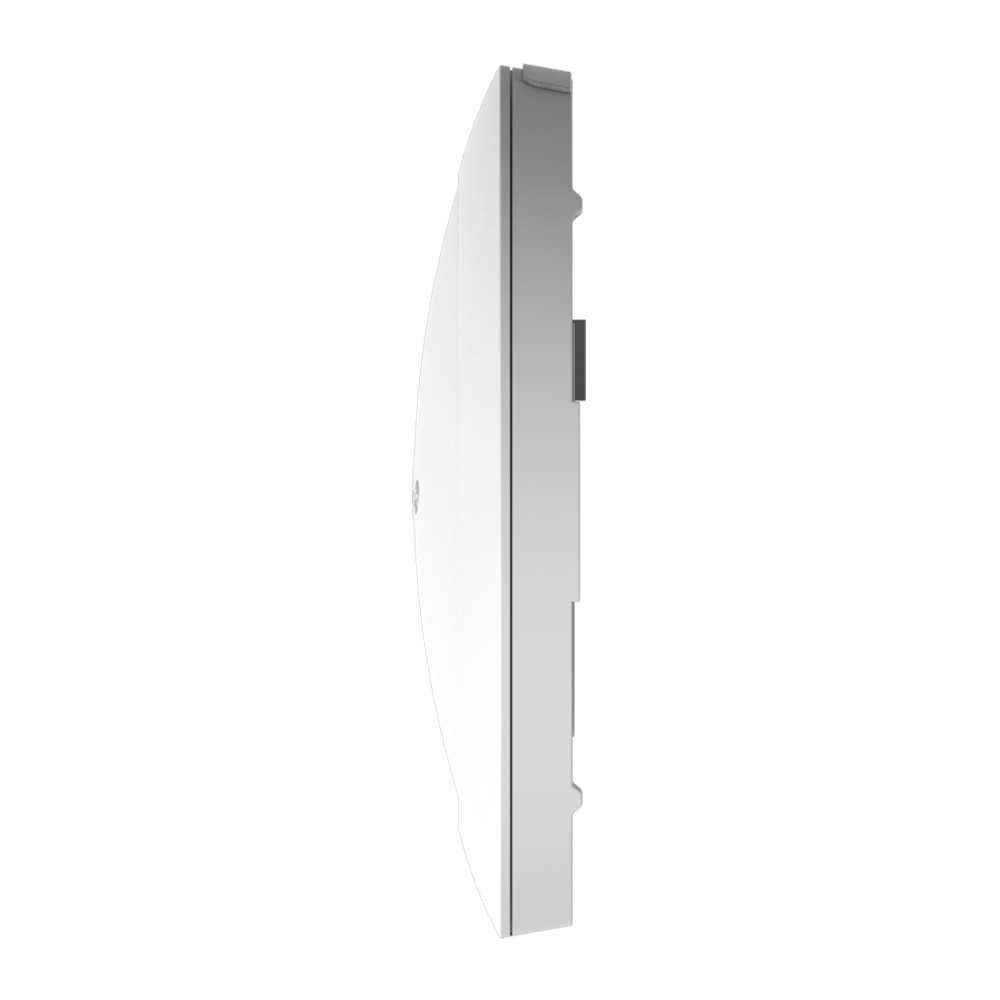

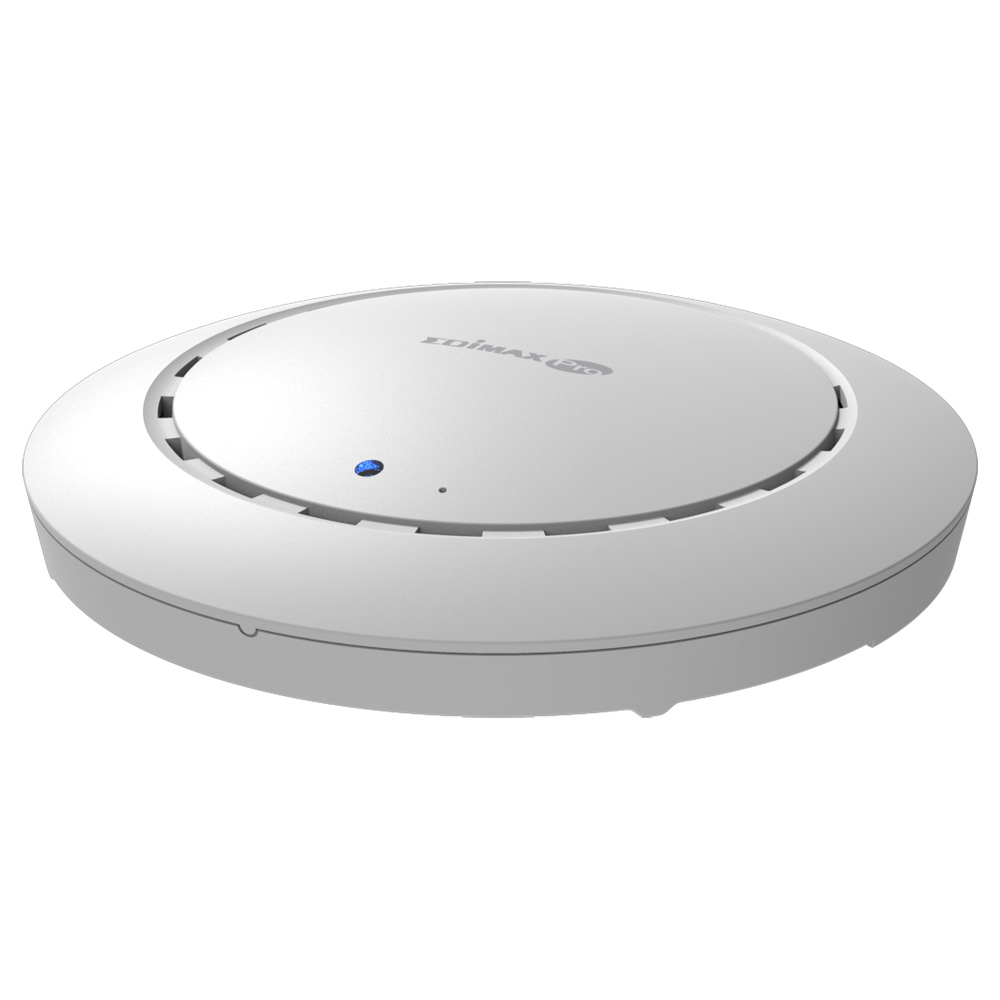

2 x 2 N Ceiling-Mount PoE Access Point

CAP300

Affordable, Entry Level Wireless Access Point Designed For Small-to-Medium Sized Businesses
  • 802.11N High Speed
  • Easy Installation
  • Compact & Durable Housing
  • Designed for High Density Usage
  • Multiple SSIDs for Security Management
  • Fast Roaming
  • Wide Coverage & High Sensitivity
  • Seamless Mobility
  • Power over Ethernet
  • Built-In RADIUS Server
  • Business Environments
  • Central Management


Affordable, Entry Level Wireless Access Point Designed For Small-to-Medium Sized Businesses


The CAP300 is a reliable and affordable entry level wireless access point designed to meet the needs of modern small to medium sized businesses, with IEEE802.11n wireless speeds up to 300Mbps. Industrial-grade performance and build quality combined with user-friendly operation, an extensive feature set and a practical, ceiling-mount design make an ideal product for day-to-day enterprise use.

For businesses that demand security, flexibility and speed – the Edimax Pro series has a wide range of potential applications from office environments to schools, campuses, hotels and hospitals. Multiple SSIDs can be configured for different departments or user groups and a built-in RADIUS server provides additional verification with a scalable AP array architecture for central management of multiple access points. Fast roaming for seamless transitions between access points, Power over Ethernet support (PoE) and an intuitive web-based management interface provides flexibility for deployment and extensive management options for company MIS departments and network administrators.

When performance and security are critical for your business, you need products that are engineered for your industry. The Edimax Pro series is designed to help your business and provide the connectivity that you rely on every day, with safety and effectiveness guaranteed.




KEY FEATURES


  • 802.11N High Speed: IEEE 802.11n with 300Mbps wireless speed.
  • Easy Installation: Ceiling-mount & T-rail mount design with easy installation kit.
  • Compact & Durable Housing: Ultra slim design with UL94-5VB flame-retardant plastic housing.
  • Multiple SSIDs for Security Management: Supports up to 16 SSIDs ideal for multiple departments, user groups, customers or guests.
  • Fast Roaming: Roams smoothly between APs without lag or interruption, ensuring top performance for video and voice streaming applications.
  • Wide Coverage & High Sensitivity: Adjustable RF output power and high receiver sensitivity for wide coverage across large spaces.
  • Seamless Mobility: 1.5x greater coverage than typical APs for blanket coverage to ensure seamless connectivity for Wi-Fi devices across enterprise environments.
  • Power over Ethernet: Supports IEEE 802.3af PoE as well as included power adapter.
  • Built-In RADIUS Server: With management for up to 256 user accounts.
  • Business Environments: Affordable choice for entry level solutions. Suitable for a wide range of commercial applications such as offices, hotels, meeting rooms, schools, campuses, resorts, retail and others.
  • Central Management: Edimax Pro Network Management Suite (NMS) for easy and Intuitive web-based central management. AP built-in with NMS supports AP array architecture.

Edimax CAP300 2 x 2 N Ceiling-Mount PoE Access Point


High Performance Design with High-Speed 300Mbps 11n

Supports 802.11b/g/n with speed up to up to 300Mbps when connected to wireless 802.11n devices. Additionally Edimax Pro series products feature other high-performance design features such as solid capacitors for significantly longer lifespans than traditional non-solid alternatives, generating less heat and delivering increased stability. Durable, robust and ready for business environments.​



Wide Coverage & Multiple SSIDs

With adjustable RF output power and high receiver sensitivity, Edimax Pro access points are equipped to provide wide coverage where it’s needed the most. Suitable for large spaces across office floors, shop floors, hospital wards, or conference rooms, get the wireless coverage that staff and systems need to operate efficiently. Keep every corner of your business connected and differentiate user groups, departments or guests with up to 16 separate SSIDs with independent security. Wide, accessible Wi-Fi coverage with strong security to protect sensitive company information and supervise access to internal networks.



BYOD Solutions & High Density Networking

Bring Your Own Device (BYOD) is becoming an increasingly commonplace company trend in offices and enterprise environments worldwide. Employees are using their own smartphones, tablets and laptops with the latest cloud-connected productivity apps to get things done. And in offices, hotels, schools or other densely populated environments, access points need to cope with a high volume of users connecting to the network at any time, whether it’s customers or employees. Edimax Pro solutions support the Wi-Fi along with high-density capacity to support up to a 50* users simultaneously, ideal for BYOD workplaces and a large number of wireless devices.
(*The maximum users in 2.4GHz is depends on the interference condition of the environment.​)



Seamless Mobility

Typical wireless access points can effectively cover a 25m – 30m radius under normal usage. Now with the technological advances in Edimax Pro access points, we can extend effective coverage approximately 1.5x further, eliminating Wi-Fi dead zones completely and providing blanket coverage across enterprise environments. Wireless devices can stay seamlessly connected in environments where connectivity may be a critical component of efficiency and productivity, and benefit from mobility with high-speed connectivity across a range of wireless devices: smartphones, tablets and computers, throughout an entire organization.



Hotels, Offices, Schools and Hospitals

Edimax Pro series access points, with high-speed 11n high-density networking for up to 50 simultaneous users, are ideal for multi-tenant unit buildings, hotels, resorts, hospitals, campuses, conventions or anywhere with large-scale network use, with safety and effectiveness guaranteed.



Rogue AP Detection & Wireless Isolation

Rogue access point detection can identify any unauthorized SSIDs which may have been installed in an otherwise secure network with malicious intent, and L2 wireless isolation provides wireless security.



Easy and Intuitive Central Network Management: NMS

Work with Edimax Pro NMS (Network Management Suite)* web-based wireless network management software. Company MIS administrators can plan and manage Edimax Pro access points’ powerful functionality according to their office space using an easy, remote web-based interface which includes a dashboard, map view, traffic statistics and wireless client list for network-wide remote administration. RADIUS settings, WLAN group settings, access control, guest network settings and firmware upgrades can all be managed centrally from a single location to reduce network downtime, aid troubleshooting and optimize network performance. Graphical zone plans with Google Maps integration and setup wizards are also available for expanding and managing large networks with multiple access points, with custom floor plans, visual overviews and easy drag-and-drop icons for quick access to key performance and monitoring information.


Edimax Pro IAP1200 2 x 2 AC1200 Dual-Band In-Wall PoE Access Point, Edimax Pro central Network Management Suite (NMS)

*NMS is built-in with Edimax Pro CAP, WAP series & OAP1750 access point.




AP Array

Edimax Pro Network Management Suite (NMS) supports AP array architecture, which enables the central management of a group of access points. NMS can be installed on one access point and support up to 8 or 16 Edimax Pro access points (8 APs: CAP300, CAP1200; 16 APs: CAP1750, WAP1200, WAP1750, OAP1750) with no additional wireless controller required, reducing costs and facilitating efficient remote AP management. Access points can be deployed and configured according to requirements, creating a network powerful network architecture which can be easily managed and expanded in the future, with an easy to use interface and a full range of functionality for company MISs.
​ Edimax CAP300 2 x 2 N Ceiling-Mount PoE Access Point, AP Array




Easy Installation Kit

Ceiling-mount & T-rail mount design with easy installation kit.

Edimax CAP300 2 x 2 N Ceiling-Mount PoE Access Point ceiling-mount, t-rail mount, easy installation


SPECIFICATIONS

HARDWARE
LAN Interface Giga x 1
PoE 802.3af (Supports 802.3at)
Antenna Type: 2 x Built-In PIFA
Gain: 2.82dBi Max.
Power DC: 12V / 1A
802.3af (PoE Injector Optional)
Dimensions (L x W x H) 17.6 (D) x 3.2 (H) cm
Weight 287.3g
Power Consumption (Full Loading) 6.5W
Mounting Ceiling
WPS/Reset Y
LED Indicator 1. Power LED
2. Diag LED
Environmental Conditions Operating Temperature: 0°C (32°F) to 50°C (122°F)
Storage Temperature: -20°C (-4°F) to 60°C (140°F)
Operating Humidity: 90% or Less
Storage Humidity: 90% or Less
Power Saving 802.3az
Internal Buzzer Y
Housing UL94-5VB Flammability Rating
WIRELESS
Standard 802.11 b/g/n
No. of Radios 1
Receiver Sensitivity ≤ -95dBm
Certification CE, FCC, NCC, BSMI, IMDA
Fast Roaming Y
Number of SSIDs 16
PERFORMANCE
Maximum Data Speed 300Mbps
Concurrent Clients Up to 50*
RF SPECIFICATONS
Frequency Band 802.11b/g/n 2.412~2.484(GHz)
Operation Channels •2.4GHz :
US/Canada 1-11; 2.412~2.462GHz
Europe 1-13; 2.412~2.472GHz
Japan 1-14; 2.412~2.484GHz
Transmit Power
•802.11b
  23dBm@1Mbps
  23dBm@2Mbps
  23dBm@5.5Mbps
  23dBm@11Mbps
•802.11g
  23dBm@6Mbps
  23dBm@9Mbps
  23dBm@12Mbps
  23dBm@18Mbps
  23dBm@24Mbps
  22dBm@36Mbps
  20dBm@48Mbps
  19dBm@54Mbps
•802.11n
  26dBm@MCS0/8
  25dBm@MCS1/9
  25dBm@MCS2/10
  25dBm@MCS3/11
  24dBm@MCS4/12
  23dBm@MCS5/13
  22dBm@MCS6/14
  22dBm@MCS7/15
(CE: 20dBm or lower, FCC: 23dBm or lower)
Receiver Sensitivity
•802.11b
  ≤-95dBm@1Mbps
  ≤-90dBm@11Mbps
•802.11g
  ≤-91dBm@6Mbps
  ≤-75dBm@54Mbps
•802.11n
  ≤-93dBm@MCS0
  ≤-73dBm@MCS7
  ≤-90dBm@MCS8
  ≤-70dBm@MCS15
SECURITY
Encryption WEP / WPA / WPA2
Wireless L2 Isolation Y
Station Isolation Y
IEEE 802.1x Authenticator Y
EAP Authentication PEAP
Hidden SSID Y
MAC Address Filter Y
Wireless STA Y
Rogue AP Detection (w/ Edimax Pro Network Management Suite (NMS)) Y
SOFTWARE
Wireless Mode AP / WDS AP / WDS Bridge
802.1q VLAN Y (VID = 1-4095)
Spanning Tree RSTP
QoS WMM (802.11e)
Max Associated Station No.
Pass-Through IPv6 and VPN (PPTP, L2TP/IPsec)
DSCP (802.1p) Y
Multicast Rate up to 54Mbps Y
MANAGEMENT
Deployment
  • Standalone (AP Mode)
  • ​Master AP Mode: Can manage 8  Edimax Pro APs with NMS
  • Managed AP Mode: Be managed by AP Controller (APC500), Edimax Pro Master AP with NMS  software
Configuration HTTP / HTTPS
SNMP v1, v2c, v3
CLI (Telnet, SSH)
RADIUS Server Built-In
Auto-Channel Y
Private MIB Y
Package Contents
Access Point N300 Ceiling Mount PoE Access Point
Mounting Bracket Ceiling-Mount and T-rail Mount Bracket Kit
Power Adapter 12V / 1A Power Adapter
Cable Ethernet Cable
CD / Qick Installation Guide CD (User Manual & Multi-Language Quick Installation Guide) / Printed English Quick Installation Guide
ACCESSORIES
Optional GP-101IT IEEE802.3at PoE Injector
*The maximum users in 2.4GHz is depends on the interference condition of the environment.
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
