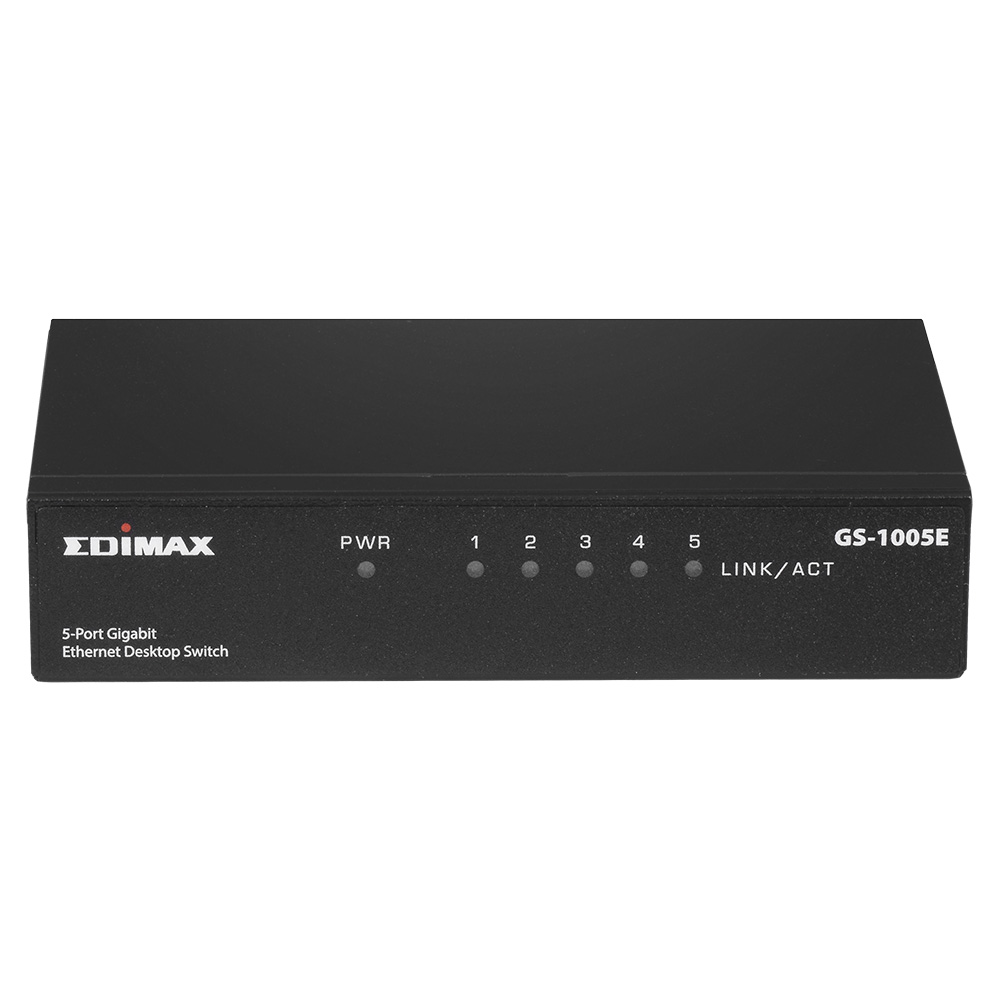

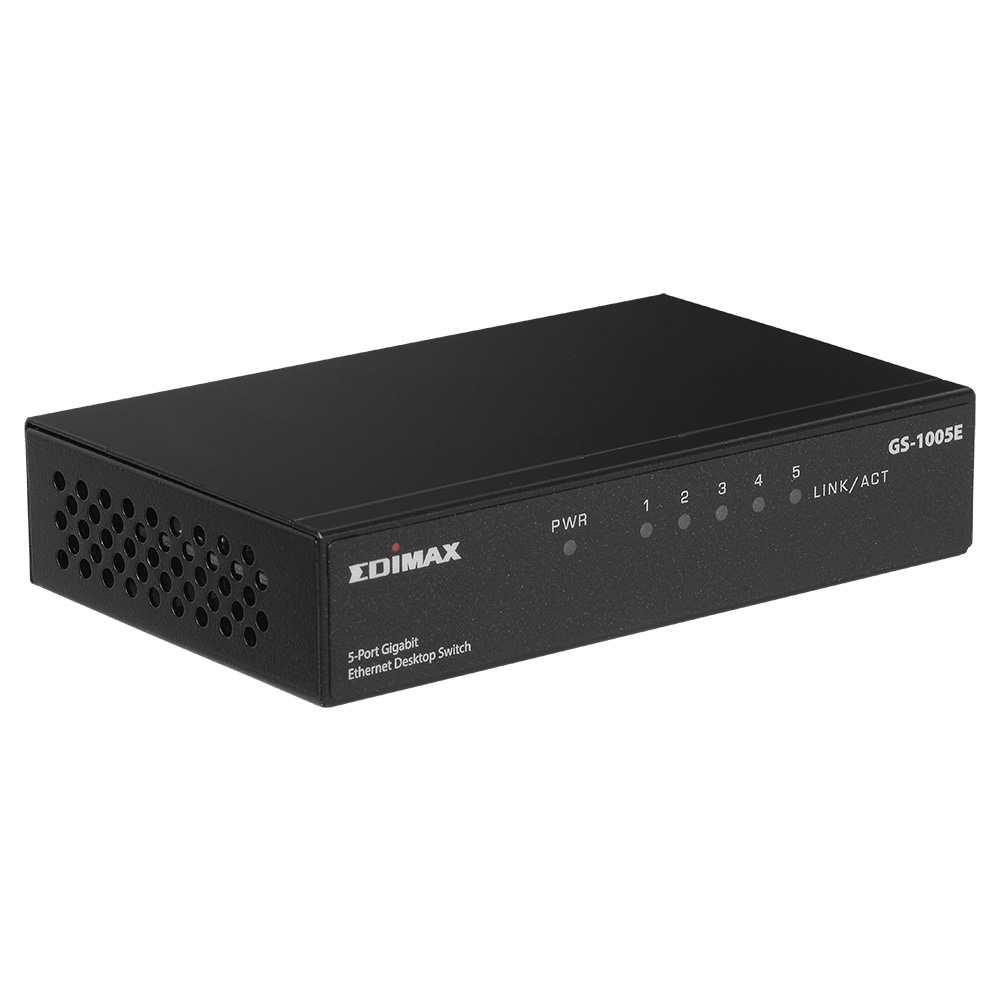

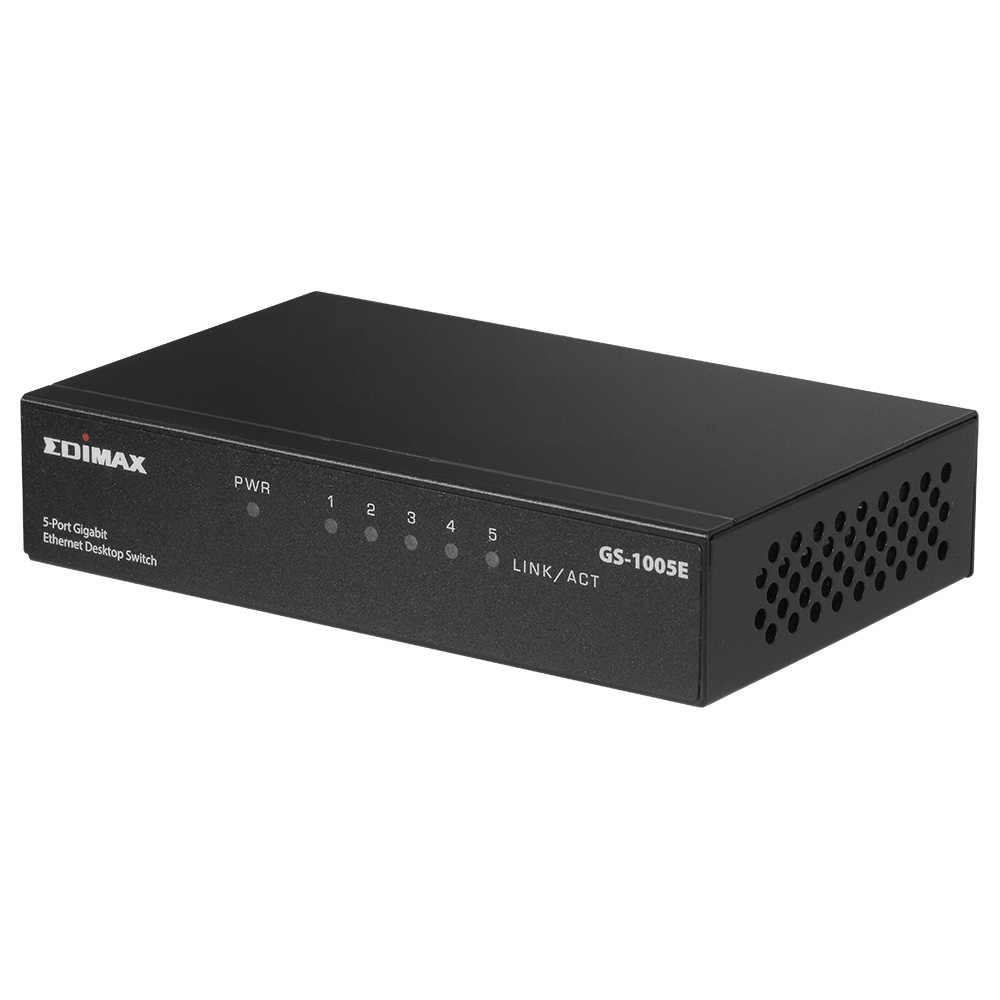

5-Port Gigabit Desktop Switch

GS-1005E

  • Gigabit High Speed: Equipped 5 Gigabit Ethernet ports deliver up to 2000Mbps of throughput per port at full-duplex mode and 9K jumbo frames support.
  • Easy Plug-and-Play: Simple setup with no software to install or configuration required.
  • High Performance & Reliable Connection: Supports IEEE 802.3x Flow Control, Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction and loop detection.
  • Energy Efficient & Power Saving: Complies with IEEE 802.3az Energy Efficient Ethernet, Inactive Link Detection and Cable Length Detection for power saving.
  • Quiet Fanless, Wall-Mount, Durable Design: Fanless, wall-mounted design quietly integrates into your environment with durable metal casing.


Easily Upgrade or Expand Networks with Gigabit High-Speed

For Home, Small Office and Enterprise


5-Port Gigabit Desktop Switch

GS-1005E

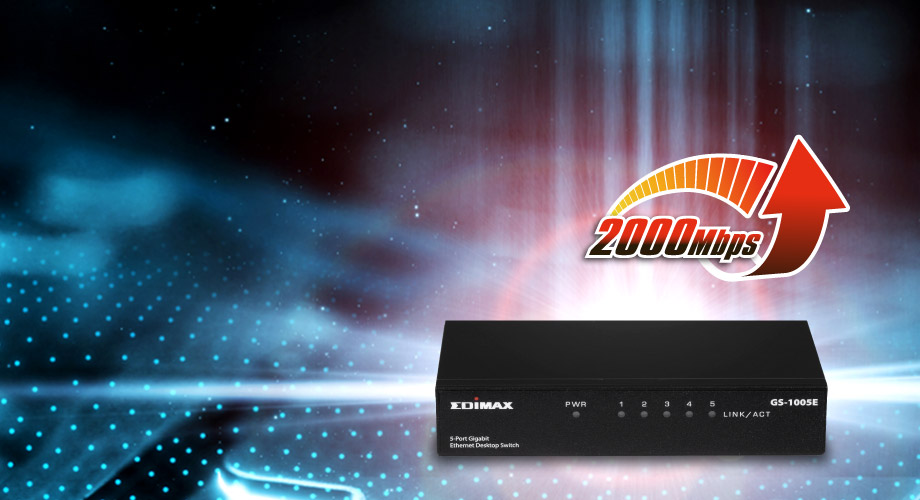

Offers high-flexibility and high-bandwidth Gigabit connectivity and delivers up to 2000Mbps of throughput per port at full-duplex mode to servers, workstations and other attached devices for large files transfer. Supports 9K jumbo frames to improve network utilization in large files transfer.


Easy Plug & Play, No Installation Required

The Gigabit switch features with Flow Control, Full-Duplex, Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Store-and-Forward Architecture filters fragment & CRC error packets, maximizing network performance while offering reliable connection.


High Performance and Reliable Connection

The Gigabit switch features with Flow Control, Full-Duplex, Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Store-and-Forward Architecture filters fragment & CRC error packets, maximizing network performance while offering reliable connection.


Energy Efficient and Power Saving

To comply with the IEEE802.3az Energy Efficient Ethernet standard and feature with Inactive Link Detection and Cable Length Detection, the GS-1008E V2 provides power-saving functionality to reduce energy consumption and save power usage costs.

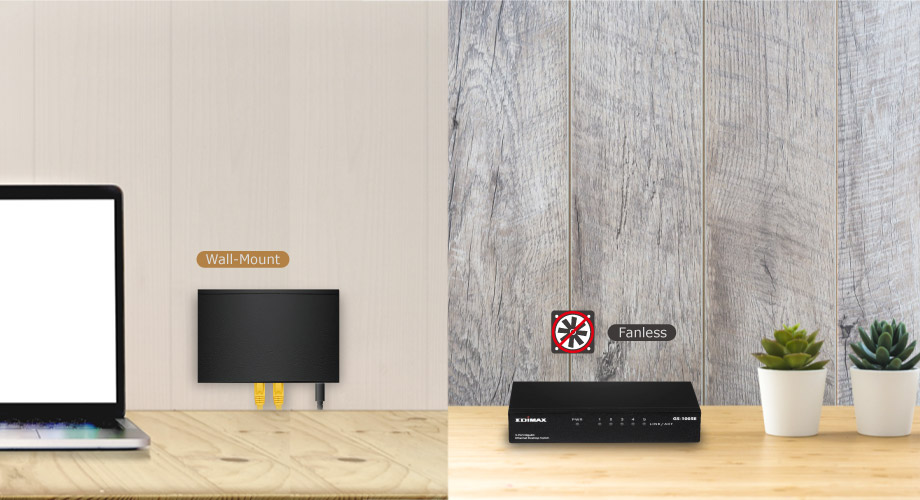

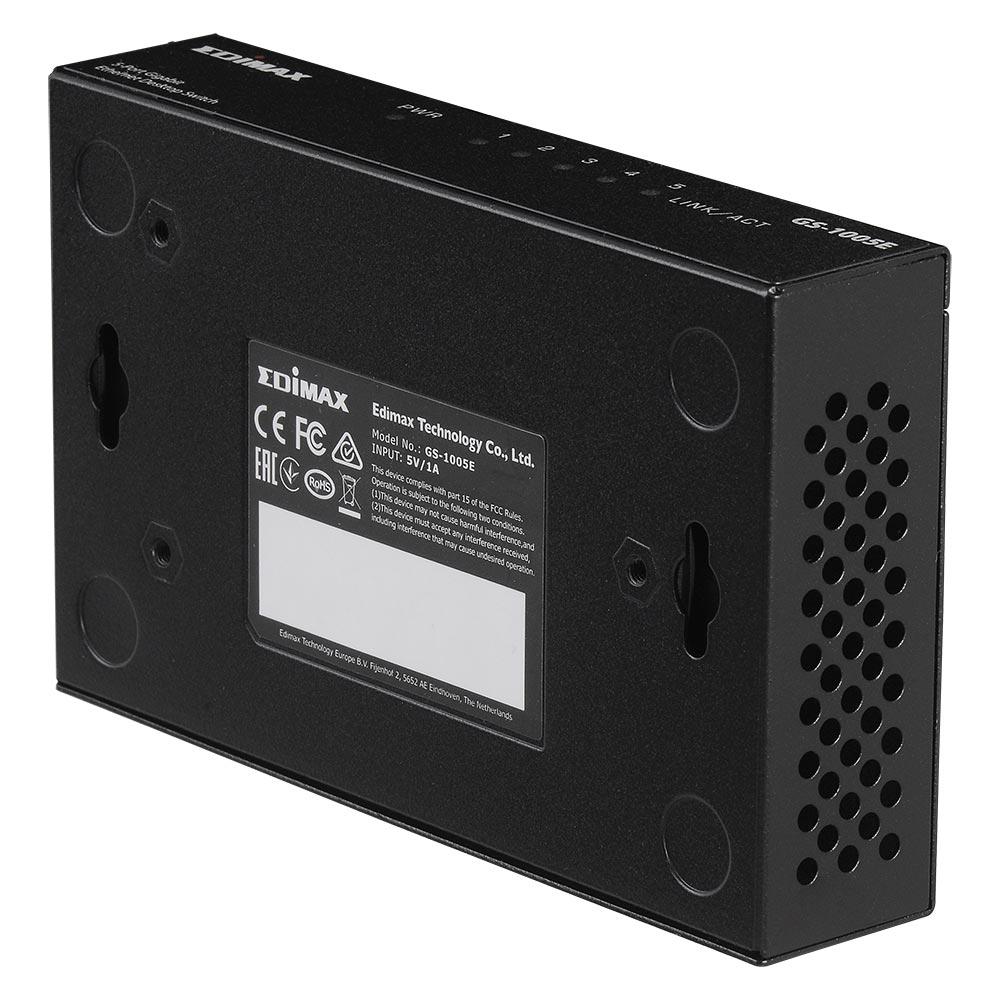

Quiet Fanless, Flexible Wall-Mount Design

Flexible deployment options for desktop or wall-mount with quiet fanless, durable metal case design to meet the network environment requirement.


​Designed to meet your network needs

Easily upgrade or expand your network with Gigabit high-speed and with cost efficiency.

  • Home & Small Office

    XGS-5008

  • Small and Medium Business

    EN-9320SFP+

  • Enterprise

    MG-10G Series

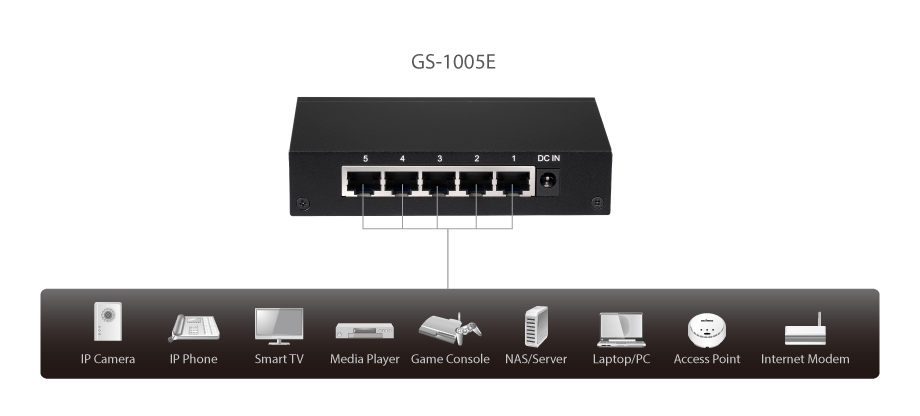

​APPLICATION DIAGRAM

5-Port Gigabit Desktop Switch




SPECIFICATIONS
HARDWARE
Ports  5 x RJ-45 10/100/1000Base-T ports
Transmission Method Store and forward
LED Indicator Per port: Link/Act
Per unit: Power
Power Input  5V/1A (External power adapter)
Power Consumption 2.4W (Max.)
Mounting Desktop/Wall
Housing Metal
Fan  Fanless
Dimension   121(W) x 75(D) x 26(H)mm
Weight  229g
PERFORMANCE
Switching Capacity 10Gbps
MAC Address 2K
Buffer Memory 1M
Jumbo Frame 9K (Bytes)
Filtering/Forwarding Rates 1000Mbps port - 1,488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps
Max. 7.44Mpps
OTHERS
Standard IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
IEEE 802.3x Full-duplex and flow control
IEEE 802.3az Energy efficient Etherent
Certification CE, FCC
Environmental Condition Operating Temperature: 32~104°F (0~40°C)
Storage Temperature: -40~158°F (-40~70°C)
Operating Humidity: 10~90% (NonCondensing)
Storage Humidity: 5~90% (NonCondensing)
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
