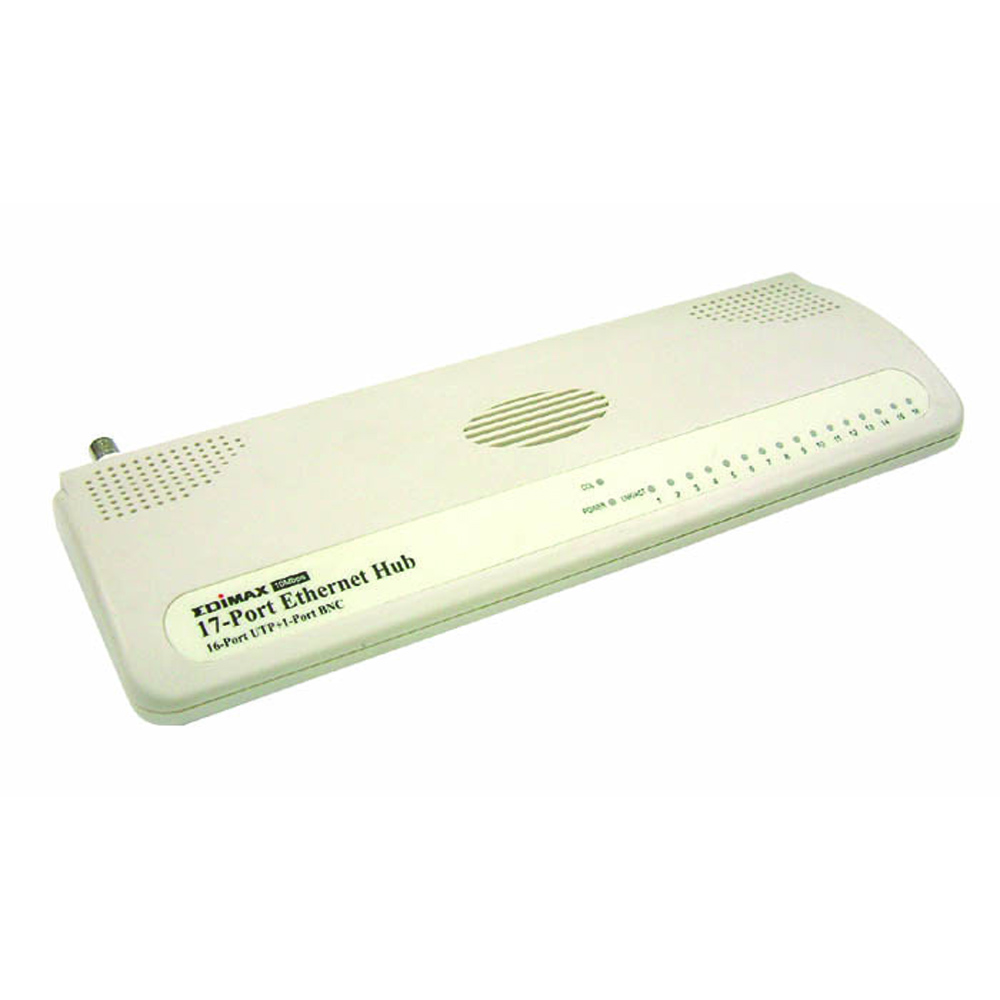

ER-5397P , one of the most compact and light-weight 17-port 10Base-T hubs in the market, delivers cost-effective solution for the workgroup wiring requirements.

With sixteen twisted-pair ports, the hub meets the demands of most small workgroups. When users need to expand the network, you can easily cascade multiple ER-5397P 17-port hubs or cascade with other smaller 10Base-T hubs, such as Edimax's ER-5395P(5-port hub) or ER-5390P(8-port hub), through the cascaded UTP port or BNC port.

This hub supports all the features of a full-sized, standard 10Base-T hub, including automatic port partition,   jabber function isolates network failure, polarity detection and correction, an uplink port, and extensive diagnostic LEDs

Features

• Conforms to IEEE 802.3 industrial standard.
• Compact and slim design.
• Convenient uplink to another hub through the UTP or BNC port.
• Self-monitoring through jabber and auto-partition function automatically isolates network failure.
• Easy diagnostic through complete sets of LEDs for the entire system.

• Standard : IEEE 802.3 CSMA/CD, 10 Mbps
• UTP Ports : RJ-45 x 16, BNC x 1
• Uplink Port : Slide Switch x 1
• Hub LEDs : Power, Collision
• Port LEDs : Link/Activity
• Operating Temperature : 32-131°F (0-55°C)
• Humidity : 10-95% (Non-condensing)
• Dimension : 1.18 x 11.42 x 3.94 in. (30 x 290 x 100 mm)
• Weight : 0.97 lb. / 440g (Power Adapter excluded)
• Power : 12VDC, 0.5A
• Certification : FCC Class B, CE Mark, C-Tick
