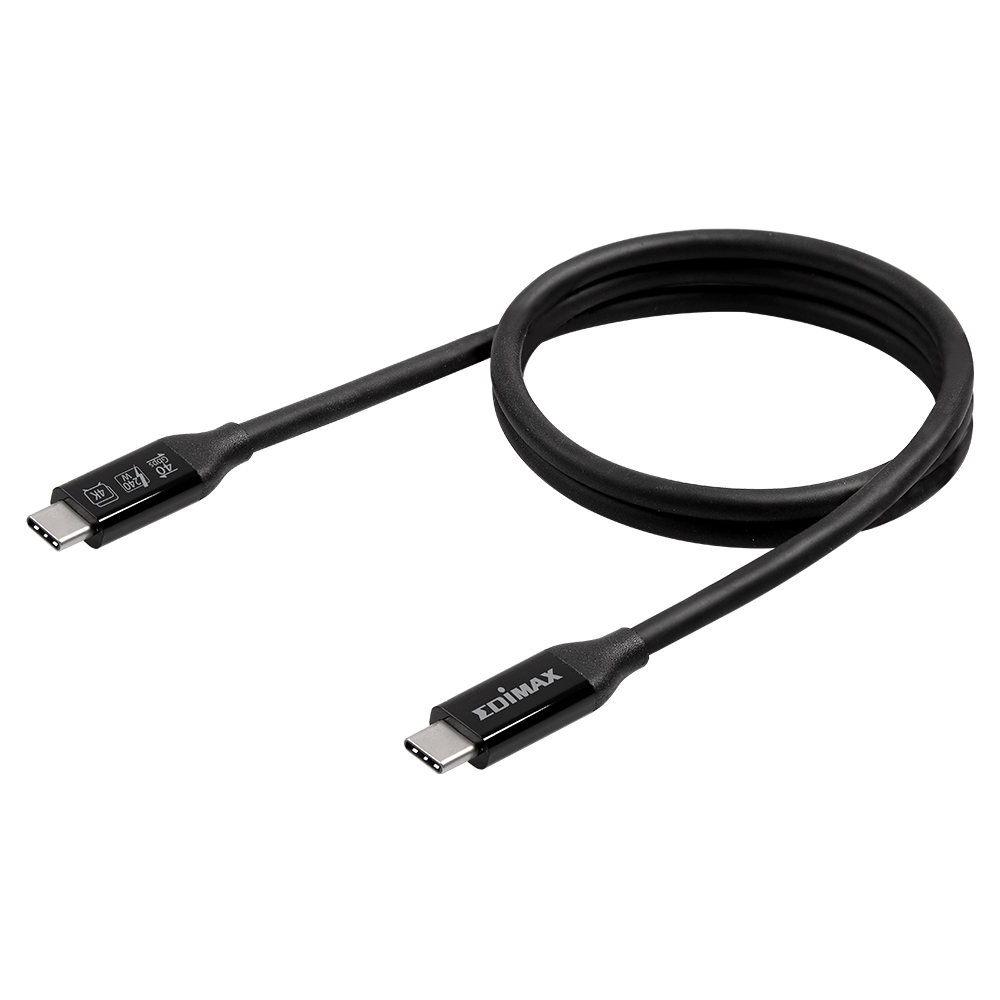

40Gbps USB4 Thunderbolt 3 Cable (USB-C to USB-C)

UC4 Series

  • Superfast Speed: Transfers up to 40Gbps between Thunderbolt 3 USB-C devices
  • Fast Charging: Safely power delivery and charging up to 240W* to USB Power Delivery devices (*UC4-010TB V1 power delivery up to 100W only)
  • Ultimate HD Display: Supports dual 4K or single 5K UHD display and DisplayPort Alternative Mode
  • Durable and Tangle Free: Designed with TPE (Thermoplastic Elastomer) elastic materials for tangle-free and durability
  • Wide and Backward Compatible: Thunderbolt 3 USB4 Type-C interface is backward compatible with Thunderbolt 2, USB-C 3.2, 3.1, and 2.0
  • Flexible Daisy-Chain: Connection up to 6 Thunderbolt 3 devices





Thunderbolt 3 with USB-C that Does It All

EDIMAX UC4 series USB4 Thunderbolt 3 cable assembles with USB-C connectors on both ends that offers high performance, cost-effective solutions for data, audio and video. Transferring up to 40Gbps and smart fast power charging of up to 240W applications for all Thunderbolt 3 USB-C devices.

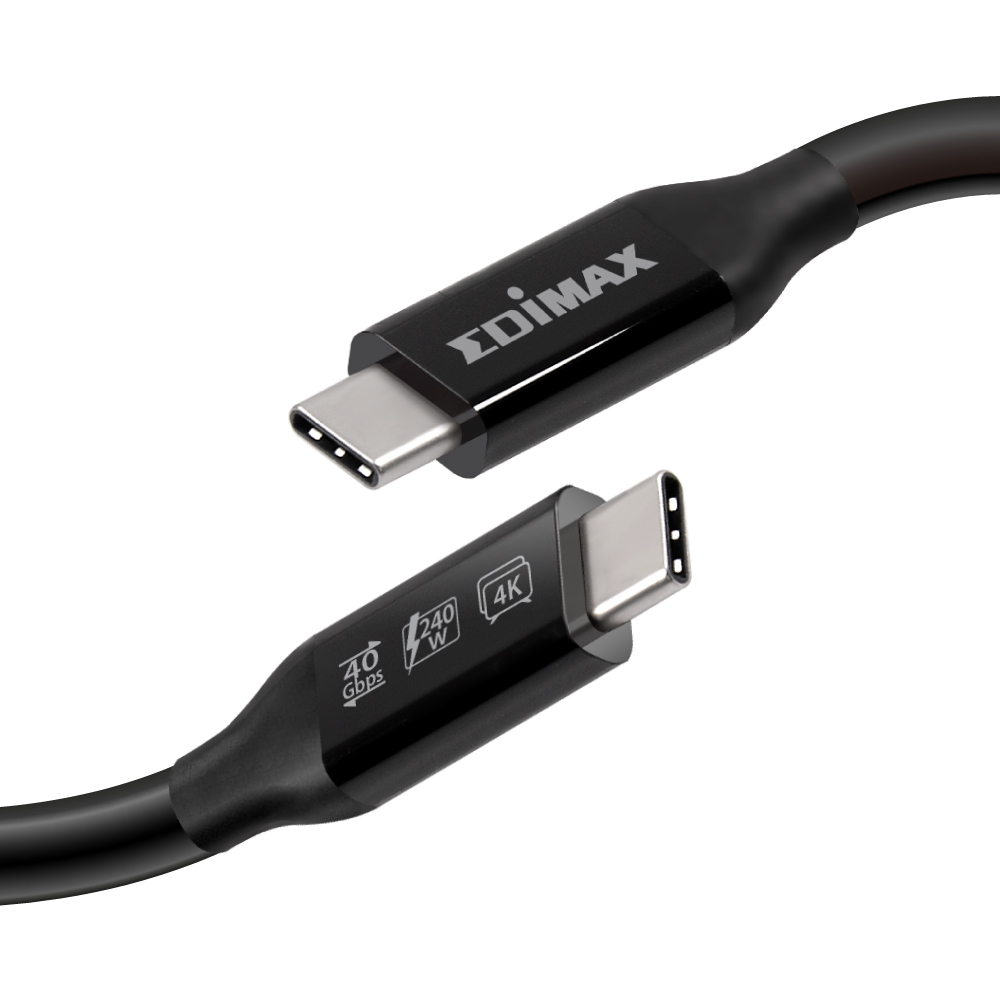

EDIMAX UC4 40Gbps USB4 Thunderbolt 3 Cable (USB-C to USB-C)

Superfast Speed Up to 40Gbps

Between Thunderbolt 3 devices, the UC4 cable supports data, audio and video transfer up to an astonishing and superfast speed up to 40Gbps.

EDIMAX UC4 40Gbps USB4 Thunderbolt 3 Cable (USB-C to USB-C) 240W fast charge

Fast Power Charging Up to 240W*

The UC4 series Thunderbolt 3 cable can deliver power in bi-direction up to 240W (5A/ 20V) to an USB Power Delivery (USB-PD) device. (*UC4-010TB V1 power delivery up to 100W only.)

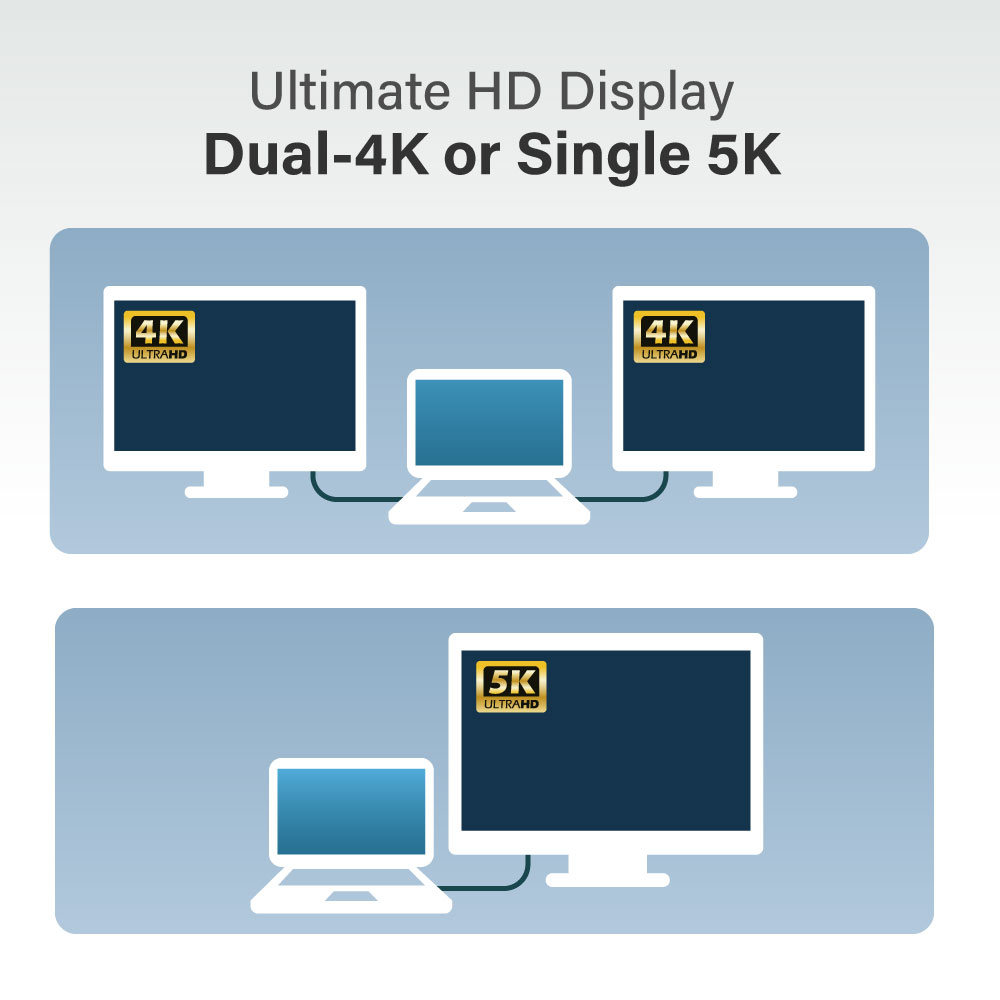

EDIMAX UC4 40Gbps USB4 Thunderbolt 3 Cable (USB-C to USB-C) Dual-4K or single 5K display

HD Dual-4K or Single 5K Display

The Thunderbolt 3 cable delivers authentic high-quality audio and crystal-clear video to a 5K display or use the cable with a Thunderbolt 3 or 4 dock to dual 4K displays

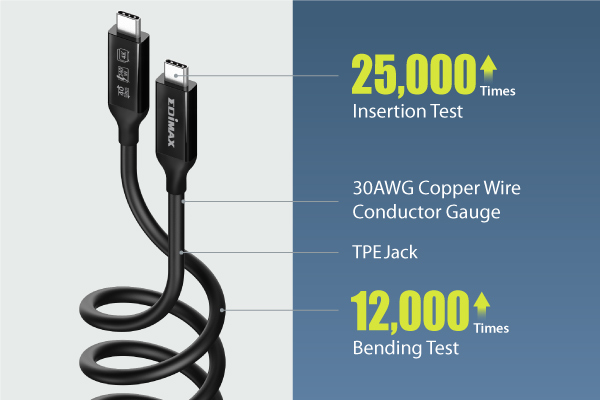

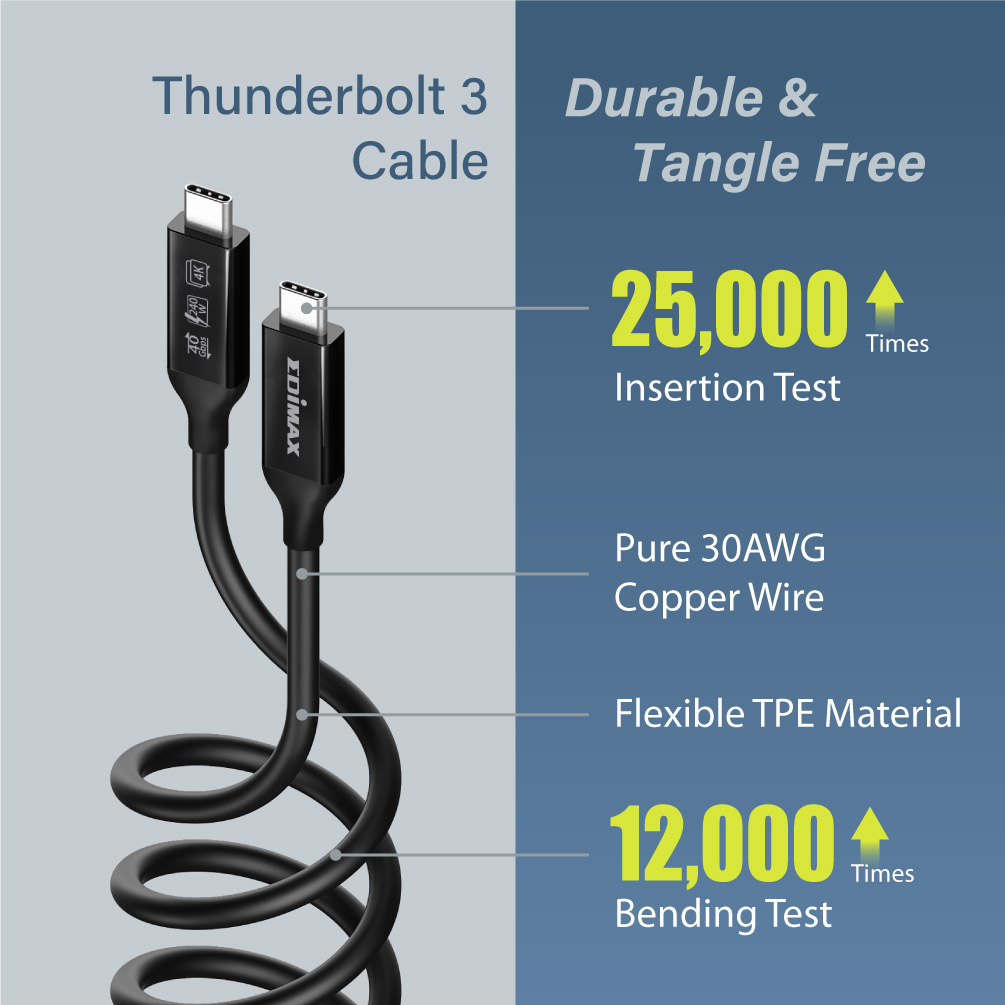

EDIMAX UC4 40Gbps USB4 Thunderbolt 3 Cable (USB-C to USB-C) durable

Durable and Tangle Free

Designed with 30AWG copper wire conductor gauge and TPE (Thermoplastic Elastomer) elastic materials for tangle-free and durability and 25,000+ times insertion, 12,000+ times banding test.

EDIMAX UC4 40Gbps USB4 Thunderbolt 3 Cable (USB-C to USB-C) Wide and Backward Compatible

Wide & Backward Compatible

The UC4 series cable works with all USB-C devices which are compatible with USB4/USB3.2/USB3.1/USB2.0, Thunderbolt 3, Thunderbolt 2, DisplayPort 1.4, DisplayPort Alternate Mode (DP Alt Mode), PCI-E 3.0 standards.

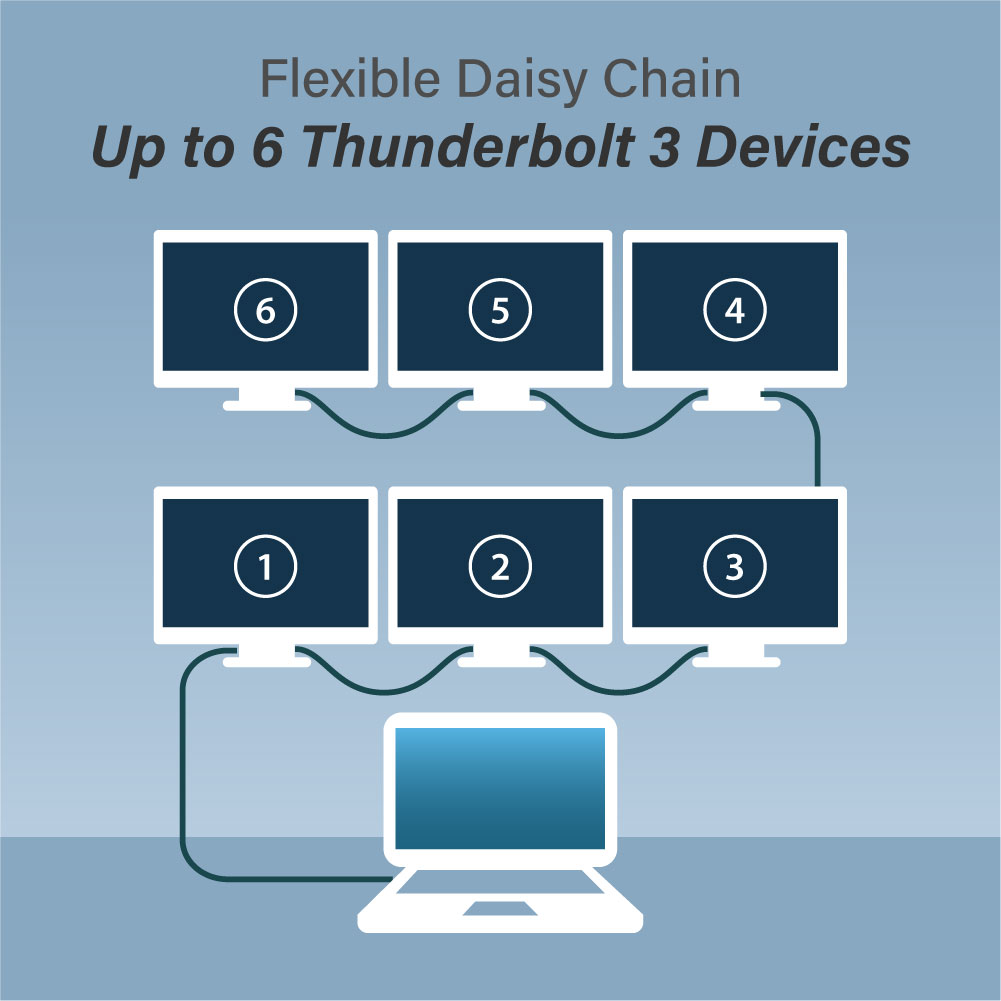

EDIMAX UC4 40Gbps USB4 Thunderbolt 3 Cable (USB-C to USB-C) daisy-chain

Flexible Daisy-Chain

With Thunderbolt 3 daisy chain technology, the UC4 cable can connect up to 6 Thunderbolt 3 USB-C enabled devices including hubs, docking stations, monitors, PCs, external graphics cards, SSD drives, displays and more.




SPECIFICATIONS​

HARDWARE ​
Cable Type  USB4 / Thunderbolt 3 (TBT3) Cable
Connector USB-C (24-pin) Male to USB-C (24-pin) Male
Conductor Gauge 30AWG
Jack TPE (Thermoplastic Elastomer)
Cable Length
  • UC4-005TB: 0.5 Meter/1.64 Feet
  • UC4-010TB V1 & V2: 1 Meter/3.28 Feet
  • UC4-020TP: 2 Meters/6.5 Feet
  • UC4-030TP: 3 Meters/10 Feet
  • UC4-050TP: 5 Meters/16.4 Feet
PERFORMANCE
Data Transmission Rate Up to 40Gbps
  • Thunderbolt 3: Up to 40Gbps
  • USB4: Up to 40Gbps
  • USB 3.2: Up to 20Gbps
  • USB 3.1: Up to 10Gbps
  • USB 2.0 Up to 480Mbps
Power Delivery Up to 240W, 20V/5A Max. (*UC4-010TB V1 up to 100W only)
Video/Audio
  • DisplayPort Alternate Mode (DP Alt Mode)
  • One 4K display (4096 x 2160) 30-bit @ 120Hz
  • One 5K display (5120 x 2880) 30-bit @ 60Hz
  • Two 4K displays each (4096 x 2160) 30-bit @ 60Hz
OTHERS
Standard
  • USB4 / USB3.2 / USB3.1 / USB2.0
  • Thunderbolt 3
  • DisplayPort 1.4
  • DisplayPort Alternate Mode (DP Alt Mode)
  • PCI-E 3.0
Temperature Range Storage: -10~ 70 °C
Operation: 0~ 55 °C
Certification CE, e-Mark
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
