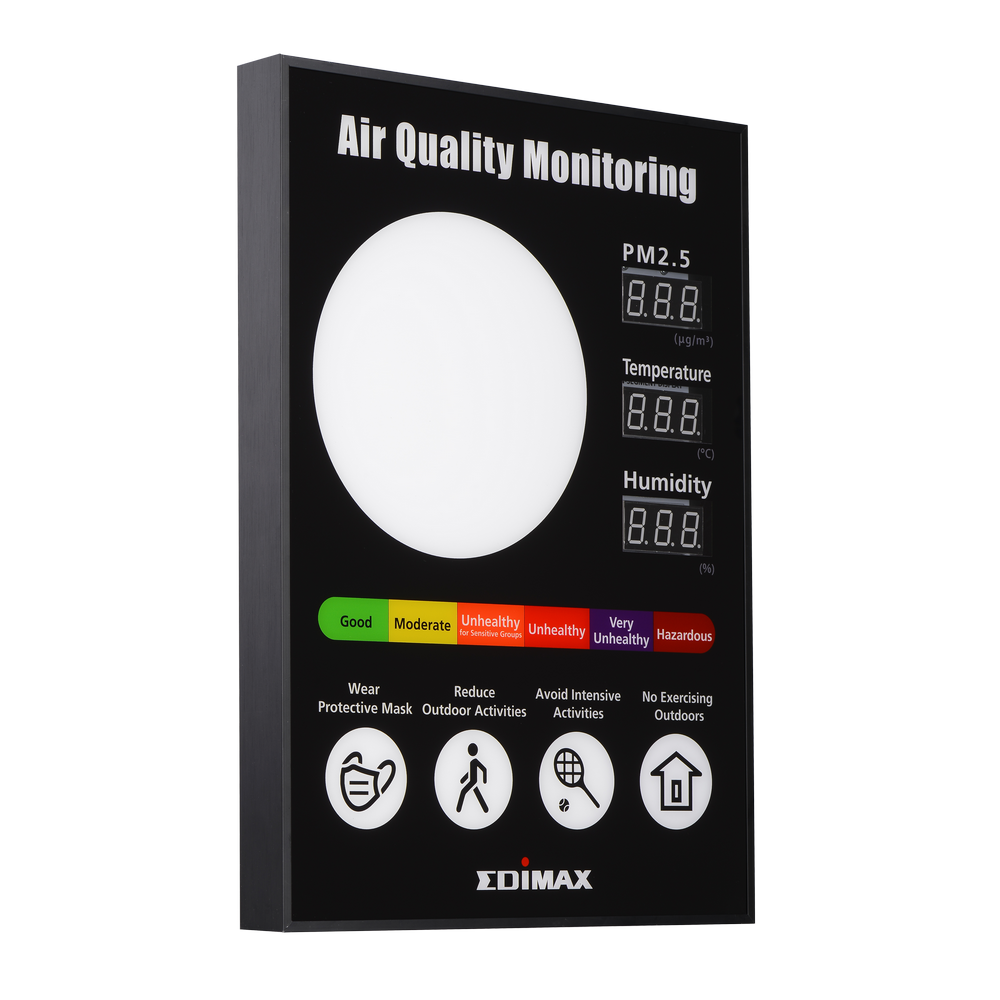

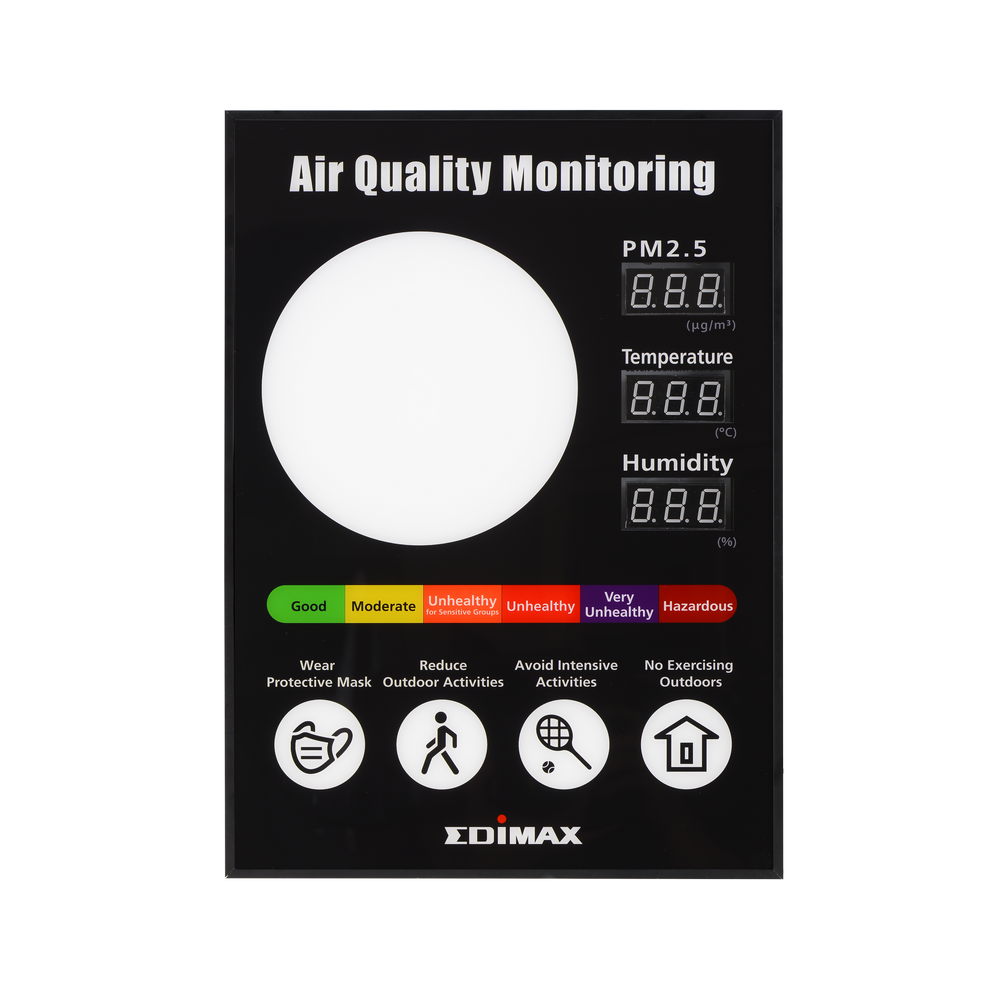

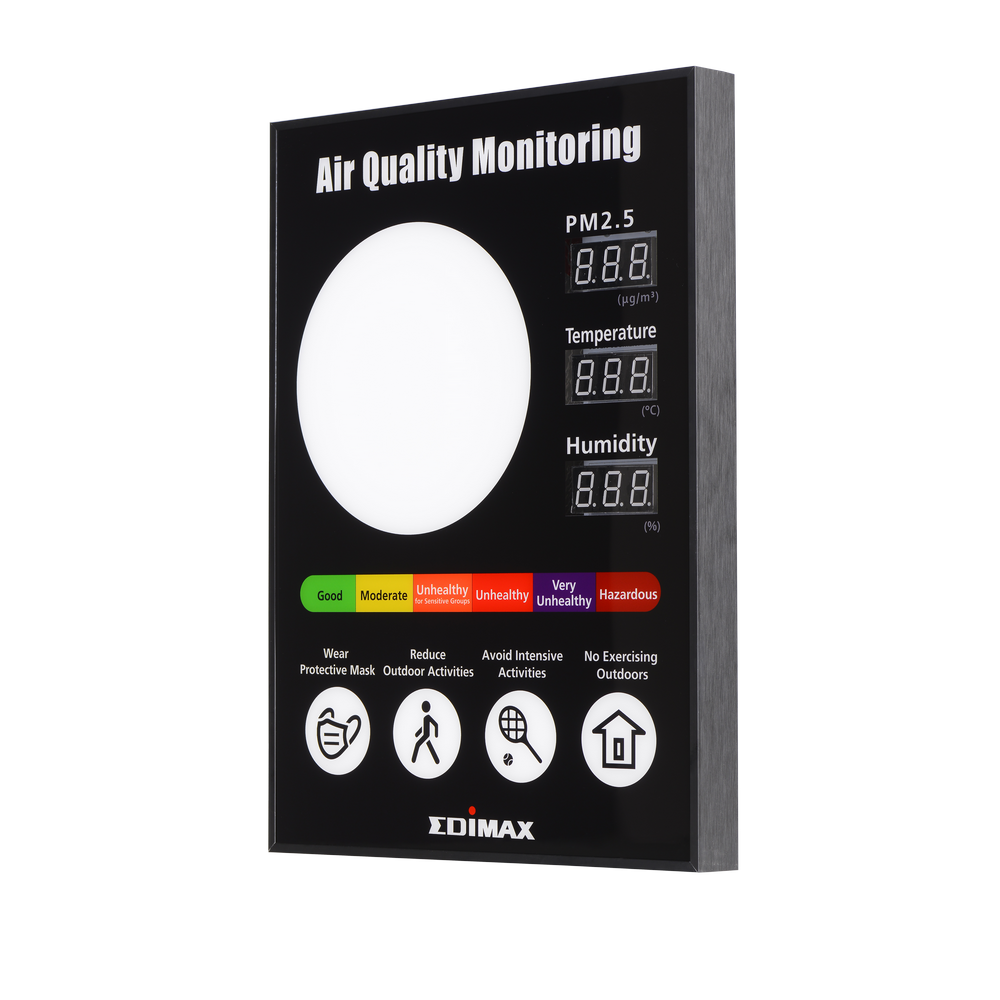

Signal Board

SB-1002W

  • Provide an eye-catching visual indication of current PM2.5 data and ambient conditions.
  • Work with a wide range of EdiGreen air quality sensors (indoor/outdoor solutions).
  • Data updated every ten seconds.
  • Support Wi-Fi connection and RS485 data transmission.
  • Support easy installation via an intuitive web browser.
  • Support data access over the cloud by certification token (Optional)
  • Show air parameters of PM2.5, temperature, and humidity.
  • Variable LED color display by levels of air quality.
  • Applications: schools, hospitals, hotels, conference halls, civil construction sites, resorts, malls, etc.
Share


​

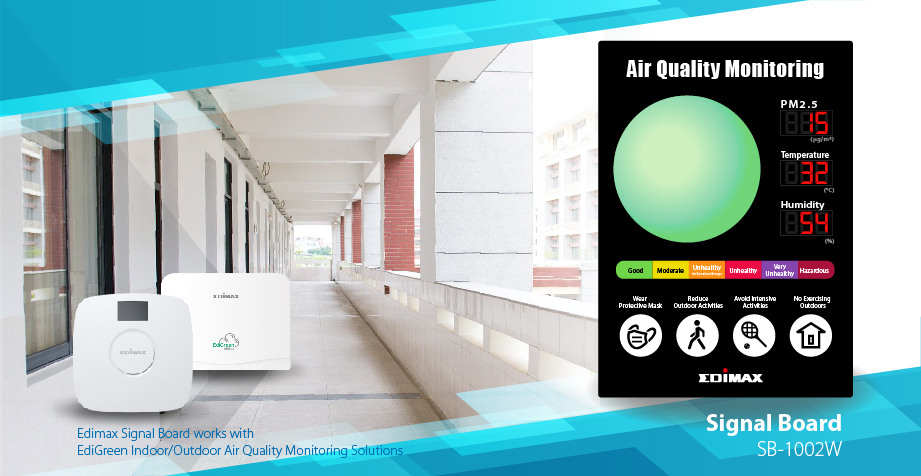

Innovative Digital Display Board for Real-time Air Quality Data

Air quality affects people health, whether outdoors or indoors. It’s essential to disclose the real-time status of urban air quality in public areas, such as schools, hospitals, malls, offices, etc. So that people can grasp the information and take proper action according to a health guideline.
Designed by Edimax, the SB-1002W Signal Board is an innovative digital display board under the Total Air Quality Solution product series. It intuitively displays the concentration of ambient air quality data in an apparent visual sign. Not only providing the value per pollutant types, but the SB-1002W’s distinct LED colors will also vary by degrees to highlight the air pollution levels.

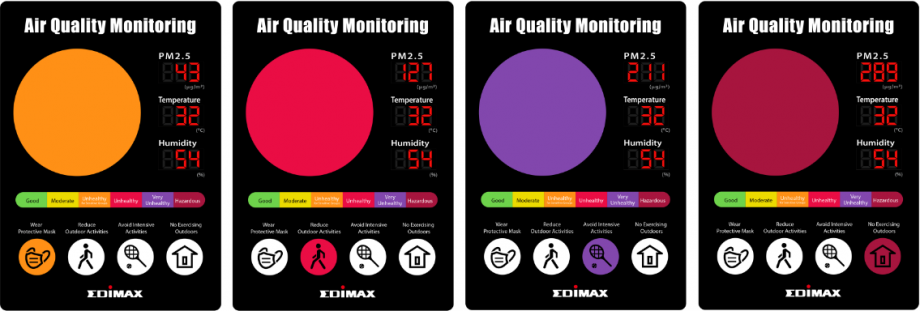

Variable Color Display Calls for Attention

Six grades air quality levels indicators from Good to Hazardous, four colors indicator for recommend action.

  • Orange: Wearing a facemask to lessen air-pollution exposure.
  • Red: Everyone should limit outdoor exertion.
  • Purple: Everyone should avoid prolonged strenuous exercise.
  • Reddish: Everyone should avoid all outdoor exertion and stay inside.
  •
​

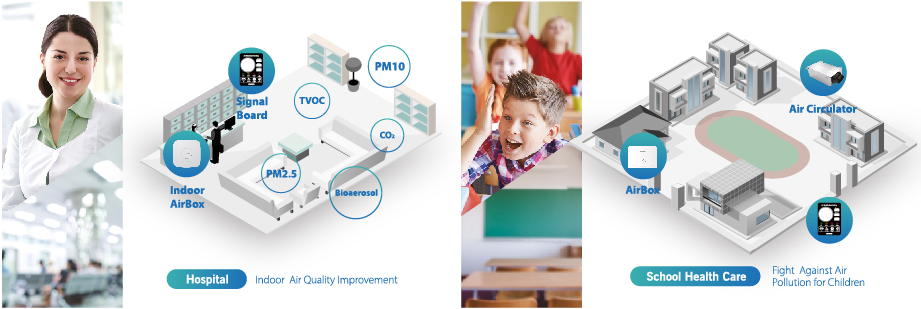

Ideal Applications

Suitable to use for varous vertical markets, e.g. schools, hospitals, hotels, conference halls, resorts, and malls.

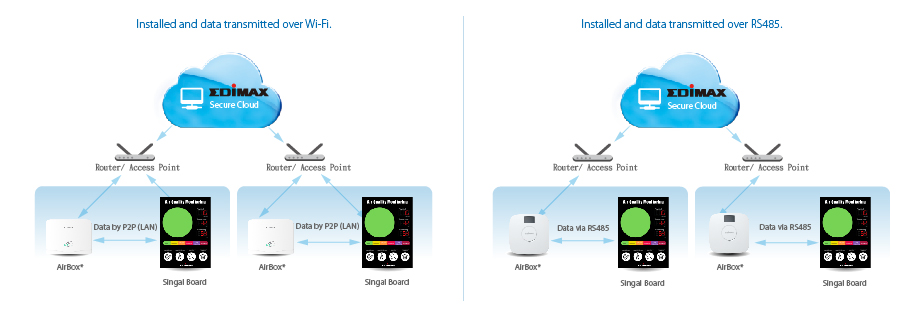

Easy Installation and Deployment

Wi-Fi support list: AI-1001W V2, V3, V4.
RS485 support list: AI-2003W, AI-2004W.

​



Share


SPECIFICATIONS

NETWORK  ​
Wi-Fi IEEE 802.11 b/g/n
Wi-Fi Security WPA/WPA2
UART Port RS485
Antenna Type  1 x Internal Antenna
DATA DISPLAY
PM2.5 Updated every ten seconds
Humidity Updated every ten seconds
Temperature Updated every ten seconds
PANEL DISPLAY
LED Color Indicator Based on the Air Quality Index of Taiwan
Warning Message Follows the Color Indicator
OTHERS
Power Adapter DC JACK 5V 5A Ø2.5mm
Operating Temperature -10°C ~ 60°C
Dimensions 466mm(W) x 336mm(H) x 40mm(D)
Weight 1750g






*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
