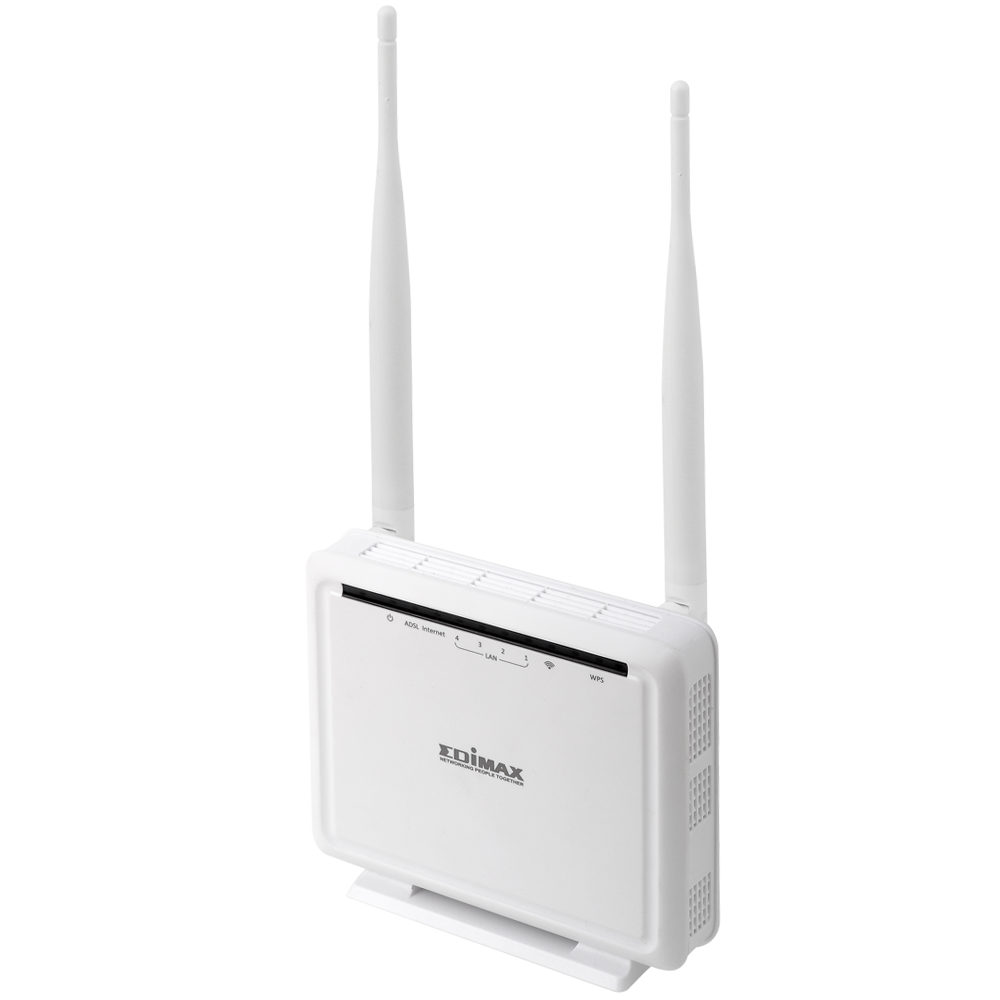

N300 Wireless ADSL Modem Router

AR-7286WnB

  • 300Mbps wireless transmission rate with MIMO technology for a smooth wireless N experience
  • Supports multiple SSIDs for up to four wireless networks
  • Easy wireless security encryption with a push of the WPS button
  • Powerful 5dBi antennas
  • Easy setup wizard with built-in ISP selector
  • Support VPN Pass-Through (PPTP/L2TP/IPsec)
Share


  300Mbps Wireless ADSL2/2+ Modem Router

The Edimax AR-7286WnA/B is a high performance router that provides full ADSL2+ capability and superb reliability as a cost-effective networking solution for homes and small businesses. Compatible with the wireless standard 802.11n, and with advanced MIMO technology, the AR-7286WnA/B provides up to six times better data transmission rates (up to 300Mbps) and five times better coverage than a standard 802.11g/b router.


 Edimax N300 Wireless ADSL Modem Router 11n_g_b_300Mbps.png







All-in-One Device

The AR-7286WnA/B is a wireless N router with a built-in ADSL2/ADSL2+ modem combining a high-performance router, modem, and a switch into a single device. Save desk space, the hassle of extra cords & cables and the cost of leasing a router from your DSL service provider.


Edimax N300 Wireless ADSL Modem Router AR-7286WnA_B_all-in-one.jpg







Powerful and Wide Coverage

Featuring two 5dBi high-gain antennas, the AR-7286WnA/B boosts your signal to ensure extended wireless networking range.


Edimax N300 Wireless ADSL Modem Router AR-7286WnA_B_3&5dBi.jpg







Four-Networks-in-One

The AR-7286WnA/B supports multiple SSIDs for up to four wireless networks.


Edimax N300 Wireless ADSL Modem Router AR-7286WnA_B_4ssid_user_group_management.jpg







Lightning Protection

Protected from lightning strikes to help your device avoid the damage of a tough thunderstorm.


 Edimax N300 Wireless ADSL Modem Router AR-7286WnAB_lightning_protected.png







Supports TR-069 for Remote Management

The AR-7286WnA/B also supports TR-069 which is a protocol to define a common method for CPE devices to communicate with a server.







Wi-Fi Protected Setup (WPS)

Wi-Fi Protected Setup is a quick and convenient method of establishing wireless connections between compatible devices. Set up a wireless network in less than a minute with just a couple of clicks of a button or easily add new Wi-Fi devices to an existing network.


 Edimax N300 Wireless ADSL Modem Router AR-7286WnAB_WPS.png







Easy Setup Wizard with Built-in ISP Selector

Setup the ADSL modem router using the unique and convenient multi-language setup wizard provided on the included CD-ROM or available through a web browser. Select your language and follow a few simple steps to setup the router and configure the Internet connection, password, SSID and wireless security. Additionally, the setup wizard includes a built-in ISP selector to configure your ISP settings automatically.
​

 Edimax N300 Wireless ADSL Modem Router ADSL_Modem_Router_ISP_selector.png







APPLICATION DIAGRAM

Edimax N300 Wireless ADSL Modem Router AR-7286WnA_B_application_diagram.jpg

Share


SPECIFICATIONS

HARDWARE
Interface
  • 1 x RJ-11 WAN-port
  • 4 x RJ-45 Fast Ethernet LAN ports
Button
  • 1 x Reset button for factory default settings
  • 1 x WPS button
  • 1 x WLAN button
  • 1 x Power on/off button
LED Indicator
  • Power, ADSL, LAN 1-4, Internet, WPS
Antenna
  • 2 x 5dBi external antenna
Memory
  • 2MB NOR Flash
  • 8MB SDRAM
Power Adapter
  • 12V DC, 0.5A
Dimension
  • 135 x 118 x 28 mm
Weight
  • 187g
WIRELESS AND FEATURES
Standards
  • 802.11 b/g/n
Frequency & Modulation
  • 2.4GHz (2400–2483 MHz ISM band)
  • 802.11b: CCK, DQPSK, DBPSK
  • 802.11g: 64QAM, 16QAM, QPSK, BPSK, DSSS
  • 802.11n: 64QAM, 16QAM, QPSK, BPSK
Maximum Data Speed
  • 2.4GHz: up to 300Mbps
Output Power
  • 2.4GHz:
    - 11b: 16±1.5dBm
    - 11g: 15±1.5dBm
    - 11n: 14±1.5dBm
ADSL Features
  • Annex A, B, I, J, L & M
  • ANSI T1.413i2
  • ITU G.992.1 (G.dmt), ITU G.992.2 (G.lite)
  • ITU G.992.3 ADSL2 (G.dmt.bis), ITU G.992.4 (G.lite.bis)
  • ITU G.992.5 (G.dmt.bisplus), ITU G.994.1 (G.hs)
  • ITU G.995.1, ITU G.996.1, ITU G.997.1
  • Power saving mode, L3 to L0 initialization
  • Supports multiple PVCs
  • Supports traffic shaping (ATM QoS) UBR, CBR, VBR-rt, VBR-nrt
  • Supports OAM F4/F5 loop-back, AIS, and RDI OAM cells
  • UNI 3.1/4.0 permanent virtual circuits
Wireless Features
  • Compatible with IEEE 802.11b,IEEE 802.11g and IEEE 802.11n
  • Supports auto channeling
  • 2T2R mode with 300Mbps PHY rate for both transmitting and receiving
  • Legacy and high throughput modes
  • 20MHz/40MHz Bandwidth
  • Supports 64/128-bit WEP, 802.1x, WPA and WPA2 wireless security
  • Multiple BSSID support
  • Wireless frequency range: 2400–2483 MHz ISM band
Routing Features
  • Routing (TCP/ IP/ UDP/ ARP/ ICMP)
  • 802.1D MAC Bridge
  • RIP v1 (RFC1058), RIP v2 (RFC1723)
  • IGMP Snooping (V1/ V2/ V3)
  • IGMP Proxy (V1/ V2/ V3)
  • VLSM (RFC1878)
  • RFC 1877 PPP IPCP Extensions for Name Server Address
  • RFC 1877 PPP IPCP Extensions for Name Server Address (limited to DNS addresses unless the device supports NetBIOS)
  • RFC 0791 IP Fragmentation
  • IETF RFC 0919, IETF RFC 0922, IETF RFC 2644 IP Broadcast
Security
  • Management access control for LAN/WAN sides
  • Prevent port scanning, denial-of-service (DOS) and LAND attacks
  • Stateful packet inspection (SPI)
  • IP spoofing, IP with zero length
  • IP/MAC filtering, application filtering, URL filter
OTHERS<
Certification
  • CE
Management
  • Web based configuration
  • Web page/XMODEM/FTP/TFTP firmware upgrade
  • Command-line interface via serial port, telnet or SSH
  • Universal Plug and Play (UPnP)
  • WAN Management Protocol (TR-069)
  • Date/time update from SNTP time server
Environment
  • Operating Temperature: 0℃~40℃ (32℉ ~104℉)
  • Storage Temperature: -40℃~70℃ (-4℉ ~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~95% non-condensing
Package Contents
  • 1 x ADSL2+ router (AR-7286WnA or AR-7286WnB)
  • 1 x Ethernet cable
  • 2 x 1.8M RJ-11 Cable
  • 1 x Splitter
  • 2 x 5dBi antenna
  • 1 x Power Adapter
  • 2 x Quick Installation Guide
  • CD with multi-language QIG and user manual
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
