Smart N300 Pass-Through Wi-Fi Extender/Access Point/Wi-Fi Bridge
EW-7438PTn
  • Eliminate Wi-Fi Dead Zones: Extend the range of existing 802.11b/g/n Wi-Fi
  • Smart 3-in-1 modes: Access Point, Wi-Fi Extender or Wi-Fi Bridge
  • Smart iQ Setup: Smartphone, tablet or web-browser setup with no CD or computer required
  • Smart App Control & Analytics: Free EdiRange app with Wi-Fi analytics, scheduling and guest network
  • Certified for Safety & Durability: VDE 0620 approved guarantees extensive safety testing
  • Green Wi-Fi Power Switch: Switch between normal & green Wi-Fi power and turn off when not in use
  • Wall Plug Design With AC Pass-Through: Plugs directly into an existing electrical socket
  • Signal Strength LED Indicator: Finds the best location for optimal Wi-Fi coverage
  • Wi-Fi Scheduling: Program intelligent schedules to manage your Wi-Fi
  • Quick & Easy WPS Installation: Setup with the simple push of a button



The Edimax EW-7438PTn is a Wi-Fi extender with built-in power adapter and integrated AC socket, ensuring that no electrical outlet goes to waste. Convenient placement allows you to double the signal coverage of your Wi-Fi network for better Wi-Fi quality in homes with many rooms or multiple floors. Featuring smart iQ Setup, installation is quick and easy and the EW-7438PTn features three operating modes in one: Wi-Fi extender, access point or Wi-Fi bridge. Just configure the mode you need for your network environment. Additionally, it complies with wireless IEEE 802.11b/g/n standards and provides data transmission rates of up to 300Mbps. With the Edimax EW-7438PTn, you can enjoy high-speed wireless networking throughout your home without additional cabling.

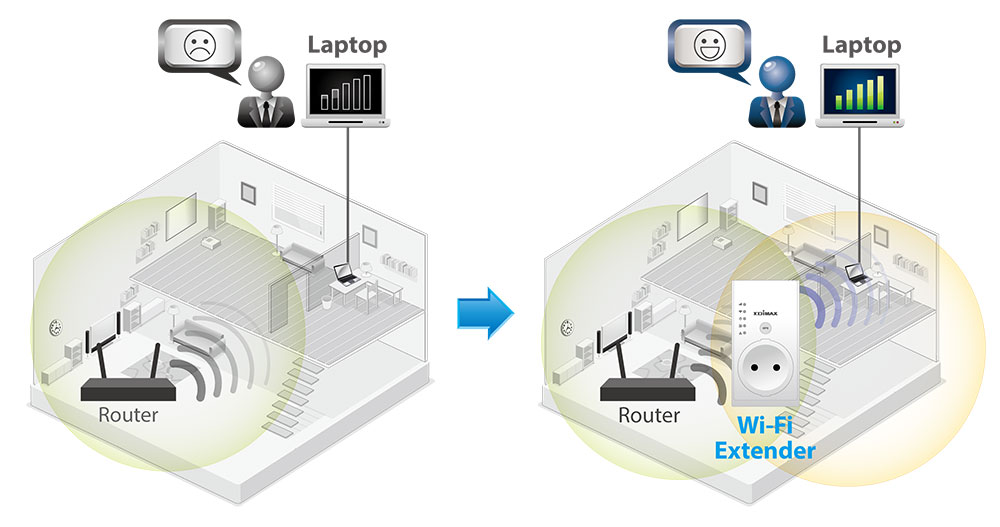

Eliminate Wi-Fi Dead Zones & Double Your Wi-Fi Coverage With Ease
Extend Wi-Fi coverage to dead zones which your existing Wi-Fi signal can’t reach. Plug the extender directly into an electrical outlet and the Edimax EW-7438PTn can easily double the signal coverage of your Wi-Fi network for better Wi-Fi quality in homes with many rooms or multiple floors.



Smart N300 Pass-Through Wi-Fi Extender/Access Point/Wi-Fi Bridge, Eliminate Wi-Fi Dead Zones & Double Your Wi-Fi Coverage

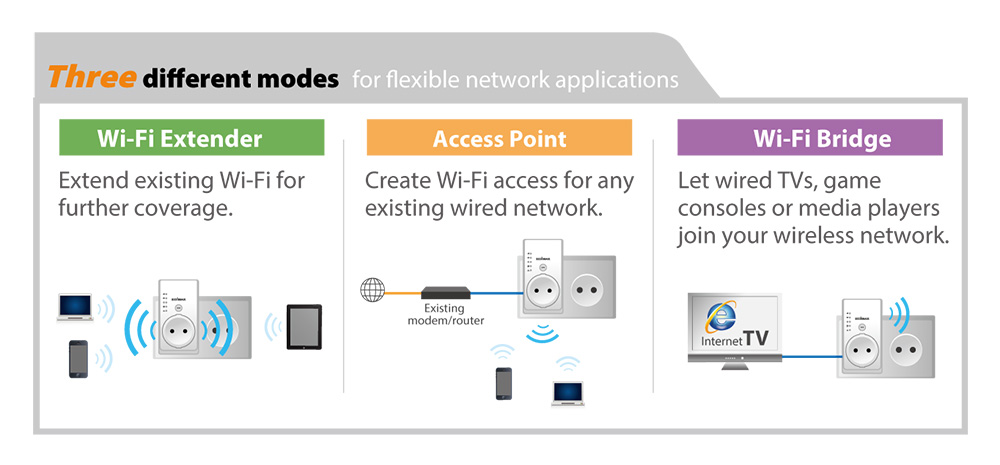

Smart 3-in-1 Wi-Fi Extender, Access Point & Wi-Fi Bridge
The EW-7438PTn can work as Wi-Fi extender, access point or Wi-Fi bridge. Just configure the mode you need for your network environment using the smart iQ Setup wizard and enjoy surfing the web.


Smart N300 Pass-Through Wi-Fi Extender/Access Point/Wi-Fi Bridge, Smart 3-in-1








Smart iQ Setup
Features user-friendly browser-based iQ Setup for smart, automatic and quick installation. iQ Setup automatically detects the available Wi-Fi networks nearby and helps you establish a connection within seconds.


Smart N300 Pass-Through Wi-Fi Extender/Access Point/Wi-Fi Bridge, Smart iQ Setup





Smart App Control & Analytics
The extender works together with Edimax free EdiRange smartphone app which displays your local Wi-Fi environment and provides easy-to-understand analytics. Plus you can manage the extender’s wireless network and functions such as scheduling and guest network.

Smart N300 Pass-Through Wi-Fi Extender/Access Point/Wi-Fi Bridge, EdiRange App

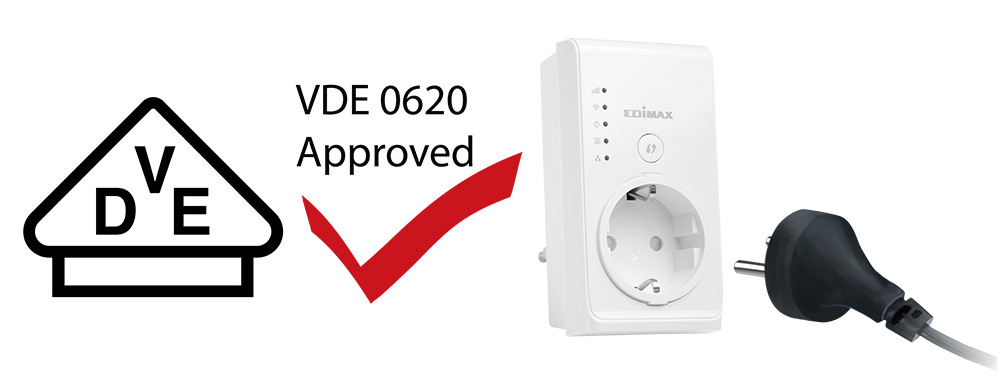

Certified for Safety & Durability
The built-in socket is VDE 0620 approved which guarantees the plug has been extensively tested to resist damage and deterioration to enclosures, insulation, entry holes, pins, electrical or mechanical connections as well as temperature rises in electrical terminals.


Smart N300 Pass-Through Wi-Fi Extender/Access Point/Wi-Fi Bridge, VDE 0620 approved






Works With Any Standard Wi-Fi Router
Universal compatibility and easy web-based iQ Setup for quick and easy installation.


Smart N300 Pass-Through Wi-Fi Extender/Access Point/Wi-Fi Bridge, work with any routers

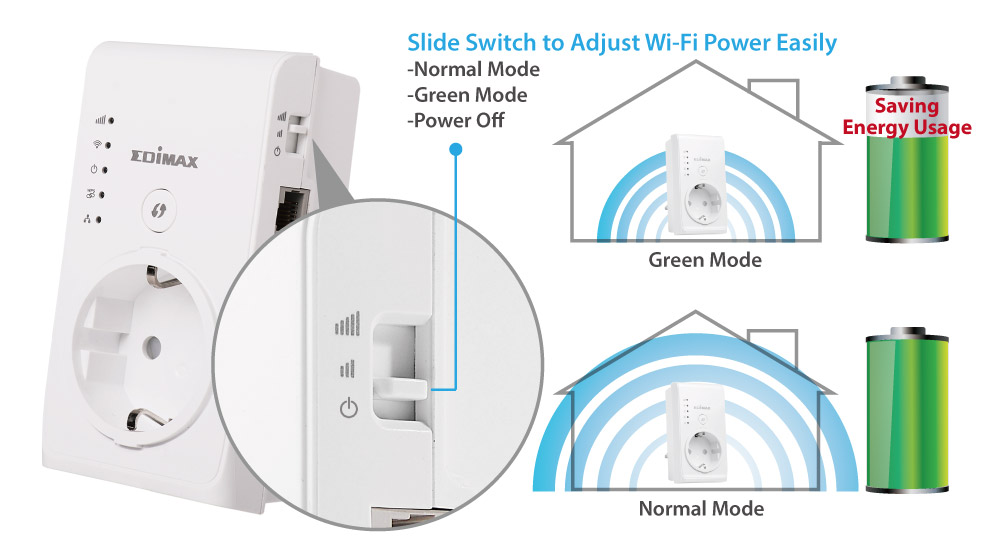

Green Wi-Fi Transmit Power Switch
Featuring a new hardware slide switch to easily adjust between normal and green transmit power (the strength of the Wi-Fi signal) as well as turn off the device power with one click.  In normal mode the device transmits with maximum transmit power for wide coverage in large house. But if you only need Wi-Fi in a smaller house, you can switch to green mode to reduce transmit power to 25% less and reduce energy usage.

Smart N300 Pass-Through Wi-Fi Extender/Access Point/Wi-Fi Bridge, green Wi-Fi transmit power switch






Wall Plug Design With AC Pass-Through
Plugs directly into an existing electrical socket – no need for an additional power cable. And designed with an AC pass-through so you can still plug another electrical device into the EW-7438PTn and have your usual socket capacity. You can install it wherever your Wi-Fi signal needs enhancement and enjoy high-speed wireless performance without any hassle.


Smart N300 Pass-Through Wi-Fi Extender/Access Point/Wi-Fi Bridge, ac pass-through

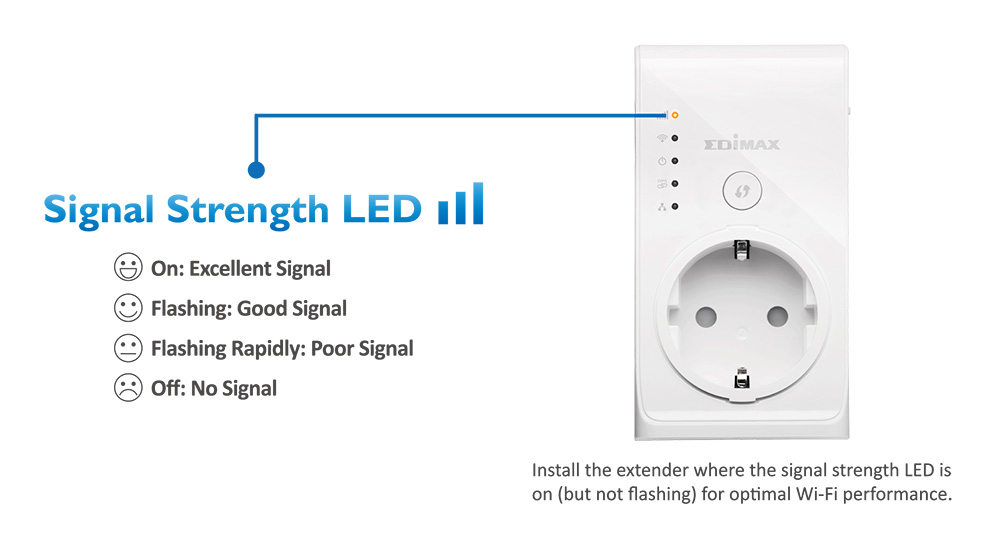

Signal Strength LED Indicator
Designed with a signal strength LED which helps you find the best setup location for optimal Wi-Fi coverage.


Smart N300 Pass-Through Wi-Fi Extender/Access Point/Wi-Fi Bridge, Signal Strength LED Indicator






Wi-Fi Scheduling
The Wi-Fi scheduling function lets you program intelligent schedules to manage Wi-Fi availability and power usage according to your home’s routine.



Smart N300 Pass-Through Wi-Fi Extender/Access Point/Wi-Fi Bridge, Wi-Fi Scheduling

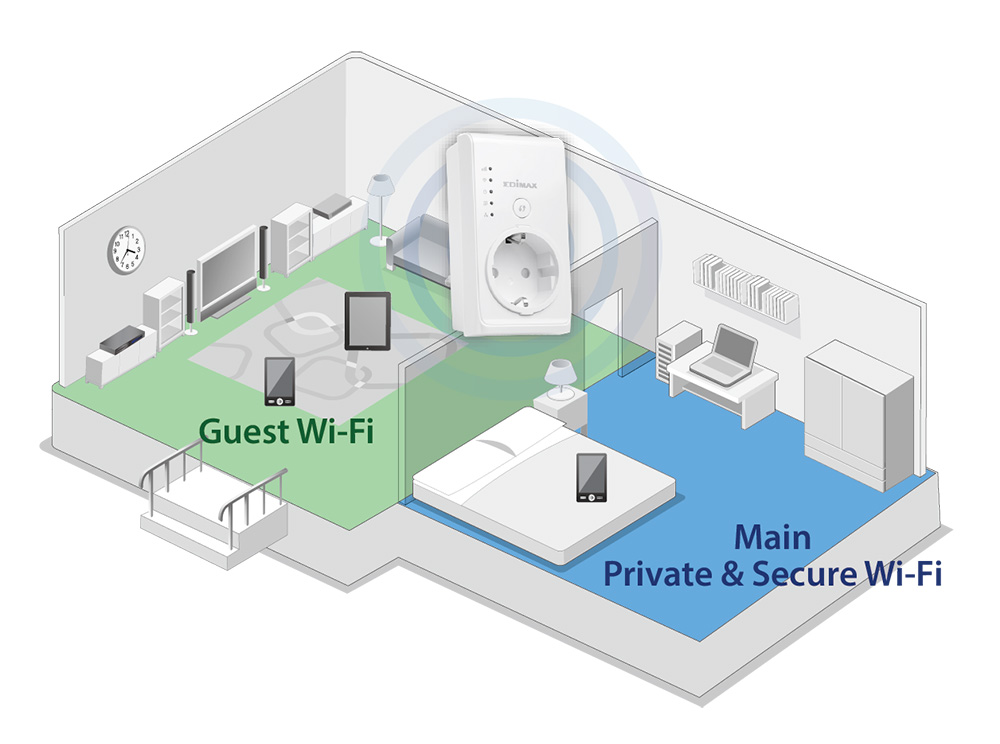

Guest Wi-Fi
The EW-7438PTn also features a guest wireless network which could be used for visitor and keep your home Wi-Fi private and secure.



Smart N300 Pass-Through Wi-Fi Extender/Access Point/Wi-Fi Bridge, Guest Wi-Fi







Quick And Easy WPS Installation
A WPS (Wi-Fi Protected Setup) button allows the EW-7438PTn to join an existing wireless networking at the simple push of a button.




Smart N300 Pass-Through Wi-Fi Extender/Access Point/Wi-Fi Bridge, WPS setup

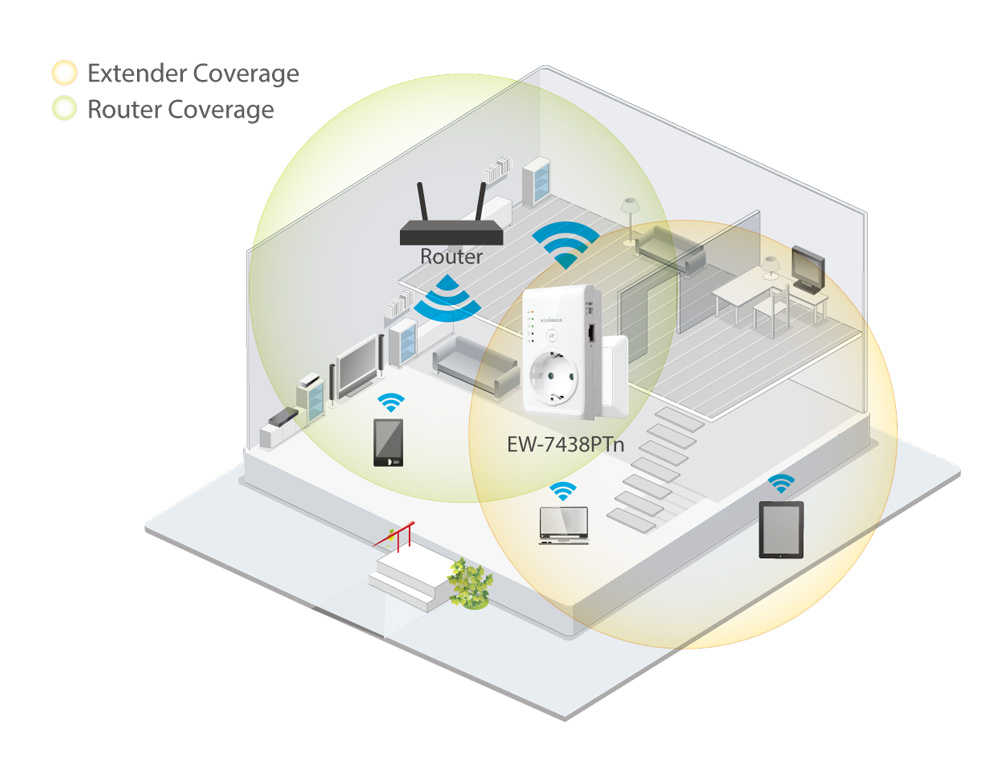

APPLICATION DIAGRAM



Smart N300 Pass-Through Wi-Fi Extender/Access Point/Wi-Fi Bridge, application diagram




SPECIFICATIONS

FREQUENCY BAND

WIRELESS STANDARDS & DATA RATES

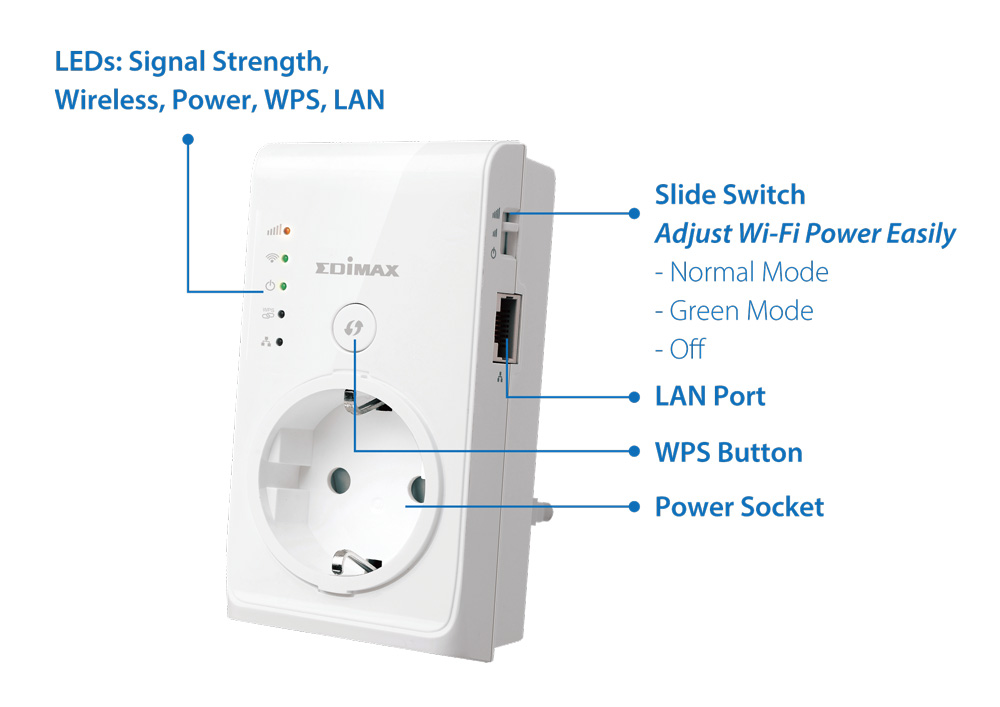

HARDWARE INTERFACE

•2.4GHz

•IEEE 802.11n (up to 300Mbps)
•IEEE 802.11g (up to 54Mbps)
•IEEE 802.11b (up to 11Mbps)

•1 x 10/100Mbps Ethernet LAN port
•1 x Power socket
•1 x Slide switch
•1 x
WPS button
•LEDs: Signal Strength, Wireless, Power, WPS, LAN

MANAGEMENT

SECURITY

SYSTEM REQUIREMENTS

•14-language user interface
•Upgradable firmware

•64/128-bit WEP encryption and WPA-PSK, WPA2 security
•WPS (Wi-Fi Protected Setup)

•MAC Filtering and 802.1x in Access Point mode

•Existing wireless home network (2.4GHz) for Wi-Fi extender/Wi-Fi bridge mode, or cable/DSL modem router for access point mode
•Computer with 2.4GHz b/g/n Wi-Fi capability and web browser for software configuration (Internet Explorer, Google Chrome, Firefox or Safari latest version)
•iOS 6 above or Android 4.x above for mobile app

INSTALLATION

ANTENNA

POWER ADAPTER

•Multi-language iQ Setup (browser interface)
•Hardware WPS button

•2 x 2dBi internal antennas

•Built in AC100-240V, 50-60Hz power module

HUMIDITY

TEMPERATURE

PACKAGE CONTENTS

•10-90% (Non-condensing)

•0-40°C (32-104°F)

•EW-7438RPTn Wi-Fi extender
•Quick installation guide
•CD with multi-language QIG and user manual
•Access key card

DIMENSIONS

DIMENSIONS & WEIGHT

 CERTIFICATIONS

•10.5 (H) x57 (W) x 38 (L) mm

•128g

•CE
•VDE 0620




PACKAGE CONTENT
  • EW-7438PTn
  • CD with multi-language QIG & user manual
  • Quick installation guide (QIG)
  • Access key card


HARDWARE INTERFACE


Smart N300 Pass-Through Wi-Fi Extender/Access Point/Wi-Fi Bridge, Eliminate Wi-Fi Dead Zones & Double Your Wi-Fi Coverage
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
