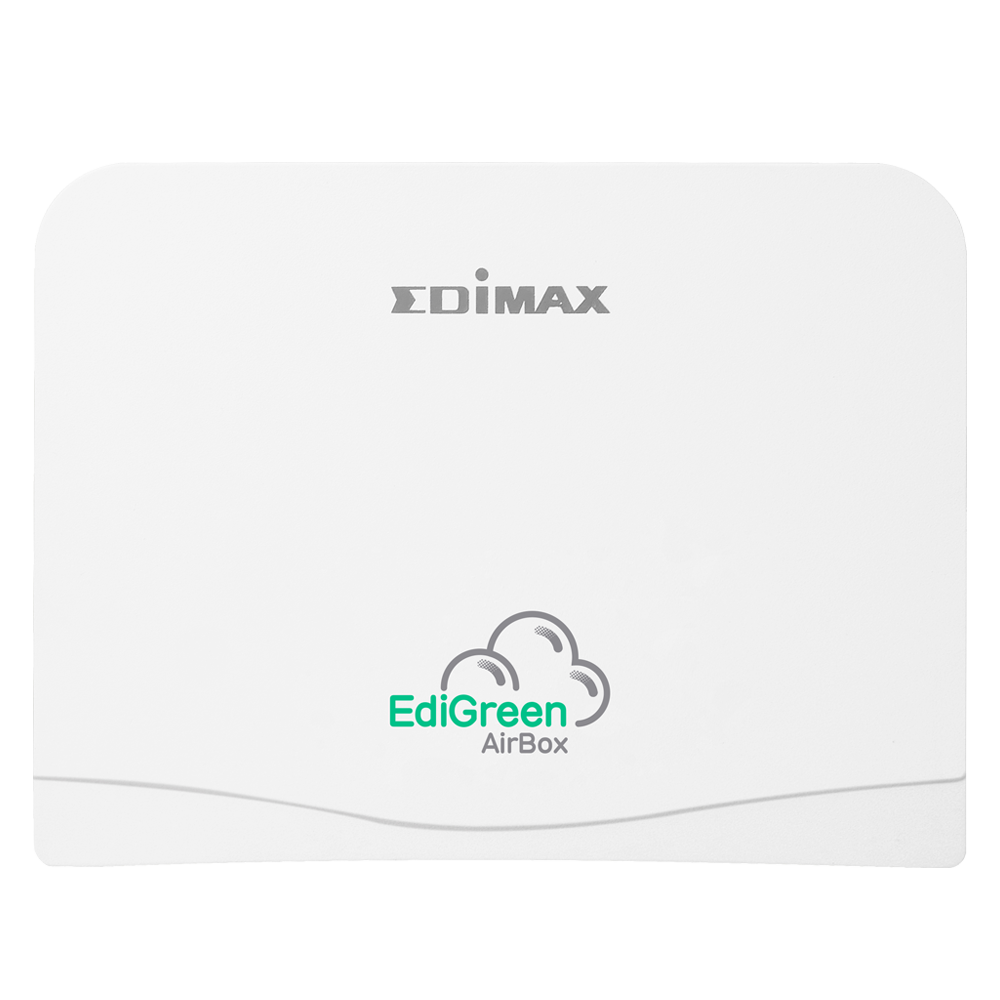

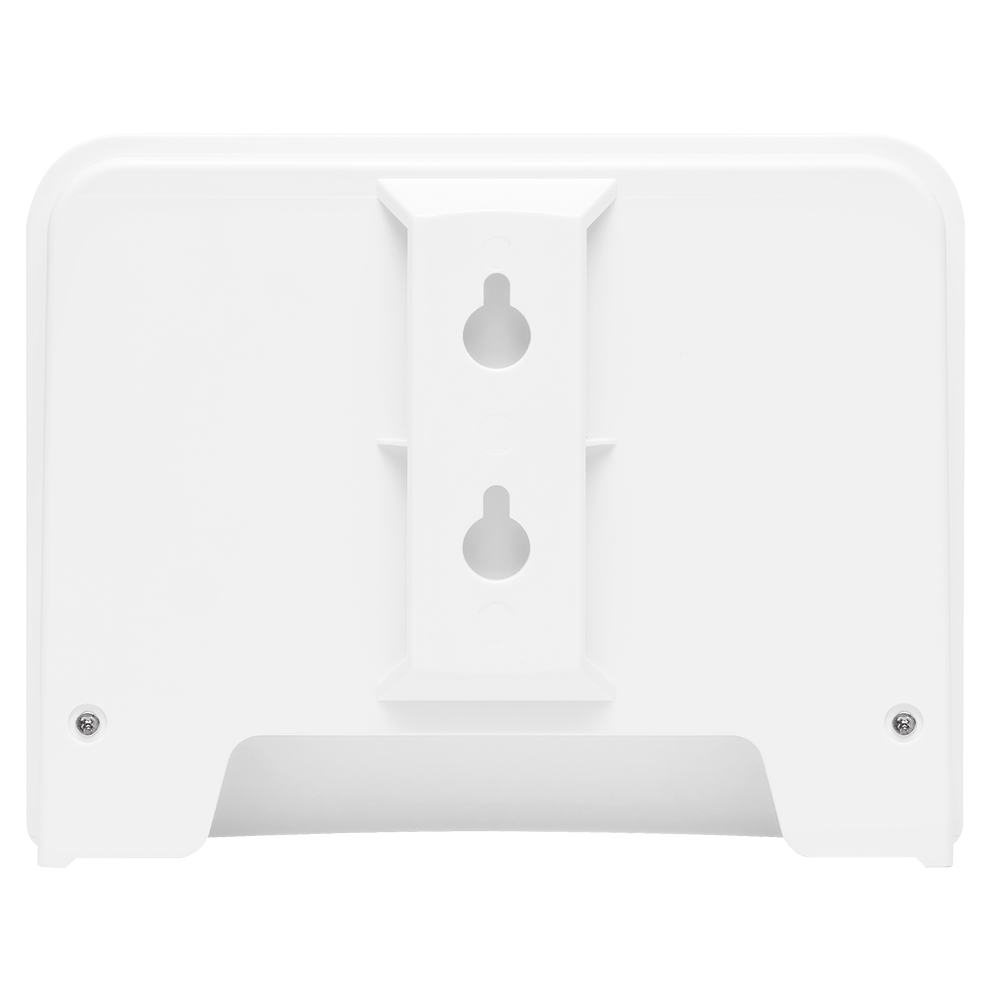

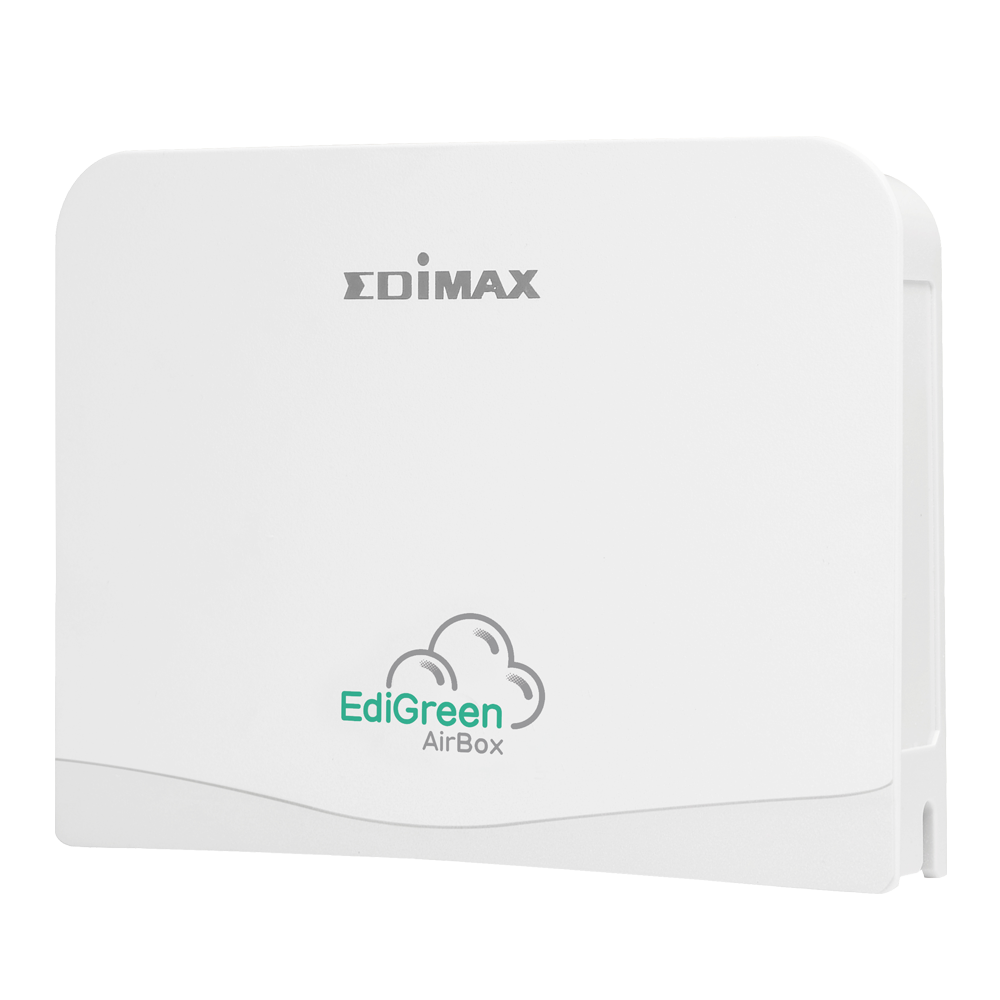

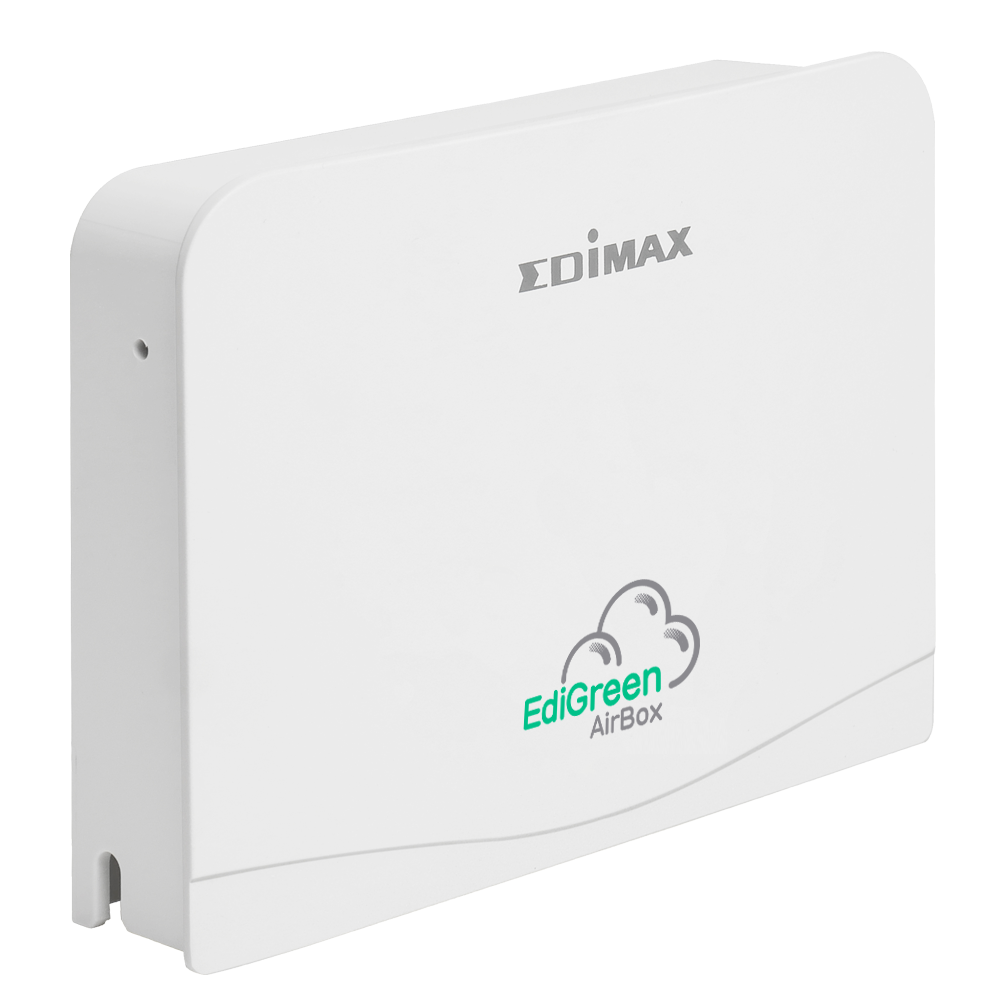

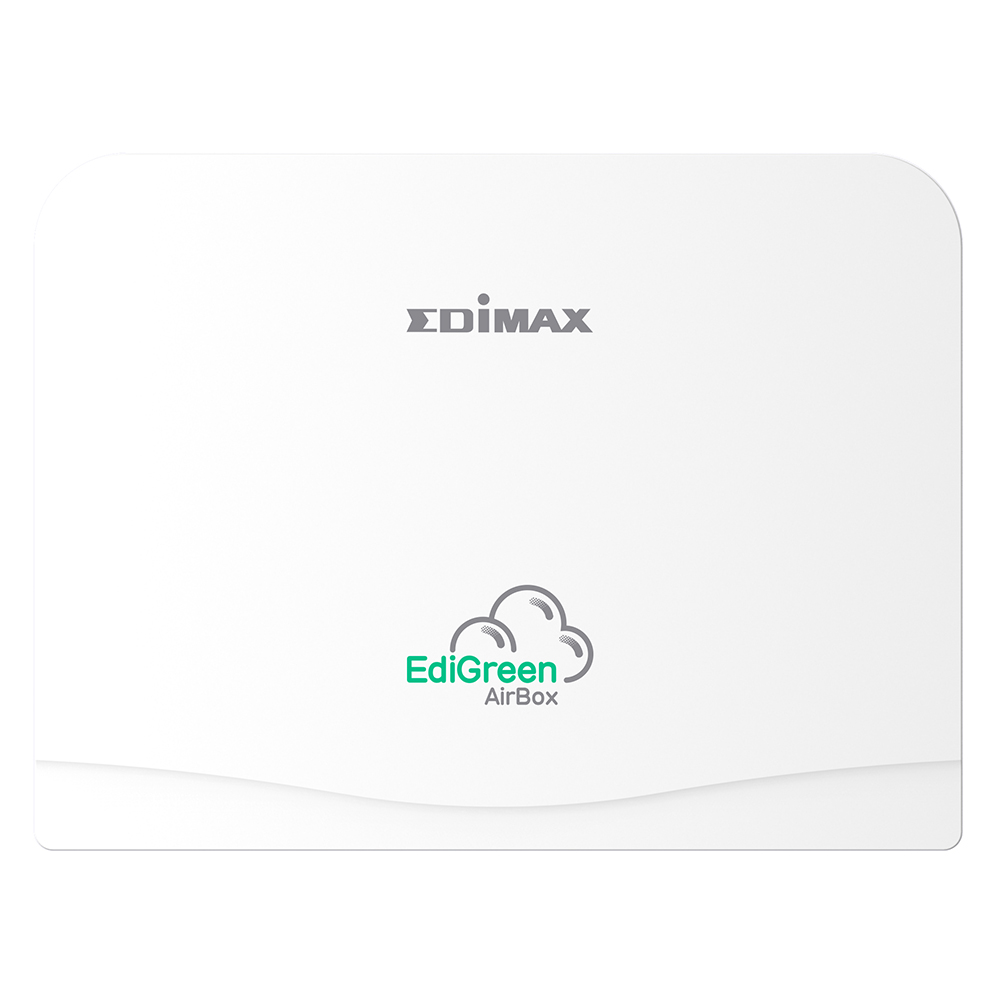

AirBox : Smart Air Quality Detector with PM2.5, Temperature and Humidity Sensors
AI-1001W V2
  • Cloud : Connected to a proven, advanced cloud network 24/7 so you can check data anytime and anywhere.
  • Push Notifications : Get immediate alerts when PM2.5, temperature and humidity levels are dangerous.
  • Accurate : Hyperlocal real-time data at your location instead of regional averages.
  • Analysis : Get data across different locations to understand trends, identify pollution hot spots or observe improvements over time.



  Get EdiGreen app from:
EdiView from App Store EdiView from Google Play




Do you know what you’re breathing? Global air pollution problems are getting worse. Mass manufacturing, heavy industry, burning fossil fuels and the use of agricultural chemicals are contributing to rising levels of harmful PM2.5 particles in the air. Recent WHO estimates put the annual death toll from air-pollution related conditions at around 7 million people. And the figure is forecast to keep rising. Recommend average annual PM2.5 levels are around 10 μg/m3, but developing countries often exceed 30 – 40 μg/m3  and an increase of just 5 μg/m3 can increase risk of cardiovascular disease by 55%. According to the WHO, air pollution is the world’s single greatest environmental health risk.

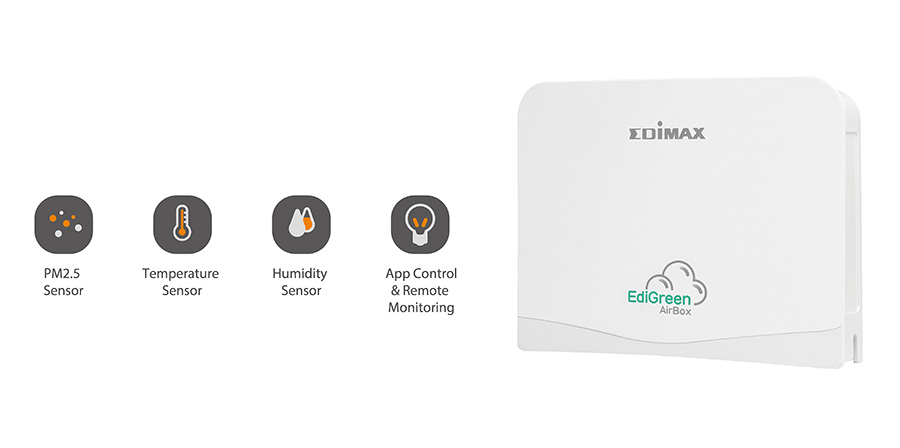

Edimax AirBox is a brand new and exclusive air-quality detection system to help protect you from increasingly dangerous levels of pollution. Featuring PM2.5, temperature and humidity sensors along with free mobile app and cloud data analysis, the air quality detectors monitor harmful PM2.5 particle levels in the air and provide real-time local and city-wide data. Take precautions when levels are dangerous, know when to wear face masks or avoid outdoor activities, and keep yourself and your family safe.

Air Quality Detection with Real-time Reports

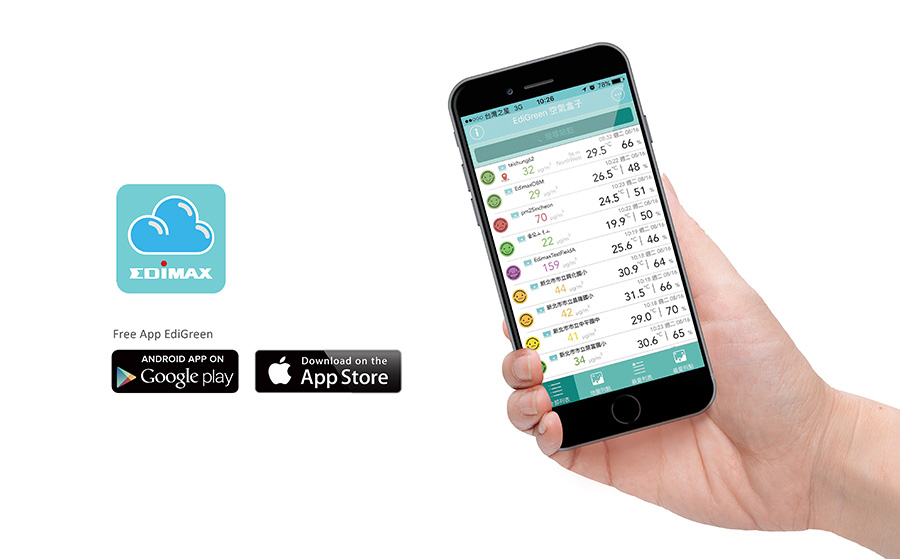

Accurate real-time automatic monitoring of PM2.5, temperature and humidity, with intuitive displays and real-time air-quality reports delivered by the free EdiGreen mobile companion app.

24/7 Remote Access and Push Notifications


Check data anytime and anywhere and get immediate alerts when PM2.5, temperature and humidity levels are dangerous. Connected to a sophisticated, reliable and proven Edimax cloud network, the EdiGreen app is connected 24/7 and works seamlessly with AirBox.

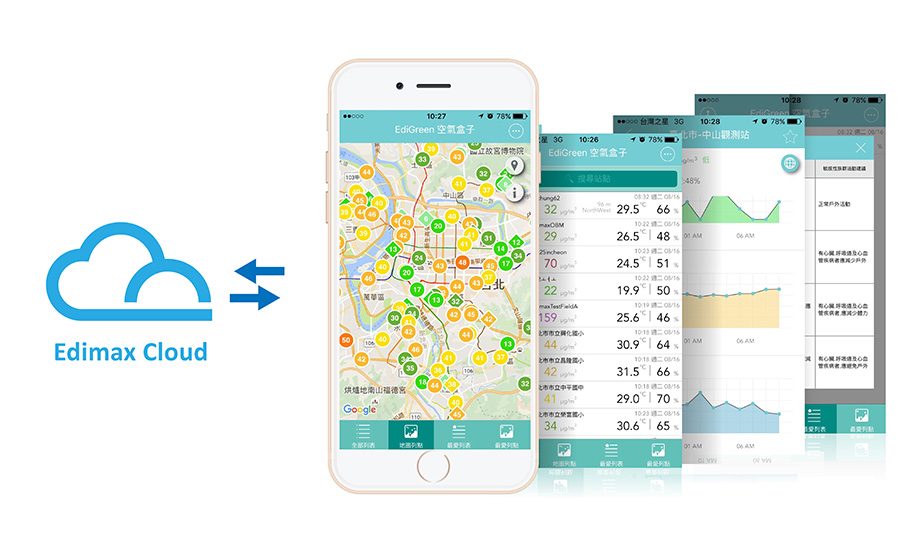

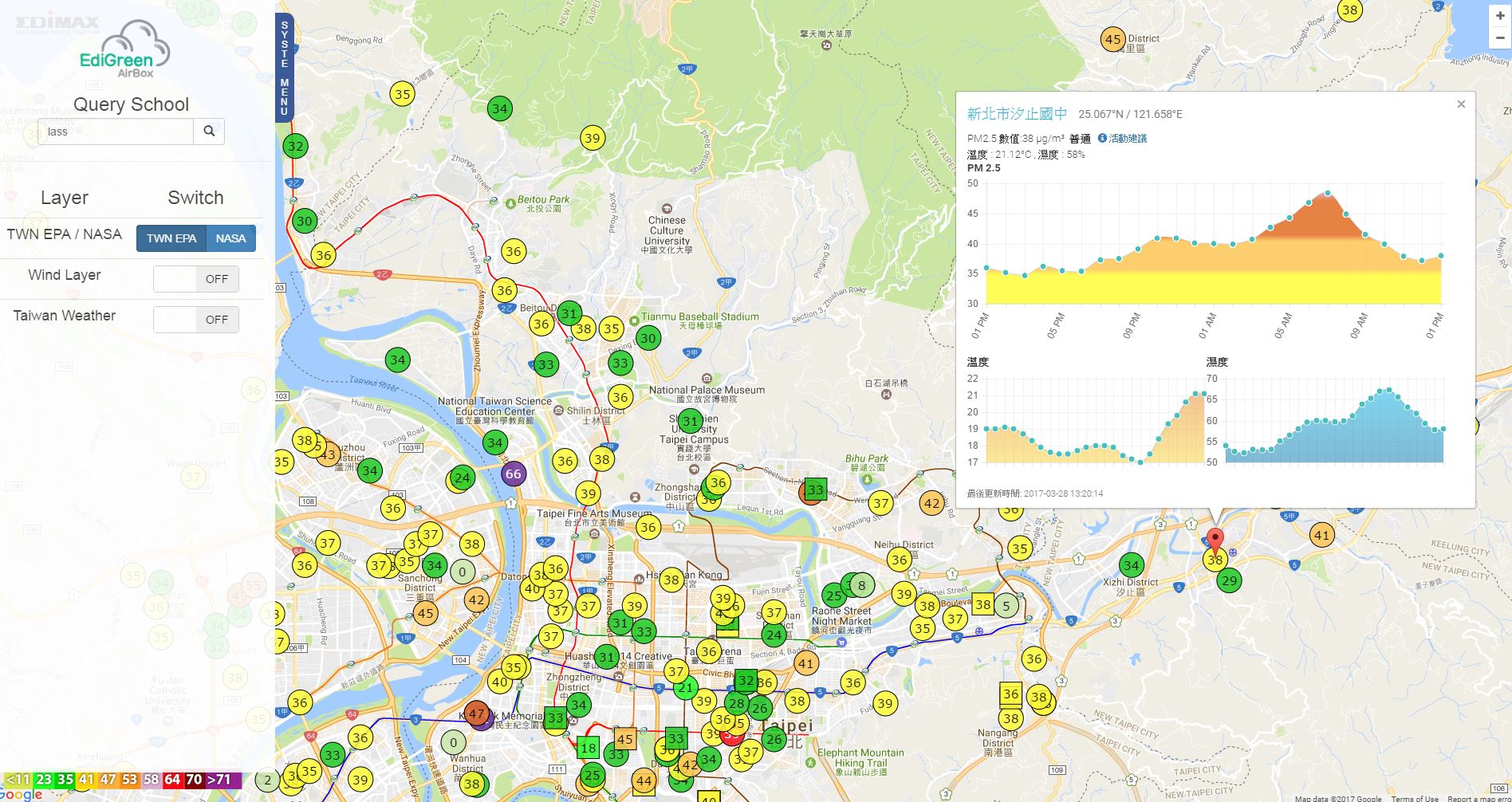

Big Data & Analysis


AirBox data is collected, processed and analyzed in Edimax’s advanced cloud system. Check historical data across different locations to understand trends, identify pollution hot spots or observe improvements over time, sourcing up-to-date hyperlocal data from AirBoxes deployed around your city.




VIDEO

Air Box : Air Quality Monitoring System



SPECIFICATIONS


Network
Wi-Fi IEEE 802.11 b/g/n
Wi-Fi Security WPA / WPA2 Personal
Antenna Type 1 Internal Antenna
Features
Mobile App EdiGreen
Event Notification Push Notification
History Yes
PM2.5 Sensor 0~500+μg/m3, min.0.3μm
Humidity Sensor 0 ~ 100% RH, ±5% RH
Temperature Sensor 0 ~ 60°C ±1°C
Others​
Power Adapter Micro USB Power Port x 1,
DC 5V 1A
Operating Temperature 0 ~ 50°C
Dimensions 150mm x 110mm x 47 mm
Weight 210g



Air Quality Monitoring System

 | Chinese | English |  VietnamBahasa Indonesia |

*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
