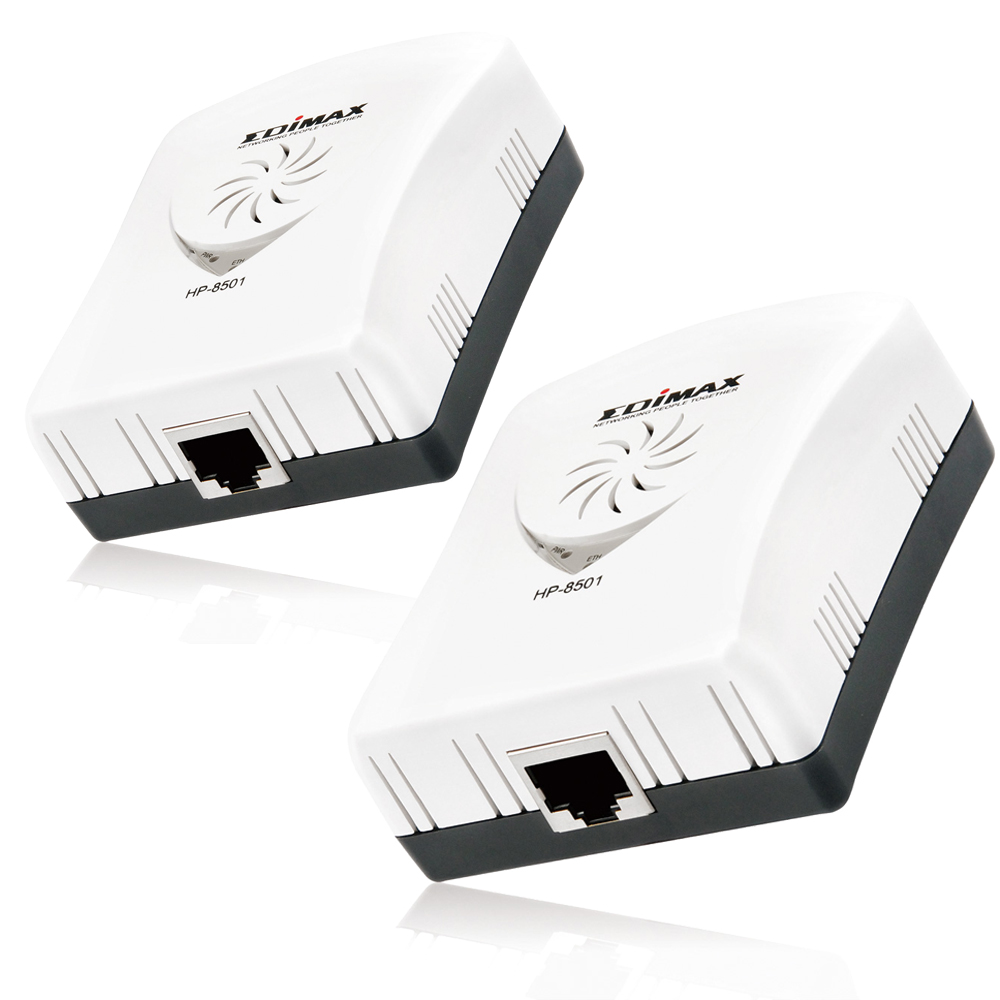

HomePlug Ethernet Bridge

HP-8501K( 2 pcs a set )

(End-of-Life Product)

  • Supports IEEE 802.3 and IEEE 802.3u Ethernet Standards
  • Supports 85Mbps high speed data rate Powerline Standard
  • Orthogonal Frequency Division Multiplexing for high data reliability in noisy media conditions
  • Fast enough for DVD-quality video streaming
  • Supports 56-bit DES link encryption for secure Powerline networking
  • Provides Easy Installation and Coverage up to 200 meters



HP-8501 turns the existing electric wires in your home or office into a high-speed network. You don't have to install the network cables and be annoyed with the cables planning-- just use the wires that already run through the building!

Just plug HP-8501 into the power socket on the wall, and connect your Ethernet-equipped device toHP-8501 using the included network cable, and you've turned your whole house into network infrastructure! Attach more computers to the network by simply plugging them into the power sockets in the house , with HP-8501.

Once your computers are connected to the network, they can share resources like printers and storage space, and all kinds of files -- music, digital pictures, and documents. With up to 85Mbps data rates, you can run streaming video and VoIP applications. You can also share Internet connection by connection HP-8500 to the broadband router. The network connection has never been so easy!

FEATURES

  • Computer Interface IEEE 802.3 / 802.3u Ethernet Port
  • Network Interface Power Plug port
  • OFDM with patented signal processing techniques for high data reliability in noisy media conditions
  • Supports QAM 256/64/16 , DQPSK, DBPSK, ROBO Carrier Modulation
  • High speed data rate up  to 85Mbps and Coverage up to 200 meters
  • CSMA/CA with prioritization and ARQ for reliable delivery of Ethernet packets via Packet Encapsulation
  • Supports 56-bit DES encryption for Powerline network
  • Quality of Service?Prioritized random access / Contention-free  access, and Segment bursting
    Installation : Plug-and-Play


Model NO.

HP-8501 / HP-8501K( 2 pcs a set )

Interface

1x 10/100Mbps Ethernet port ,

1 x Power Socket

Standards

HomePlug 1.0

IEEE802.3/802.3u

CSMA / CA MAC Control

Frequency Band

4.3 ~ 20.9 MHz

Modulation

OFDM / DBPSK / DQPSK /

ROBO Carrier Modulation

Power

Integrated 100 ~ 230V Switching Supply via Power Socket

LED

Power / Ethernet / Powerline activity

Temperature

0oC~55oC

Humidity

10%~90% , non-condensing

*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
