40Gbps USB4 Thunderbolt 3 Cable (USB-C to USB-C)
UC4 Series
- Superfast Speed: Transfers up to 40Gbps between Thunderbolt 3 USB-C devices
- Fast Charging: Safely power delivery and charging up to 240W* to USB Power Delivery devices (*UC4-010TB V1 power delivery up to 100W only)
- Ultimate HD Display: Supports dual 4K or single 5K UHD display and DisplayPort Alternative Mode
- Durable and Tangle Free: Designed with TPE (Thermoplastic Elastomer) elastic materials for tangle-free and durability
- Wide and Backward Compatible: Thunderbolt 3 USB4 Type-C interface is backward compatible with Thunderbolt 2, USB-C 3.2, 3.1, and 2.0
- Flexible Daisy-Chain: Connection up to 6 Thunderbolt 3 devices
Thunderbolt 3 with USB-C that Does It All
EDIMAX UC4 series USB4 Thunderbolt 3 cable assembles with USB-C connectors on both ends that offers high performance, cost-effective solutions for data, audio and video. Transferring up to 40Gbps and smart fast power charging of up to 100W applications for all Thunderbolt 3 USB-C devices.
Superfast Speed Up to 40Gbps
Between Thunderbolt 3 devices, the UC4 cable supports data, audio and video transfer up to an astonishing and superfast speed up to 40Gbps.

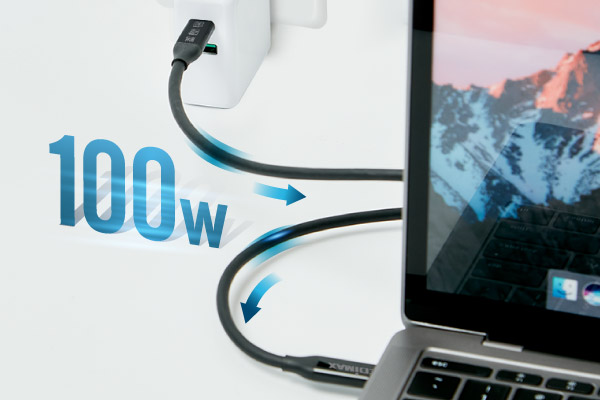

Fast Power Charging Up to 100W
The UC4 series Thunderbolt 3 cable can deliver power in bi-direction up to 100W (5A/ 20V) to an USB Power Delivery (USB-PD) device.
HD Dual-4K or Single 5K Display
The Thunderbolt 3 cable delivers authentic high-quality audio and crystal-clear video to a 5K display or use the cable with a Thunderbolt 3 or 4 dock to dual 4K displays
Durable and Tangle Free
Designed with 30AWG copper wire conductor gauge and TPE (Thermoplastic Elastomer) elastic materials for tangle-free and durability and 25,000+ times insertion, 12,000+ times banding test.
Wide & Backward Compatible
The UC4 series cable works with all USB-C devices which are compatible with USB4/USB3.2/USB3.1/USB2.0, Thunderbolt 3, Thunderbolt 2, DisplayPort 1.4, DisplayPort Alternate Mode (DP Alt Mode), PCI-E 3.0 standards.
Flexible Daisy-Chain
With Thunderbolt 3 daisy chain technology, the UC4 cable can connect up to 6 Thunderbolt 3 USB-C enabled devices including hubs, docking stations, monitors, PCs, external graphics cards, SSD drives, displays and more.
SPECIFICATIONS
| HARDWARE | |
| Cable Type | USB4 / Thunderbolt 3 (TBT3) Cable |
| Connector | USB-C (24-pin) Male to USB-C (24-pin) Male |
| Conductor Gauge | 30AWG |
| Jack | TPE (Thermoplastic Elastomer) |
| Cable Length |
|
| PERFORMANCE | |
| Data Transmission Rate | Up to 40Gbps
|
| Power Delivery | Up to 240W, 20V/5A Max. (*UC4-010TB V1 up to 100W only) |
| Video/Audio |
|
| OTHERS | |
| Standard |
|
| Temperature Range | Storage: -10~ 70 °C Operation: 0~ 55 °C |
| Certification | CE, e-Mark |
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
