AC1200 Gigabit Dual-Band Router

BR-6478AC V3

  • AC1200 High-Speed: Max. speed up to 300Mbps (2.4GHz) & 867Mbps (5GHz)
  • 4 High Gain Antennas: Enhances Wi-Fi signal for maximum Range
  • 3 Modes in 1: Router, WISP, or Wi-Fi Bridge
  • Backward Compatible: Compatible with 802.11a/b/g/n standards
  • Concurrent Dual-Band: Wireless connectivity for 2.4GHz and 5GHz
  • Gigabit: 4-port gigabit Ethernet connectivity
  • VPN (Virtual Private Network): Remote network access with security & privacy
  • USB Port: Storage sharing as your own private, secure cloud
  • Easy Setup: Quick web-based installation with no CD required from any smartphone, iPad, tablet, or PC

Share



Modern homes and businesses need high-performance, reliable and secure Wi-Fi. With its combination of four high-gain Antennas and 11ac technology, the BR-6478AC V3 dual-band gigabit router lets you enjoy faster speed and larger wireless coverage.





High Speed 11ac Wi-Fi

The BR-6478AC V3 upgrades your network to 11ac Wi-Fi. With combined wireless speeds of up to 1200Mbps, the device provides better speeds and coverage. You can run multiple bandwidth intensive applications in a large home or office. The router is also backward compatible with 802.11a/b/g/n to ensure compatibility with legacy Wi-Fi devices.



The Antenna Design for Maximum Range

Employing four external high-gain fixed antennas, the BR-6478AC V3 provides powerful 2.4GHz and 5GHz dual-band signal strength and enhances Wi-Fi range, providing signal penetration through walls and floors across your home or office.



Concurrent Dual-Band Wi-Fi Connectivity

Get the latest 11ac technology with high-speed capacity up to 1200Mbps (N300Mbps + AC867Mbps), and extend both 2.4GHz and 5GHz wireless connections at the same time.


Easy Setup

The BR-6478AC V3 makes it easy to do more with your digital devices. Simple browser-based installation with no CD makes router installation easy using an iPad, tablet, smartphone, or computer.

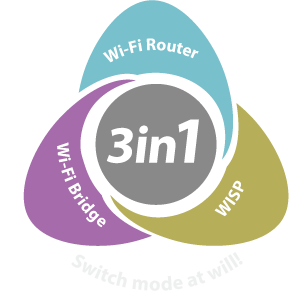

3 Modes in 1

The BR-6478AC V3 works as router, WISP, or wireless bridge. Just switch the mode you need with zero configuration.





Share


SPECIFICATIONS


HARDWARE
Interface
  • 1 x RJ-45 10/100/1000Mbps WAN port
  • 4 x RJ-45 10/100/1000Mbps LAN port
  • 1 x USB 2.0
Button
  • WPS/Wi-Fi, Reset, Power buttons
LED Indicator
  • Power, 2.4G, 5G, Internet, USB, WPS, LAN 1-4
Antenna
  • 4 x antennas (2 x 2.4GHz and 2 x 5GHz)
Memory
  • 8 MB NOR Flash
  • 128 MB RAM
Power Adapter
  • DC 12V, 1.5A
Dimensions
  • 202(W)mm x 128(D)mm x 35(H)mm
Weight
  • 474g
WIRELESS
Standards
  • 802.11 a/b/g/n/ac
Frequency
  • 5GHz and 2.4GHz concurrent dual-band
Maximum Data Speed
  • 5GHz: 866Mbps
  • 2.4GHz: 300Mbps
Receive Sensitivity
  • 5GHz:
                        11a(6Mbps): ‐96±2dBm
                        11a(54Mbps): ‐79±2dBm
                        11n(20MHz, MCS7): ‐71±2dBm
                        11n(40MHz, MCS7): ‐66±2dBm
                        11ac(80MHz, MCS9): -63±2dBm
  • 2.4GHz:
                        11g (54Mbps): ‐77±2dBm
                        11n(20MHz, MCS7): ‐74±2dBm
                        11n(40MHz, MCS7): ‐72±2dBm

Guest Network
  • 5GHz guest network × 1
  • 2.4GHz guest network × 1
Security
  • WEP, WPA , WPA2, WPA-PSK & WPA2-PSK security
SOFTWARE FEATURES
Management
  • Multi-language user interface
  • Remote management, access control
  • System status and security log
  • Firmware upgradable
  • Smart Setup, no CD required
  • TR-069
WAN
  • Protocol: Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access)
  • Supports RJ-45 cable
VPN Pass-Through
  • IPSec, PPTP, L2TP
Port Forwarding
  • UPnP, DMZ, Port Forwarding
DHCP
  • Server, Client, DHCP Client List, Address Reservation
Dynamic DNS
  • DynDns
Access Control
  • Local Management Control
Firewall Security
  • DoS, IP Address Filter/MAC Address Filter, IP and MAC Address Binding, Port Filtering
Protocols
  • Supports IPv4 and IPv6
Guest Network
  • 5GHz guest network x 1
  • 2.4GHz guest network x 1
USB Sharing
  • Support Samba (Storage)
Operation Mode
  • Wi-Fi Router, WISP, Wi-Fi Bridge
OTHERS
Certification
  • CE, RoHS
Environmental Condition
  • Operating humidity: 10-90% (non-condensing)
  • Operating temperature: 32 - 104°F (0 - 40°C)
System Requirement
  • Cable or xDSL Internet connection (RJ-45 cable modem or RJ-45 ADSL modem)
  • Computer (with Fast Ethernet adapter or wireless adapter) running Windows, Mac OS or Linux
  • Smartphone, tablet or laptop running iOS 4 or Android 4 and above
  • Web browser (Internet Explorer, Google Chrome, Firefox, Opera or Safari)
Package Content
  • BR-6478AC V3 Wi-Fi router
  • Quick installation guide
  • CD-ROM (including setup wizard, multi-language quick installation guide and user manual)
  • Power adapter
  • Ethernet cable

​
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
