AC2600 Dual-Band Home Roaming Wi-Fi Extender

RE23S

  • Home Roaming Wi-Fi: Upgrade Extender so your Wi-Fi is always connected for seamless, fast roaming Wi-Fi.
    - No hassle with switching Wi-Fi network name and password.
    - Reliable Wi-Fi that stays connected when you move around your home.
    (Works with any Edimax Gemini series devices which support home roaming Wi-Fi.)
  • ​AP Mode: Plug and play to create a Wi-Fi access point to enhance the wired home network with Wi-Fi capability.
  • Faster 11ac Speeds: AC2600 concurrent dual-band Wi-Fi with speeds (2.4GHz 800Mbps & 5GHz  1733Mbps).
  • Level up Home Wi-Fi to Dual-Band: Upgrade your single-band 2.4GHz Wi-Fi to dual-band with better coverage without replacing your router.
  • 11ac MU-MIMO: The latest 11ac technology runs four streams and serve multiple devices simultaneously.
  • Beamforming: With beamforming directional signals support, Wi-Fi performance is dramatically improved with better reliability, range and coverage and less wasted signals.
  • Gigabit Wired Ethernet: build a fast, stable wired connection to the gaming console, smart TV, or computer.
  • Universal Compatibility: Easy setup and work with any other router.


Share



Being different to a general range extender network configuration, Gemini RE23S delivers with faster and stronger Wi-Fi coverage for a seamless roaming connection for your home. Gemini RE23S can also optionally create a reliable Wi-Fi access point to enhance your wired home network with Wi-Fi capability.

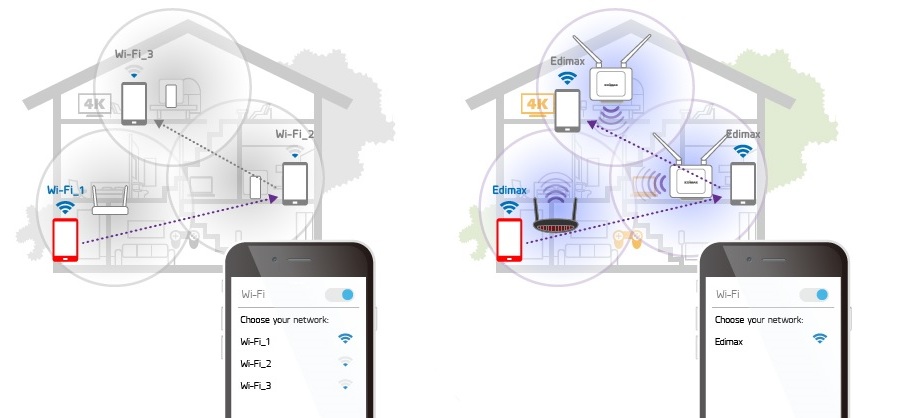

Keep One Wi-Fi Name with Seamless Roaming
Seamless Wi-Fi roaming as you move around your home – no need to setup and connect to different Wi-Fi names entering different rooms – use ONE single Wi-Fi name for the whole home.
No Roaming Wi-Fi
Multiple network setup with unstable connection while you
move room to room and need to switch Wi-Fi manually.		   Seamless Roaming Wi-Fi
Features single network (SSID) setup, it automatically detects
and switches your device to the best available Wi-Fi signal.




Plug and Play in AP-Mode
Gemini RE23S in AP-Mode is designed to be super easy to configure auto-grouping management. Moreover, additional Gemini RE23S can be easily added to your router to enhance the wired home network with Wi-Fi capability.




​11ac Speed with 4K Streaming and Gaming
Get the latest 11ac technology with high-speed capacity up to 2600Mbps (N800Mbps + AC1733Mbps), and extend both 2.4GHz and 5GHz wireless connections at the same time.


​

Upgrade Home Wi-Fi to Dual-Band
Can your main router only deliver single-band Wi-Fi? No worries! The Gemini RE23S can provide reliable dual-band connections, allowing you to enjoy disconnect-free and lag-free Wi-Fi on all your devices.​




Enjoy Online Streaming with MU-MIMO
With MU-MIMO (Multiple User - Multiple Input Multiple Output), the Gemini RE23S runs four streams and serves multiple devices simultaneously with the fastest speed and uninterrupted Wi-Fi connectivity.








Traditional SU-MIMO
Single device at a time
MU-MIMO
Multiple devices at the same time




Smart iQ Setup
Features user-friendly browser-based iQ Setup for smart, automatic and quick installation. iQ Setup automatically detects the available Wi-Fi networks nearby and helps establish a connection in minutes.




Gigabit Wired Performance
The Gemini RE23S’s Gigabit Ethernet port enables you to connect a wired device, such as the gaming console or smart TV to build a fast, stable wired connection, making it easy to share files, photos, music, and video across your home network.




Works with any Wi-Fi Router
Universal compatibility that works with any other router, and easy, web-based iQ Setup for quick and easy installation.




Bring Gemini Devices Home

Gemini RG21S

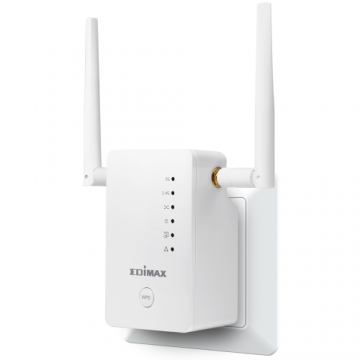

 Gemini RE11 Gemini RE11S
​
AC2600 Home Roaming Wi-Fi Router
11ac Wave 2 MU-MIMO		 AC1200 Home Roaming Wi-Fi Extender Kit
Whole Home Wi-Fi Upgrade Kit		 AC1200 Home Roaming Wi-Fi Extender
To get more reliable Wi-Fi coverage
Where to Buy Where to Buy



Share


SPECIFICATIONS

Gemini RE23S - AC2600 Dual-Band Home Roaming Wi-Fi Extender

 Hardware
Interface
  • 10/100/1000Mbps Ethernet LAN port
  • LED Indicator: Power, WPS, Wireless
  • 1 x AC plug (EU, UK, US, or AU)
Button
  • WPS, Reset button
Power
  • AC Input: 100-240V, 0.2-0.5A, 50-60Hz
Antenna
  • 2 x External detachable antennas + 2 x Internal antennas
Dimensions
  • 138(W) x  107(H) x 88(D) mm
Weight

  • 290g
 Wireless
Standards​
  • IEEE802.11 ac/n/g/b/a
Frequency
  • 5GHz and 2.4GHz dual-band
Maximum Data Speed
  • 5GHz: up to 1733Mbps
  • 2.4GHz: up to 800Mbps
Security
  • 64/128-bit WEP, WPA-AES, WPA-TKIP, WPA-PSK, WPA2-AES, WPA2-TKIP and WPA2-PSK encryption
  • WPS (Wi-Fi Protected Setup) Configuration
Others

Certification

  • CE, FCC, RoHS

Management
  • Multi-language user interface
  • Firmware upgradable
  • Smart iQ Setup, no CD required

System Requirement
  • Existing wireless home network (2.4GHz/5GHz) for Wi-Fi extender/Wi-Fi bridge mode, or Cable/xDSL modem router for access point mode
  • Mobile device or computer with IEEE802.11ac/n/g/b/a Wi-Fi capability and web browser for software configuration (Internet Explorer, Google Chrome, Firefox, Opera or Safari latest version)
Environment
  • Operating Temperature: 0℃~40℃ (32℉ ~104℉)
  • Operating Humidity: 10%~90% non-condensing

Package Content
  • One Gemini RE23S Home Roaming Wi-Fi Extender
  • Two Antennas
  • One Ethernet cable
  • Quick installation guide
  • CD with multi-language QIG and user manual
  • Access key card
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
