Gemini RE11 AC1200 Dual-Band Home Wi-Fi Roaming Kit, Wi-Fi Extender / Access Point / Wi-Fi Bridge

RE11

  • Smarter Wi-Fi: Fast, reliable roaming for a seamless connection
  • Stronger Singal: Always connected to the best Wi-Fi signal
  • Faster Speed: Upgraded 11ac dual-band Wi-Fi ideal for video streaming with high-speed capacity up to 1200Mbps (N300 + AC867Mbps)
  • Smart 3-in-1 Mode: Wi-Fi Extender, Access Point & Wi-Fi Bridge
  • Universal Compatibility: Works with any router, zero configuration​
  • Eliminate Wi-Fi Dead Zones: Extends the range of existing 802.11ac/a/b/g/n Wi-Fi
  • Smart iQ Setup: Smartphone, tablet or web-browser setup with no CD or computer required
  • Green Wi-Fi Power Switch: Switches between normal & green Wi-Fi power and turn off when not in use
  • Signal Strength LED Indicator: Finds the best location for optimal Wi-Fi coverage

Edimax Smart Wi-Fi Roaming: Gemini Series   Edimax Smart Wi-Fi Roaming
Share


Being different to a general range extender network configuration, Gemini RE11 is a whole home Wi-Fi system that uses multiple access points​ to provide your home with fast, reliable coverage for a seamless roaming connection.
​

Plug and Play in AP-Mode
Gemini RE11 in AP-Mode is designed to be super easy to configure with plug and play auto-grouping management. Moreover, additional Gemini RE11S can be easily added to get even better whole-home Wi-Fi coverage.

The first RE11S plugs into your existing cable or DSL modem. Additional RE11S just need to be powered!​

See more about how to set the first RE11S into AP-Mode here.






Smarter Wi-Fi with a Single Network
Fast, reliable roaming for a seamless connection while you move around your home. Hassle-free while switching SSIDs (network name). The RE11S uses the same SSID and switches automatically and intelligently.​

Edimax Gemini RE11 AC1200 Dual-Band Home Wi-Fi Roaming Kit, Wi-Fi Extender/Access Point/Wi-Fi Bridge, smarter Wi-Fi with signal SSID setup

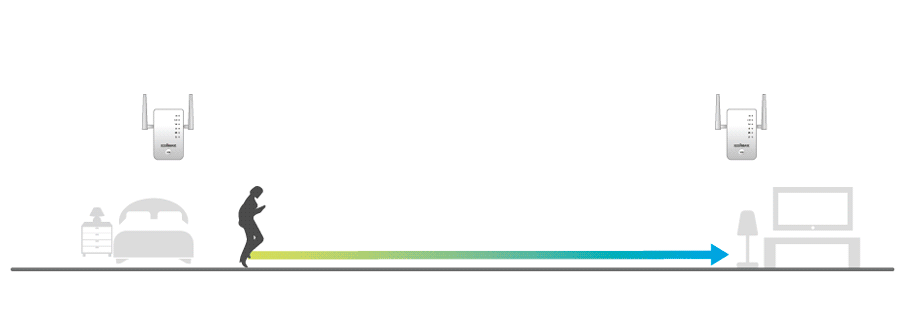

Stronger Signal for Connected Homes
RE11S extenders keep detecting the Wi-Fi signal quality for your Wi-Fi devices, and ensure they’re always connected to the best Wi-Fi signal.



Edimax Gemini RE11 AC1200 Dual-Band Home Wi-Fi Roaming Kit, Wi-Fi Extender/Access Point/Wi-Fi Bridge, stronger signal for connected home








Faster 11ac Speeds
Upgrade your single-band 2.4GHz Wi-Fi to 802.11ac dual-band Wi-Fi with 5GHz ideal for video streaming. Get the latest 11ac technology with high-speed capacity up to 1200Mbps (N300 + AC867Mbps), and extends both 2.4GHz and 5GHz wireless connections at the same time.



Edimax Gemini RE11 AC1200 Dual-Band Home Wi-Fi Roaming Kit, Wi-Fi Extender/Access Point/Wi-Fi Bridge, AC1200

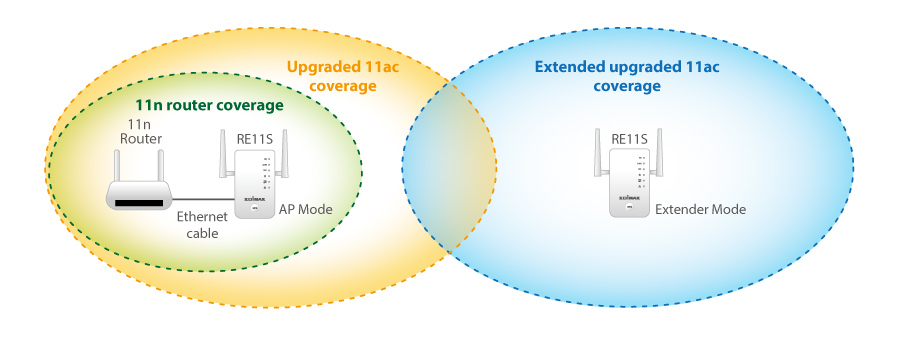

Upgrade for Your Home 11n Router to 11ac
Just plug in the Edimax RE11S to upgrade your single-band 2.4GHz Wi-Fi to dual-band with better coverage, without replacing your router and with no configuration required.

Edimax Gemini RE11 AC1200 Dual-Band Home Wi-Fi Roaming Kit, Wi-Fi Extender, Access Point, Wi-Fi Bridge, plug and play, easy upgrage, zero configuration






Smart iQ Setup
Features user-friendly browser-based iQ Setup for smart, automatic and quick installation.
iQ Setup automatically detects the available Wi-Fi networks nearby and helps you establish a connection in a few seconds.
Edimax Gemini RE11 AC1200 Dual-Band Home Wi-Fi Roaming Kit, Wi-Fi Extender/Access Point/Wi-Fi Bridge, Smart iQ Setup








Works with any Wi-Fi Router
Universal compatibility and easy web-based iQ Setup for quick and easy installation.

Edimax Gemini RE11 AC1200 Dual-Band Home Wi-Fi Roaming Kit, Wi-Fi Extender/Access Point/Wi-Fi Bridge, Universal Compatibility, works with any wi-fi router

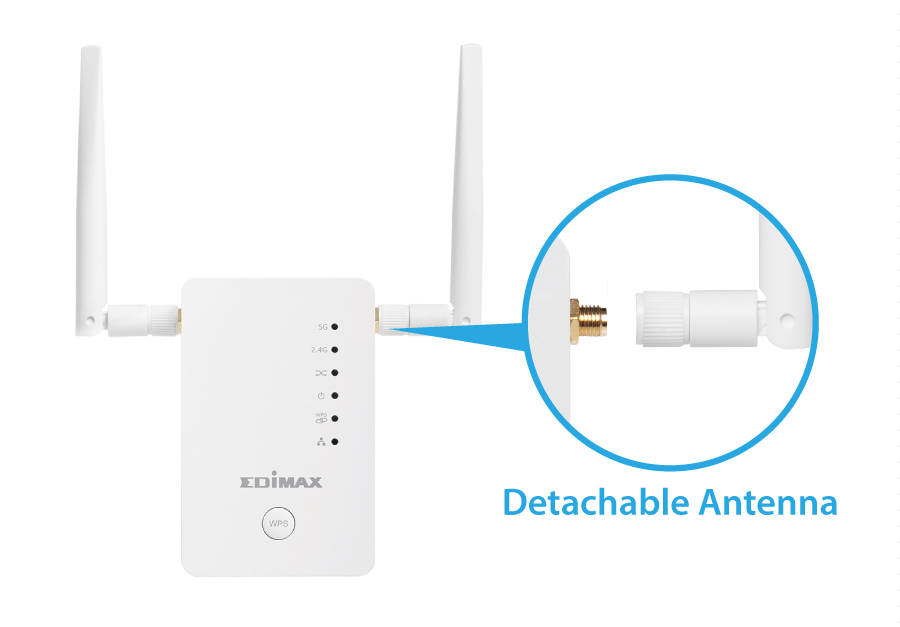

Detachable Antenna
Designed with a detachable antenna, to provide flexibility and high performance connections for your wireless network.

Edimax Gemini RE11 AC1200 Dual-Band Home Wi-Fi Roaming Kit, Wi-Fi Extender/Access Point/Wi-Fi Bridge, detachable antenna







Green Wi-Fi Power Switch
Featuring a new hardware switch to adjust between normal and green Wi-Fi transmit power (the strength of the Wi-Fi signal), or switch off the power with one click. If you only need Wi-Fi in a smaller house, you can switch to green mode to reduce power by 75% and conserve energy.




Edimax Gemini RE11 AC1200 Dual-Band Home Wi-Fi Roaming Kit, Wi-Fi Extender/Access Point/Wi-Fi Bridge,Universal Compatibility, Green Wi-Fi Power Switch, green mode, normal mode, power off







Friendly Signal-Strength Indicator
Designed with a signal strength LED which lets you see the Wi-Fi signal strength received from the router* and guides you to find the best setup location.

Edimax Gemini RE11 AC1200 Dual-Band Home Wi-Fi Roaming Kit, Wi-Fi Extender/Access Point/Wi-Fi Bridge, Signal Strength Indicator








Bring Gemini Devices Home

Gemini RG21S Gemini RE11S Gemini RE23S
​
AC2600 Home Roaming Wi-Fi Router
11ac Wave 2 MU-MIMO		 AC1200 Home Roaming Wi-Fi Extender
To get more reliable Wi-Fi coverage		 AC2600 Home Roaming Wi-Fi Extender
11ac Wave 2 MU-MIMO
Where to Buy Where to Buy Coming Soon




*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
Share


SPECIFICATIONS
​

FREQUENCY BAND

WIRELESS STANDARDS & DATA RATES

HARDWARE INTERFACE

•2.4GHz
•5GHz

•IEEE 802.11ac (up to 867Mbps)
•IEEE 802.11n (up to 300Mbps)
•IEEE 802.11a (up to 54Mbps)
•IEEE 802.11g (up to 54Mbps)
•IEEE 802.11b (up to 11Mbps)

•1 x 10/100Mbps Ethernet LAN port
•1 x Slide switch
•1 x WPS button
•2 x External detachable antennas
•LEDs: 5GHz, 2.4GHz, Signal indicator, Wireless, Power, WPS, LAN
•1 x AC plug (EU, UK, US, or AU)

MANAGEMENT

SECURITY

SYSTEM REQUIREMENTS

•16-language user interface
•Upgradable firmware

•64/128-bit WEP, WPA-PSK and WPA2-PSK encryption
•802.1x authentication, User access control (in access point mode)
•WPS (Wi-Fi Protected Setup)

•Existing wireless home network (2.4GHz/5GHz) for Wi-Fi extender/Wi-Fi bridge mode, or cable/DSL modem router for access point mode
•Computer with IEEE802.11ac/a/b/g/n Wi-Fi  capability and web browser for software configuration (Internet Explorer, Google Chrome, Firefox, Opera or Safari latest version)

INSTALLATION

ANTENNA

POWER ADAPTER

•Multi-language iQ Setup (browser interface)
•Hardware WPS button

•2 x External detachable antennas

•Built in AC100-240V, 0.16A 50-60Hz power module

HUMIDITY

TEMPERATURE

PACKAGE CONTENTS

•10-90% (Non-condensing)

•0-40°C (32-104°F)

•Two RE11S Wi-Fi range extenders
​•One Ethernet cable
•Quick installation guide
•CD with multi-language QIG and user manual
•Access key card

DIMENSIONS

WEIGHT

 CERTIFICATIONS

•59 (W) x 91 (H) x 40 (D) mm (power plug & antennas are excluded)

•130g

•FCC
•CE


​
PACKAGE CONTENT
​
  • 2 x RE11S Wi-Fi range extenders
  • 1 x Ethernet cable
  • CD with multi-language QIG & user manual
  • Quick installation guide (QIG)
  • Access key card


HARDWARE INTERFACE


​
Edimax Gemini RE11 AC1200 Dual-Band Home Wi-Fi Roaming Kit, Wi-Fi Extender/Access Point/Wi-Fi Bridge, hardware interface
