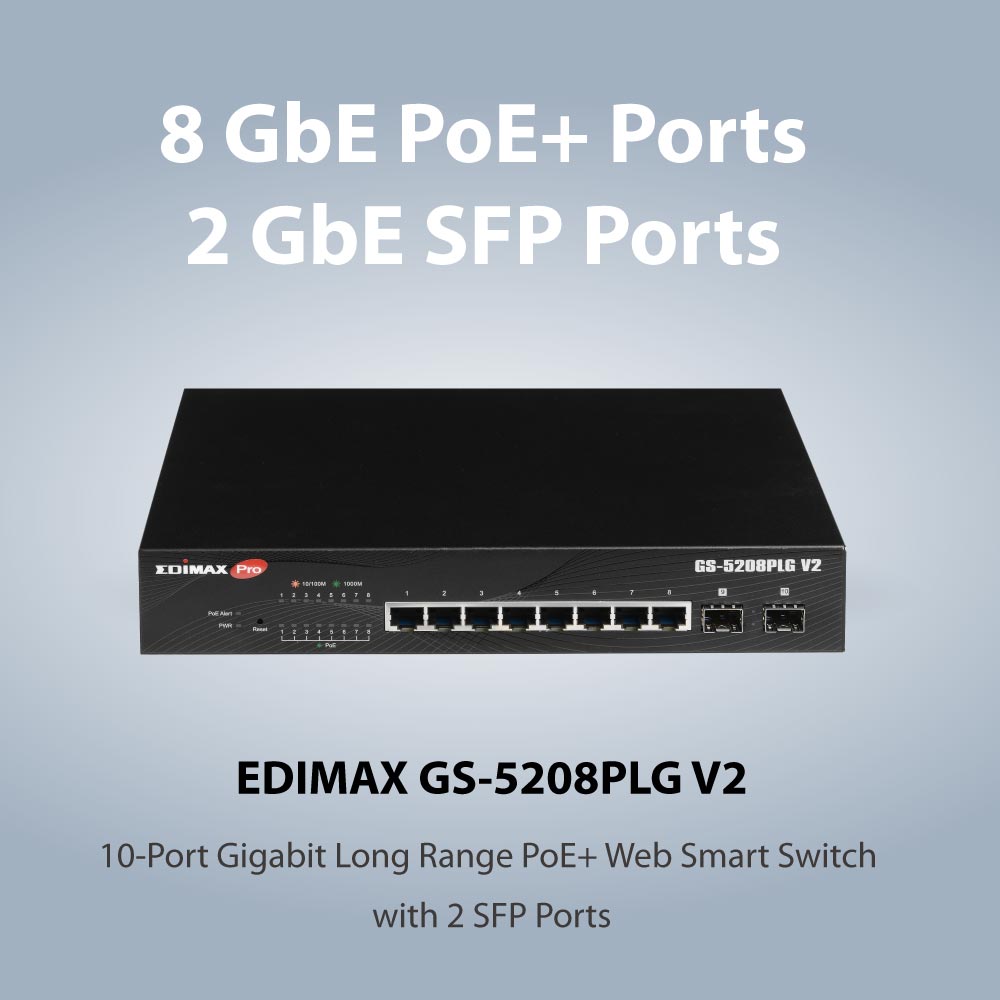

10-Port Gigabit Long Range PoE+ Web Smart Switch with 2 SFP Ports

GS-5208PLG V2

Edimax Pro Logo
  • 8 Gigabit Ethernet PoE+ ports and 2 Gigabit SFP uplink ports
  • IEEE 802.3af/at PoE/PoE+ compliant
  • Up to 30W per port (total power budget: 85W) for powering PoE-enabled devices
  • Guaranteed PoE long distance to 200 meters
  • Auto-detection of powered devices (PD) and power consumption levels
  • Auto fault-detection on over/under current & voltage
  • 20 Gbps Switch capacity and 14.88Mpps Forwarding rate
  • 4K MAC address table and 9KB jumbo frame
  • Supports QoS,  802.1Q VLAN, IPv4/IPv6, Port Trunking, Port Mirroring, IGMP Snooping v1/v2/v3 , Broadcast Storm Control, etc.
  • Rack-mount design, rack-mount kit included


Foster Global Businesses | Build Your High Performing Company

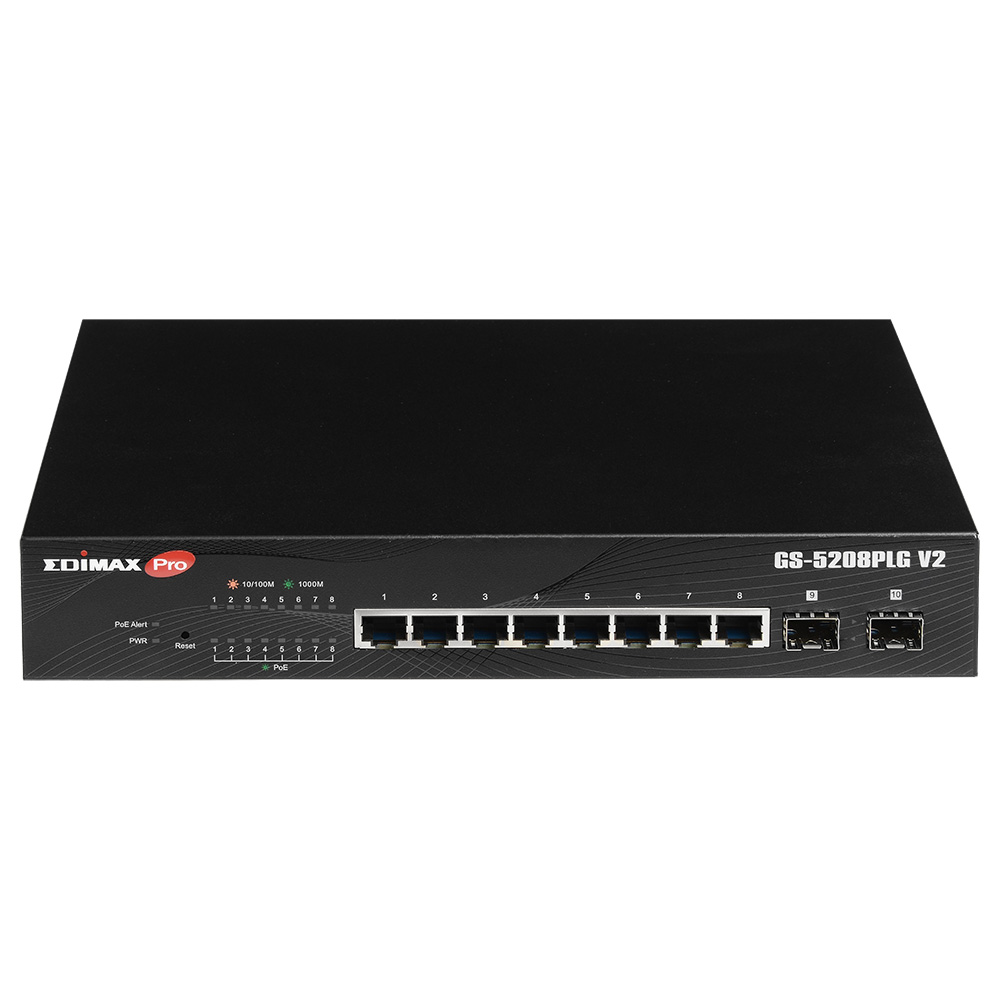

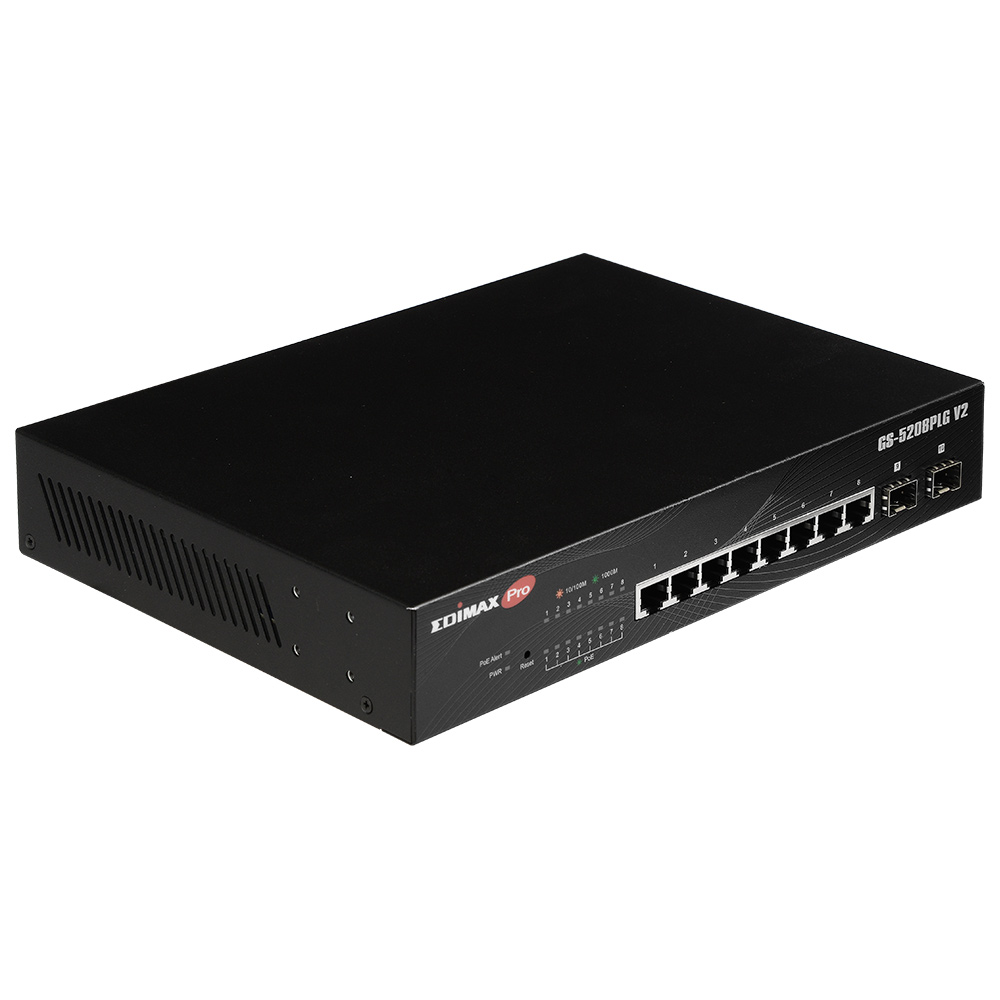

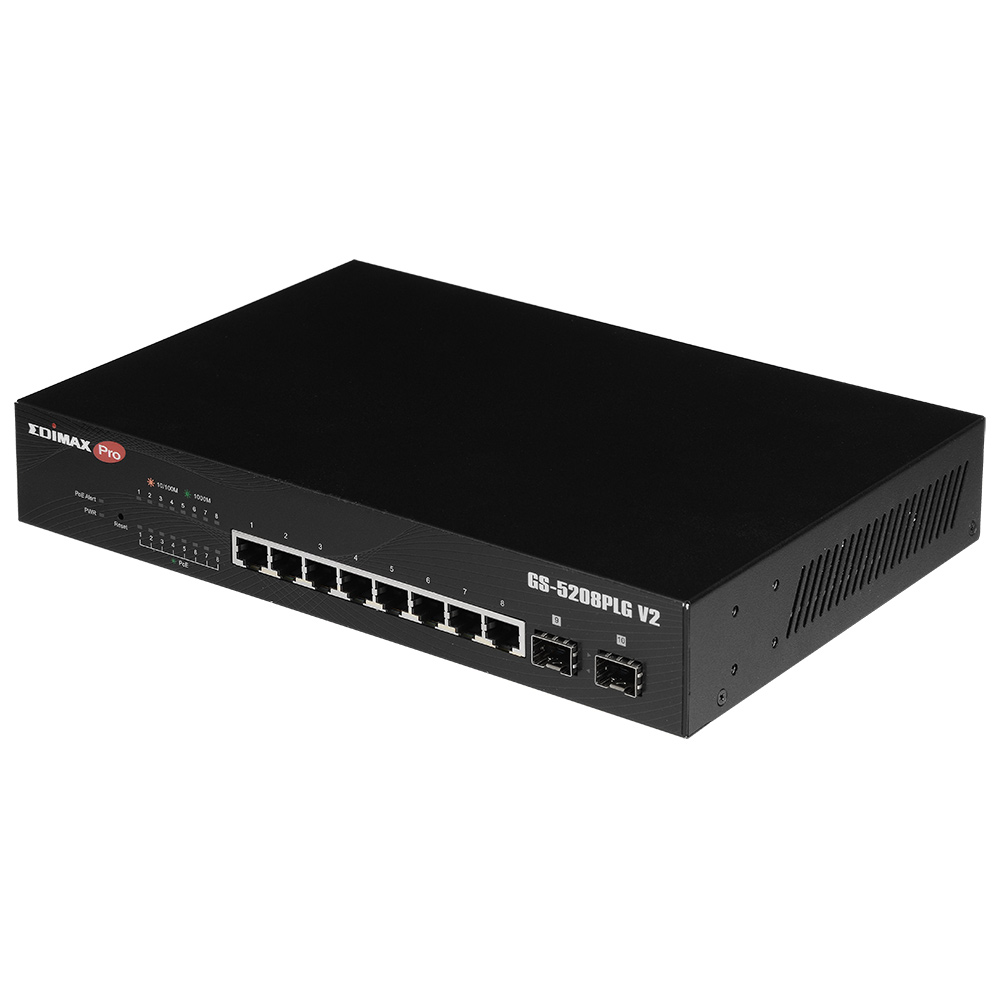

The EDIMAX Pro GS-5208PLG V2  is a web-smart switch with 8 Gigabit PoE+ and 2 Gigabit SFP ports. Designed for medium to small network environments, its standard 19-inch 1U rack-mount brackets allow for integration with the most widely used mounting systems on the market. The Edimax GS-5208PLG V2 is a superb choice to boost your network environment’s performance and efficiency.

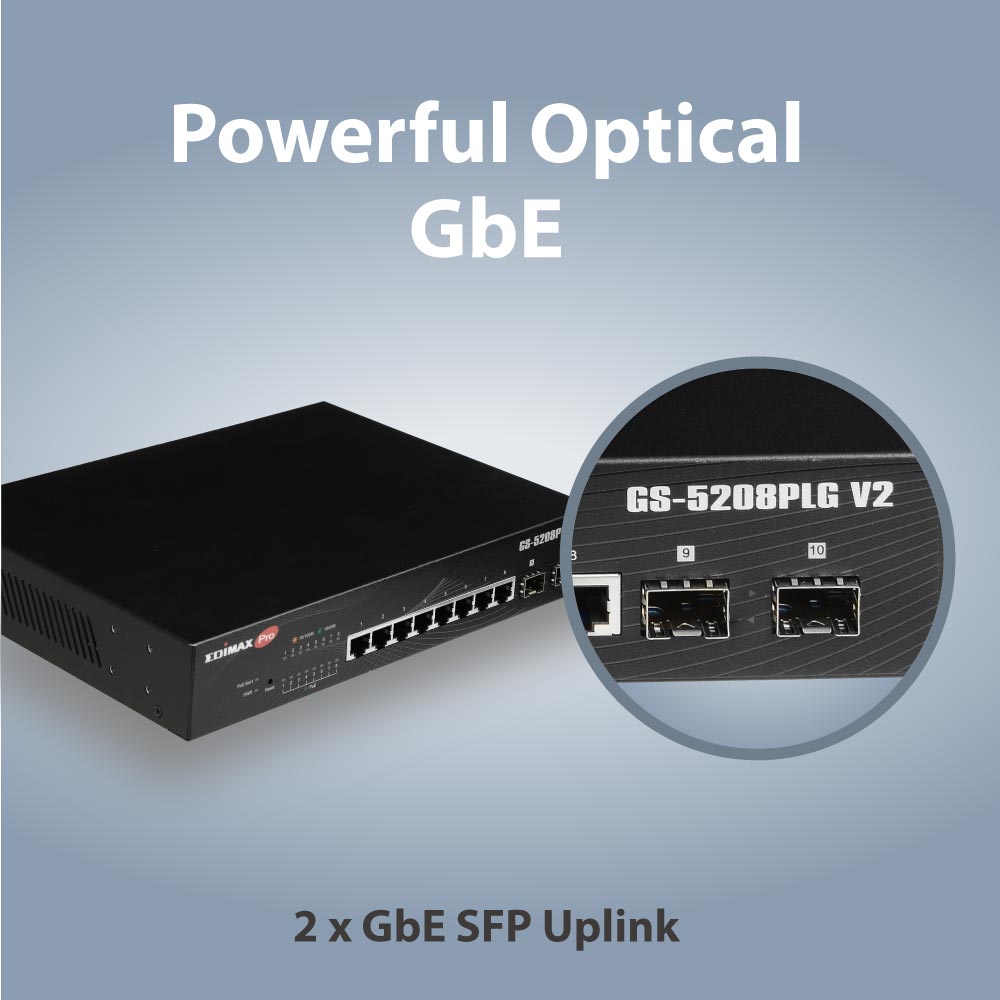

Powerful Optical GbE | 2 x Gigabit SFP Uplink

8 GbE ports for high-speed connections and up to 2 Gbps of fiber-optic uplinking capability allowing the GS-5208PLG V2 to be easily deployed in multiple physical locations, such as branches, retails, or remote workgroup environments for larger network access.

Let Safety be Known

The built-in power backfeed protection/ PoE detection function keeps the PoE network safe and efficient.

Strong Ability to Proceed Data

With 20Gbps backplane bandwidth and a forwarding rate of 14.88Mpps, the GS-5208PLG V2 provides maximum available bandwidth without delay.

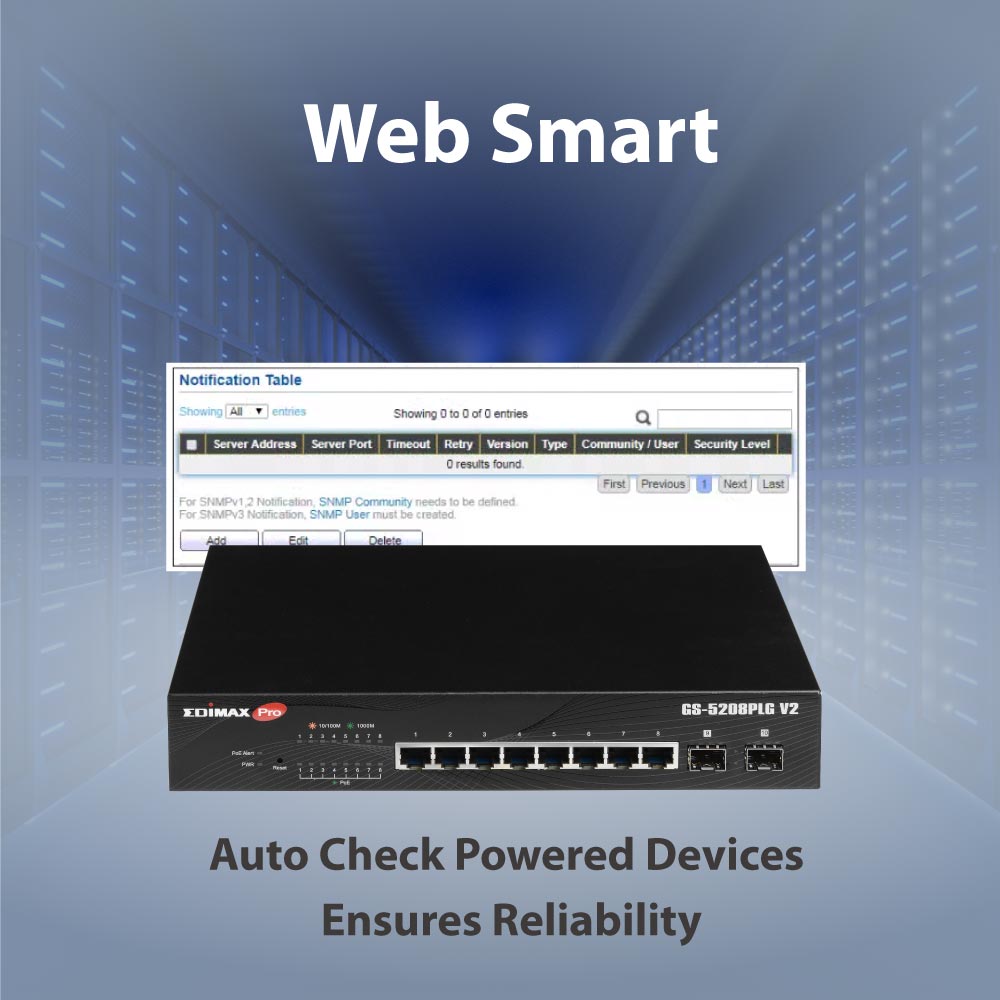

Web Smart Management

The web-based management features include QoS,  802.1Q VLAN, IPv4/IPv6, Port Trunking, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, Access Control List (ACL), etc.

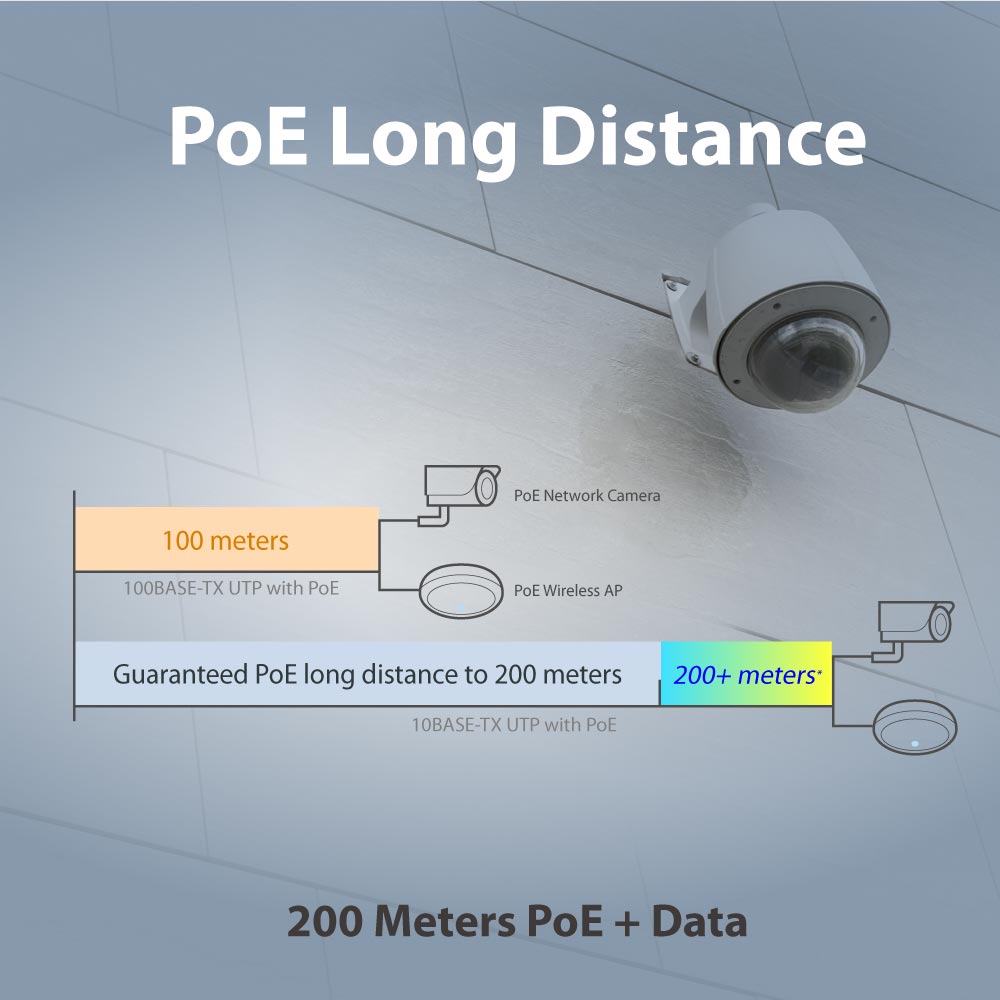

Guaranteed 200 Meters | Going the Distance

While general Ethernet switches have a distance restriction of 100 meters, the GS-5208PLG V2 long-range mode provides extended power and data delivery distance to 200 meters (656 ft.) at 10Mbps full-duplex operation on a per-port basis. It's ideal for long-distance applications such as IP cameras, VoIP phones, access points, and PoE-enabled IoT devices at remote locations.




Safe Power Backfeed Protection

Each port is equipped with power backfeed protection to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) are connected.

Networking Scenarios




SPECIFICATIONS

HARDWARE
Ports 8 x RJ45 10/100/1000Base-T Gigabit  ports
2 x SFP 1000Base-X  Gigabit uplinks ports
Transmission Method Store and forward
Buttons Reset button
LED Indicators Per Port: Link/Act, PoE: Act/Status, Per Unit: Power

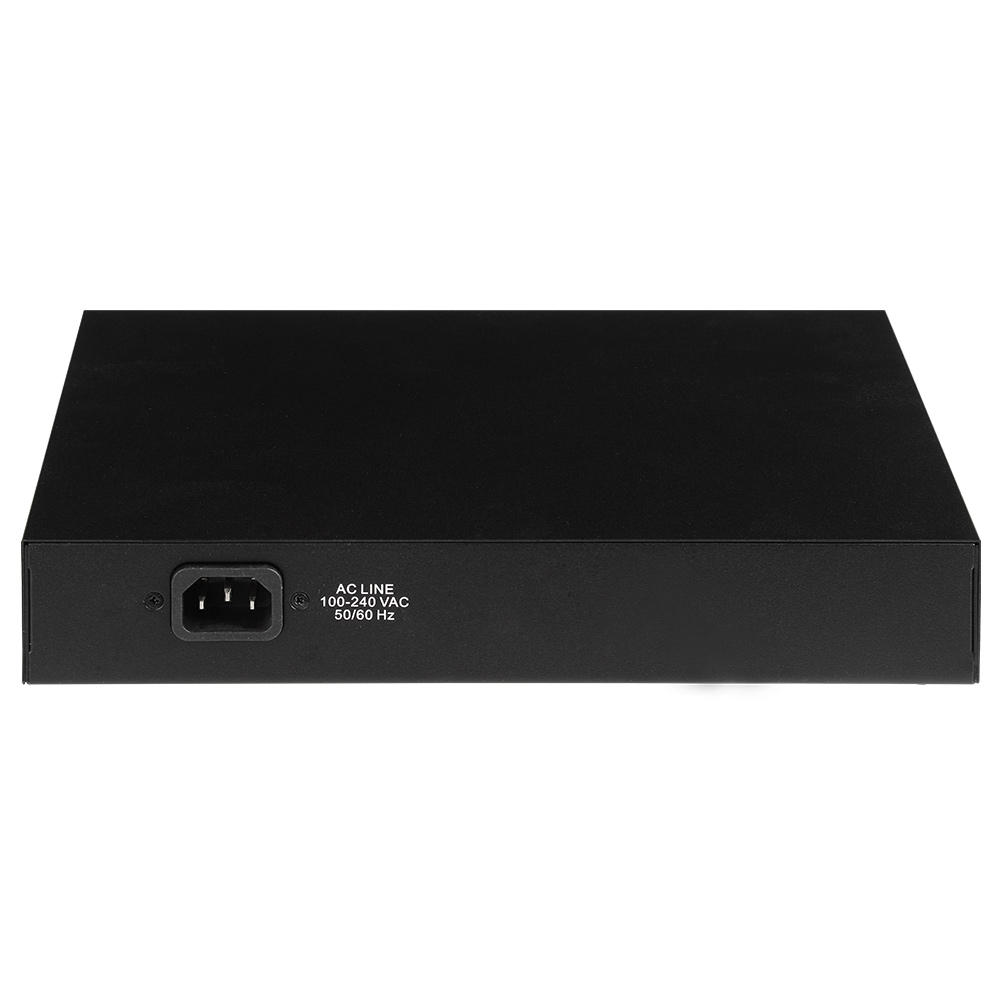

Power Input 100-240V AC, 50-60 Hz, internal power supply
Total Power Budget 85W
Mounting Desktop / Rack-mount  (Rack-mount kit included)
Housing Metal
Fan Fanless
Dimensions (L x W x H) 265 (W) x 184 (D) x 44 (H) mm
Weight 1.42kg
PERFORMANCE
Switching Capacity 20Gbps
MAC Address 4K
Jumbo Frames 9.2K Bytes
Buffery Memory 1.5Mb
Filtering / Forwarding Rates Max. 14.88Mpps
1000Mbps port - 1,488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps
POWER OVER ETHERNET
Standard IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
Power Output Up to 30W per port
Pin Assignment 1/2(+), 3/6(-) End-Span (mode A)
Management PoE status, PoE on/off
PoE Long Range Guaranteed PoE long distance to 200 meters at 10Mbps
Power Backfeed Protection Built-in
SMART FEATURES
Quality of Service (QoS) Port-based QoS
IEEE802.1p QoS,
4 Priority Queues
Scheduling algorithm
VLAN Up to 10 VLANs
802.1Q tag-based VLAN
Port Trunking IEEE 802.3ad LACP
Mirror Port mirroring both on ingress and egress traffic
IGMP Snooping IGMP v1/v2/v3 snooping
Block unknown multicast traffic
Multicast groups: 128
Security Broadcast Storm control
Management User Interface: Web-based Management
User Account: Login account configuration
Firmware Upgrade: Firmware Upgrade by WEB
Loop Detection/Prevention
ENVIRONMENT
Temperature Operating Temperature: 0~50°C (32~122°F)
Storage Temperature: -40~70°C (-40~158°F)
Humidity (Non-condensing) Operating Humidity: 10~90% (NonCondensing)
Storage Humidity: 10~90% (NonCondensing
STANDARDS COMPLIANCE
Standards IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
IEEE 802.3x Full-duplex and Flow Control
IEEE 802.3ad LACP
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1Q VLAN
IEEE 802.1p Quality of Service (QoS)
IEEE 802.3af Power Over Ethernet (PoE)
IEEE 802.3at Power Over Ethernet Plus (PoE+)
Certifications FCC, CE
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
