Edimax | GS-1008P V2 Long Range 8-Port Gigabit PoE+ Switch with DIP Switch - EDIMAX

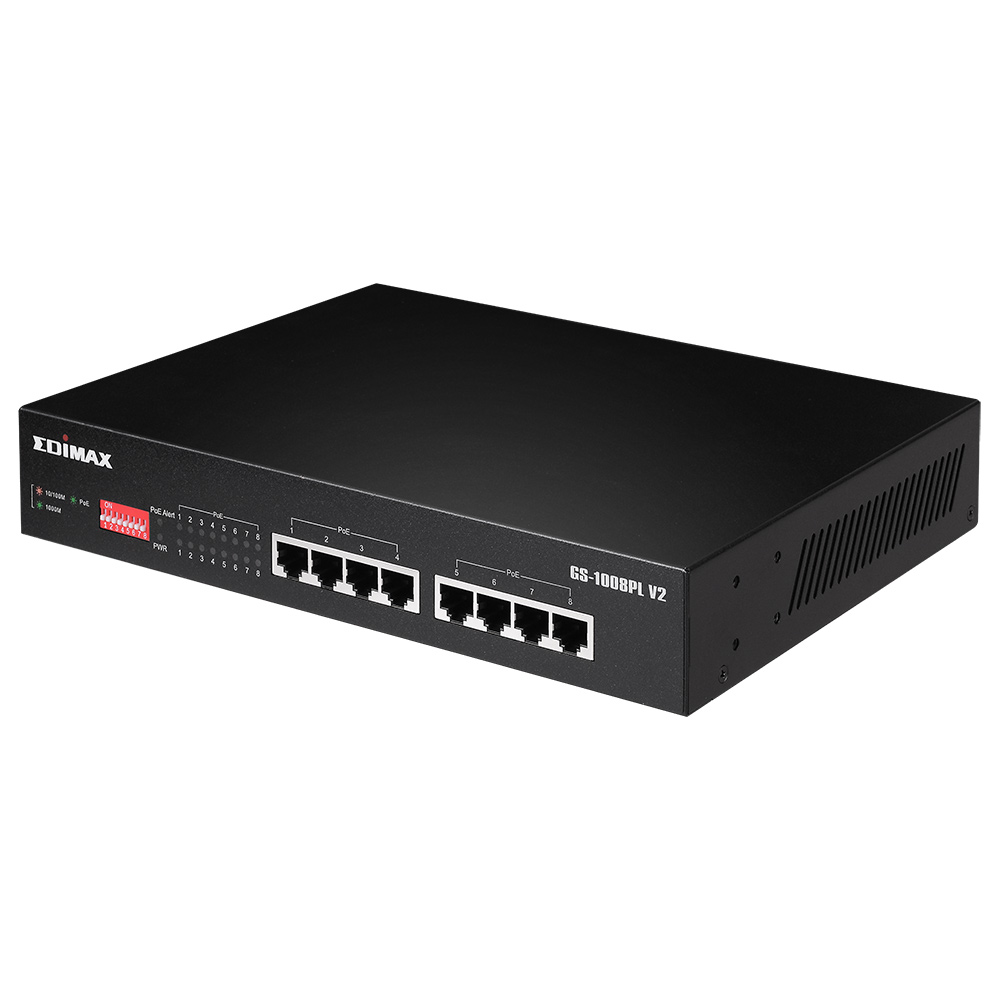

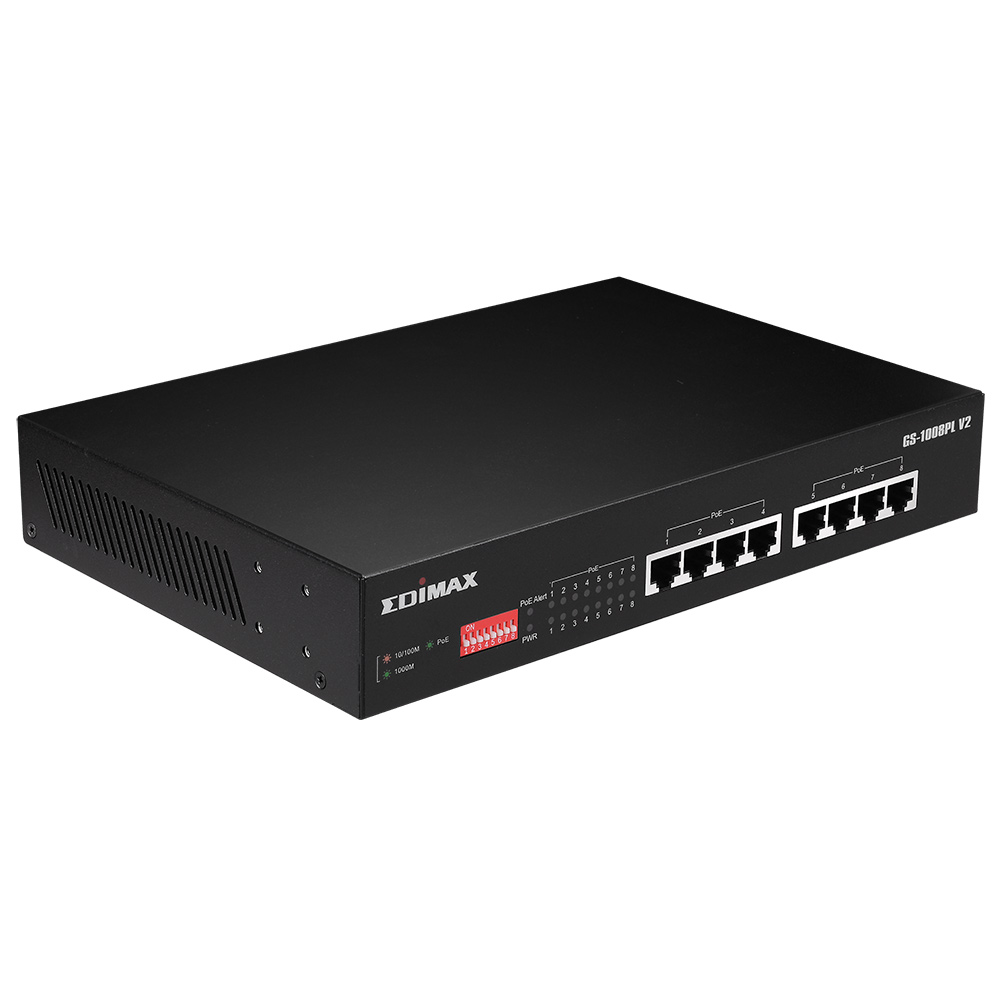

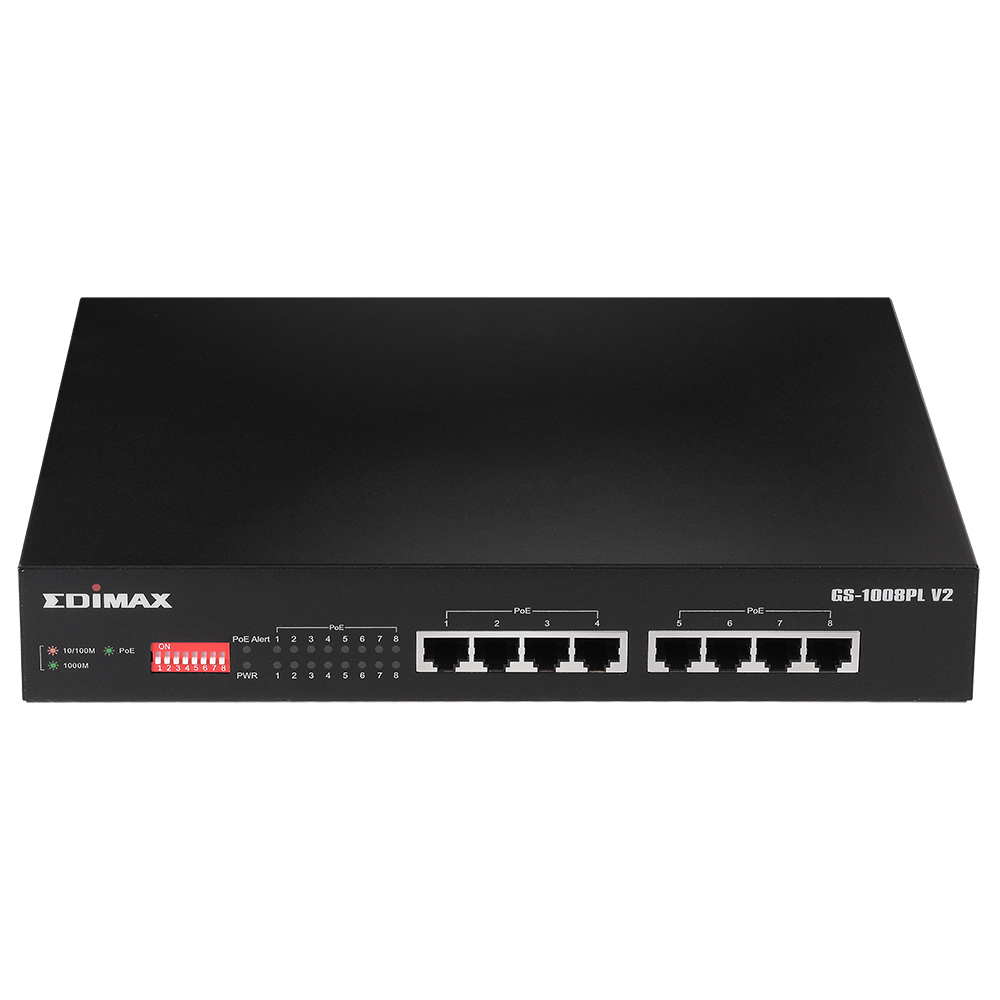

Long Range 8-Port Gigabit Ethernet PoE+ Switch with DIP Switch

GS-1008PL V2

  • Gigabit High Speed PoE+: Equipped with 8 Gigabit PoE+ ports, IEEE 802.3af/at PoE compliant, supports up to 30W per PoE port (total power budget: 70W)
  • PoE Long Range Extension: Guaranteed PoE transmit distance to 200 meters at speed of 10Mbps
  • Port-based VLAN: Port isolated from each other to prevent multicast or broadcast storms
  • Hardware QoS: Easy DIP switch setup QoS, supports 802.1p, for video & voice traffic priority
  • PoE Auto Detection: Auto detect PoE and non-PoE devices to avoid from being damaged by incorrect power sending
  • Power Backfeed Protection: Equipped with power backfeed protection to avoid damaging the PoE ports
  • Plug-and-Play, Flexible Network Deployment and Energy Efficient
  • Fanless, Compact, Rack-Mount, Durable Metal Casing


PoE Long Range Extension

​Break Through 100 Meters PoE Distance Limitation

Supports PoE power output over a distance up to 200 meters overcoming the 100 meters limit on Ethernet UTP cable with the PoE Extend “ON”, the GS-1008PL V2 provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation.

Edimax GS-1000PL V2 Long Range 8-Port Gigabit Ethernet PoE+ Switch with DIP Switch, long range guaranteed 200 meters

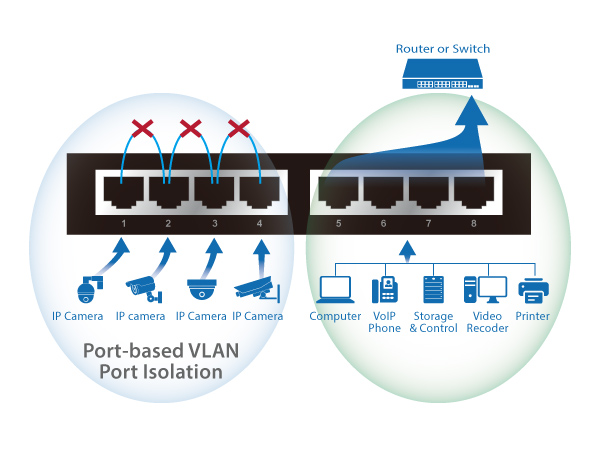

Innovitive Port-based VLAN

Port Isolated from Affecting Each Other

The GS-1008PL V2 features port-based VLAN where ports can be easily isolated from each other. This can help to prevent IP camera’s multicast or broadcast storms from affecting each other.

Edimax GS-1000PL V2 Long Range 8-Port Gigabit Ethernet PoE+ Switch with DIP Switch,Port-Based VLAN

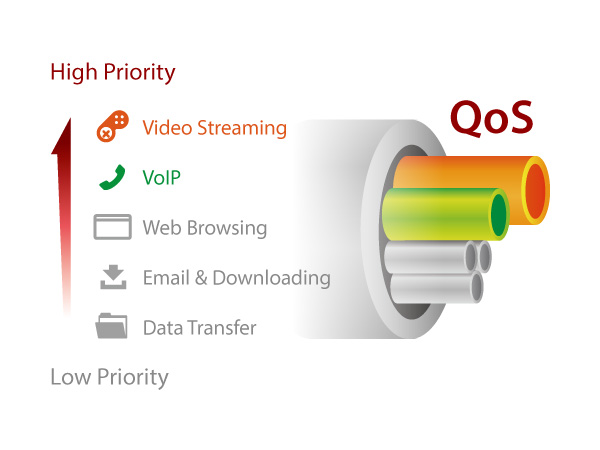

Easy Hardware QoS

Video & Voice Traffic Priority

Supports 802.1p QoS via DIP switch port 4. This ensures first priority for video and voice traffic for reduced package loss, lower latency and jitter on the network.

Edimax GS-1000PL V2 Long Range 8-Port Gigabit Ethernet PoE+ Switch with DIP Switch QoS

Safe Power Backfeed Protection

Avoid Damaging the PoE Ports

Each port equipped with power backfeed protection to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) are connected.

Edimax GS-1000PL V2 Long Range 8-Port Gigabit Ethernet PoE+ Switch with DIP Switch, PoE power backfeed protection

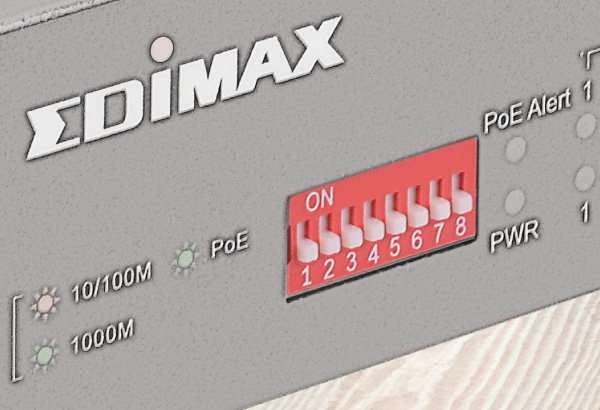

DIP SWITCH FUNCTION

Edimax GS-1008PL V2 Long Range 8-Port Gigabit Ethernet PoE+ Switch with DIP Switch
DIP Switch No. Description Port
1 PoE Distance Extend Port 1 & 2
2 PoE Distance Extend Port 3 & 4
3 Port-based VLAN Port 1 - 4
4 Quality of Service (QoS) Port 1 - 8
5 PoE Distance Extend Port 5
6 PoE Distance Extend Port 6
7 PoE Distance Extend Port 7
8 Port-based VLAN Port 5 - 7

*After changing DIP switch status, please unplug and replug the power.



SPECIFICATIONS


HARDWARE
Ports 8 x RJ-45 10/100/1000Base-T PoE+ ports
Transmission Method Store and forward
LED Indicators Power: Green LED
LNK/ACT: Green LED (Port 1 – Port 8)
PoE: Green LED (Port 1 – Port 8)
PoE Alert: Green LED (PoE overload alarm)
DIP Switch PoE Extend, VLAN, QoS

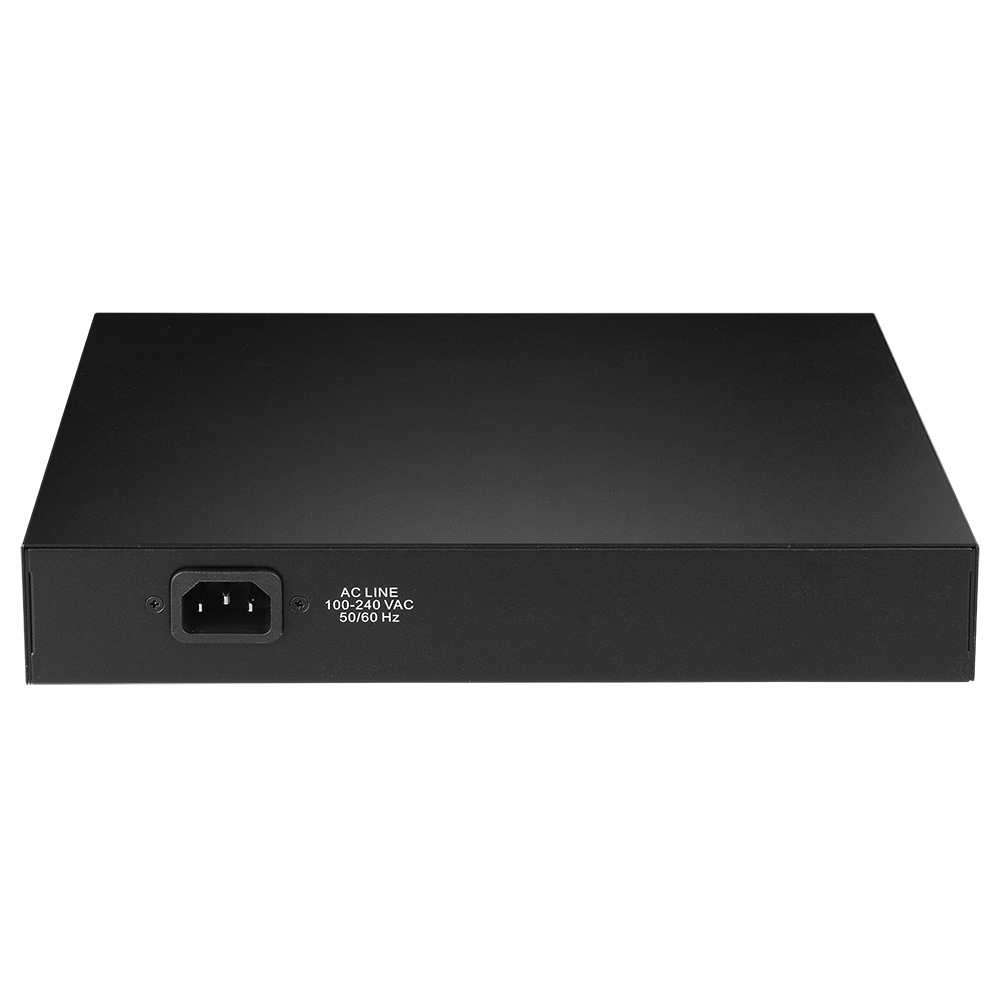

Power Input 100-240V AC, 50-60Hz, internal power supply
Total Power Supply 80W
Mounting Desktop / Rack-mount
Housing Metal
Fan Fanless
Dimensions 265 (W) x 184 (D) x 44 (H) mm
Weight 1609g
PERFORMANCE
Switching Capacity 16Gbps
MAC Address 4K
Buffer Memory 1.5Mb
Jumbo Frames 9K (Bytes)
Filtering / Forwarding Rates 1000Mbps port - 1488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps
POWER OVER ETHERNET
Standard IEEE 802.3af
IEEE 802.3at
Power Output Up to 30W per port
Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 70W
Long Range DIP switch ON to support PoE with long range to 200 meters at 10Mbps
Backfeed Protection Built-in per port
OTHERS
Standards IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
​IEEE802.3ab 1000BASE-T
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet Plus (PoE+)
IEEE 802.3x Full-duplex and flow control
IEEE 802.3az Energy efficient Ethernet
Environmental Condition Temperature
Operating: 32~104°F (0~40°C)
Storage: -40~158°F (-40~70°C)
Humidity: (Non-condensing)
Operating: 10 ~ 90%
Storage: 5 ~ 90%
Certifications FCC, CE, LVD
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
