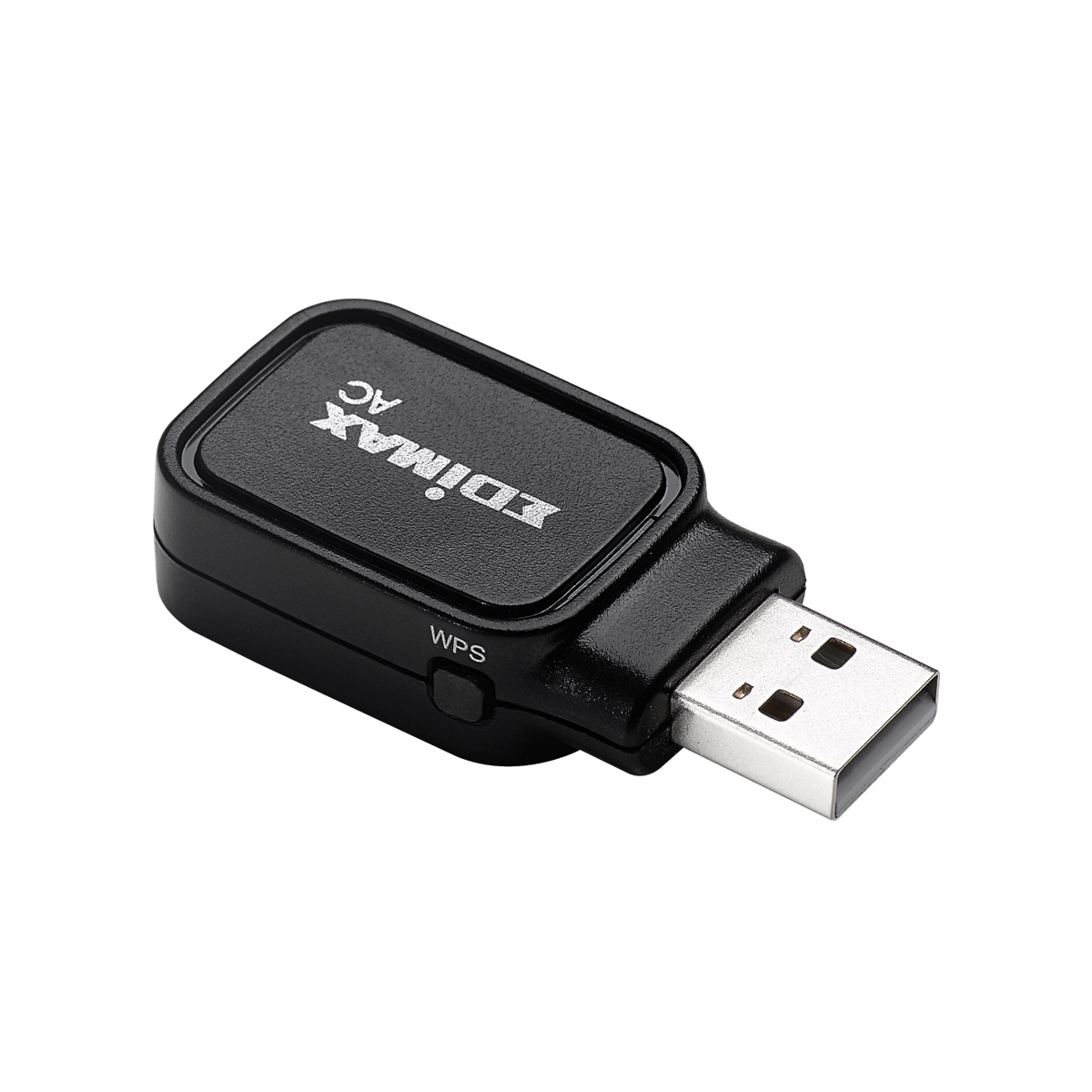

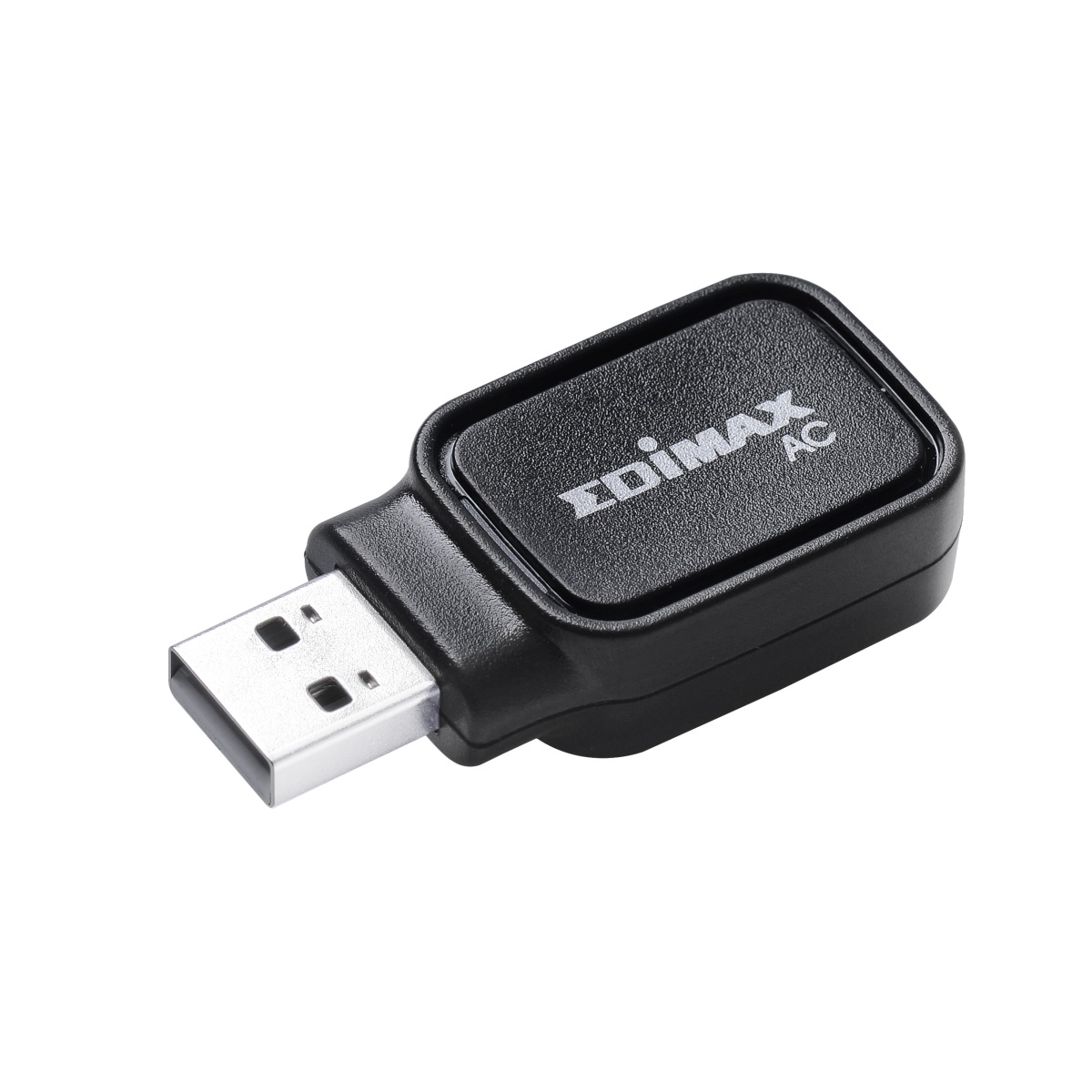

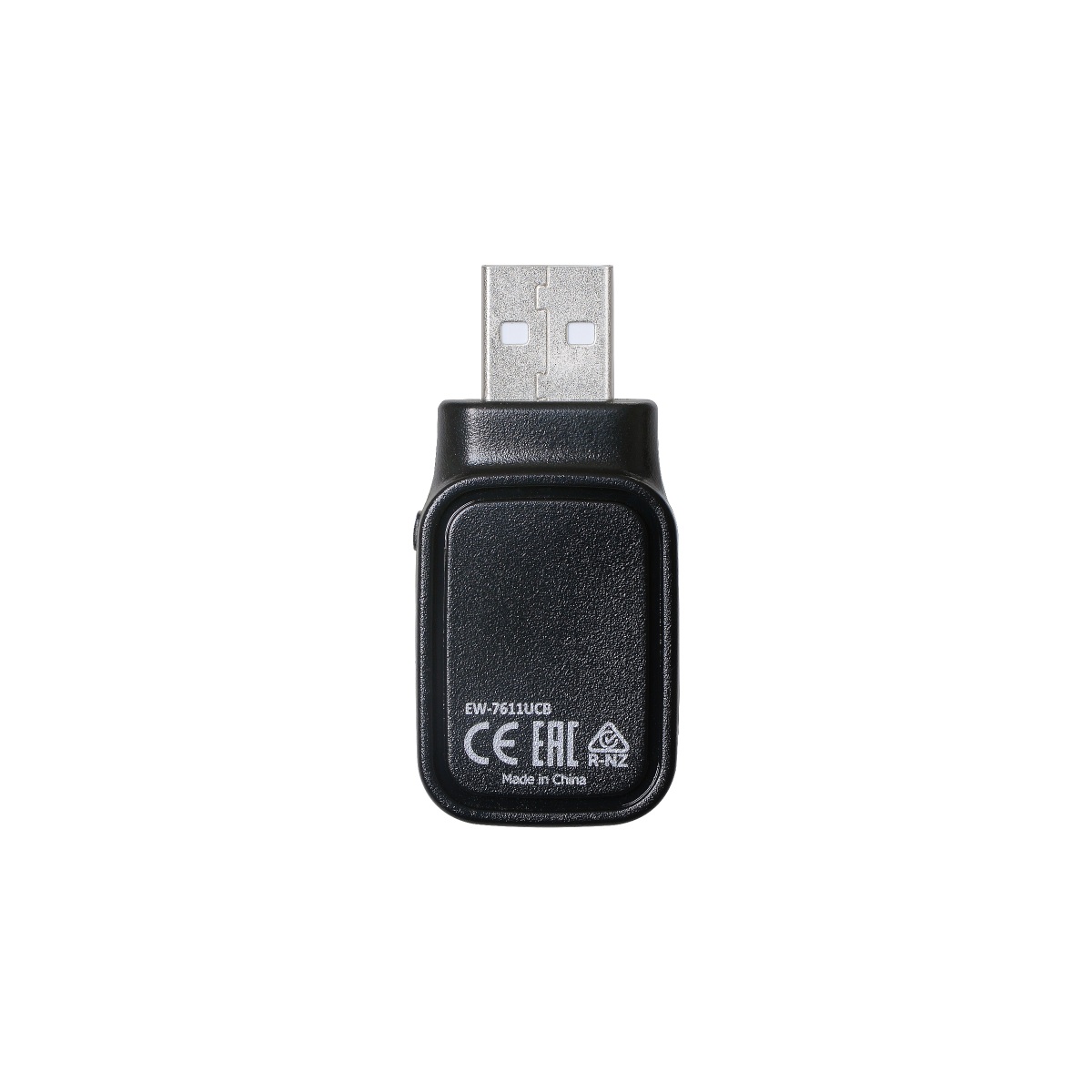

AC600 Dual-Band Wi-Fi & Bluetooth 4.0 USB Adapter


  • High-Speed 11ac: Max speed up to 150Mbps (2.4GHz) and 433Mbps (5GHz) with 802.11ac Wi-Fi standard and backward compatible with 802.11a/b/g/n standards.
  • 11ac Upgrade: Upgrade your single-band 2.4GHz Wi-Fi to 11ac dual-band Wi-Fi for better coverage.
  • Bluetooth 4.0: New and advanced dual-mode Bluetooth 4.0 LE & BR/EDR.
  • Backward Compatible: With Bluetooth 2.1+EDR & 3.0+HS.
  • Easy Setup: Includes multi-language easy setup wizard and WPS-compatible.
  • Wi-Fi Security: Supports 64/128-bit WEP, WPA , WPA2 encryption.
  • Power Saving: Supports QoS-WMM, WMM-Power Save mode and the latest Bluetooth 4.0 with low energy (BLE) technology.
  • Portable and Compact Design: Easy to take on a road anytime, anywhere.

Want to enjoy both 11ac speeds and Bluetooth connectivity at the same time? The EW-7611UCB is the deal for you. The EW-7611UCB is an AC600 Dual-Band Wi-Fi USB adapter with Bluetooth 4.0 that allows users to connect to all Bluetooth devices such as mobile phones, tablets, mice, keyboards, printers and more. This 2-in-1 combo USB adapter offers ultra-low power consumption with Bluetooth Low Energy (BLE) while transferring data.


The 11ac Speed

The EW-7611UCB runs ultra-speed 802.11ac Wi-Fi – almost three times faster than 802.11n. Upgrade your laptop or PC to sport 802.11ac Wi-Fi to enjoy faster online video streaming and multiple data transfers.


Selectable Dual-Band

Experience better performance and selectable dual-band connectivity with EW-7611UCB. Surf the internet and check emails on the longer-range 2.4GHz band, or use the high-speed 5GHz band for fast online gaming and YouTube / Netflix HD streaming.


Bluetooth 4.0

Providing the fastest data transmission rate with Bluetooth 4.0, EW-7611UCB allows wireless communication with Bluetooth-enabled computers, printers, mobile phones, headsets, speakers, keyboards, mice, and more. EW-7611UCB also comes with Bluetooth Low Energy (BLE) technology for longer battery life on your computer, tablet and other devices.


Wide Compatibility

The EW-7611UCB supports mainstream operating systems, including Windows and Mac OS while keeping good performance in daily networking life. No compatibility problems using EW-7611UCB with your latest Bluetooth-enabled devices.
*Bluetooth driver is not compatible with Mac OS.


Lifestyle on a Road

The compact design of EW-7611UCB is convenient for businesses, travels, and entertainment. Enrich your networking life with EW-7611UCB anytime, anywhere.


  • 1 x USB 2.0 Type A
  • 1 x Link/Activity LED
  • Internal Antennas x 2 (1T1R)
  • 11.5 (H) x 24 (W) x 51 (D) mm ​
  • 9g
  • 2.4GHz: IEEE 802.11b, 802.11g, 802.11n
  • 5GHz: IEEE 802.11ac, 802.11a, 802.11n
  • Bluetooth 4.0 BLE/ 4.0 Dual Mode
  • Bluetooth 3.0+HS
  • Bluetooth 2.1 & 3.0
Frequency Band & Operating Channel
  • Wi-Fi 2.4 GHz
    • FCC : Channel 1-11
    • CE : Channel 1-13
  • Wi-Fi 5 GHz
    • CE : Band 1 (CH36, CH40, CH44, CH48)
    • Band 2 (CH52, CH56, CH60, CH64)
    • Band 3 (CH100, CH104, CH108, CH112, CH116, CH120, CH124, CH128, CH132, CH136, CH140)
  • Bluetooth 4.0
Data Rate
  • Wi-Fi
    • 11a: 6/ 9/ 12/ 24/ 36/ 48/ 54Mbps
    • 11b: 1/ 2/ 5.5/ 11Mbps
    • 11g: 6/ 9/ 12/ 24/ 36/ 48/54Mbps
    • 11n (20MHz): MCS0-7 (up to 72Mbps)
    • 11n (40MHz): MCS0-7 (up to 144Mbps)
    • 11ac (80MHz): MCS0-9 (up to 433Mbps)
  • Bluetooth : up to 24Mbps
  • WEP 64/128-bit, WPA, WPA2
  • Hardware WPS Configuration
System Requirements
  • Bluetooth driver is compatible with Windows 7/ 8.1/ 10 and Linux ( *Not compatible with Mac OS)
  • Wi-Fi driver is compatible with Windows 7/ 8/ 8.1/ 10, Mac OS 10.9/ 10.10/ 10.11/ 10.12/ 10.13 and Linux
  • Temperature:
    • Operating Temperature: 32~104°F (0~40°C)
    • Storage Temperature: -4~140°F (-20~60°C)
  • Humidity:
    • Operating Humidity: 0~90% (NonCondensing)
    • Storage Humidity: Max. 95% (NonCondensing)
  • CE (Europe)
  • IMDA (Singapore)
  • RoHS
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
