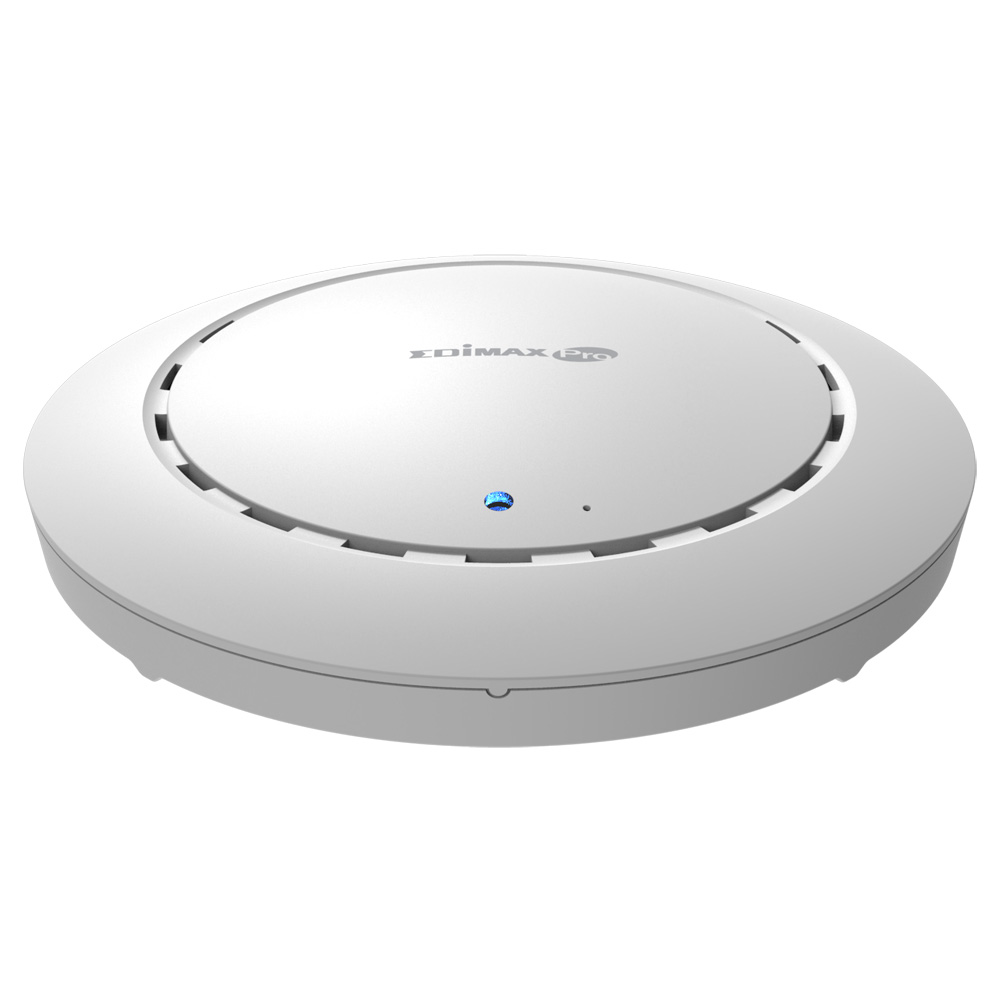

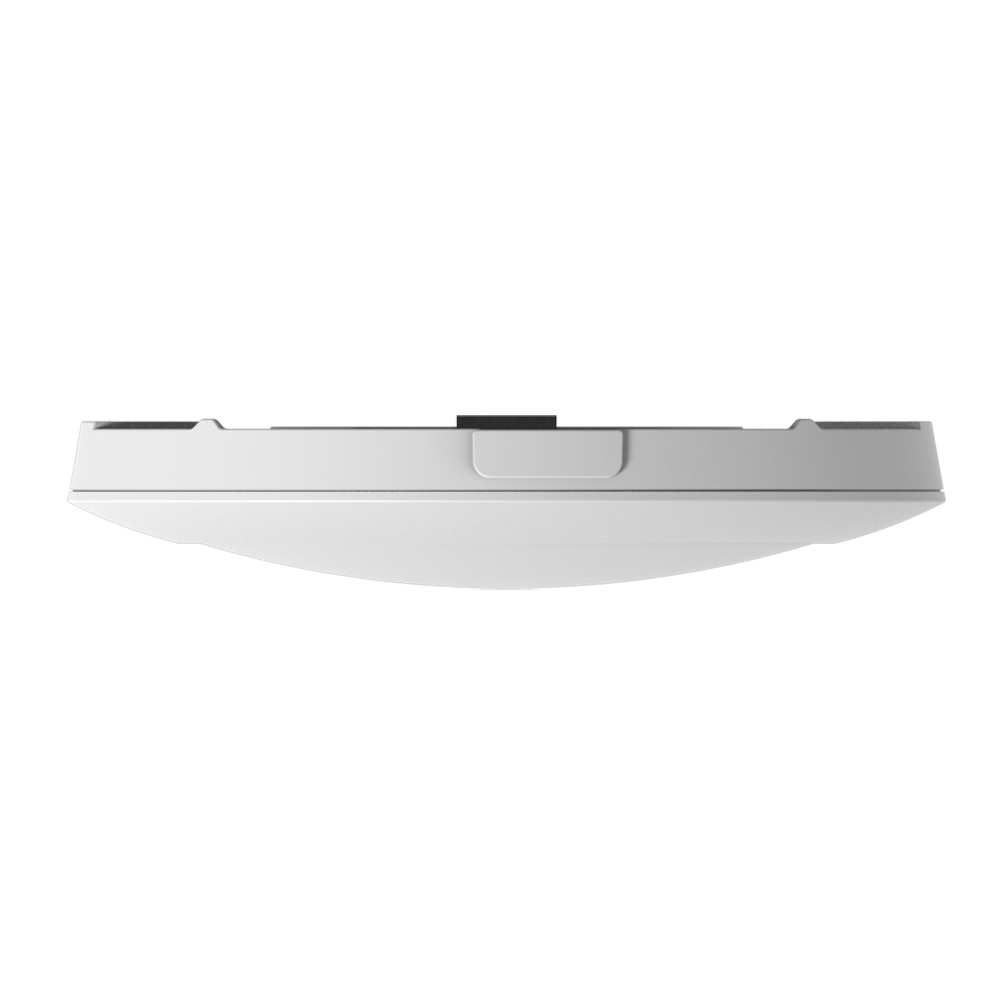

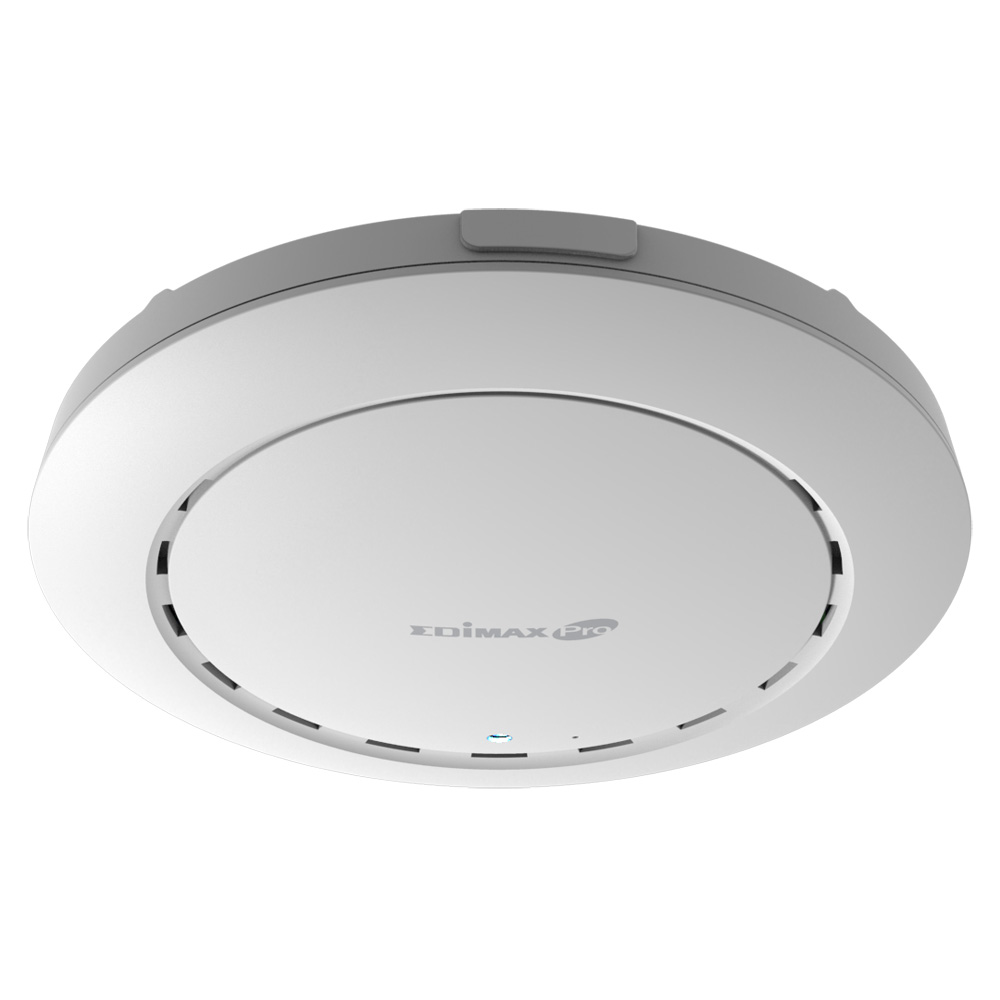

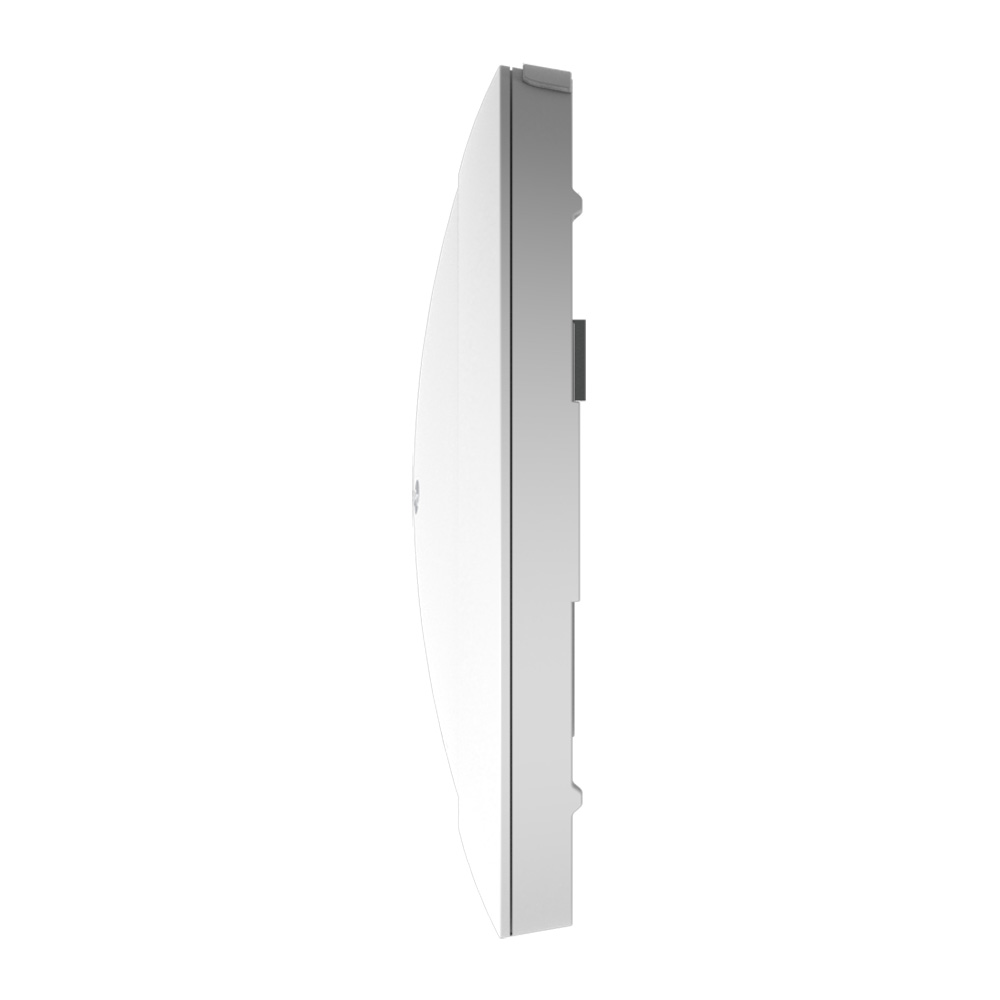

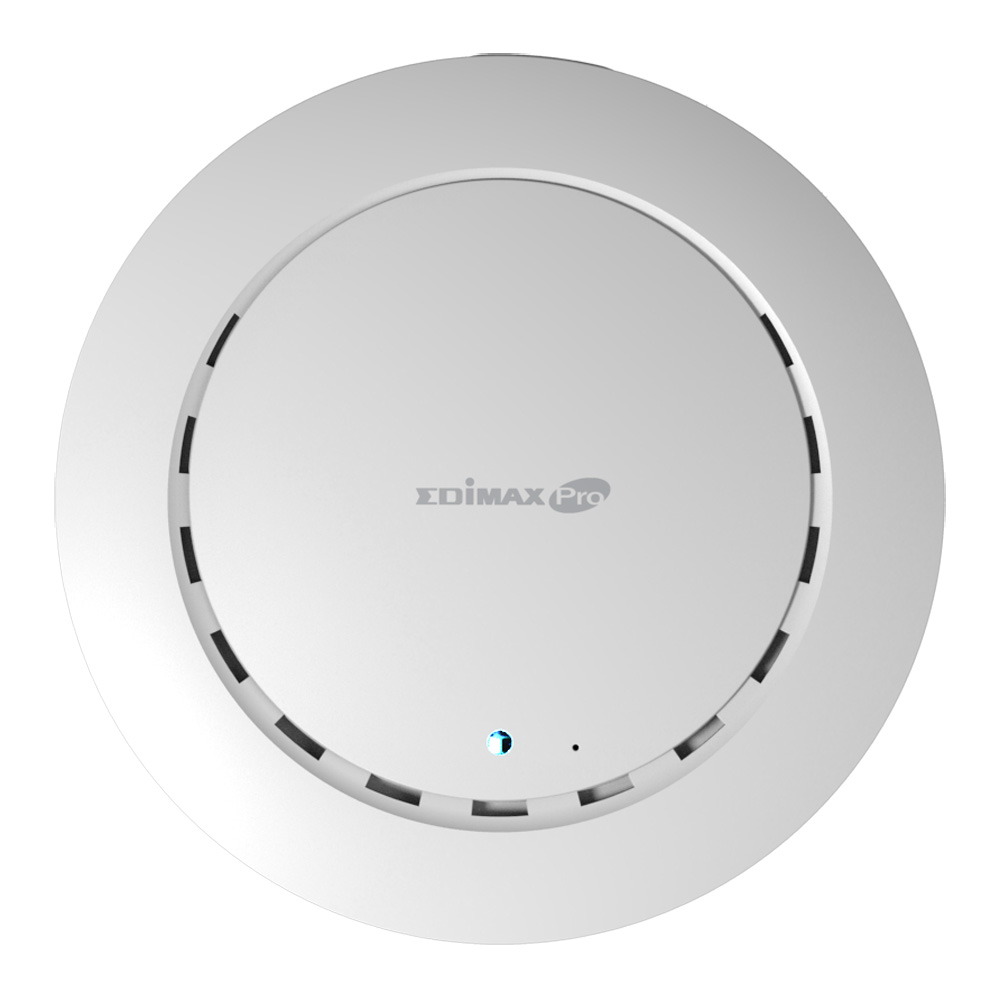

Add-on Access Point for Office 1-2-3 Wi-Fi System

CAP1300 Office +1

Edimax Pro Office 1-2-3 Office Wi-Fi System for small office and business (SMB)
Add-on Access Point for Office 1-2-3 Wi-Fi System,
Simple and Secure Wi-Fi System for SMB Office
  • Dedicated Office Wi-Fi: Designed for high density offices for 100 employees or less.
  • Zero Configuration, Self-Managed & Pre-Configured Wi-Fi System: Pre-configured Office +1 AP with self-managed function added into the Office 1-2-3 Wi-Fi System automatically with zero configuraton.
  • Secure & Separated Wi-Fi Networks: Three separate Wi-Fi networks by default – office, guest and Wi-Fi device – secure Wi-Fi network.
  • Maximized Cost Efficiency: No need for server or controller software and no extra license fee.
  • Expandable Wi-Fi System: Includes one AC1300 ceiling mount AP and is expandable with additional Office +1 AP, up to a total of 16 APs.
  • Flexible PoE Deployment: Supports IEEE 802.3at and IEEE 802.3af PoE for flexible network deployment.
  • High-Speed 802.11ac Wave 2 & Efficient MU-MIMO: Serves multiple devices simultaneously to enhance connected devices capacity.
  • High Performance Wi-Fi: Fearues with Beamforming AirTime Fairness (ATF), Band Steering.
  • Built-In RADIUS Server: Manages up to 256 user accounts.
*Office 1-2-3 is required to work with Office +1 Access Point.

Edimax Taiwan Excellence 2018 Office 1-2-3 Video




Add-on Access Point for Office 1-2-3



Works with Office 1-2-3 Simple and Secure
​Wi-Fi System for SMB Office

Easy, Complete, Expandable Office Wi-Fi System



Zero Configuration,
Self-Managed &
Pre-Configured Wi-Fi System

The Office +1 Add-on Access Point (AP) for Office 1-2-3 Wi-Fi System comes with one pre-configured AP and is default as slave mode that can communicate between master AP with self-managed functions with zero configuration.

License-Free Intutive UI, Simple yet Powerful

Built-in with the AP management software, no need for server or controller software and no extra license fee. The dedicated icon-based user interface of Office 1-2-3/Office +1 can easily walk you through the entire process of setting up the Wi-Fi networks.

Secure& Separated
3 Wi-Fi Networks

By default, each AP has three Wi-Fi networks: office, guest and device networks. For Wi-Fi network security, each network has its own secure authentication.

Three Easy Ways of Authentication

Office networks use radius function that works like Wi-Fi access key. Enter the password once and it will remember. Each employee will have his/her own Wi-Fi access key.

Guest networks use SMS authentication and captive portal login. Administrators can print out account tickets for the guests and setup expiry time.

Device networks use access control list for equipment that are unable to enter account information.





E-MAP and Wireless Scheduling

Featuring E-MAP shows wireless coverage and statgus of your APs and Wireless Scheduling lets network manger to define when to provide Wi-Fi services to guest, office or device networks.

Optimal Wi-Fi Performance

Featuring with 11ac Wave 2 MU-MIMO, Beamforming, AirTime Fairness, Band Steering improved Wi-Fi range, reliability and performance.



Zero Configuration

Add to your Office 1-2-3 Wi-Fi system up and running in minutes!

*Office 1-2-3 is required to work with Office +1 Access Point.


1.



2.


  Office 1-2-3 self-managed & pre-configured Wi-Fi system   Office 1-2-3 self-managed & pre-configured Wi-Fi system
  Connect the Office +1 AP to the existing network of Office 1-2-3 via switch. (APs can be powered on by PoE)

  The Office 1-2-3 system will find the Office +1 AP and add the AP into the system automatically.



*If you need to update setup of the Office 1-2-3 Wi-Fi system, just use the built-in license-free Office 1-2-3 web- and icon-based AP management software.




Dedicated Office Wi-Fi System for SMBs

Suitable for a wide range of office applications such as the working area, meeting room, open spece, lobby and others.









Simple and Secure Office Wi-Fi for SMB

Easy, Complete, Expandable Office Wi-Fi System

[ Learn More ]
Edimax Pro Office 1-2-3 Office Wi-Fi System for SMB Office



Easy, Complete, Expandable Office Wi-Fi System

Office 1-2-3 includes three APs and is expandable with Office +1 Add-on AP,
up to a total of 16 APs.





SPECIFICATIONS

*Office 1-2-3 is required to work with Office +1 Access Point.
HARDWARE

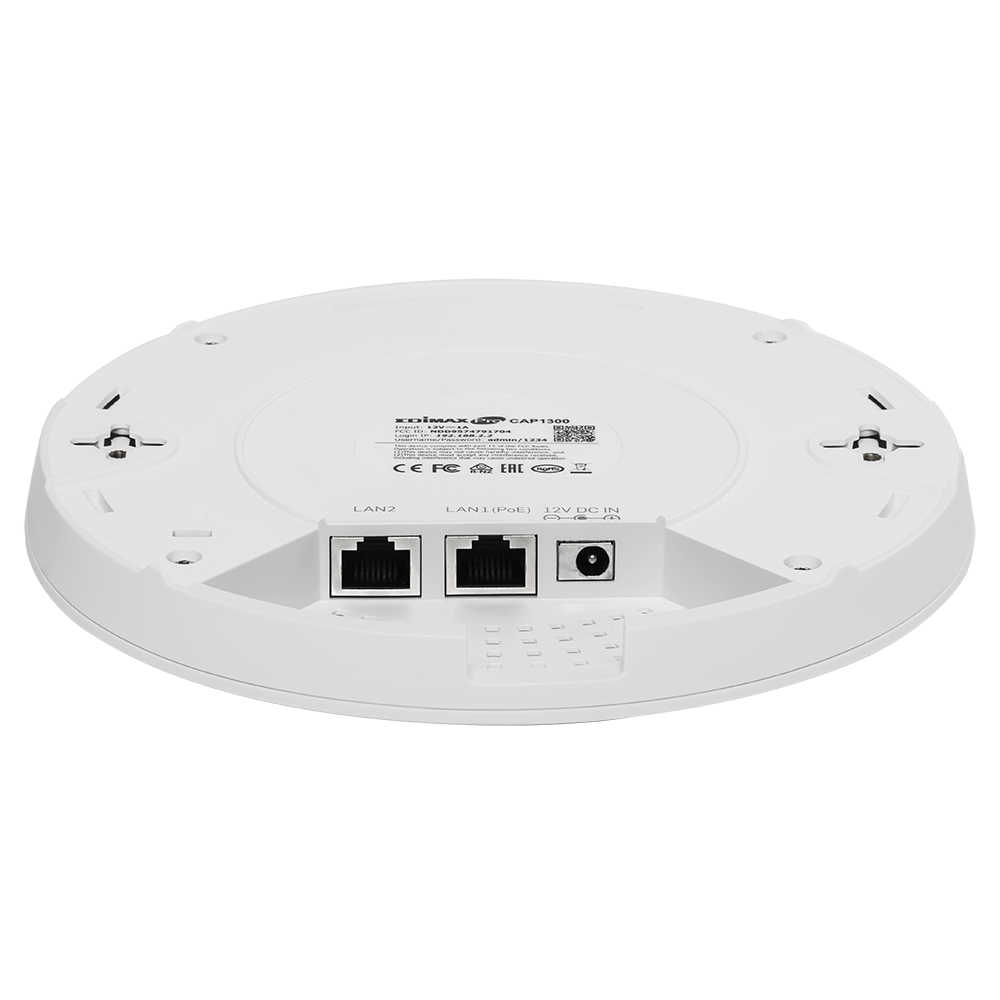

LAN Interface Giga x 2
PoE LAN1: PoE in
Antenna Type: 4 x Built-In PIFA
(2 x 2.4GHz, 2 x 5GHz) /
Gain: 4dBi (2.4GHz), 5dBi (5GHz) Max.
Power DC: 12V / 1A
802.3at (PoE Injector Optional)
Flash / DRAM 32MB / 256MB
Dimensions 17.6 (D) x 3.2 (H) cm
Weight 342g
Power Consumption (Full Loading) 11W
Mounting Ceiling
Reset Reset
LED Indicator 1. Power LED
2. Diag LED
Environmental Conditions Operating Temperature: 0°C (32°F) to 40°C (104°F)
Operating Humidity: 90% or Less
Power Saving 802.3az
Internal Buzzer Y
Housing UL94-5VB Flammability Rating
Others Kensington Security Slot & Ceiling/Wall Mount Holes
WIRELESS
Standard 802.11 a/b/g/n/ac Concurrent Dual-Band
No. of Radios 2
Receiver Sensitivity ≤ -93Bm
Certification CE / FCC
Band Steering Y
AirTime Fariness Y
Beamforming Y
Number of SSIDs 3 Default SSIDs (Office, Guest, Device),
total up to 32 SSIDs (16 (2.4GHz) + 16 (5GHz))
PERFORMANCE
Maximum Data Speed 400 + 867Mbps
Concurrent Clients Up to 100 Per Radio
RF SPECIFICATONS
Frequency Band

•Radio Ⅰ: 802.11b/g/n 2.412~2.484(GHz)
•Radio Ⅱ: 802.11a/n/ac 5.18~5.24(GHz), 5.745~5.825(GHz)
(The supported frequency band is restricted by local regulations.)

Operation Channels

•2.4GHz : US/Canada 1-11; 2.412~2.462GHz
Europe 1-13; 2.412~2.472GHz
Japan 1-14; 2.412~2.484GHz
•5GHz : Country dependent for the following ranges:
US/Canada:
Band 1:36, 40, 44, 48; 5.180~5.240(GHz)
Band 2: 52、56、60、64;5.260~5.320(GHz)
Band 3: 100、104、108、112、116、120、124、128、132、136、140;5.500~5700(GHz)
Band 4:149, 153, 157, 161, 165; 5.745~5.825(GHz)
Europe:
Band 1:36, 40, 44, 48; 5.180~5.240(GHz)
Band 2: 52、56、60、64;5.260~5.320(GHz)
Band 3: 100、104、108、112、116、120、124、128、132、136、140; 5.500~5700(GHz)

Transmit Power
•802.11b
  20dBm@1Mbps
  20dBm@2Mbps
  20dBm@5.5Mbps
  20dBm@11Mbps
•802.11g
  20dBm@6Mbps
  20dBm@9Mbps
  19dBm@12Mbps
  19dBm@18Mbps
  18dBm@24Mbps
  18dBm@36Mbps
  17dBm@48Mbps
  17dBm@54Mbps
•802.11gn (2.4G)
  20dBm@MCS0/8
  19dBm@MCS1/9
  19dBm@MCS2/10
  18dBm@MCS3/11
  18dBm@MCS4/12
  17dBm@MCS5/13
  16dBm@MCS6/14
  16dBm@MCS7/15
•802.11a
  19dBm@6Mbps
  19dBm@9Mbps
  18dBm@12Mbps
  18dBm@18Mbps
  17dBm@24Mbps
  17dBm@36Mbps
  16dBm@48Mbps
  16dBm@54Mbps
•802.11an(5G)
  19dBm@MCS0/8
  19dBm@MCS1/9
  18dBm@MCS2/10
  18dBm@MCS3/11
  17dBm@MCS4/12
  17dBm@MCS5/13
  16dBm@MCS6/14
  16dBm@MCS7/15
•802.11ac
  18dBm@MCS0
  18dBm@MCS1
  18dBm@MCS2
  17dBm@MCS3
  17dBm@MCS4
  17dBm@MCS5
  16dBm@MCS6
  16dBm@MCS7
  15dBm@MCS8
  14dBm@MCS9
Receiver Sensitivity
•802.11b
  ≤-93dBm@1Mbps
  ≤-85dBm@11Mbps
•802.11g
  ≤-86dBm@6Mbps
  ≤-70dBm@54Mbps
•802.11gn (2.4G)
  ≤-86dBm@MCS0
  ≤-62dBm@MCS8
  ≤-57dBm@MCS9

•802.11a
  ≤-85dBm@6Mbp
  ≤-68dBm@54Mbps
•802.11an(5G)
  ≤-85dBm@MCS0
  ≤-64dBm@MCS7
•802.11ac
  ≤ -85dBm@MCS0
  ≤ -61dBm@MCS8
  ≤ -54dBm@MCS9

SECURITY
Encryption WEP / WPA / WPA2
Wireless L2 Isolation Y
Station Isolation Y
IEEE 802.1x Authenticator Y
EAP Authentication PEAP
Hidden SSID Y
MAC Address Filter Y
Wireless STA Y
Rogue AP Detection (w/ NMS) Y
SOFTWARE
Wireless Mode AP / WDS AP / WDS Bridge / Client
802.1q VLAN Y (VID = 1-4095)
Spanning Tree RSTP
QoS WMM (802.11e)
Max Associated Station No.
Pass-Through IPv6 and VPN (PPTP, L2TP/IPsec)
DSCP (802.1p) Y
Multicast Rate up to 54Mbps Y
MANAGEMENT
Configuration HTTP / HTTPS
SNMP v1, v2c, v3
CLI (Telnet, SSH)
Auto-Channel Y
SNMP Private MIB Y
MASTER AP FUNCTIONS
Group Management Wireless Settings, LAN Settings, Firmware Upgrade,
Guest Account Setting, Office Employee Account
Settings, Device ACL Setting
RADIUS Server Y (Up to 256 Accounts for Office Network)
Captive Portal Y (Up to 128 Accounts for Guest Network.
Supports Customized Company Logo,
Message & Terms of Use and Account Ticket Generation.)
SMS Authentication Y (Supports Pivo & Stream Telecom)
Device Network Y (Up to 256 Mac Address for Access Control)
E-MAP Y (Supports Multiple E-MAP Displays Wi-Fi Coverage,
Signal Strength, Number of Clients and AP Loading)
Setup Wizard Y (Easy 7-Step to Finish All Initial Settings)
Status Viewing AP, Wi-Fi Client, Office Account, Guest Account and System Status
Account File Format CSV File (Import & Export)
PACKAGE CONTENTS
Access Point Add-on Access Point for Office 1-2-3 Wi-Fi System
Mounting Bracket Ceiling-Mount & T-rail Mount Bracket Kit
Power Adapter 12V / 1A Power Adapter
Ethernet Cable Ethernet Cable
Quick Installation Guide Printed Quick Installation Guide
OPTIONAL ACCESSORIES
GP-101IT IEEE802.3at Gigabit PoE+ Injector
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
