Powerful Mainstream Solution For Modern Businesses

The IAP1200 is a powerful wireless solution designed to meet the needs of modern mainstream businesses. With the latest IEEE 802.11ac technology for wireless speeds up to 1200Mbps, the stylish in-wall design is specifically for existing building structures so you can easily change an existing in-wall wired Ethernet jack to a wireless access point. Ideal areas of deployment include offices, hotels, MDUs (Multi-Dwelling Units), airports, meeting rooms, schools, campuses etc.

For hotels which demand security, flexibility and speed, the IAP1200 provides guests with a convenient wireless LAN service. With standard US or EU type Ethernet wall jacks already installed, there’s no need for extra time and cost to deploy a wireless network – you can reduce re-wiring costs while blending the AP with the interior décor. And the high-density capacity is ideal for BYOE workplaces or other environments with a high volume of users and wireless devices. Multiple SSIDs can be configured for different departments or user groups and a built-in RADIUS server provides additional verification. Additionally featuring fast roaming for seamless transitions between access points, Power over Ethernet support (PoE) and an intuitive web-based management interface – which provides flexibility for deployment and extensive management options for company MIS departments and network administrators.

When performance and security are critical for your business, you need products that are engineered for your industry. The Edimax Pro series is designed to help your business and provide the connectivity that you rely on every day, with safety and effectiveness guaranteed.


KEY FEATURES

• 802.11ac High Speed Dual-Band: IEEE 802.11ac concurrent dual-band with 1200Mbps wireless speed.
• Easy Installation: In-wall design with easy installation kit.
• Compact Housing: Ultra slim design.
• Designed for High Density BYOE Usage: Ideal for crowded environments and BYOE (Bring Your Own Everything) workplace Wi-Fi connection.
• Multiple SSIDs for Security Management: Supports up to 32 SSIDs (16 x 2.4GHz & 16 x 5GHz) ideal for multiple departments, user groups, customers or guests.
• Fast Roaming: Roam smoothly between APs without lag or interruption, ensuring top performance for video and voice streaming applications.
• Wide Coverage & High Sensitivity: Adjustable RF output power and high receiver sensitivity for wide coverage across large spaces.
• Seamless Mobility: 1.5 x greater coverage than typical APs for blanket coverage to ensure seamless connectivity for Wi-Fi devices across enterprise environments.
• Power over Ethernet: Supports IEEE 802.3af PoE.
• Built-In RADIUS Server: With management for up to 256 user accounts.
• Business Environments: Mainstream choice for SMBs. Suitable for a wide range of commercial applications such as offices, hotels, MDUs (Multi-Dwelling Units), airports, meeting rooms, schools, campuses etc.
• Central Management: Edimax Pro Network Management Suite (NMS) for easy and intuitive web-based central management that supports AP array architecture.



---


High Performance Design with High-Speed 1200Mbps Dual-Band 11ac
State-of-the-art IEEE 802.11ac wireless technology delivers the Giga-fast  Wi-Fi speeds that today’s fast-moving modern business environments demand. And simultaneous 2.4GHz & 5GHz dual-band coverage means maximum flexibility for mobile-centric business productivity applications. Speeds up to 300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band can handle even the most bandwidth intensive tasks, perfect for audio, video and voice applications and significantly faster than traditional 802.11n Wi-Fi. Additionally Edimax Pro series products feature other high-performance design features such as solid capacitors for significantly longer lifespans than traditional non-solid alternatives, generating less heat and delivering increased stability. Durable, robust and ready for business environments.​



​Wide Coverage & Multiple SSIDs
With adjustable RF output power and high receiver sensitivity, Edimax Pro access points are equipped to provide wide coverage where it’s needed the most. Suitable for large spaces across office floors, shop floors, hospital wards, or conference rooms, get the wireless coverage that staff and systems need to operate efficiently. Keep every corner of your business connected and differentiate user groups, departments or guests with up to 32 separate SSIDs with independent security. Wide, accessible Wi-Fi coverage with strong security to protect sensitive company information and supervise access to internal networks.



BYOE Solutions & High Density Networking
Bring Your Own Everything (BYOE) is becoming an increasingly commonplace company trend in offices and enterprise environments worldwide. Employees are using their own smartphones, tablets, laptops and wearable Wi-Fi devices with the latest cloud-connected productivity apps to get things done, and traditional 2.4GHz is crowded, so most of these devices need or support high-speed 5GHz Wi-Fi. And in offices, hotels, schools or other densely populated environments, access points need to cope with a high volume of users connecting to the network at any time, whether it’s customers or employees. Edimax Pro solutions support the latest 802.11ac 2.4GHz & 5GHz dual-band Wi-Fi along with high-density capacity to support up to a hundred users simultaneously, ideal for BYOE workplaces and a large number of wireless devices.



Seamless Mobility
Typical wireless access points can effectively cover a 25m – 30m radius under normal usage. Now with the technological advances in Edimax Pro access points, we can extend effective coverage approximately 1.5x further, eliminating Wi-Fi dead zones completely and providing blanket coverage across enterprise environments. Wireless devices can stay seamlessly connected in environments where connectivity may be a critical component of efficiency and productivity, and benefit from mobility with high-speed connectivity across a range of wireless devices: smartphones, tablets and computers, throughout an entire organization.



Hotels, Offices, Schools and Hospitals
Edimax Pro series access points, with high-speed 11ac high-density networking for up to 100 simultaneous users, are ideal for multi-tenant unit buildings, hotels, resorts, hospitals, campuses, conventions or anywhere with large-scale network use, with safety and effectiveness guaranteed.



Rogue AP Detection & Wireless Isolation
Rogue access point detection can identify any unauthorized SSIDs which may have been installed in an otherwise secure network with malicious intent, and L2 wireless isolation provides wireless security.



Easy and Intuitive Central Network Management Suite (NMS)
Edimax Pro NMS (Network Management Suite) is a web-based wireless network management system built-in Edimax Pro access point and AP Controller (APC500). Company MIS departments can plan and manage Edimax Pro access points’ powerful functionality according to their office space using an easy, remote web-based interface which includes a dashboard, map view, traffic statistics and wireless client list for network-wide remote administration. RADIUS settings, WLAN group settings, access control, guest network settings and firmware upgrades can all be managed centrally from a single location to reduce network downtime, aid troubleshooting and optimize network performance. Zone plans and setup wizards are also available for expanding and managing large networks with multiple access points.




SPECIFICATIONS


HARDWARE
LAN Interface	Giga x 2, RJ11 x 2
PoE	802.3af (Supports 802.3at)
Antenna	Type: 2 x Built-In PIFA Gain: 2.14dBi (2.4GHz), 3.8dBi (5GHz) Max.
Power	802.3af (Support 802.3at)
Dimensions	Faceplate Set :  70 x 115 x10 mm (US-Type ) Faceplate Set :  86 x  86  x10 mm (EU-Type ) Stand/Mounting Bracket : 48.5 x 74 x 38 mm
Weight	125g
Power Consumption (Full Loading)	8W
Mounting	In-wall
WPS/Reset	Y
LED Indicator	1. Power LED 2. Diag LED
Environmental Conditions	Operating Temperature: 0°C (32°F) to 40°C (104°F) Storage Temperature: -20°C (-4°F) to 60°C (140°F) Operating Humidity: 90% or Less Storage Humidity: 90% or Less
Power Saving	802.3az
Internal Buzzer	Y
Housing	Flammability Rating Plastic
WIRELESS
Standard	802.11 a/b/g/n/ac Concurrent Dual-Band
No. of Radios	2
Receiver Sensitivity	≤ -91dBm
Certification	CE / FCC
Fast Roaming	Y
Number of SSIDs	16 (2.4GHz) + 16 (5GHz)
PERFORMANCE
Maximum Data Speed	300 + 867Mbps
Concurrent Clients	Up to 50 Per Radio
RF SPECIFICATONS
Frequency Band	•Radio Ⅰ: 802.11b/g/n 2.412~2.484(GHz) •Radio Ⅱ: 802.11a/n/ac 5.18~5.24(GHz), 5.745~5.825(GHz) (The supported frequency band is restricted by local regulations.)
Operation Channels	•2.4GHz : US/Canada 1-11; 2.412~2.462GHz                  Europe 1-13; 2.412~2.472GHz                  Japan 1-14; 2.412~2.484GHz •5GHz : Country dependent for the following ranges:                               US/Canada: Band 1:36, 40, 44, 48; 5.180~5.240(GHz)                                      Band 4:149, 153, 157, 161, 165; 5.745~5.825(GHz)               Europe: Band 1:36, 40, 44, 48; 5.180~5.240(GHz)
Transmit Power	•802.11b   10dBm@1Mbps   10dBm@2Mbps   10dBm@5.5Mbps   10dBm@11Mbps •802.11g   10dBm@6Mbps   10dBm@9Mbps   10dBm@12Mbps   10dBm@18Mbps   10dBm@24Mbps   10dBm@36Mbps   10dBm@48Mbps   10dBm@54Mbps •802.11gn (2.4G)   10dBm@MCS0/8   10dBm@MCS1/9   10dBm@MCS2/10   10dBm@MCS3/11   10dBm@MCS4/12   10dBm@MCS5/13   10dBm@MCS6/14   10dBm@MCS7/15	•802.11a   10dBm@6Mbps   10dBm@9Mbps   10dBm@12Mbps   10dBm@18Mbps   10dBm@24Mbps   10dBm@36Mbps   10dBm@48Mbps   10dBm@54Mbp •802.11an(5G)   10dBm@MCS0/8   10dBm@MCS1/9   10dBm@MCS2/10   10dBm@MCS3/11   10dBm@MCS4/12   10dBm@MCS5/13   10dBm@MCS6/14   10dBm@MCS7/15 •802.11ac   10dBm@MCS0   10dBm@MCS1   10dBm@MCS2   10dBm@MCS3   10dBm@MCS4   10dBm@MCS5   10dBm@MCS6   10dBm@MCS7   10dBm@MCS8   10dBm@MCS9
Receiver Sensitivity	•802.11b   ≤-91dBm@1Mbps   ≤-87dBm@11Mbps •802.11g   ≤-90dBm@6Mbps   ≤-71dBm@54Mbps •802.11gn (2.4G)   ≤-87dBm@MCS0   ≤-68dBm@MCS7   ≤-85dBm@MCS8   ≤-65dBm@MCS15	•802.11a   ≤-90dBm@6Mbp   ≤-71dBm@54Mbps •802.11an(5G)   ≤-86dBm@MCS0   ≤-69dBm@MCS7   ≤-84dBm@MCS8   ≤-65dBm@MCS15 •802.11ac   ≤ -82dBm@MCS0   ≤ -63dBm@MCS9   ≤ -83dBm@MCS10   ≤ -55dBm@MCS19
SECURITY
Encryption	WEP / WPA / WPA2
Wireless L2 Isolation	Y
Station Isolation	Y
IEEE 802.1x Authenticator	Y
EAP Authentication	PEAP
Hidden SSID	Y
MAC Address Filter	Y
Wireless STA	Y
Rogue AP Detection (w/ Edimax Pro Network Management Suite (NMS))	Y
SOFTWARE
Wireless Mode	AP / WDS AP / WDS Bridge
802.1q VLAN	Y (VID = 1-4095)
Spanning Tree	RSTP
QoS	WMM (802.11e) Max Associated Station No.
Pass-Through	IPv6 and VPN (PPTP, L2TP/IPsec)
DSCP (802.1p)	Y
Multicast Rate up to 54Mbps	Y
MANAGEMENT
Deployment	Standalone: AP mode Managed AP mode: Be managed by Edimax Pro AP Controller (APC500) or Edimax Pro Master AP
Configuration	HTTP / HTTPS SNMP v1, v2c, v3 CLI (Telnet, SSH)
RADIUS Server	Built-In
Auto-Channel	Y
Private MIB	Y
ACCESSORY
Mounting Bracket	In-Wall-Mount Bracket Kit (US or EU type)

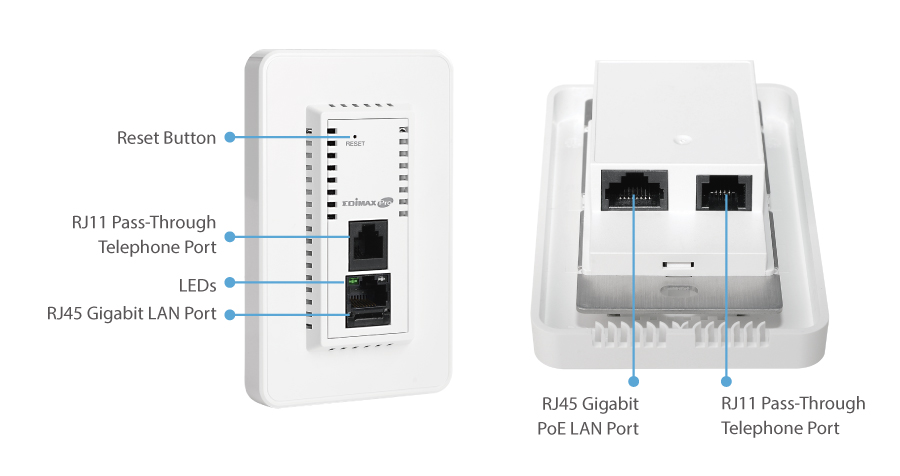

HARDWARE INTERFACE
