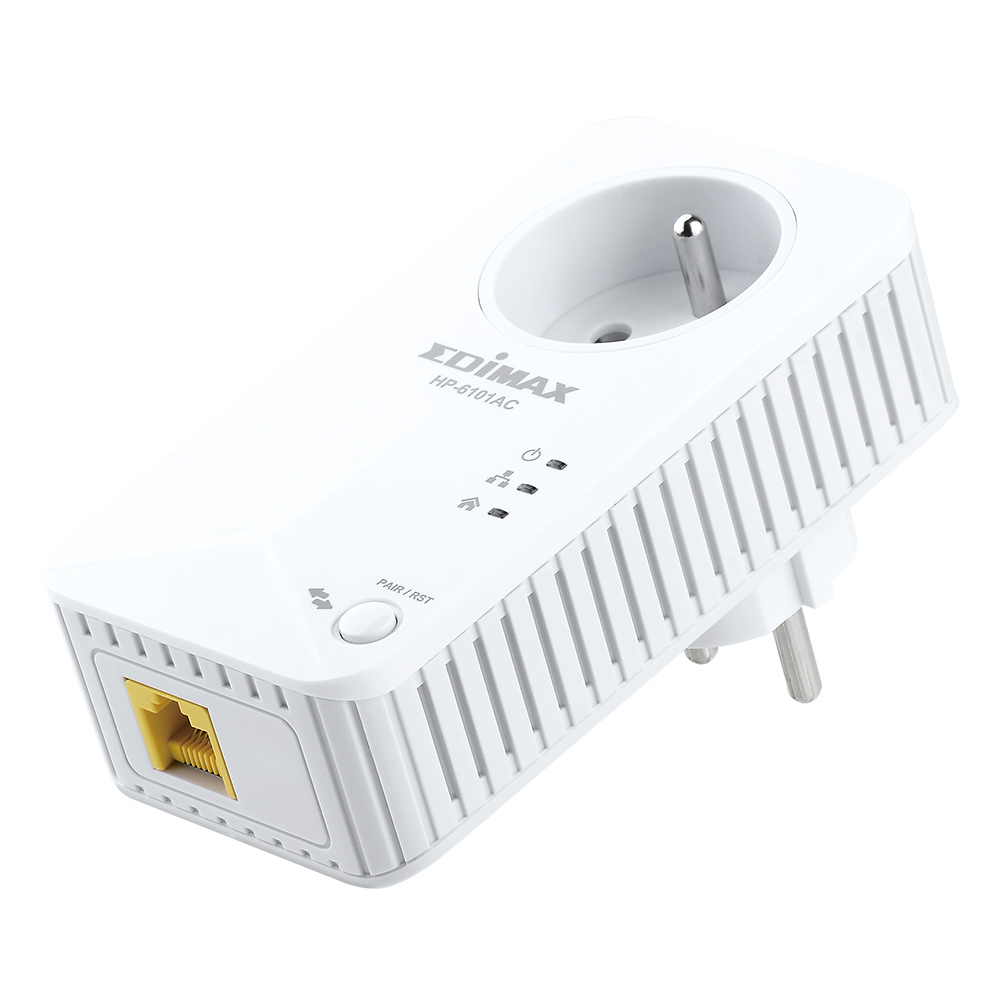

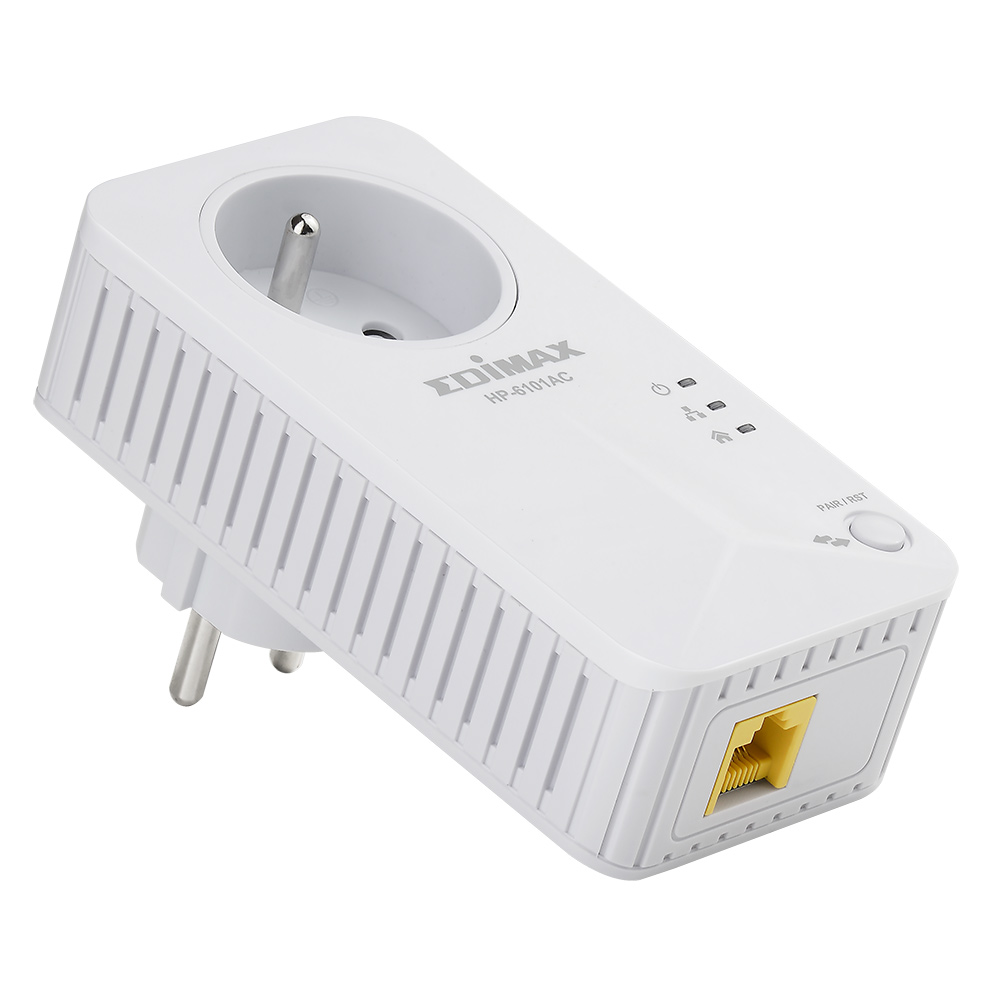

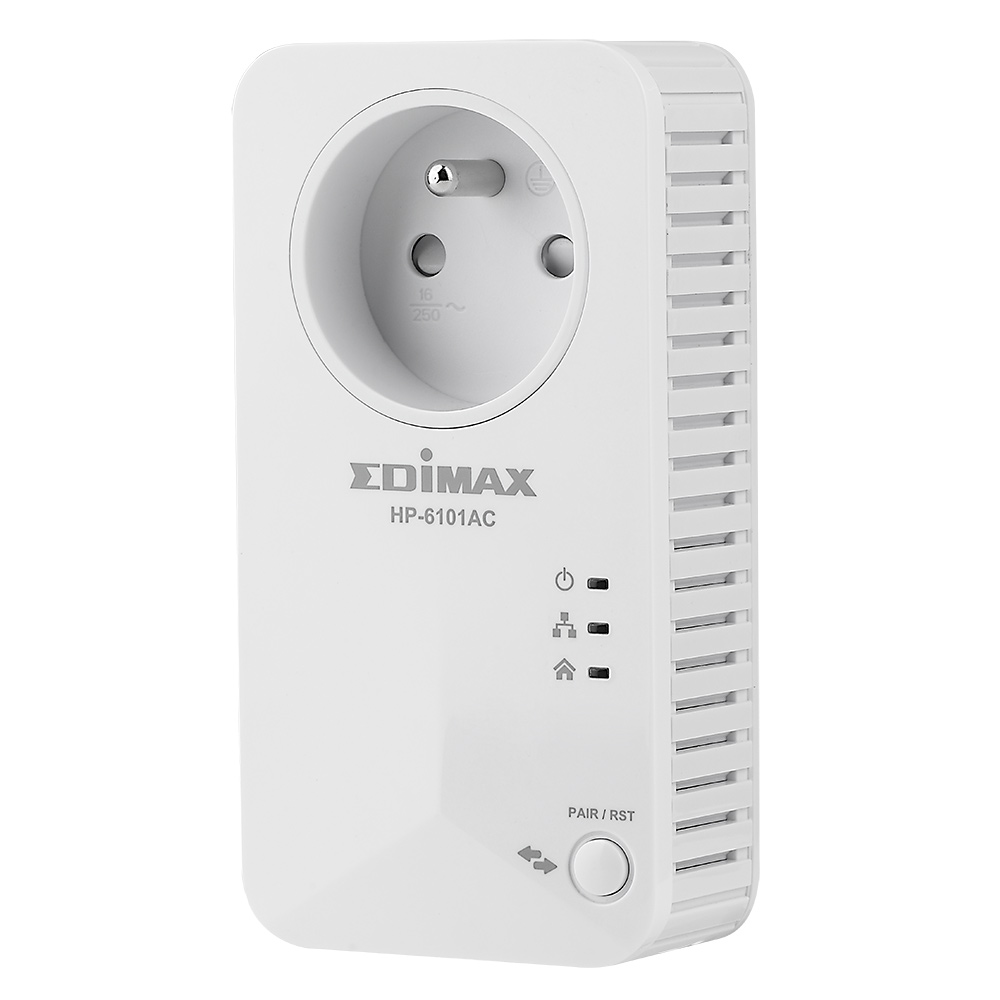

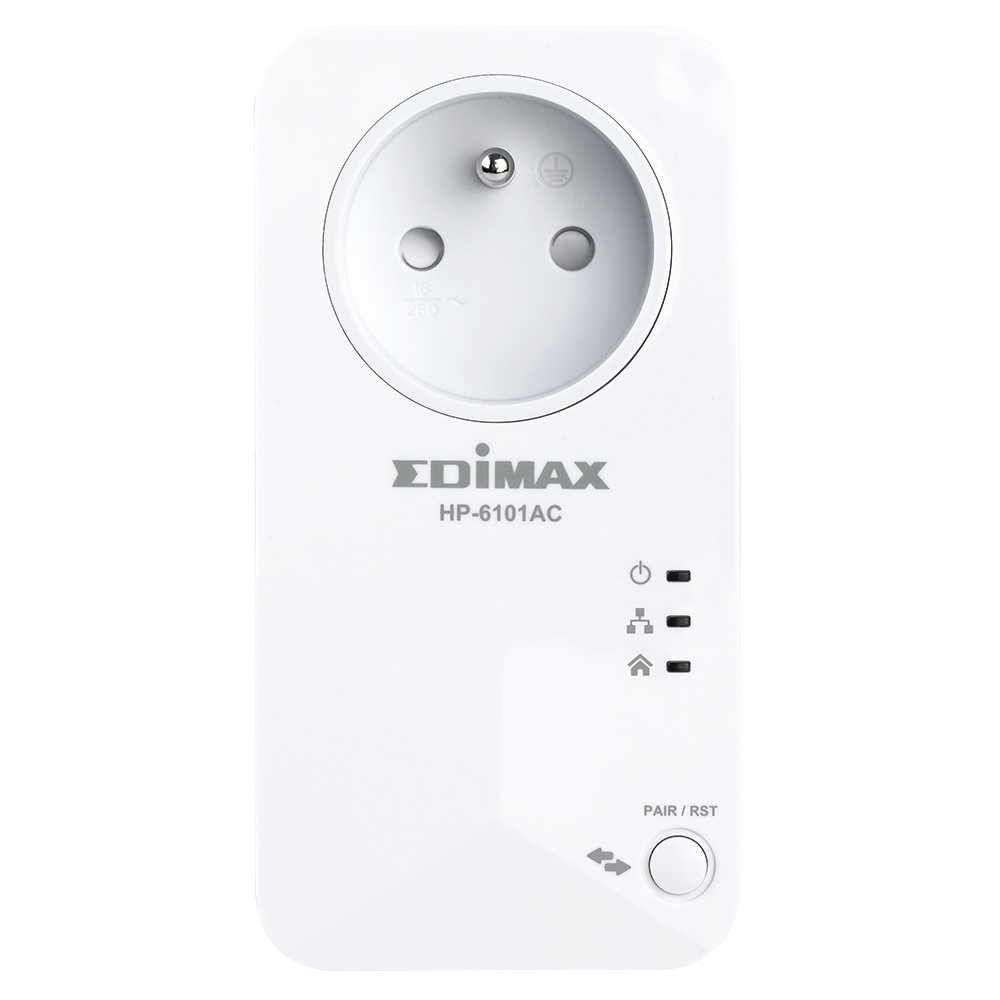

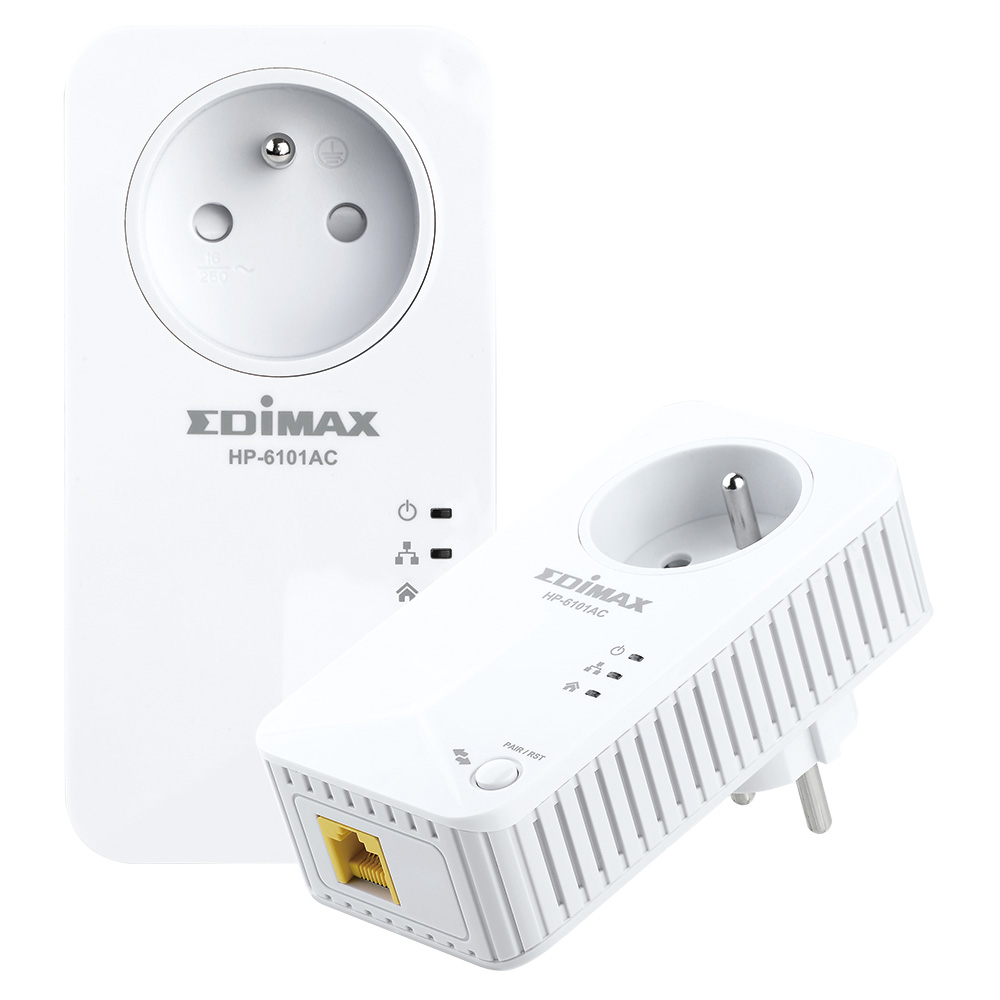

PowerLine Adapter with Integrated Power Socket (2-Pack)

HP-6101ACK

  • ​Plug-and-Play, no configuration or software required. Easily extends an Ethernet connection in minutes.
  • Provides with stable and high-speed data transfer, ideal for bandwidth intensive applications such as 3D/HD video streaming and online gaming.
  • Cost-saving with extending networks via existing electrical wires without unsightly cabling.
  • Integrated 128-bit AES encryption provides comprehensive security at the push of “Pair” button.
  • Powerline data transmission rates of up to 500Mbps*.
  • Up to 300-meter range over a home's electrical circuit for better performance through walls or across floors.
  • Built in QoS system allows you to allocate bandwidth for certain types of traffic and for applications.
Share


​​

Plug & Play

No configuration or software required. Just plug the powerline adapter, push of the “Pair” button and easily extends an Ethernet connection in minutes.

Smooth Connection

Ideal for bandwidth intensive applications such as multiple 3D/HD video streaming and multiplayer gaming, ensuring smooth transition and high performance.

Cost-Saving, No More Unsightly Cabeling

Create a network environment easily and cost-effectively through existing electrical wires.
Complicated, disruptive and unsightly cabling is no longer needed.





No Electrical Outlet
Goes to Waste

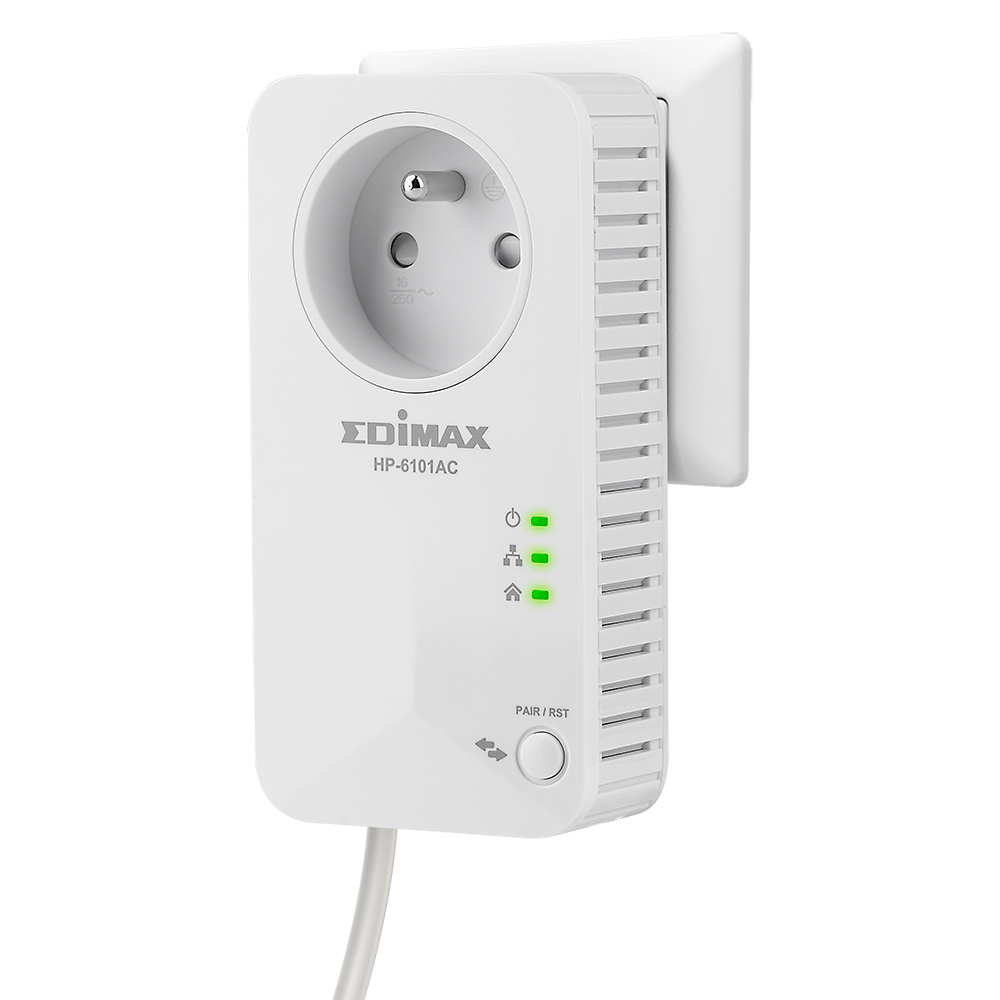

Built with an integrated power socket, which you can use with any electrical device.





​

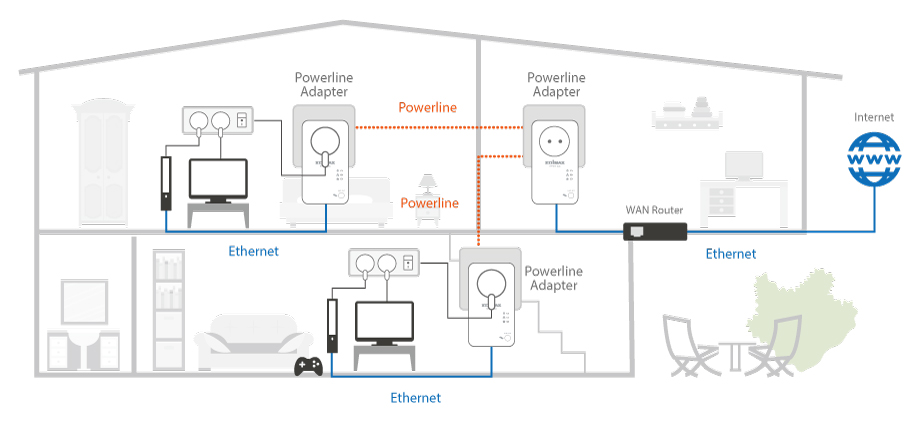

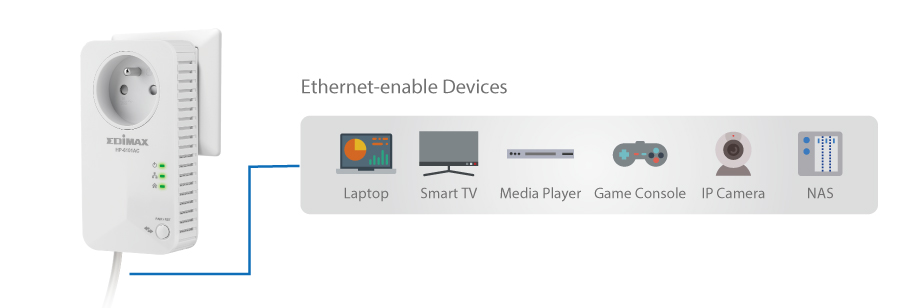

APPLICATION DIAGRAM


Edimax PowerLine Adapter with Integrated Power Socket HP-6101AC, HP-6101ACK, HP-6101ACP

Edimax Plowerline Adapter with Integrated Power Socket, HP-6101AC, HP-6101ACK, HP-6101ACP
*500Mbps is the maximum theoretical communication speed at the physical layer via electric power lines.
**Powerline adapters must be deployed in sets of two or more.
Share


SPECIFICATIONS

HARDWARE ​

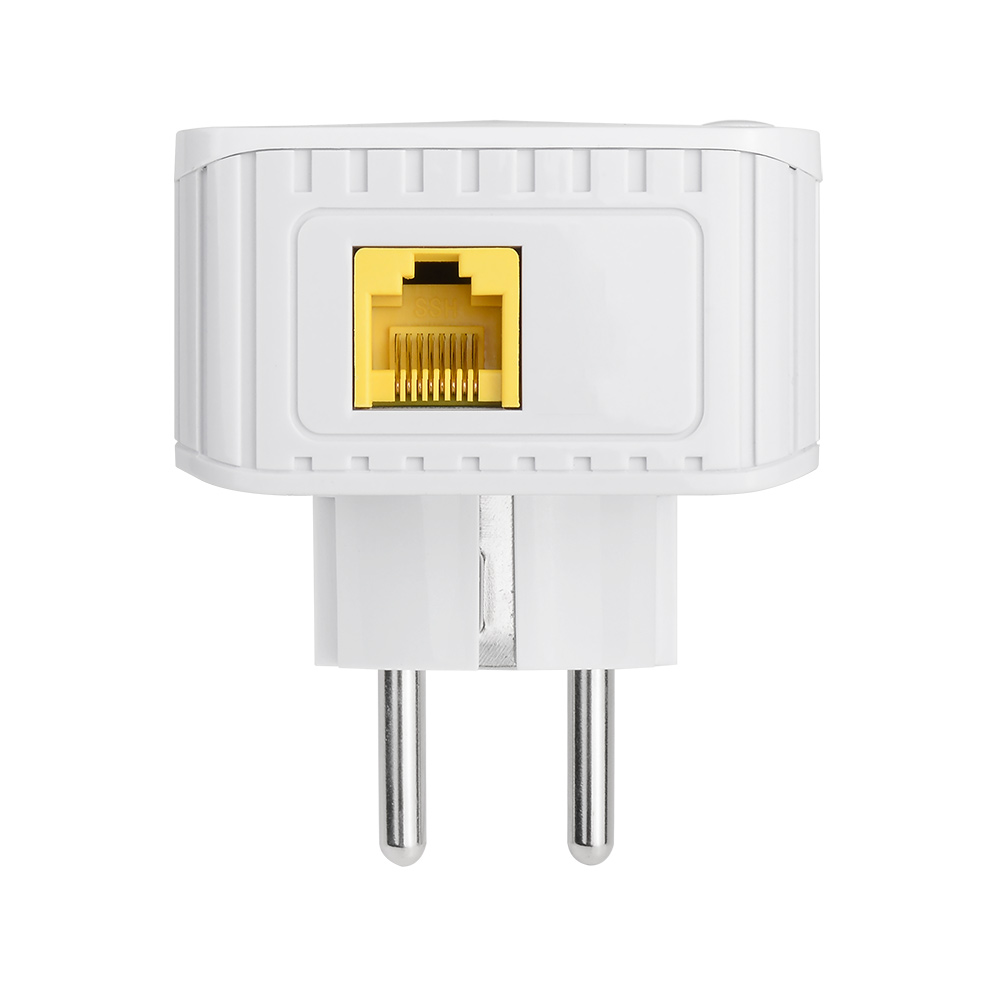

Interface  1 x AC plug (FR)
1 x RJ45 10/100Mbps LAN port
1 x Power socket (FR)
LED Indicator Power, Ethernet, Powerline
Button 1 x Pair/Reset button
Memory 2MB NOR
Power Supply DC 12V, 100-240V AC, 50-60Hz
Dimensions  114 (W) x 57 (D) x 31 (H) mm
Weight  149g
NETWORK
Standards IEEE 802.3
IEEE 802.3u
HomePlug AV
Frequency 2MHz~68MHz
Data Rate Powerline data transmission rates of up to 500Mbps*
Operating Range Up to 300 meters over a home's electrical circuit
Security 128-bit AES data encryption
OTHERS
Certification CE, RoHS
Environmental Condition Operating temperature: 0°C - 25°C
Storage temperature: -40°C - 70°C
Operating humidity: 10 - 90% (non-condensing)
Storage humidity: 5 - 90% (non-condensing)
Package Content
  • HP-6101ACK (2-Pack)
  • 2 x Powerline Adapter (HP-6101AC)
  • 2 x 1-meter RJ45 Ethernet Cable
  • 1 x Quick Installation Guide
  • HP-6101ACP (3-Pack)
  • 3 x Powerline Adapter (HP-6101AC)
  • 3 x 1-meter RJ45 Ethernet Cable
  • 1 x Quick Installation Guide

*500Mbps is the maximum theoretical communication speed at the physical layer via electric power lines.
**Powerline adapters must be deployed in sets of two or more.
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
