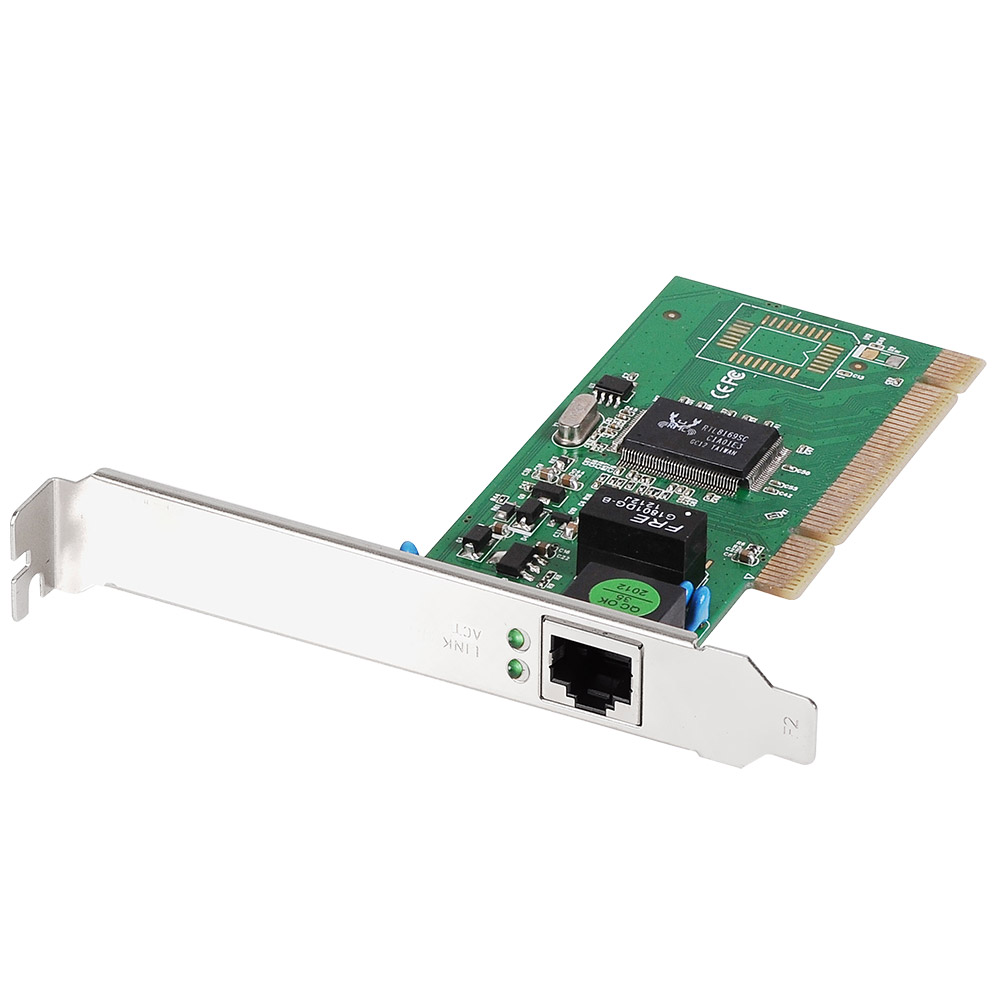

Gigabit Ethernet PCI Network Adapter

EN-9235TX-32 V2

  • Supports 32-bit 33/66MHz PCI Local Bus Master high-speed operation (Rev. 2.1/2.2/2.3)
  • Complies with IEEE 802.3, 802.3u, 802.3ab and 802.3x standards
  • Supports 10/100Mbps full and half duplex, 1000Mbps full duplex
  • Supports 10/100/1000Mbps Auto Negotiation and jumbo frame
  • Supports IEEE 802.3x Full Duplex flow control
  • Supports IEEE 802.1Q VLAN Tagging
  • Supports PCI 2.2 Wake On LAN function
  • Supports PCI Message Signalled Interrupt (MSI)
  • Built-in FIFO buffers reduce overhead of memory transfers
  • Includes a Setup Wizard program

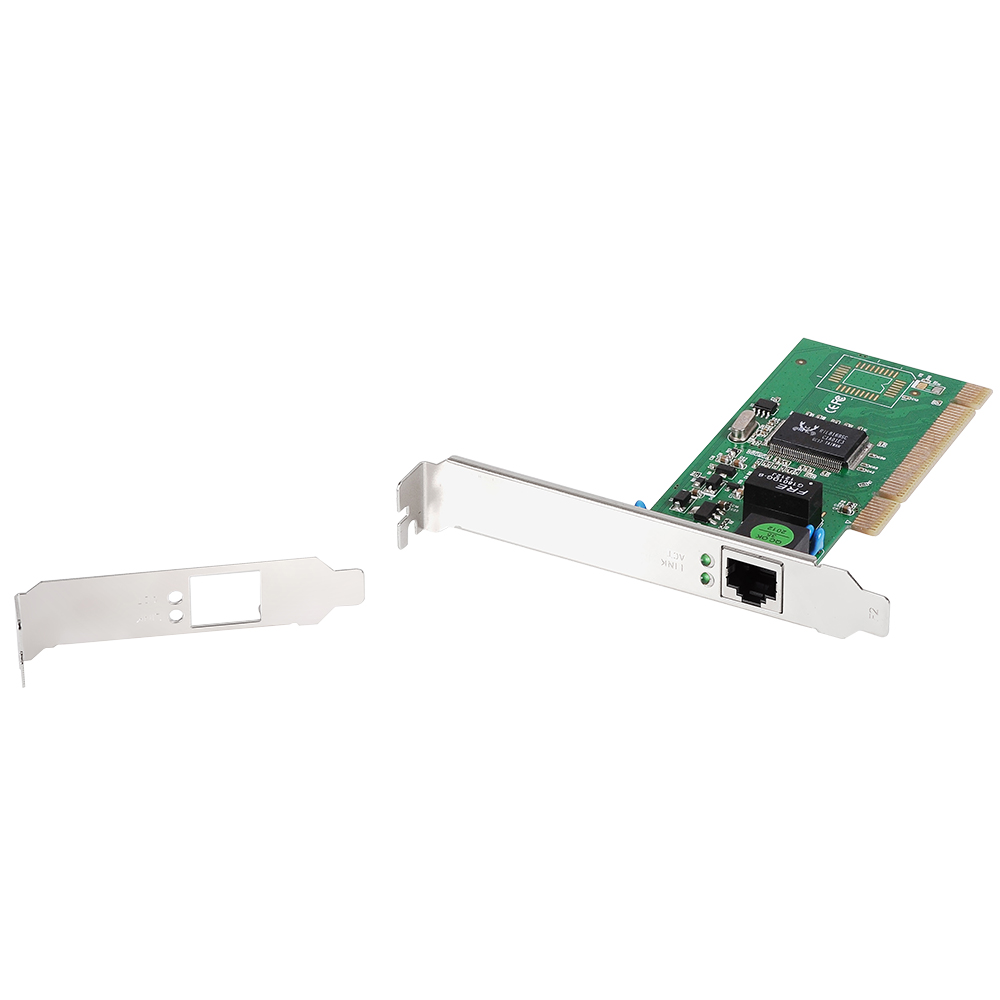

  • Includes a low-profile bracket
  • Plug-and-Play
  • Supports drivers for Novell, Windows, MAC and Linux


Edimax Gigabit PCI adapters deliver high performance wired network connectivity to your desktop PCs. Connect your Gigabit home or business network to any of our Gigabit PCI adapters and you can instantly transfer files at speeds 10 times faster than 10/100 Fast Ethernet devices. Once connected, accessing shared music, documents, movies, and photos on your network is easy and quick.


Comprehensive Networking Approach

The EN-9235TX-32 supports ACPI (Advanced Configuration Power Interface) and Wake on LAN that allows remote power control of the PC.  The manageability, compatibility, plug-and-play and 32-bit bus-mastering architecture are the key aspects of our PCI Gigabit adapters that provide true value for your network.


Ease of Installation & Configuration

The EN-9235TX-32 offers ease of installation and flexibility of configuration through Plug-and-Play technology. Simply place the adapter into the PCI slot in your PC and then turn on the PC; plug-and-play will automatically detect the new device. The adapter is fully compatible with Ethernet, Fast Ethernet, and Gigabit Ethernet networks and the adapter’s 10/100/1000 Mbps auto negotiation ports eliminate any need for manual switching. Best of all, the adapter is supported by all major operating systems including Windows, MAC and Linux OS.


User-friendly Setup CD Wizard and Driver*

To facilitate network connectivity, the EN-9235TX-32 includes a user-friendly setup CD wizard. Its user interface simplifies driver installation for immediate use of the device.

* The Setup CD Wizard is only compatible with Edimax network interface cards.


SPECIFICATIONS

HARDWARE
Interface PCI Express Interface
One 10/100/1000 Mbps LAN port
LED Indicator LNK/ACT
Accessory 1 x Low-profile bracket
Dimension 114 x 52 x 16 mm
Weight 98g
OTHERS
Standard IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE802.3x
System Requirement CPU: Pentium III 1G above or similar
Memory size: 256MB RAM
One CD-ROM drive
Hard Disk: Min. of 100MB disk space
One available PCI slot
OS Compatibility Novell 5.X/ 6.X, Windows XP/ Vista/ 7/ 8, Mac 10.4-10.5, Linux 2.4x, 2.6x
Bus Architecture PCI V 2.3/ 2.2/ 2.1, 32-bit, 66/ 33MHz
Installation Setup Wizard program with Driver setup
Environmental Condition Operating Temperature: 0~40°C
Storage Temperature: -40~70°C
Certification CE, FCC



​PACKAGE CONTENT

  • Gigabit Ethernet 32-bit PCI Adapter x 1
  • Low-profile Bracket x 1
  • Quick installation guide x 1
  • CD containing setup wizard, user manual & multi-language QIG x 1



TYPICAL SETUP DIAGRAM AND RELATED PRODUCTS

Edimax EN-9235TX-32_diagram.jpg



* Product features and specifications are subject to change without notice.

*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
