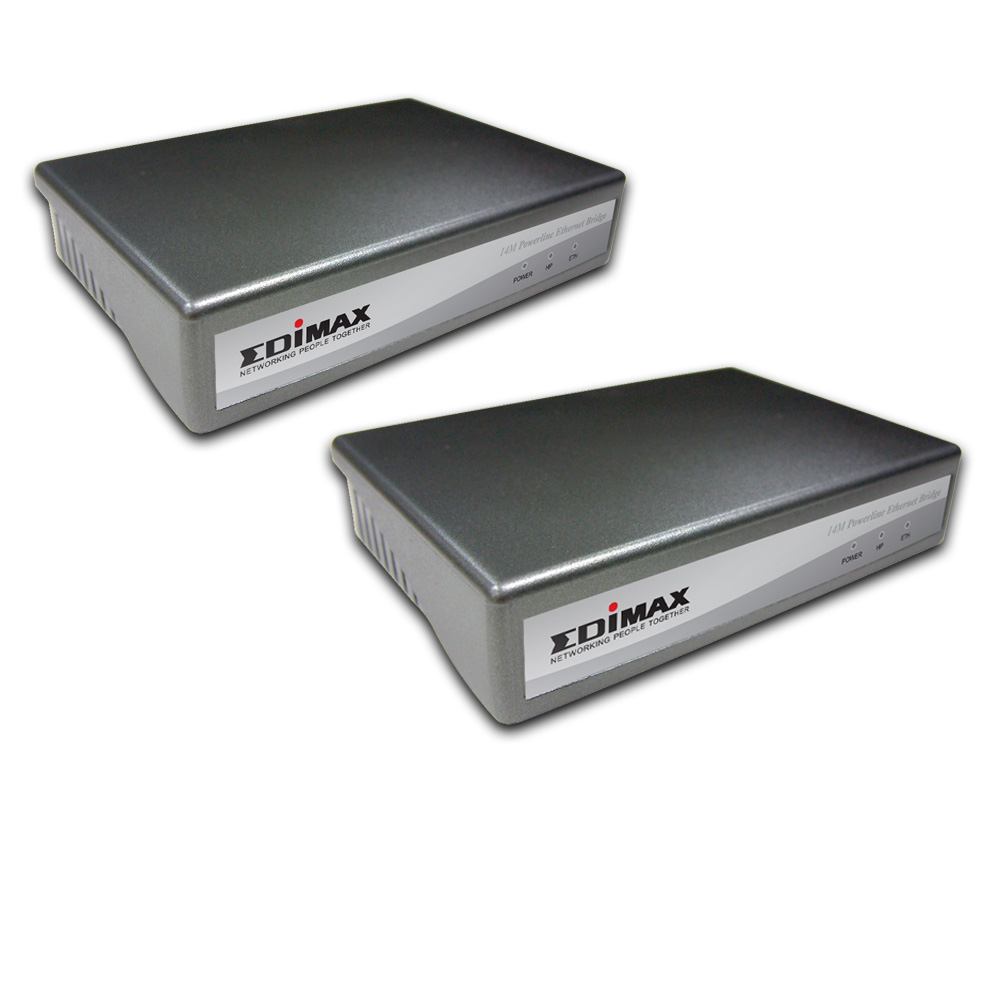

85Mbps Power Line Adapter, 2 pcs Kits

HP-8500K (2pcs a set)

(End-of-Life Product)

  • Operates on existing Home Electric Wiring
  • Plug-and-Play (PnP) operation provides easy setup
  • LED Indicators indicate connection status
  • Data transmission rate up to 85Mbps
  • Built-in QoS and error correction features
  • Supports Windows 98SE/ME/2000/XP operating system
Share


Key Feature

  • Computer Interface : IEEE 802.3 / 802.3u
  • Network Ports : 85 Mbps Powerline port / 10BASE-T / 100BASE-TX Ethernet port
  • Network Interface : Powerline
  • Cable Connection : 10BASE-T: UTP CAT.3,4,5 / 100Base-TX: UTP CAT.5 / Powerline: No New Wires
  • Installation : Plug-and-Play
  • Modulation Schemes : OFDM Symbol Modulation DQAM 256/64/16 / QPSK, DBPSK, ROBO Carrier Modulation
  • Additional Protocols : Forward Error Correction (FEC) / Automatic channel adaptation
  • Quality of Service (QoS) : Integrated Quality of Service (QoS) features / such as prioritized random access / contention-free access, and segment bursting
  • Additional Features : "Boot From Host" and "Field-Upgradeable Firmware"
  • LED Indicators : PWR (Power) / HP (Powerline Activity) / ETH (Ethernet Activity)
  • Operating Temperature : 0'C~ 40'C (32 to 104'F)
  • Humidity : 5%
Share


  • Network Port: 10BASE-T / 100BASE-TX Ethernet RJ45 port
  • Powerline Port : Powerline with the speed up to 85Mbps
  • Modulation Schemes : OFDM Symbol Modulation DQAM 256/64/16 / QPSK, DBPSK, ROBO Carrier Modulation
  • Additional Protocols : Forward Error Correction (FEC) / Automatic channel adaptation
  • Quality of Service (QoS) : Integrated Quality of Service (QoS) features / such as prioritized random access / contention-free access, and segment bursting
  • Additional Features : "Boot From Host" and "Field-Upgradeable Firmware"
  • LED Indicators : PWR (Power) / HP (Powerline Activity) / ETH (Ethernet Activity)
  • Operating Temperature : 0'C~ 40'C (32 to 104'F)
  • Humidity : 5%
Share


null

*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
