Smart Wi-Fi Power Strip (3 EU type AC outputs + 4 USB outputs) Add Intelligence to Power Sockets - EDIMAX

Smart Wi-Fi Power Strip (3 EU type AC outputs + 4 USB outputs) Add Intelligence to Power Sockets

SP-1123WT

•Smart Wi-Fi power strip (3 EU type AC outputs + 4 USB outputs)
•Add and control multiple devices at once with one App
•Remotely control home appliances from anywhere
•Separately control timing, countdown and all outputs with the EdiSmart Pro App
•Easily share devices among family members
•Voice control via Amazon Alexa/ Google Assistant/ Apple Siri
•Easily and quickly connect EdiSmart Pro App to devices
iOS supports Widget and Apple Watch

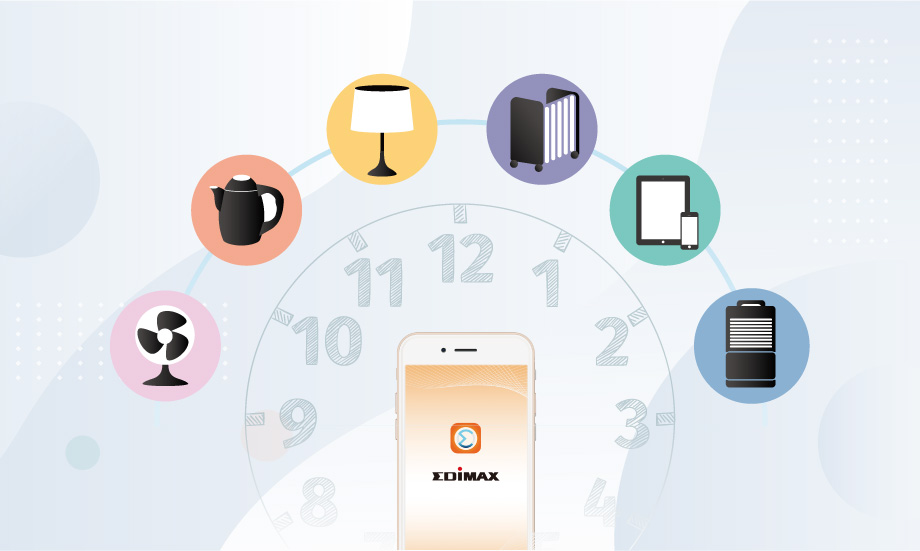

Intelligent Home

Our Smart Plug EdiSmart Pro home management App can monitor, control and
s​chedule all of the electronic devices connected to Smart Plugs around your home.







Schedule and Save

Program intelligent schedules to make your home/office smarter and more energy efficient. Schedule your lamp,
heater and 4 USB powered devices – Smart Power Strip can schedule anything just the way you like it!








Easy Setup

Setup couldn’t be any easier and is all done on your smartphone or tablet.









SPECIFICATIONS

HARDWARE
Power Output
•3 x Smart AC outlet
Receptacle Style: EU Type( RG-02)
100-240VAC, 50Hz/60Hz
Total Max. 2300W, Max.10A
4 x USB Type A  outlet, Max.2.4A

Button
•Power button
LED Indicator
•Red light: paring or Wi-Fi connection status
•Green light: AC or USB output on/off
Antenna Type
Internal antenna
Power Input
•100-240VAC, 10A ,50Hz/60Hz,
JT-003 plug
Dimensions
•298.2(W) x 60(D) x 44.20 (H) mm
Weight
•600g
Cable Length
•150cm
WIRELESS
Standards
•IEEE 802.11 b/g/n
Frequency Band
•2412 - 2472MHz (Subject to local regulations)
Max. RF output power
•Wi-Fi(2.4G): 9.45dBm
Type of Modulation
•Wi-Fi: DSSS, OFDM
Antenna Gain
•Wi-Fi(2.4G): 1dBi
FUNCTION
Management
•EdiSmart Pro App with for iOS 9 or Android 4.4 or above smart mobile devices
App Function
•Remote control to  on/off the connected home appliances
Schedule your connected home appliances on/off in advance
Sharing the home appliances control to your family
Other Function
•Auto recovery when encountered a power outage without reset
Safety design with surge protection and over  voltage to protect the conneced devices demanaged or over temperature
OTHERS
Certification
•CE, RoHS
Environmental Condition
•Operating Temperature: -10°C~55°C
•Storage Temperature: -20°C~60°C
•Operating Humidity: 10%~90% non-condensing
•Storage Humidity: 10%~95% non-condensing
•Indoor use
Installation
•App setup
System Requirement
•Smart mobile device with iOS 9 or Android 4.4 or above OS
•2.4GHz Wi-Fi network
Package Content
•Smart Wi-Fi Power Strip
•Quick Installation Guide






*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
