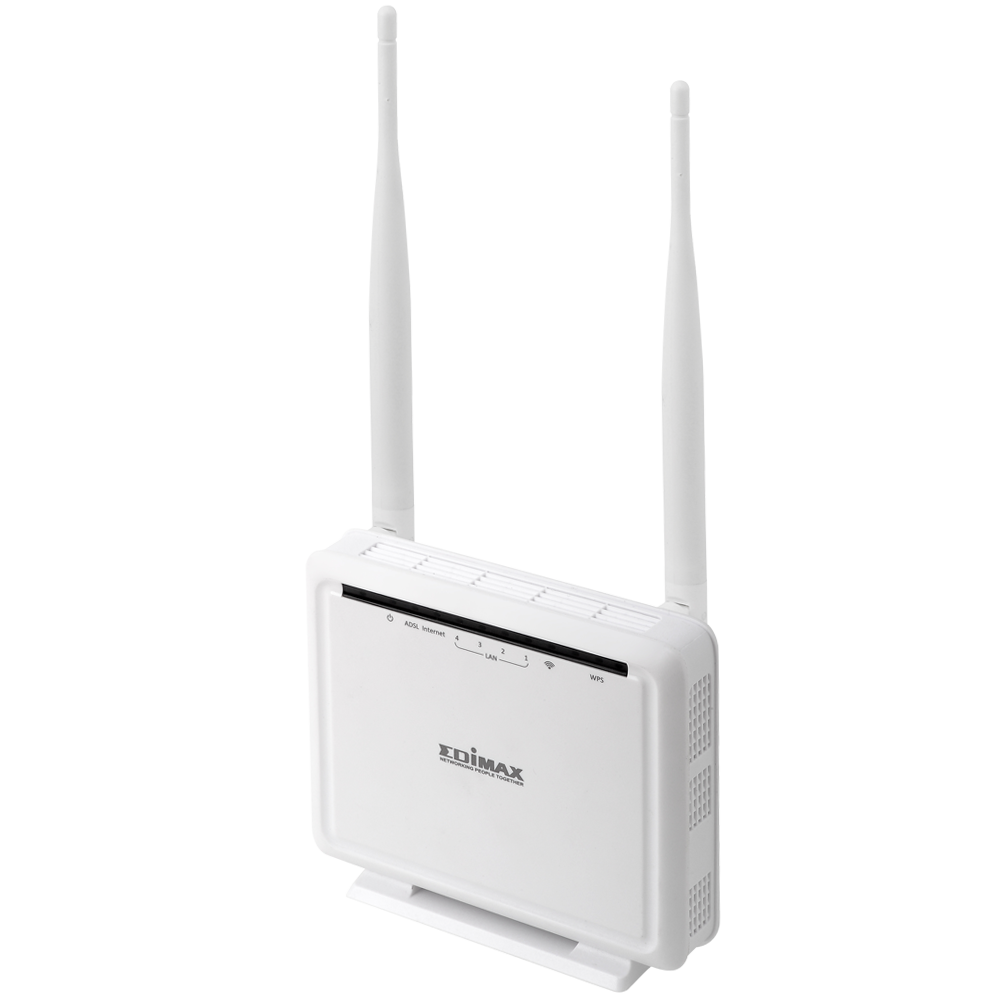

N300 Wireless ADSL Modem Router

AR-7286WnA

  • 300Mbps wireless transmission rate with MIMO technology for a smooth wireless N experience
  • Supports multiple SSIDs for up to four wireless networks
  • Easy wireless security encryption with a push of the WPS button
  • Powerful 5dBi antennas
  • Easy setup wizard with built-in ISP selector

For multi-language Quick Installation Guides (QIGs), please click here and go to support.

Share


  300Mbps Wireless ADSL2/2+ Modem Router
The Edimax AR-7286WnA/B is a high performance router that provides full ADSL2+ capability and superb reliability as a cost-effective networking solution for homes and small businesses. Compatible with the wireless standard 802.11n, and with advanced MIMO technology, the AR-7286WnA/B provides up to six times better data transmission rates (up to 300Mbps) and five times better coverage than a standard 802.11g/b router.

 Edimax N300 Wireless ADSL Modem Router 11n_g_b_300Mbps.png

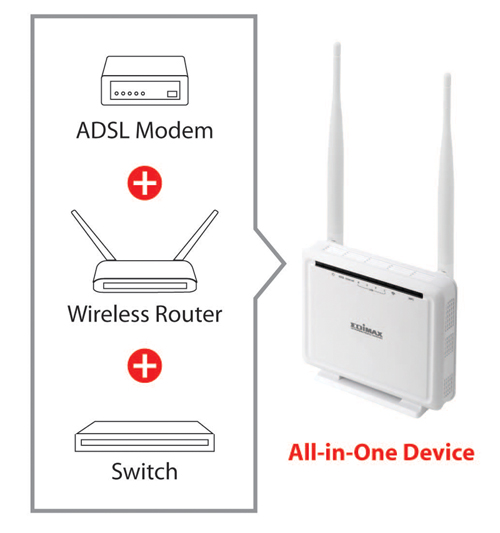

All-in-One Device
The AR-7286WnA/B is a wireless N router with a built-in ADSL2/ADSL2+ modem combining a high-performance router, modem, and a switch into a single device. Save desk space, the hassle of extra cords & cables and the cost of leasing a router from your DSL service provider.

Edimax N300 Wireless ADSL Modem Router AR-7286WnA_B_all-in-one.jpg

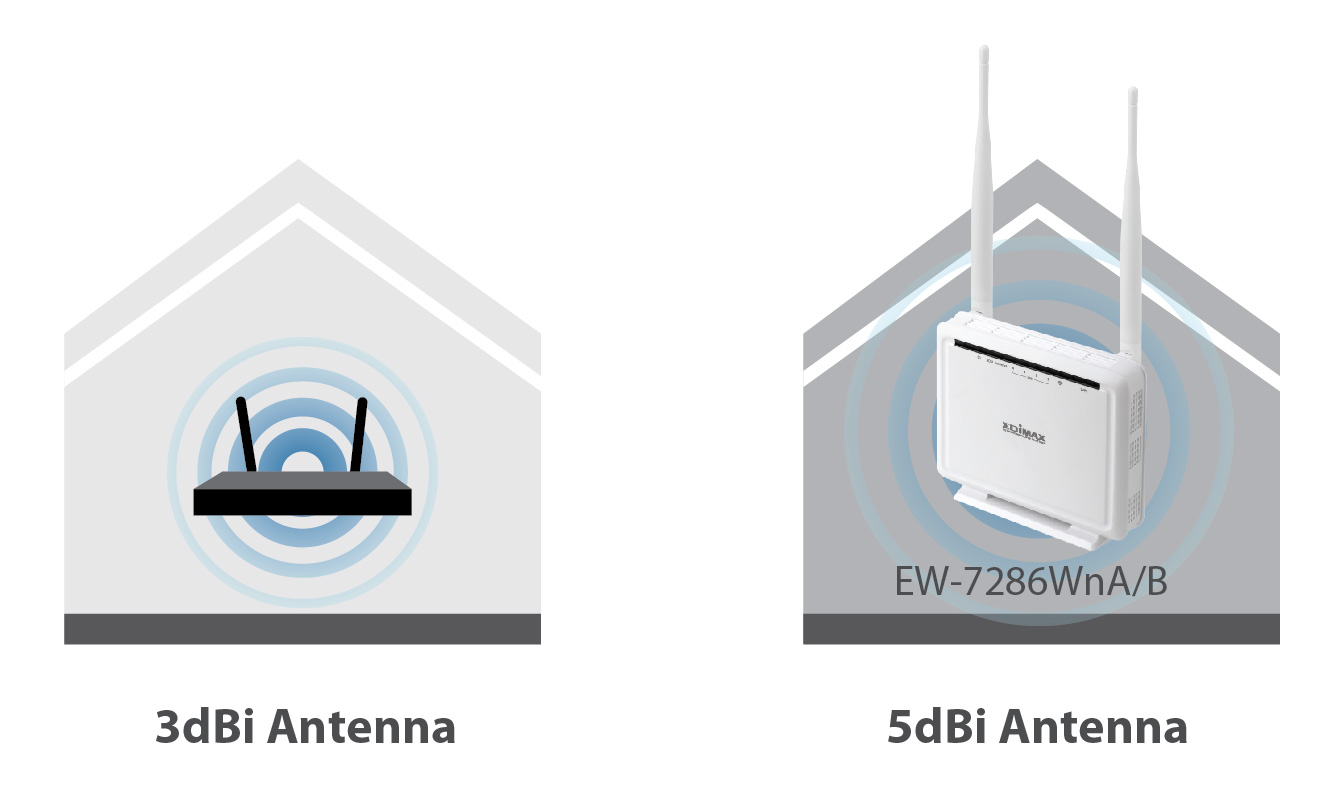

Powerful and Wide Coverage
Featuring two 5dBi high-gain antennas, the AR-7286WnA/B boosts your signal to ensure extended wireless networking range.

Edimax N300 Wireless ADSL Modem Router AR-7286WnA_B_3&5dBi.jpg

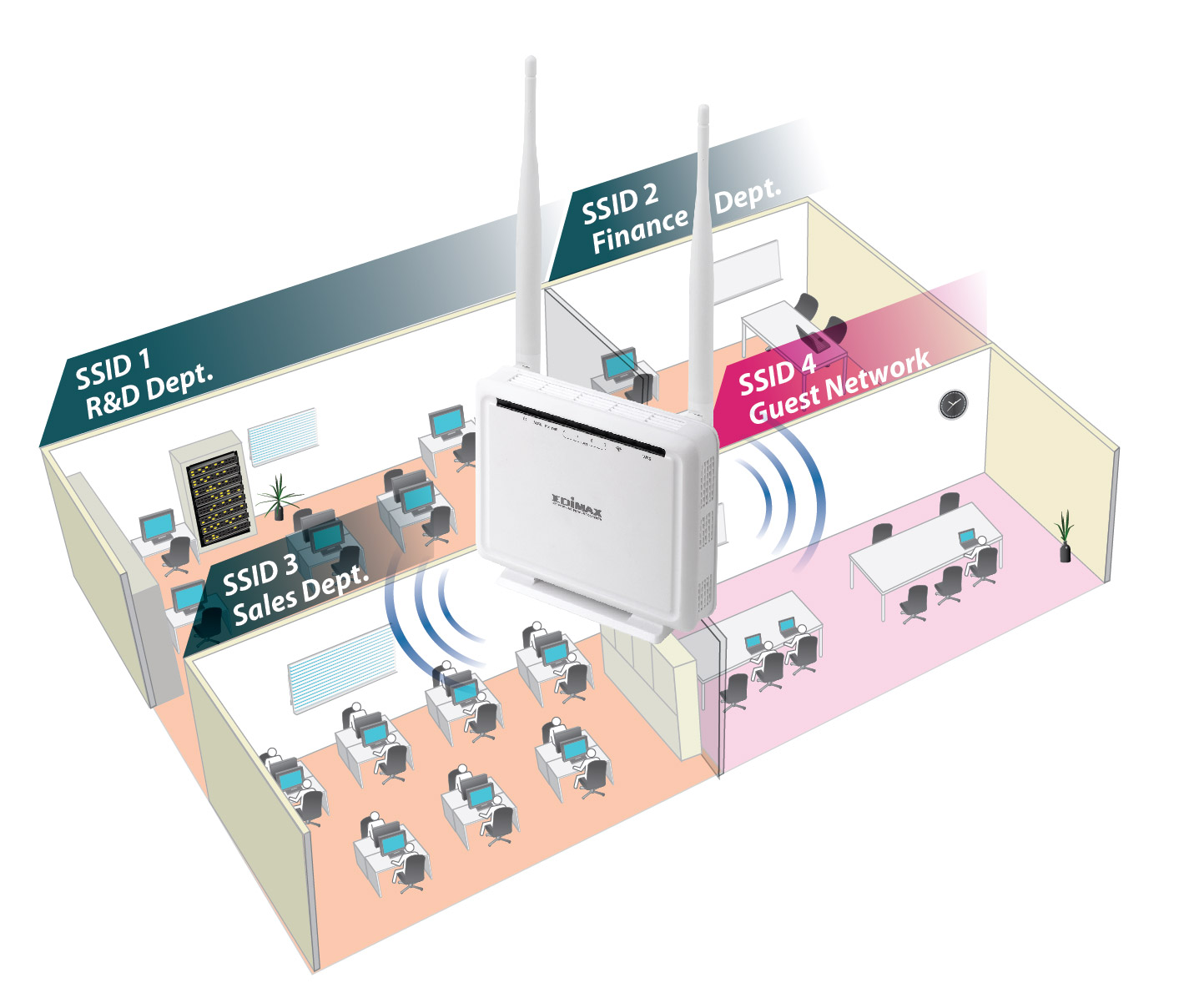

Four-Networks-in-One
The AR-7286WnA/B supports multiple SSIDs for up to four wireless networks.

Edimax N300 Wireless ADSL Modem Router AR-7286WnA_B_4ssid_user_group_management.jpg







Lightning Protection
Protected from lightning strikes to help your device avoid the damage of a tough thunderstorm.

 Edimax N300 Wireless ADSL Modem Router AR-7286WnAB_lightning_protected.png







Supports TR-069 for Remote Management
The AR-7286WnA/B also supports TR-069 which is a protocol to define a common method for CPE devices to communicate with a server.









Wi-Fi Protected Setup (WPS)
Wi-Fi Protected Setup is a quick and convenient method of establishing wireless connections between compatible devices. Set up a wireless network in less than a minute with just a couple of clicks of a button or easily add new Wi-Fi devices to an existing network.

 Edimax N300 Wireless ADSL Modem Router AR-7286WnAB_WPS.png

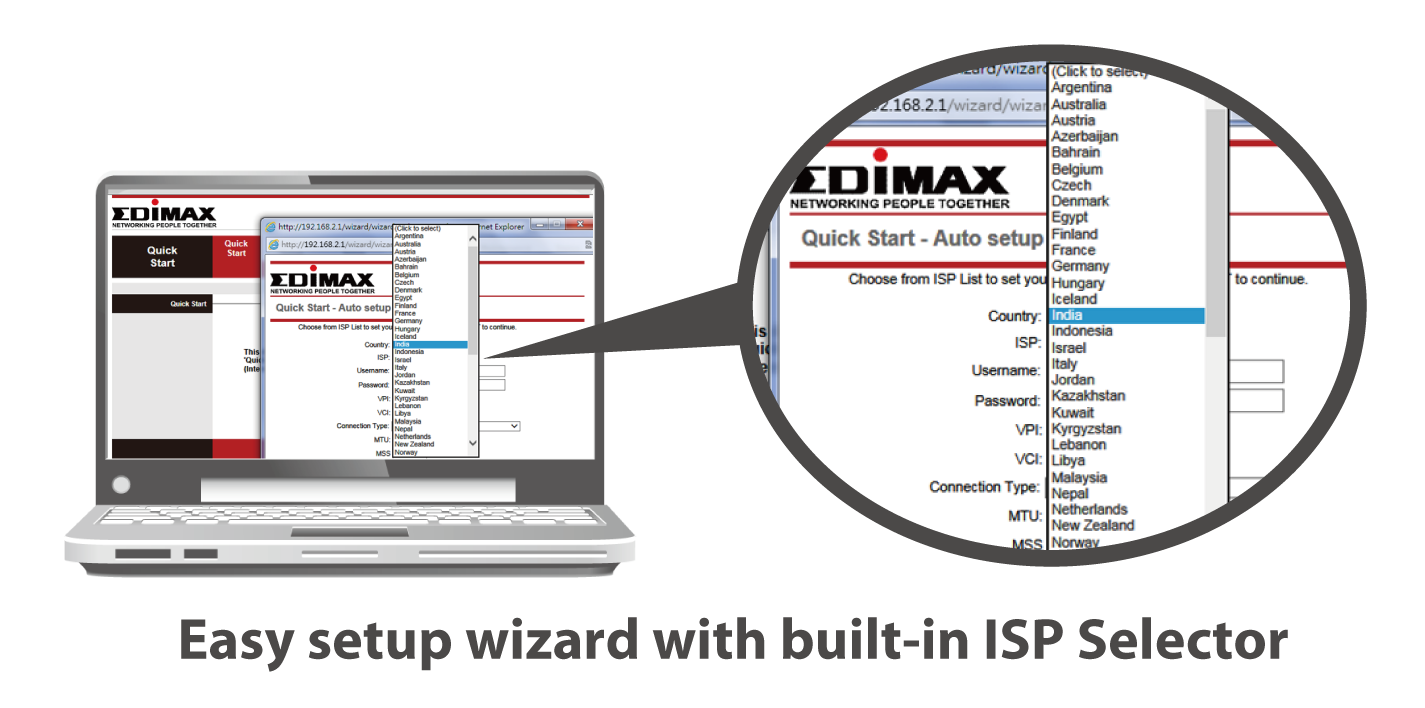

Easy Setup Wizard with Built-in ISP Selector
Setup the ADSL modem router using the unique and convenient multi-language setup wizard provided on the included CD-ROM or available through a web browser. Select your language and follow a few simple steps to setup the router and configure the Internet connection, password, SSID and wireless security. Additionally, the setup wizard includes a built-in ISP selector to configure your ISP settings automatically.

 Edimax N300 Wireless ADSL Modem Router ADSL_Modem_Router_ISP_selector.png







APPLICATION DIAGRAM

Edimax N300 Wireless ADSL Modem Router AR-7286WnA_B_application_diagram.jpg

Share


  • ADSL2+ router (AR-7286WnA or AR-7286WnB)
  • 12V power adapter
  • 1 meter RJ-45 Ethernet cable
  • 1.8M RJ-11 telephone line x 2
  • Quick installation guide
  • CD containing setup wizard, user manual & multi-language QIG
  • Splitter
  • 5dBi antenna x 2
Share


HARDWARE INTERFACE

MANAGEMENT

OUTPUT POWER

•1 x RJ-11 WAN-port
•4 x RJ-45 Fast Ethernet LAN ports
•1 x Reset button for factory default settings
•1 x WPS button
•1 x WLAN button
•2 x 5dBi antenna
•Power on/off button
•LED indicators: power, ADSL, LAN 1–4, WLAN, WPS

•Web based configuration
•Web page/XMODEM/FTP/TFTP firmware upgrade
•Command-line interface via serial port, telnet or SSH
•Universal Plug and Play (UPnP)
•WAN Management Protocol (TR-069)
•Date/time update from SNTP time server

•11n: 14±1.5dBm
•11g: 15±1.5dBm
•11b: 16±1.5dBm

ADSL FEATURES

WIRELESS FEATURES

ROUTING FEATURES

•Annex A, B,I, J, L & M
•ANSI T1.413i2
•ITU G.992.1 (G.dmt), ITU G.992.2 (G.lite)
•ITU G.992.3 ADSL2 (G.dmt.bis), ITU G.992.4 (G.lite.bis)
•ITU G.992.5 (G.dmt.bisplus), ITU G.994.1 (G.hs)
•ITU G.995.1, ITU G.996.1, ITU G.997.1
•Power saving mode, L3 to L0 initialization
•Supports multiple PVCs
•Supports traffic shaping (ATM QoS) UBR, CBR, VBR-rt, VBR-nrt
•Supports OAM F4/F5 loop-back, AIS, and RDI OAM cells
•UNI 3.1/4.0 permanent virtual circuits

•Compatible with IEEE 802.11b,IEEE 802.11g and IEEE 802.11n
•Supports auto channeling
•2T2R mode with 300Mbps PHY rate for both transmitting and receiving
•Legacy and high throughput modes
•20MHz/40MHz Bandwidth
•Supports 64/128-bit WEP, 802.1x, WPA and WPA2 wireless security
•Multiple BSSID support
•Wireless frequency range: 2400–2483 MHz ISM band

•Routing (TCP/IP/UDP/ARP/ICMP)
•802.1D MAC Bridge
•RIP v1 (RFC1058), RIP v2 (RFC1723)
•IGMP Snooping (V1/V2/V3)
•IGMP Proxy (V1/V2)
•VLSM (RFC1878)
•RFC 1877 PPP IPCP Extensions for Name Server Address
•RFC 1877 PPP IPCP Extensions for Name Server Addresses (limited to DNS addresses unless the device supports NetBIOS)
•RFC 0791 IP Fragmentation
•IETF RFC 0919, IETF RFC 0922, IETF RFC 2644 IP Broadcast

SECURITY

EQUENCY & MODULATION

CHIPSET / MEMORY

•Management access control for LAN/WAN sides
•Prevent port scanning, denial-of-service (DOS) and LAND attacks
•Stateful packet inspection (SPI)
•IP spoofing, IP with zero length
•IP/MAC filtering, application filtering, URL filter

•2400–2484 MHz
•802.11b: CCK, DQPSK, DBPSK
•802.11g: 64QAM, 16QAM, QPSK, BPSK, DSSS
•802.11n: 64QAM, 16QAM, QPSK, BPSK

•RT63365+RT5390HL+RT63087
•2 MB NOR Flash
•8 MB SDRAM

HUMIDITY & TEMPERATURE

DIMENSION / WEIGHT / POWER

 CERTIFICATIONS

•Operating: 0 to 40°C
•Storage: -40 to 70°C
•Operating: 10 to 90% RH (Non-condensing)
•Storage: 5 to 95% RH (Non-condensing)

•135 x 118 x 28 mm
•187g
•12V DC, 0.5A

•CE

*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
