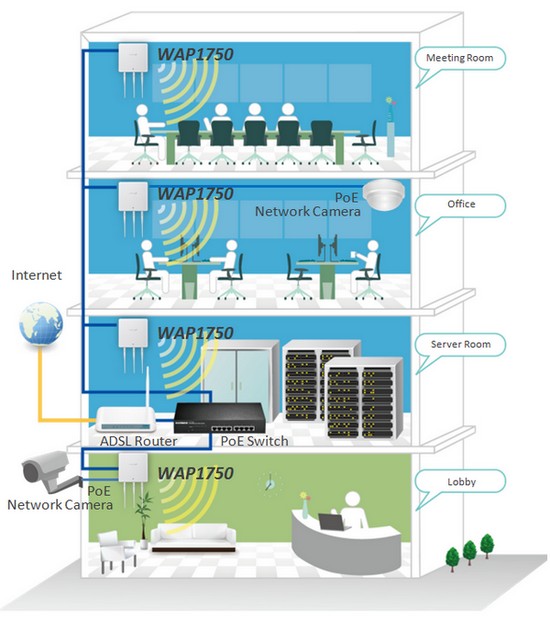

WAP1750採用最新的 IEEE 802.11ac 的無線傳輸技術,無線傳輸速度高達1750Mbps ,可滿足中小型企業對於高效能無線網路環境的需求,是一款擁有超高速傑出性能的優質解決方案。WAP1750不僅兼具工業級的性能和品質,同時結合人性化 的操作介面,多樣而完整的功能及易於安裝的壁掛式設計,是建構要求嚴謹之企業日常運營網路環境的理想雙頻解決方案。

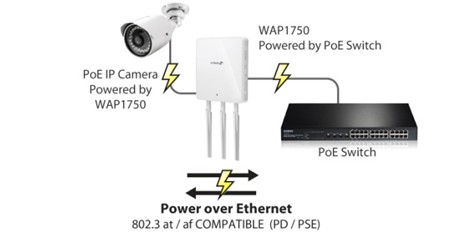

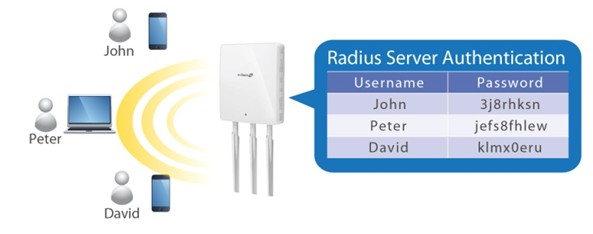

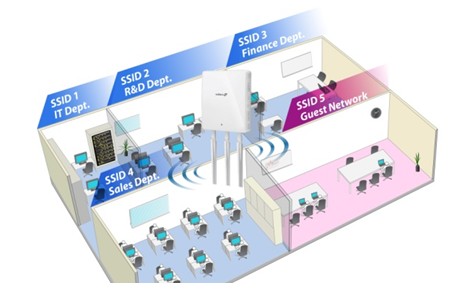

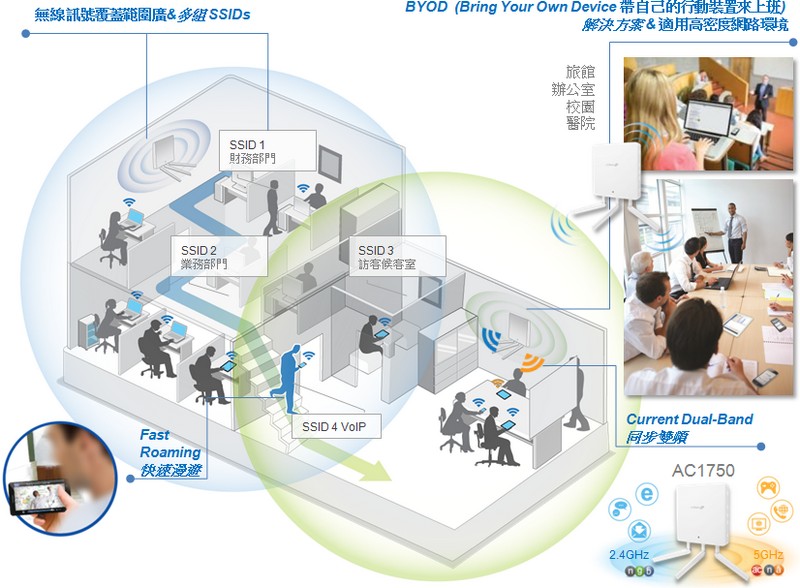

針對企業無線環境需求”安全”、“彈性”和”速度”等要求— Edimax Pro 系列提供了廣泛的潛在應用,不論是辦公環境、校園、旅館或醫院,它可為不同的部門或使用群組配置多達32個 SSID,可以有效管理無線網路的安全性,相當適合BYOD ((Bring Your Own Device 帶自己的行動裝置來上班)型態的工作場合或高密度網路大量使用的環境;而它內建的 RADIUS 伺服器,可中央式管理大型AP 陣列架構並提供額外的審核;具備快速漫遊功能,則可達到無線基地台之間的無縫連接,此外,支援乙太網供電(PoE) 和直覺式網頁管理介面,提供了佈建的靈活度和廣泛的管理選項,可大幅提高公司裡MIS 部門人員和網路系統管理員。另提供一個可選購的防盜保護蓋,可以防止竊取或篡改,以及非法AP檢測功能,可保護您的網路,防止從未經授權的連線。
當效能和安全性,對您的業務至關重要之時,您需要專為您的產業所量身打造的產品。Edimax Pro 系列正是為了幫助您的業務而設計,而WAP1750所具備的無線效能是目前市場上的最高等級,能給您每一天,安全可靠、 有效的連線保證。
除了產品的硬體規格之外,網絡安全也同時是任何一個現代企業高度關注的問題。 EDIMAX Pro無線基地台可以藉由增加一個堅固的防盜保護蓋,鎖住並且防止被篡改或刪除,並限制只有被授權的人員可以連線。
可選購配件: 防盜保護蓋 (SC1000)
Security Cover for Edimax Pro WAP Series Access Point
|
|
Dimensions (L x W x H)
|
252.25 x 199 x 28.59 mm
|
Weight (g)
|
445g
|
Environment Condition
|
Operating Temperature: 0°C (32°F) to 50°C (122°F)
Operating Humidity: 90% or Less |
Package Content
|
Security Cover / Mounting Bracket / Screws / Ejector Key / Key / QIG
|
HARDWARE | ||
LAN Interface | Giga x 2 | |
PoE | 802.3at (in) / 802.3af (out) | |
Antenna | Type: 3 x External Gain: 2dBi (2.4GHz), 2dBi (5GHz) |
|
Power | DC: 12V / 4A 802.3at (PoE Injector Optional) |
|
Dimensions(L x W x H) | 18.3 x 18.3 x 3.6 cm | |
Weight | 560g | |
Power Consumption (Full Loading) | 15W (Exclude PoE-Out) | |
Mounting | Wall / Desktop | |
Console | RJ45 | |
WPS/Reset | Y | |
LED Indicator | 1. Power LED 2. Diag LED |
|
Environmental Conditions | Operating Temperature: 0°C (32°F) to 50°C (122°F) Operating Humidity: 90% or Less |
|
Power Saving | 802.3az | |
Internal Buzzer | Y | |
Security Cover | Y (Optional) | |
Others | Kensington Security Slot & Wall Mount Holes | |
WIRELESS | ||
Standard | 802.11 a/b/g/n/ac Concurrent Dual-Band | |
No. of Radios | 2 | |
Receiver Sensitivity | ≤ -94.5dBm | |
Certification | CE / FCC | |
802.11 r/k Fast Roaming | Y | |
Band Steering | Y | |
Number of SSIDs | 16 (2.4GHz) + 16 (5GHz) | |
PERFORMANCE | ||

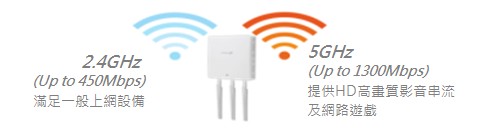

Maximum Data Speed | 450 + 1300Mbps | |
Concurrent Clients | Up to 50 Per Radio | |
RF SPECIFICATONS | ||
Frequency Band |
|
|
Operation Channels |
|
|
Transmit Power |
•802.11b |
•802.11a |
Receiver Sensitivity |
•802.11b |
|
SECURITY | ||
Encryption | WEP / WPA / WPA2 | |
Wireless L2 Isolation | Y | |
Station Isolation | Y | |
IEEE 802.1x Authenticator | Y | |
EAP Authentication | PEAP | |
Hidden SSID | Y | |
MAC Address Filter | Y | |
Wireless STA | Y | |
Rogue AP Detection (w/ Edimax Pro Network Management Suite (NMS)) | Y | |
SOFTWARE | ||
Wireless Mode | AP / WDS AP / WDS Bridge | |
802.1q VLAN | Y (VID = 1-4095) | |
Spanning Tree | RSTP | |
QoS | WMM (802.11e) Max Associated Station No. |
|
Pass-Through | IPv6 and VPN (PPTP, L2TP/IPsec) | |
DSCP (802.1p) | Y | |
Multicast Rate up to 54Mbps | Y | |
MANAGEMENT | ||
Deployment | Standalone Managed by Edimax Pro NMS |
|
Configuration | HTTP / HTTPS SNMP v1, v2c, v3 CLI (Telnet, SSH) |
|
RADIUS Server | Built-In | |
Auto-Channel | Y | |
Private MIB | Y |
