Camera IP Box 3Mpx PoE

NC-213E

  • True day and night support
  • 5 megapixel CMOS sensor
  • QXGA resolution at 20fps
  • H.264, MPEG-4 & M-JPEG multi-stream output
  • Simultaneous live monitoring and high resolution recording
  • IEEE 802.3af Power over Ethernet support
  • SD/SDHC memory card slot for local storage
  • Multi-area motion detection
  • 2-way audio support
  • 3GPP mobile surveillance support
  • RS-485 communication support
  • ONVIF compliant


The Edimax NC-213E is an ONVIF compliant true day and night network camera with QXGA (2048 x 1536) video resolution at 20fps, which allow you to capture detailed videos in daylight or at night. With Edimax’s superior H.264 video compression technology, the NC-213E can create high quality videos with small file sizes, allowing for optimized network bandwidth efficiency. Additionally, the NC-213E comes with a free 64-channel viewer software for simultaneous live monitoring and high-resolution video recording. It is a high performance network camera ideal for an endless variety of network surveillance applications.

The Edimax NC-213E is built to produce high quality 3 megapixel videos that capture every detail in a monitored area. You can set the camera to record Full HD 1080p (1920 x 1080) videos at 30 frames per second, or even QXGA (2048 x 1536) videos at 20 frames per second. It offers true day and night functionality to capture clear videos 24 hours a day, and the built-in SD/SDHC card slot allows for local data storage in the case of a network disconnection.

The NC-213E complies with the IEEE 802.3af Power over Ethernet standard, which enables power and data transmission over a single Ethernet cable and eliminates the hassle of needing to install an additional power adapter.





Lens
Compatible with CS mount lenses
Sensor
1/2.5" 5 megapixel CMOS sensor
Night Vision
Digital night vision
ICR
Min. Illumination
1 Lux/F1.4
Digital Zoom
10x
Video Formats
H.264, MPEG-4 & M-JPEG
Video Resolution
QXGA (2048 x 1536): 20fps
1080p (1920 x 1080): 30fps
960p (1280 x 960): 30fps
720p (1280 x 720): 30fps
D1 (720 x 480): 30fps
VGA (640 x 480): 30fps
QVGA (320 x 240): 30fps
QCIF (176 x 144): 30fps
Multiple Streaming
Yes
Security
Multi-level user access
Protocol
TCP/IP, IPv6, IPv4, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, HTTPs, Samba, PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP
QoS
Yes
IP Filtering
Yes
SD/SDHC Interface
Yes
Power over Ethernet
Yes (IEEE802.3af)
Audio Support
2-way audio
Alarm Input/Output
2 x D/I; 1 x D/O
ONVIF Support
Yes
3GPP
Yes
Temperature
0 - 50°C
Certifications
CE, FCC
Dimensions
130 (D) x 72 (W) x 58 (H) mm

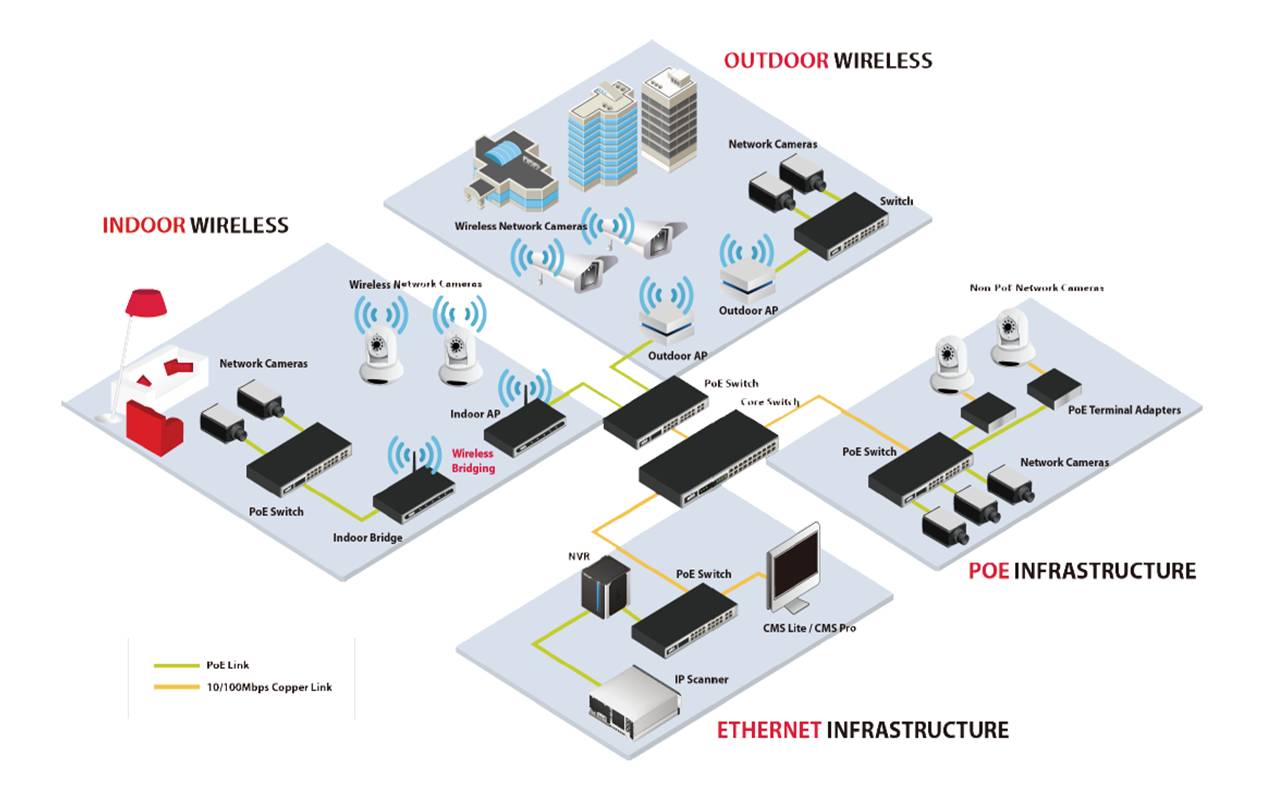

IP Surveillance Solution

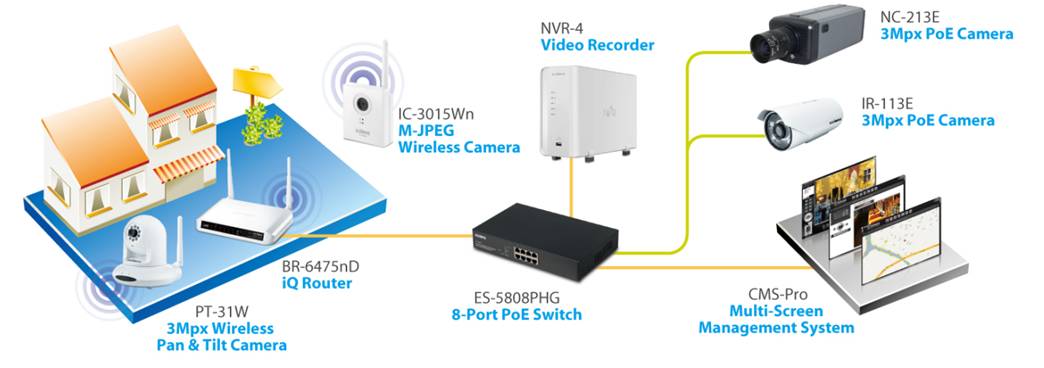

NC-213E PT-31W IR-113E NVR-4 CMS-Pro application.jpg

 IP Surveillance total sulation


Package Contents
  • 1 x Network camera
  • 1 x Power adapter
  • 1 x CD (with utility software, user manual & multi‐language QIG)
  • 1 x Quick installation guide
  • 1 x Mounting Kit
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
