EDIMAX - Legacy Products - Switches - Switch Web Smart 16 porturi Gigabit + 4 sloturi SFP

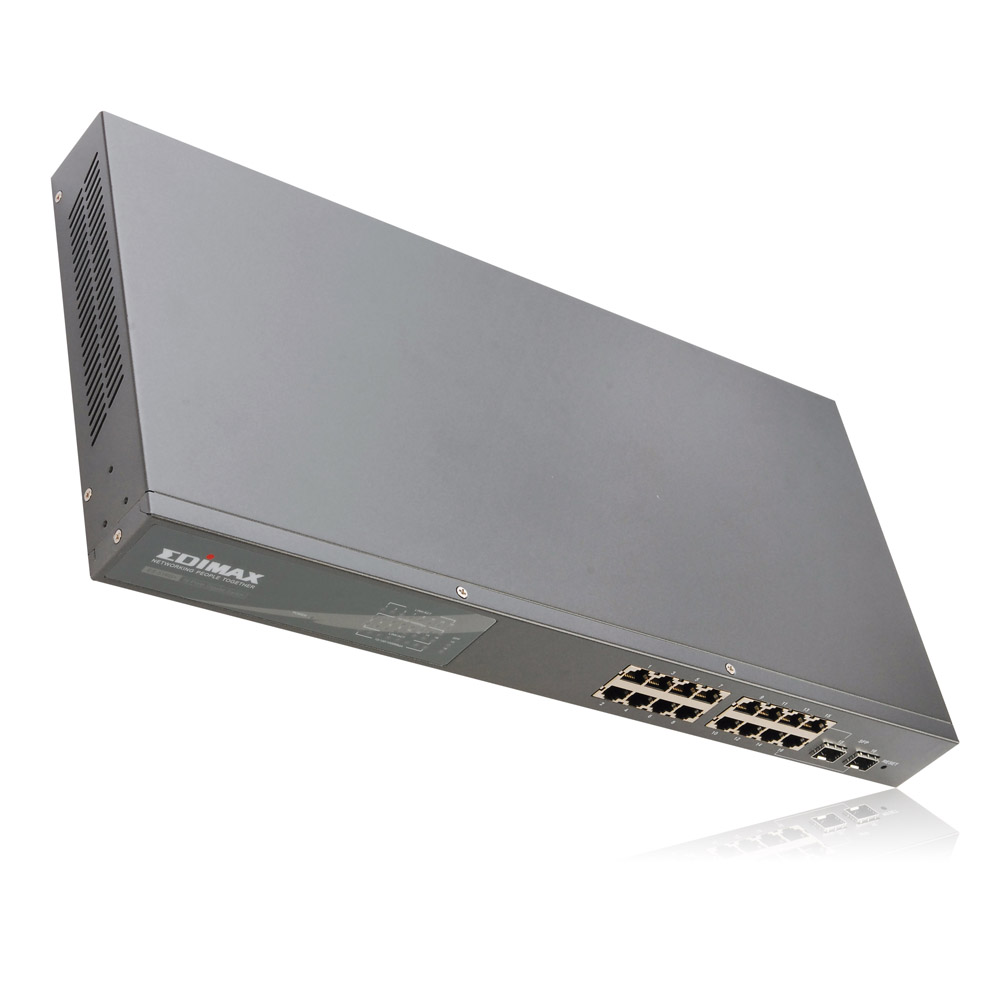

Switch Web Smart 16 porturi Gigabit + 4 sloturi SFP

ES-5160G+

  • In conformitate cu standardele IEEE802.3/802.3u/802.3ab/802.3z/802.1q/802.1p/802.1x
  • Suporta QoS cu 4 with 4 Reguli de Prioritate si Port Mirroring
  • Suporta Shaping per port, Policing si Broadcast Storm ControlSuporta
  • Multicast/Broadcast/Unknown-Unicast Storm suppression



ES-5160G+ este un switch web smart care indeplineste toate conditiile prevazute de IEEE 802.3/u/x/z. Are 12 porturi 10/100/1000 Base-TP si 4 porturi dual media pentru 10/100/1000Base-T sau module SFP. Switch-ul poate fi administrat prin port Ethernet folosind un browser web. Administratorul poate monitoriza, configura si controla activitatea pe fiecare port. In plus, switch-ul are si functiile de QoS (Quality of Service), VLAN, Port Mirror, LACP, Securitate LAN, Multicasting pentru video streaming si SNMP v2c.

Este alegerea perfecta pentru IMM-uri.






Specificatii Detalii
Standarde IEEE 802.3 / 802.3u / 802.3ab / 802.3z / 802.3x / IEEE 802.1q VLAN / IEEE802.1p QoS / 802.1x Network Access
Porturi 12 x 10/100/1000 Gigabit + 4 x 10/100/1000 Gigabit dual media
Memorie Buffer 400 kbiti
Adrese MAC 8 k
VLAN port based / tag based max 24 grupuri
QoS port based
Port Mirroring N Rx port mirroring
Dimensiuni 44 x 442 x 209 mm
Greutate 4.2 Kg
Consum 30 W
Temperatura Operare 0° - 50°C
Umiditate 5 - 90%
Certificari FCC Class A, CE



*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
