Gigabit Fast Ethernet 2-Bay SATA NAS Server

NS-2502

(For Middle East Only)

  • Complies with the IEEE 802.3u and IEEE 802.3ab standards
  • Supports 10/100/1000Base-TX
  • Build-in FTP and Samba server
  • Supports SATA RAID 0 (Striping) / 1(Mirror) for high speed / data backup applications
  • Supports CIFS,NTFS,FAT16,FAT32,ext2,ext3 file systems
  • Supports USB mass storage
  • Supports file sharing via FTP or Network Neighborhood
  • Supports P2P download (Bit Torrent) & FTP/HTTP download agent
  • Supports UPnP, Media Server and iTune Server


High speed NAS Server (Network Attached Storage)
NS-2502 is a storage server through gigabit Ethernet to provide high speed data transmission to share your files in your network, which is not only suitable for small business environment but also the great choice for power users who massively download and access data in the server.

Powerful independent download station—FTP/ HTTP/ P2P BitTorrent download
Supports FTP/ HTTP/ Peer-to-Peer file BT (stands for BitTorrent) download protocol. The storage server download files via BitTorrent download, without turning on your computer. You can also check all BT downloading items in the web UI.

Flexibility Multimedia station– iTunes Server and Media Server
Built-in iTunes Server to share these file by iTunes server and let other computers or iTunes-compatible media players play these media files online. Built in Media Server to share your media files to UPnP or DLNA compliant media adapters and players through network.

Easily SATA HDD driver installation
The storage server with one slide in SATA HDD easily disk drawer design, without screwdriver needed, pull out and fit in the disk drawer only a finger tip.

Friendly Hardware Release button and Copy button
Design with two handy "Release" and "Copy" hardware buttons. Press "Release" button to unplug the external USB mass storage. Press "Copy" button to copy the content from one external USB mass storage to the attached SATA HDD driver.

Share External USB Mass Storage through two USB portsUser can plug in the external USB mass storage (like USB external HDD) to USB 2 ports in front panel, and plug in USB flash disk to USB 1 ports in back panel to share the file or multimedia to all among network users.

Built-in Security
User and Group with three security level settings (No Access, Read Only & Read/Write). Folder level security settings with parental inheritance level to ensure subdirectory has inheritance same authorization from the main directory . Administrative username / password login security for HTML-based configuration utility.

Simple to Install and UseProvides a setup wizard to help user to configure the network setting.



**NS-2502 F/W 0.74a beta version & Utility 0.91a beta version are available. Please check “F/W” & “Driver” in download area.
**Please decompress the downloaded file before upgrade





 HARDWARE
 MEMORY
 File System
 1 x 10/100/1000Mbps Ethernet LAN Ports
 2 x USB Ports
 2 x 3.5” SATA Hard Disk Drawer
 LED Indicators : Power, LAN, Status, USB x2,HDD x2
 Release button, Copy button
 Power Adapter : DC 12V, 4.5A
 Operating Temperature : 0~85 °C
 Humidity : 10~90% (Non-Condensing)
Dimension :165mm x 190mm x 77mm
8 MB NOR Flash
64 MB SDRAM
External Hard Disk :
Supports SATA 1, SATA 2
Max Capacity 2TB per Bay
CIFS, NTFS, FAT16, FAT32,EXT2, EXT3
Max File Size:
    FAT16    2GB
    FAT32    4GB
    EXT2/3 > 4GB

 FUNCTIONS
 MANAGEMENT
 CONFIGURATION
 Build-in FTP and Samba server
 Provides USB mass storage sharing function
 Share files via FTP or Network Neighbourhood
 Supports FTP/ HTTP download agent
 Supports P2P (BitTorrent) download
 Supports UPnP/DLNA Media Server,  iTunes Server
Supports Workgroup setup
Supports User account
management
Supports Samba, FTP share permission management
Supports HDD Partition tool
Supports web configuration
Firmware Upgradeable
Disk Drive Partition and
Format
USB Copy
Firmware Upgrade
Configuration Backup
and Restore
System Reset
 SECURITY
 FILE SHARING
 CERTIFICATIONS
 User and Group level security settings (No Access, Read Only & Read/Write).
 Folder level security settings with parental inheritance.
 Administrative username / password login security for HTML-based configuration utility.
Max User Account : 32
Max Groups : 12
Max Shared Folders : 100
Max Concurrent Connections : 32
FCC Class B, CE, C-Tick

 NETWORK SETUP DIAGRAM AND RELATED PRODUCTS

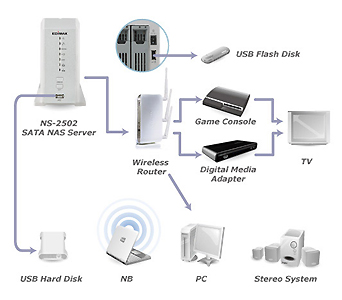

The network diagram of NS-2502 :
1. Please check if your network has one exist wire/ wireless router. The NS-2502 will be connected to the Router with (RJ45) LAN port for storage sharing.
2. Please prepare one or two SATA hard disk driver and fix it in the SATA disk drawer of NS-2502.
3. Connect the device you needed to share the file from NS-2502 via same network.
    (Please refer below application diagram).
4. Also you can connect to USB 1 port with your USB flash disk or iPod device to share the data directly from  NS-2502.

Compliant List

Devices :DLNA Supported Devices, PS3, Xbox 360

Note: DLNA lab approved: Samsung Electronics SENS X20,CyberTAN Digital Media Adapter

Video files: asf, avi, dv, divx, wmv, mjpg, mjpeg, mpeg, mpg, mpe, mp2p, vob, mp2t, m1v, m2v, m4v, m4p, mp4ps, ts,ogm, mkv, rmvb, mov, qt, hdmov

Audio files: aac, ac3, aif, aiff, at3p, au, snd, dts, rmi, mp1, mp2, mp3, mp4, mpa, ogg, wav, pcm, lpcm, l16, wma, mka, ra,rm, ram, flac

Images files: bmp, ico, gif, jpeg, jpg, jpe, pcd, png, pnm, ppm, qti, qtf, qtif, tif, tiff

Playlist files: pls, m3u, asx

iTunes Server: Audio files: mp3,m4p
                           Playlist : m3u

OS compatibility:
File server(Samba server,FTP server):Windows (from Win98 to Vista),Linux,Mac。

Supports browsers:
Internet Explorer: 6.0 or higher
Netscape Navigator: 7.2 or higher
Firefox: 2.0.0.3 or higher

*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
