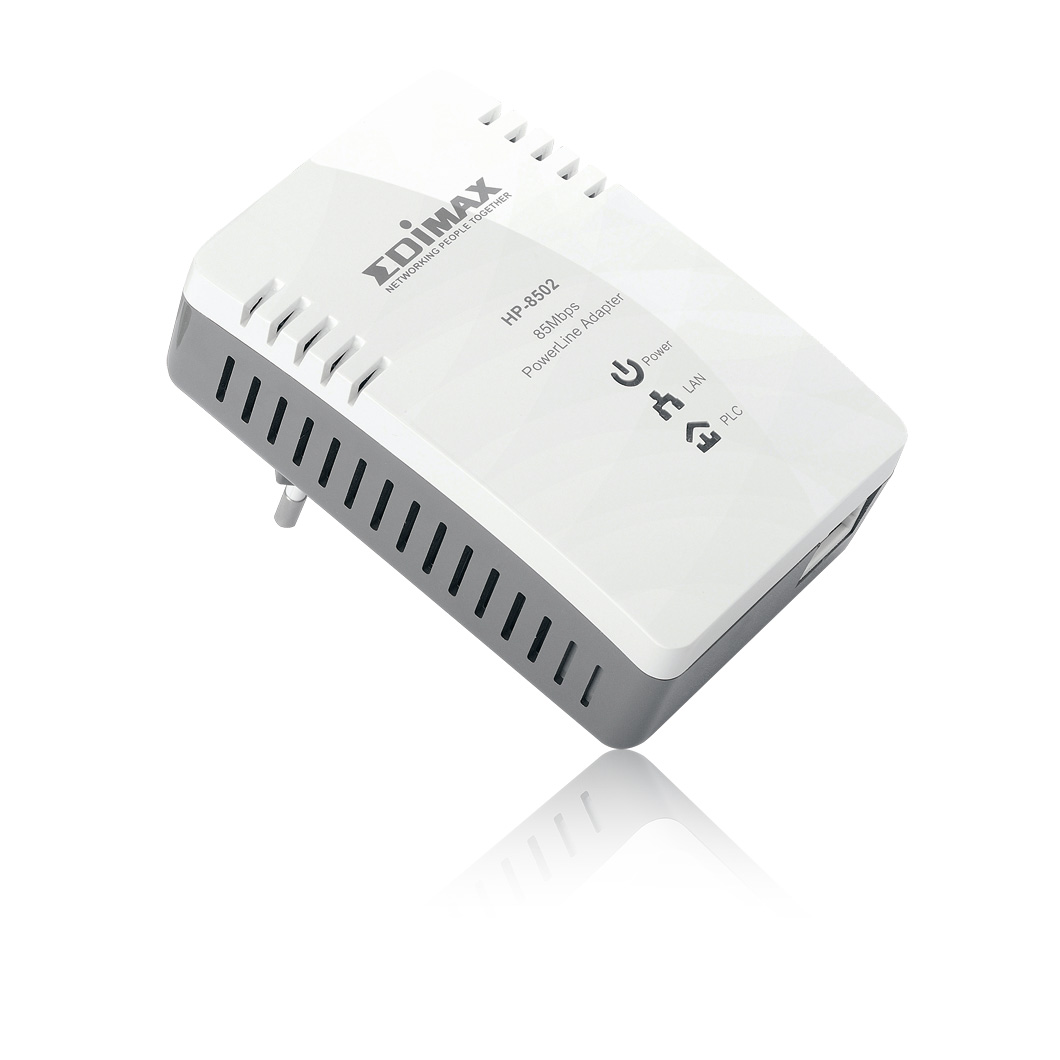

85Mbps PowerLine Ethernet Adapter

HP-8502

(End-of-Life Product)

  • Complies with 85Mbps HomePlug 1.1 and IEEE 802.3 / 802.3u Standards
  • Uses the electrical wire to transmit data like an Ethernet network
  • Supports 56-bit DES link encryption to secure Powerline data transmission
  • Supports IGMP and QoS for IPTV and VoIP application
  • Easy Installation and transmission ranges up to 200 meters
Share


Easy Installation
HP-8502 turns the existing electric wires in your home or office into a high-speed network. You don't have to install the network cables and be annoyed with the cables planning-- just use the wires that already run through the building!

Just plug HP-8502 into the power socket on the wall, and connect your Ethernet-equipped device to HP-8502 using the included network cable, and you've turned your whole house into network infrastructure! Attach more computers to the network by simply plugging them into the power sockets in the house , with HP-8502.

85Mbps High Throughput & Supports IGMP v2
Once your computers are connected to the network, they can share resources like printers and storage space, and all kinds of files -- music, digital pictures, and documents. IGMP can be used for online streaming video and gaming, and allows more efficient use of resources. With up to 85Mbps data rates and IGMP multicast, you can run streaming video and VoIP applications smoothly. You can also share Internet connection by connection HP-8502 to the broadband router. The network connection has never been so easy!

Supports QoS and 56-bit Encryption
HP-8502 built-in Quality of Service ( QoS ) can provide an efficient way for computers on the network to share the internet bandwidth with a promised quality of internet service. With 56-bit encryption, HP-8502 can improve security level. It is a good choice for you to create a new network or to rearrange of the existing network.

Share


HARDWARE INTERFACE MODULATION POWER
  • 1 Power jack + 1 LAN 10/100Mbps Ethernet Port
  • LED Indicators: Power, Ethernet and Powerline
  • Supports QAM 256/64/16/8, QPSK, ROBO,BPSK, carrier Modulation
  • OFDM with patented signal processing techniques for high data reliability in noisy media conditions.
  • 100~240V AC 50/60 MHz
  • Consumption 2.5W
SECURITY & SUPPORT OS FREQUENCY BAND HUMIDITY
  • 56-bit DES Encryption
  • Utility supports
    Windows 98SE/ME/2000/32&64 bit XP/32&64 bit Vista
  • 4 ~ 21 MHz
  • 10-90%
    (Non-condensing)
FUNCTIONS DIMENSION & TEMPERATURE CERTIFICATIONS
  • Powerline Coverage Range up to 200 meters
  • Supports IGMP V2
  • Supports IPv6
  • Supports16 PowerLine devices
  • Plug and Play
  • Integrated Quality of Service ( QoS ) :
    Prioritized random access / Contention-free access / Segment bursting
  • 99 x 64 x 45 mm
  • 0~45 Degree Celsius
  • CE

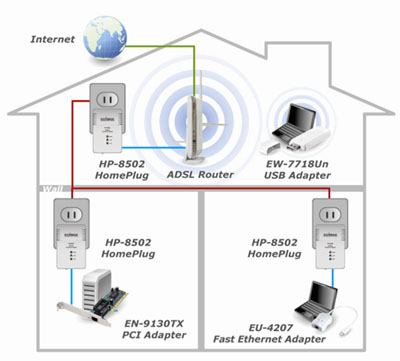

NETWORK SETUP DIAGRAM AND RELATED PRODUCTS

An example of how the HP-8502 can be setup :

  • Plug the HP-8502 to the power outlet and Connect the HP-8502 to your Broadband router.
  • Plug the other HP-8502 to the power outlet and Connect the HP-8502 to your computer's Ethernet port .







*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
