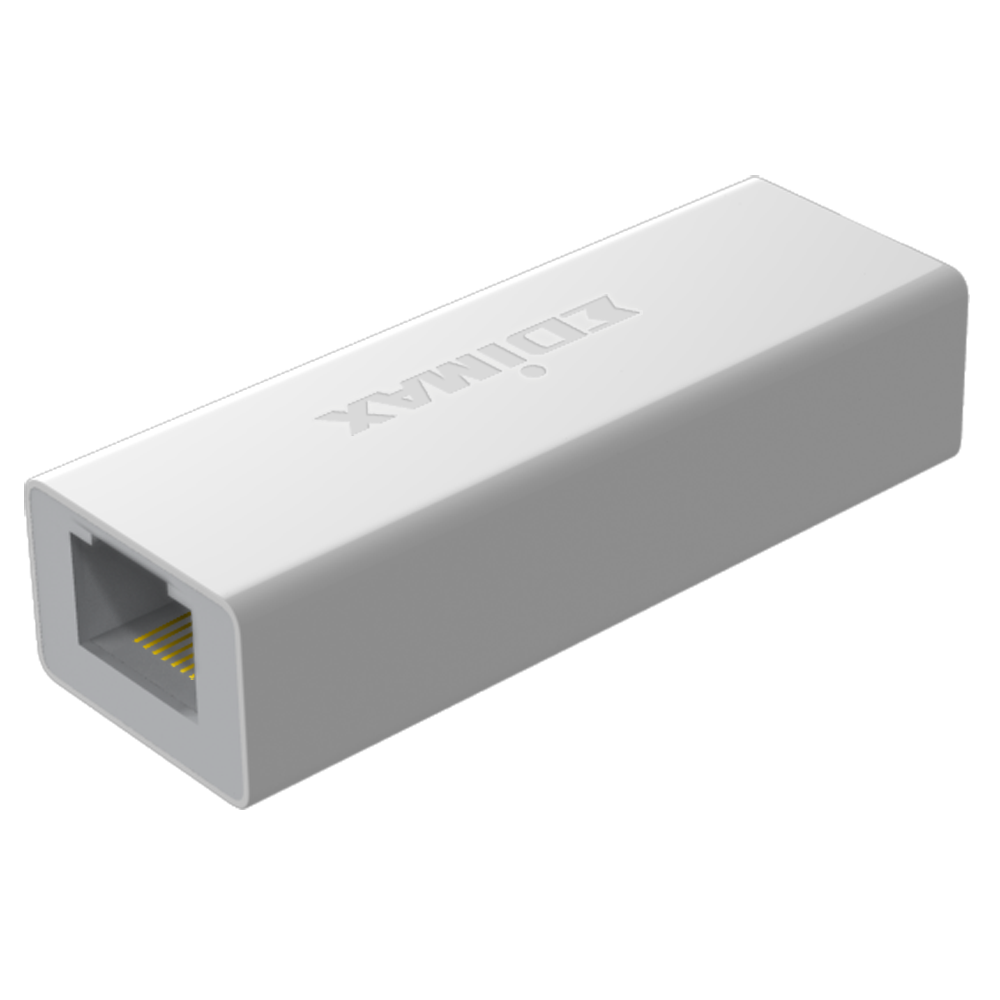

N150 Wireless Personal Hotspot & Travel Router

BR-6258nL

  • The world’s tiniest travel router and personal hotspot
  • Adds Ethernet Connectivity to Devices
  • Compact and portable, and capable of storing your login information for multiple networks
  • Multiple wireless devices, including smartphones, ultrabooks, and tablet computers, can go online at once

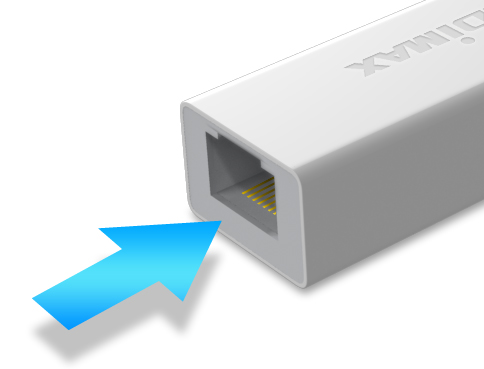

Adds Ethernet Connectivity to Devices
Allows wireless devices to go online even when only Ethernet Internet is available

BR-6258nL Adds Ethernet Connectivity to Devices








Personal Hotspot
Multiple wireless devices, including smartphones, ultrabooks, and tablet computers, can go online at once

BR-6285nL Personal Hotspot










Anytime, Anywhere
Compact and portable, and capable of storing your login information for multiple networks

BR-6258nL Anytime, Anywhere

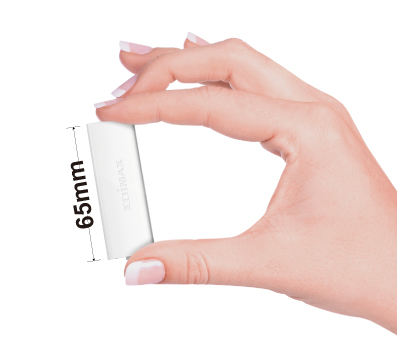

World’s Smallest
The world's tiniest travel router and personal hotspot is perfect for the modern and tech-savvy jetsetter

BR-6258nL World's Smallest








FEATURES

Wireless 11n speed
Complies with IEEE 802.11b/g/n standards, up to 150Mbps .

Share single account with multiple devices
Share a single internet connection with multiple wireless devices such as smartphones and ultrabooks.

3-in-1 operations:
Router, access point, WISP(Wireless ISP).

Secured wireless encryption
WEP 64/128 bit, WPA and WPA2.

Smart iQ Setup
Features iQ Setup for smart and automatic quick installation.

Access Keeper
Remembers the login information and settings for a connection, and automatically applies them the next time the user tries to log on there.*

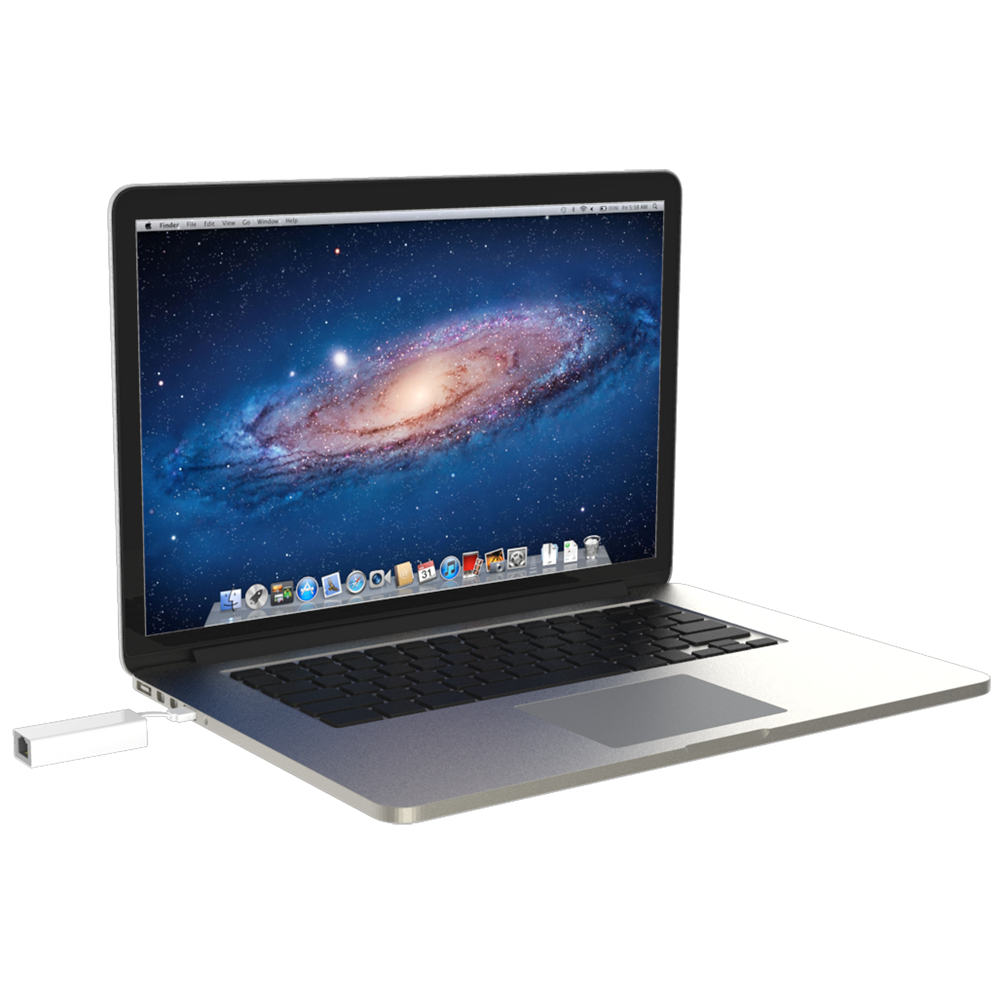

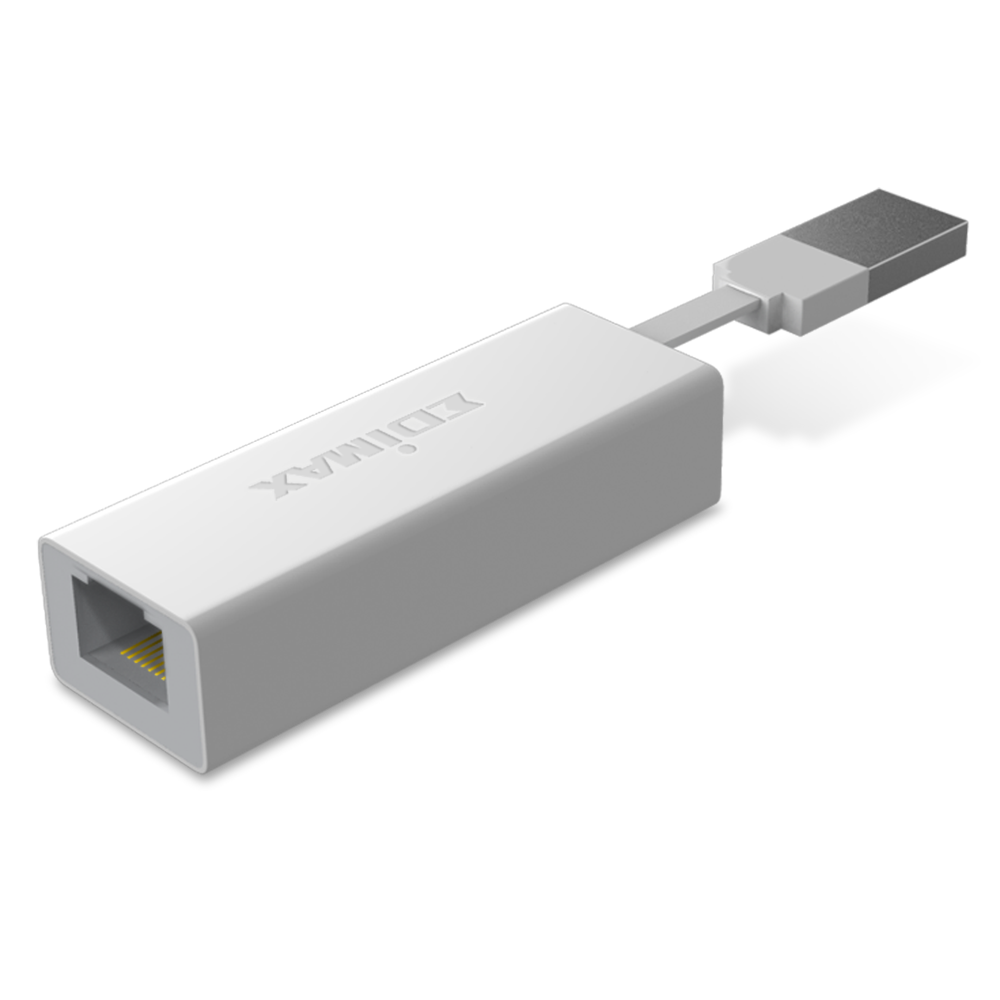

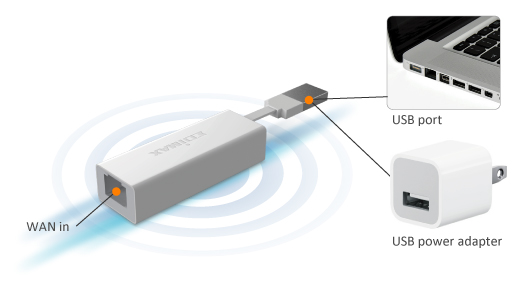

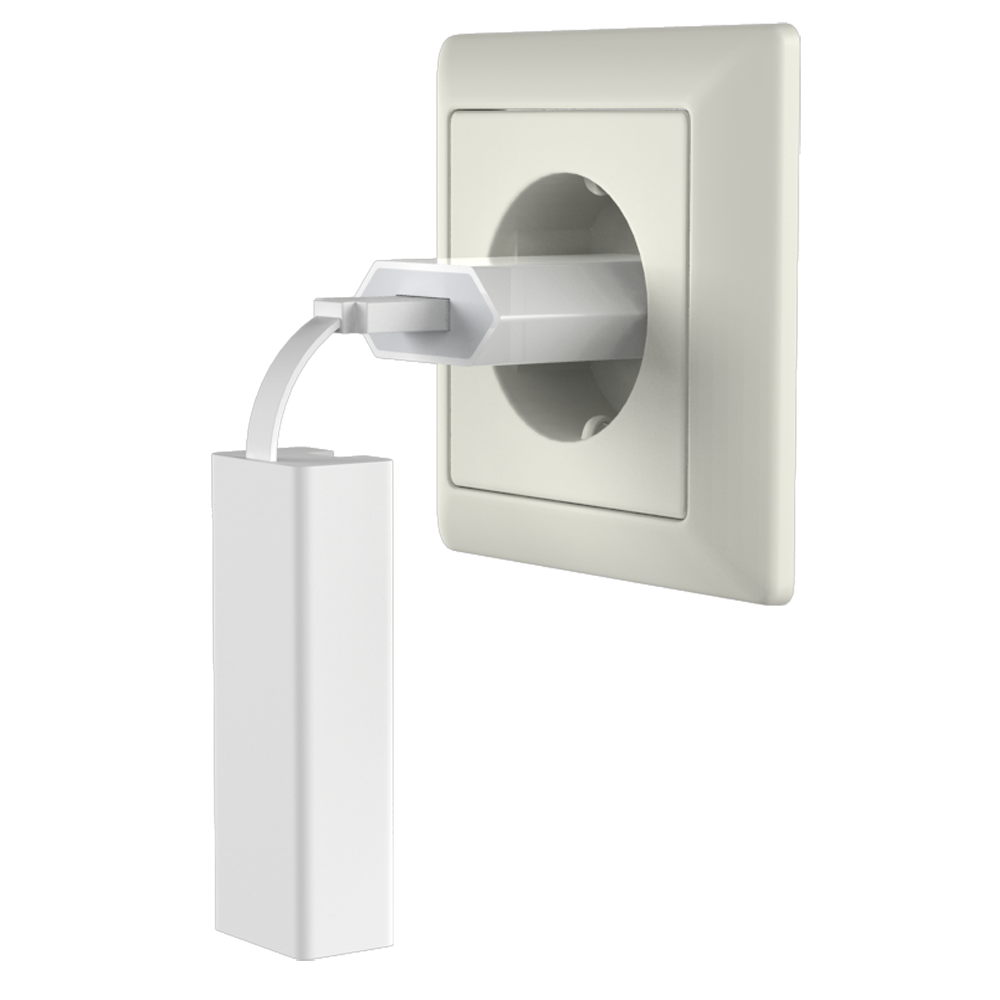

Powered by USB port
Powered by a laptop’s USB port or by a portable USB adapter, no external power adapter required.

Miniature, space-saving, stylish
Compact size and multiple features for every modern traveler and businessman.








APPLICATIONS

Home Extender Mode

Edimax BR-6258nl Home exendderm mode




Hotel Wired Mode

Edimax BR-6258nL Hote wired mode




WISP Mode

Edimax BR-6258nL WISP Mode











NETWORK DIAGRAMS



Access Point Mode:
The travel router converts a wired Internet connection from a router into a wireless connection, for multiple wireless devices.

Edimax BR-6258nL AP mode

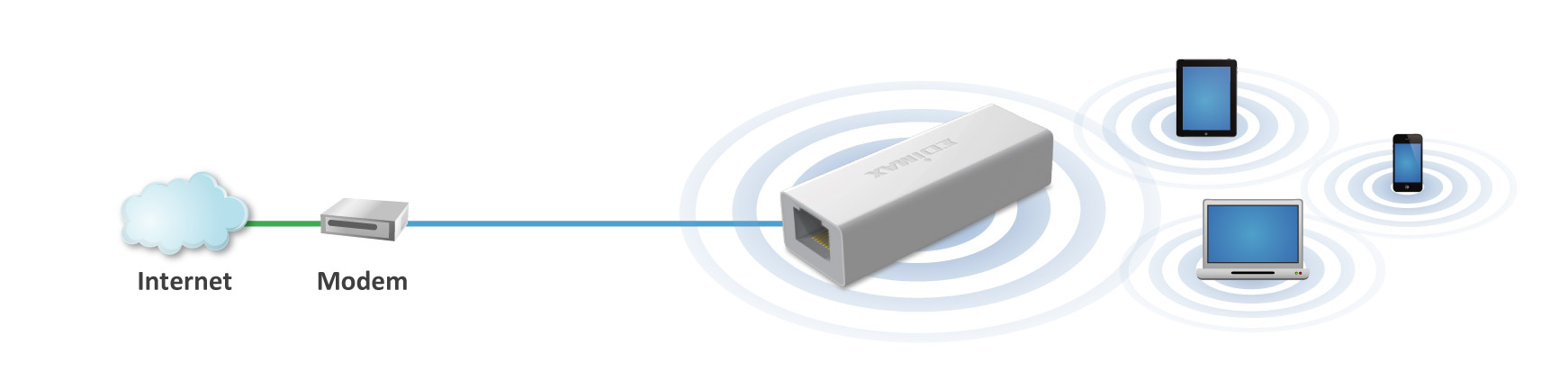

Router Mode:
The device connects directly to a modem, and acts as a router while broadcasting a wireless signal for multiple wireless devices

Edimax BR-6258nL Router mode

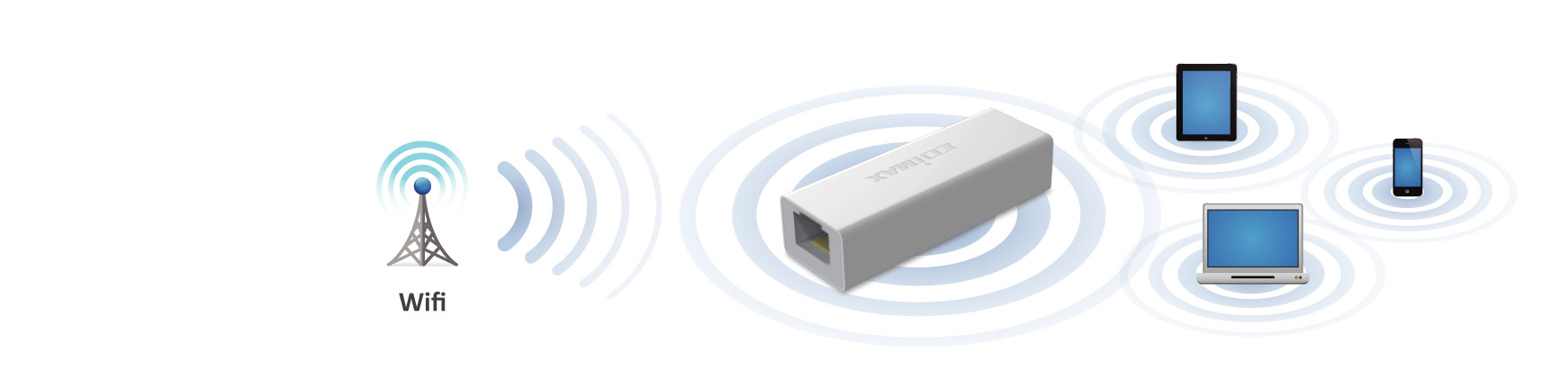

WISP Mode:​
The device receives a wireless signal and repeats it for multiple wireless devices

Edimax BR-6258nL WISP mode





SPECIFICATIONS

FUNCTIONS

HARDWARE INTERFACE

MANAGEMENT

•Supports Router, AP, and WISP modes
•NAT/NAPT IP Sharing
•DHCP server
•Port triggering for special applications
•DNS and DDNS
•DMZ hosting
•UPnP architecture
•VPN passthrough(IPSec/PPTP)
•QoS(Quality of Service) for advanced bandwidth management

•1 x RJ-45 10/100Mbps WAN Port
•LED Indicators: Power, WPS
•Internal antenna
•WPS/Reset button

•12-language user interface
•System status and security log (web interface)
•Firmware upgradeable

WAN

SECURITY

OUTPUT POWER & SENSITIVITY GAIN

•Supports WISP connection mode
•Supports RJ-45 cable/xDSL modem
•Supports PPPoE, static IP, PPTP, dynamic IP, L2TP2

•64/128-bit WEP encryption and WPA-PSK, WPA2-PSK security
•802.1x authentication
•Access control
•MAC/IP filter and URL blocking
•SPI anti-DoS firewall

11n: 14±1.5dBm,
11g: 14±1.5dBm,
11b: 17±1.5dBm

ANTENNA

INSTALLATION

HUMIDITY & TEMPERATURE

•Internal antenna

•Multi-language iQ Setup (Web interface)

•10-90% (non-condensing)
•0-45°C

POWER ADAPTER

DIMENSIONS & WEIGHT

 CERTIFICATIONS

•No

•65 (W) x 15.25 (D) x 21.25 (H) mm

•CE, FCC




PACKAGE CONTENT
  • Travel Router (1 pcs)
  • Quick installation guide (1 pcs)
  • CD with multi-language QIG and user manual (1 pcs)


HARDWARE INTERFACE

BR-6258nL installation, Edimax N150 WirelessPersonal Hotspot & Travel Router



BR-6258nL installation, Edimax N150 WirelessPersonal Hotspot & Travel Router

*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
