AC1200 Wi-Fi 5 Dual-Band Router

BR-6476AC

  • Wi-Fi 5, AC1200: Max. speed up to 300Mbps (2.4GHz) & 867Mbps (5GHz).
  • 4 High Gain Antennas: Enhance Wi-Fi signal for maximum range.
  • 4-in-1 Mode: Router, Access Point, Wi-Fi Extender, and WISP.
  • Backward Compatible: Compatible with 802.11b/g/n standards.
  • Concurrent Dual-Band: Wireless connectivity for 2.4GHz and 5GHz.
  • Smart Setup: for smart, automatic and quick installation.
  • WPS: Easy One-Click Setup with Wi-Fi Protected Setup (WPS) button.
Share


​​


The Most Widely Used Wi-Fi Standard

The BR-6476AC 4-in-1 router adopts the most widely used Wi-Fi 5 standard: IEEE 802.11ac and provides significantly improved coverage with four high-gain antennas. Operating as a router, access point, range extender or WISP, the BR-6476AC’s flexibility can handle that of many demanding multimedia applications. Impressive performance makes the BR-6476AC an excellent solution for large homes or offices.










  BR-6476AC




BR-6476AC





Upgrade your Network to an 11ac Wi-Fi

The BR-6476AC upgrades your network to 11ac, which operates in both 5GHz and 2.4GHz band. Wi-Fi 5, the 802.11ac, is the most compliant Wi-Fi standard for current home wireless networking. With combined wireless speeds of up to 1200Mbps, the device provides better speeds and coverage. You can run multiple bandwidth-intensive applications in a large home or office. The router is also backward compatible with 802.11 b/g/n to ensure compatibility with legacy Wi-Fi devices.



BR-6476AC



​


Concurrent Dual-Band Wi-Fi Connectivity

The BR-6476AC optimizes your Wi-Fi connectivity speed by operating both 2.4GHz and 5GHz that ensures an interference-free performance. While you’re enjoying HD video streaming or playing online games over the 5GHz band, other tasks, such as emailing, online chatting, or web surfing can be well handled by the 2.4GHz simultaneously.







BR-6476AC

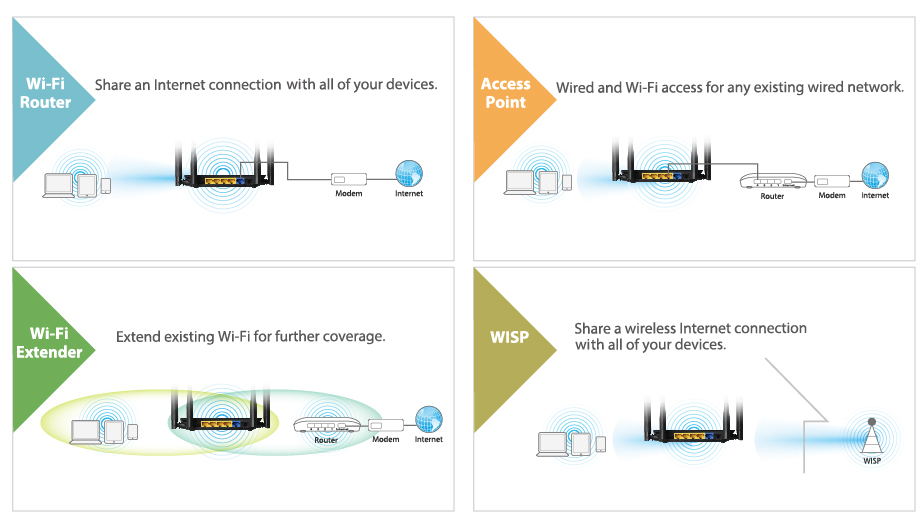

4-in-1 Mode

The BR-6476AC can work as 4 major modes for wireless networking, including router, access point, range extender, and WISP modes. You can use it as a router for Internet sharing, as an access point for switching a wired connection into a wireless network, extending the signals as a range extender, or sharing a wireless Internet connection with all your devices. Switch modes according to your environment or needs by using the easy smart setup wizard.









BR-6476AC



4 High-Gain Antennas for Maximum Coverage

Employing four external high-gain fixed antennas, the BR-6476AC provides powerful 2.4GHz and 5GHz dual-band signal strength and enhanced Wi-Fi range, providing good signal coverage across your large home or office.









BR-6476AC

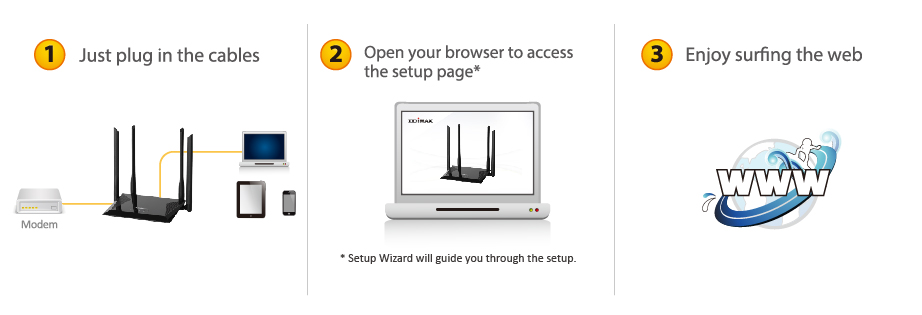

Easy Setup

Simple browser-based setup over iPad, tablet, smartphone, or computer makes the BR-6476AC installation as easy as 1,2,3.







BR-6476AC

Share


SPECIFICATIONS

HARDWARE ​

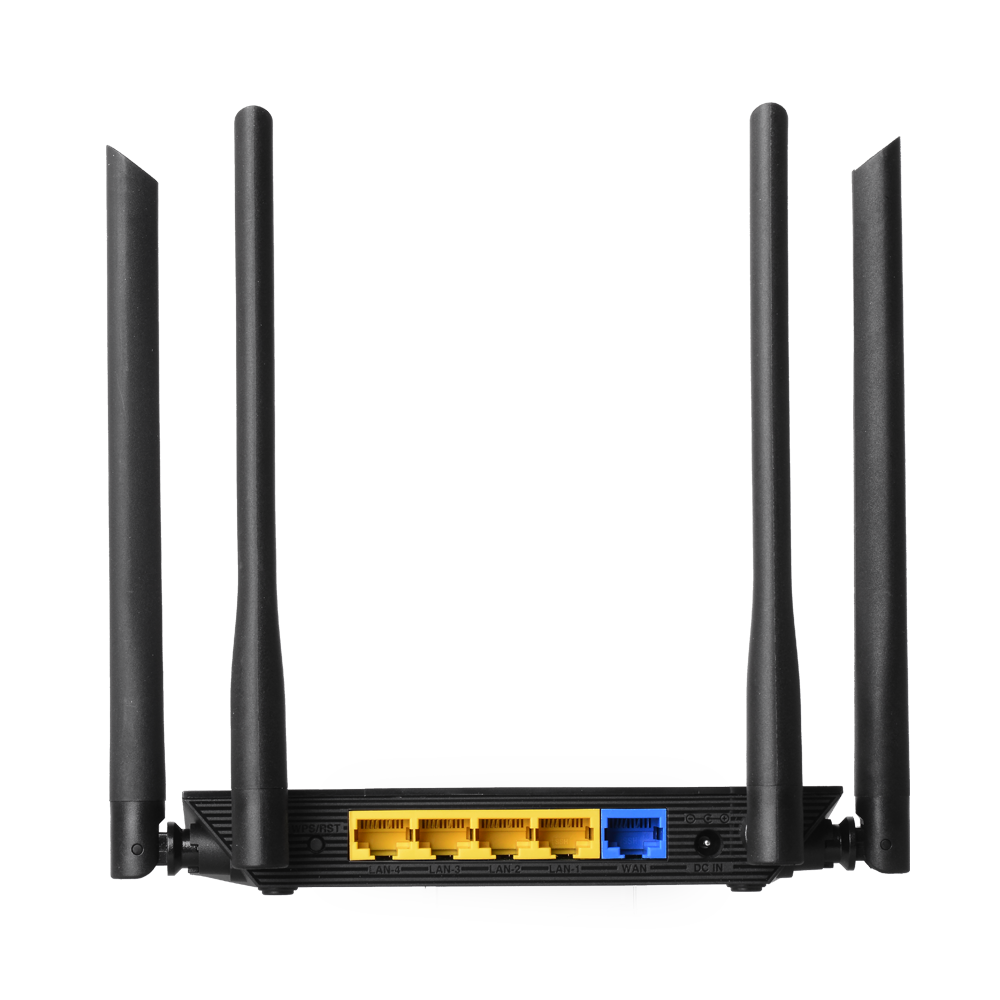

Interface  1 x RJ-45 10/100 Mbps WAN port, 4 x RJ-45 10/100 Mbps LAN port
Button Reset/WPS Button
LED Indicator 5G, 2.4G, WAN, LAN, WPS
Antenna  4 x antenna (2 x 2.4GHz and 2 x 5GHz), Fixed Omni Directional Antenna
Memory 8 MB ROM, 64 MB RAM
Power Adapter DC 12V, 1.0A
Dimensions / Weight  153(W)mm x 106(D)mm x 24(H)mm, 474g
WIRELESS
Standards  802.11 b/g/n/ac
Frequency 5GHz and 2.4GHz concurrent dual-band
Maximum Data Speed  5GHz: 867Mbps, 2.4GHz: 300Mbps
Receive Sensitivity

11AC:   - 20M mode≤ -57dBm, - 40M mode≤ -54dBm, - 80M mode≤ -51dBm

11N:   - 11b_11Mbps: ≤ -79dBm, - 11g_54Mbps: ≤ -68dBm, - HT20_MCS7: ≤ -67dBm, - HT40_MCS7: ≤ -64dBm
Transmit Power  11N: 16dBm(2.4GHz), 11G: 17dBm(2.4GHz), 11AC:13dBm (5GHz )
Security WPA-Personal, WPA2-Personal, WPA-Personal/WPA2-Personal, wireless access control，Support hidden SSID
SOFTWARE FEATURES
Management  Management, Remote Management, System Status and Security log, Firmware Upgradable, Smart Setup, No Drivers Required.
WAN Setting  Basic Setting, Security Setting, Access Control, WPS
Virtual Setting Port Range, DMZ, UPnP
DHCP DHCP Server, Static IP Address Binding, DHCP Client List
Security Setting URL Filter, MAC Filter, Client, WAN ping
Operation Mode Wi-Fi Router, Access Point, Extender, WISP
OTHERS
Certification CE, RoHS
Environmental Condition Operating humidity: 10 - 90% (non-condensing), Operating temperature: 32 - 104°F (0 - 40°C)






*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
