Smart AC1200 Dual-Band Wi-Fi Extender/Access Point/Wi-Fi Bridge

EW-7478AC

  • 11ac Super High-Speed Dual-Band Wi-Fi: Offers the latest 11ac Wi-Fi technology with high-speed capacity up to 1200Mbps (N300 + AC867Mbps)
  • Eliminate Wi-Fi Dead Zones: Extend the range of existing 802.11ac/a/b/g/n Wi-Fi
  • Smart 3-in-1 modes: Access Point, Wi-Fi Extender or Wi-Fi Bridge
  • Smart iQ Setup: Smartphone, tablet or web-browser setup with no CD or computer required
  • Smart App Control & Analytics: Free EdiRange app with Wi-Fi analytics, scheduling and guest network
  • Green Wi-Fi Power Switch: Switch between normal & green Wi-Fi power and turn off when not in use
  • Cross-Band Technology for Maximum Speed: Data is transmitted on one band and received on the other band, a faster network with better performance.
  • Signal Strength LED Indicator: Finds the best location for optimal Wi-Fi coverage
  • Wi-Fi Scheduling: Program intelligent schedules to manage your Wi-Fi
Get EdiRange app from:
EdiRange from App Store EdiRange from Google Play


The Edimax EW-7478AC is an 11ac high-speed smart Wi-Fi extender with built-in power adapter and a compact design which plugs directly into an electrical outlet. Double the signal coverage of your Wi-Fi network for better Wi-Fi quality around your home. With smart iQ Setup, installation is quick and easy and the EW-7478AC features three operating modes: Wi-Fi extender, access point or Wi-Fi bridge. Use whichever mode you need for your network. Additionally, the extender complies with IEEE 802.11ac and IEEE 802.11 a/b/g/n wireless standards, for concurrent dual-band wireless speeds up to 1200Mbps (300Mpbs on 2.4GHz + 867Mbps on 5GHz). With the Edimax EW-7478AC you can enjoy high-speed wireless networking throughout your home without additional cabling. And the EW-7478AC works together with the free EdiRange smartphone app to provide local Wi-Fi environment analytics as well as Wi-Fi scheduling functions and guest network management.

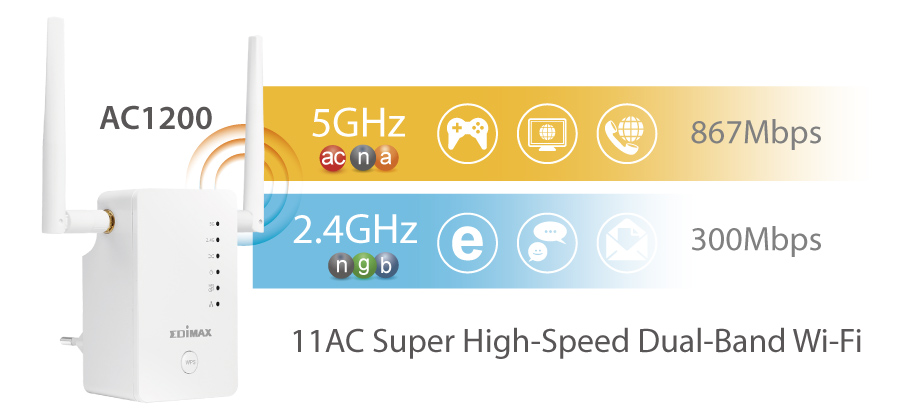

11ac Super High-Speed Dual-Band Wi-Fi
Offers the latest 11ac Wi-Fi technology with high-speed capacity up to 1200Mbps (N300 + AC867Mbps) and extends both 2.4GHz and 5GHz wireless connections at the same time.


Edimax EW-7478AC ​Smart AC1200 Dual-Band Wi-Fi Extender/Access Point/Wi-Fi Bridge, 11ac dual-band super high-speed, AC1200

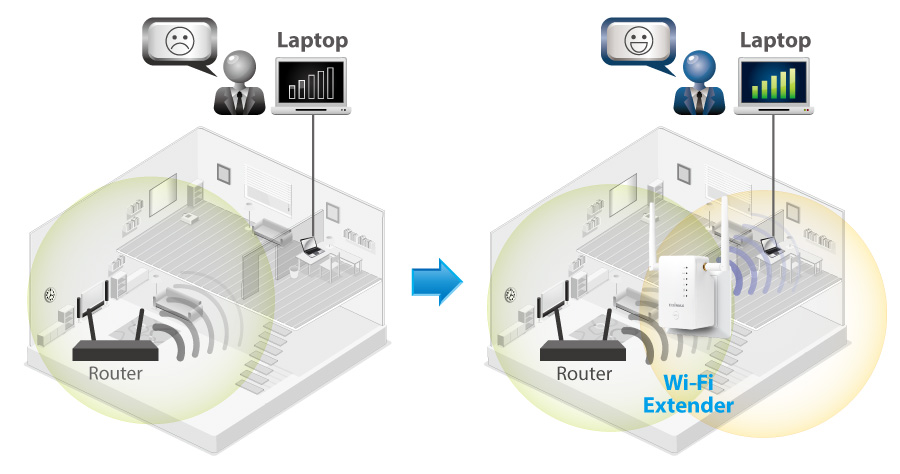

Eliminate Dead Zones & Double Wi-Fi Coverage
Extend Wi-Fi coverage to dead zones which your existing Wi-Fi signal can’t reach. Plug the extender directly into an electrical outlet and double the signal coverage of your Wi-Fi network for better Wi-Fi quality across different rooms or multiple floors in your home.



Edimax EW-7478AC ​Smart AC1200 Dual-Band Wi-Fi Extender/Access Point/Wi-Fi Bridge, eliminate dead zones and double Wi-Fi coverage

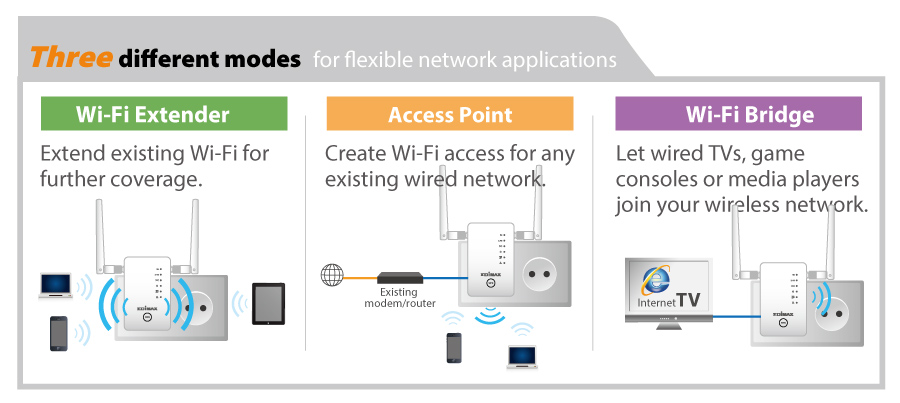

Smart 3-in-1 Extender, Access Point and Wi-Fi Bridge
The EW-7478AC can work as Wi-Fi extender, access point or Wi-Fi bridge. Just configure the mode you need for your network environment using the smart iQ Setup wizard and enjoy surfing the web.



Edimax EW-7478AC Smart AC1200 Wi-Fi Extender, Access Point, Wi-Fi Bridge, 3-in-1

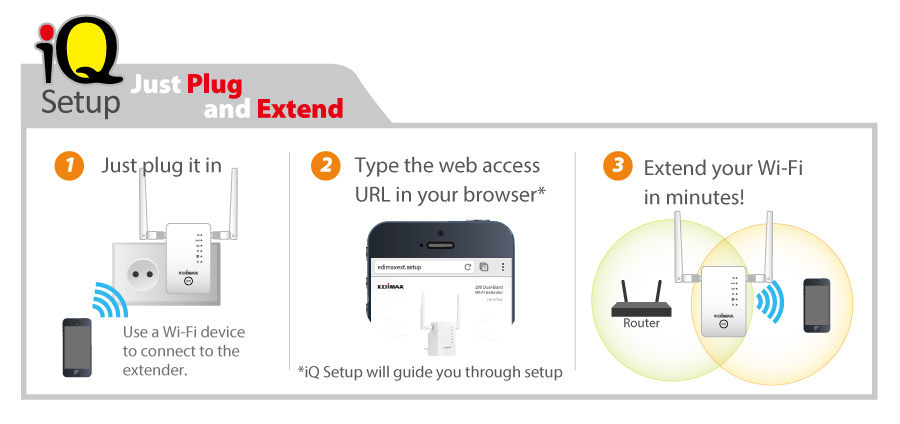

Smart iQ Setup
Features user-friendly browser-based iQ Setup for smart, automatic and quick installation. iQ Setup automatically detects the available Wi-Fi networks nearby and helps you establish a connection in a few seconds.

Edimax EW-7478AC Smart AC1200 Wi-Fi Extender, Access Point, Wi-Fi Bridge, Easy and Smart iQ Setup




Smart App Control & Analytics
The extender works together with the free EdiRange smartphone app which displays your local Wi-Fi environment and provides easy-to-understand analytics. Plus you can manage the extender’s wireless network and functions such as scheduling and guest network.


Edimax EW-7478AC Smart AC1200 Wi-Fi Extender, Access Point, Wi-Fi Bridge, EdiRange App

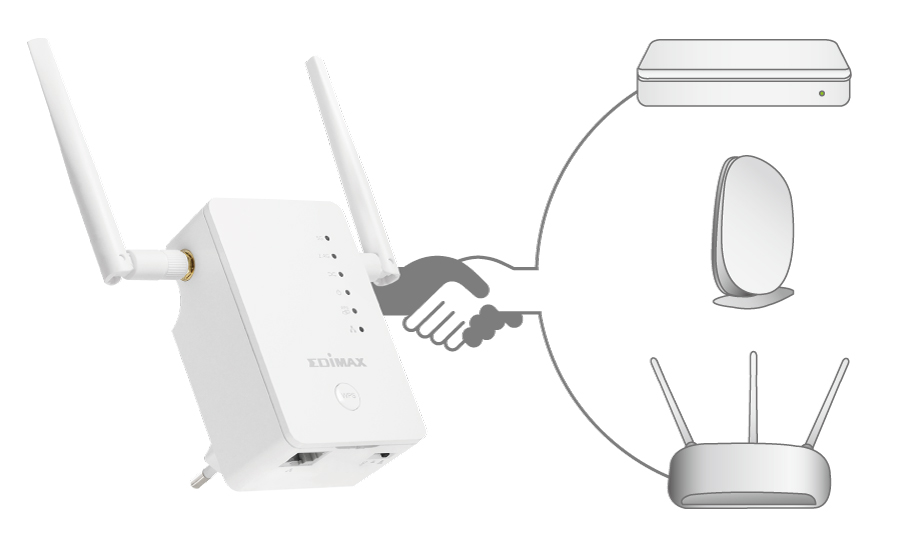

Universal Compatibility, Works With Any Wireless Router
Universal compatibility and easy web-based iQ Setup for quick and easy installation.


Edimax EW-7478AC Smart AC1200 Wi-Fi Extender, Access Point, Wi-Fi Bridge,Universal Compatibility, works with any wireless router

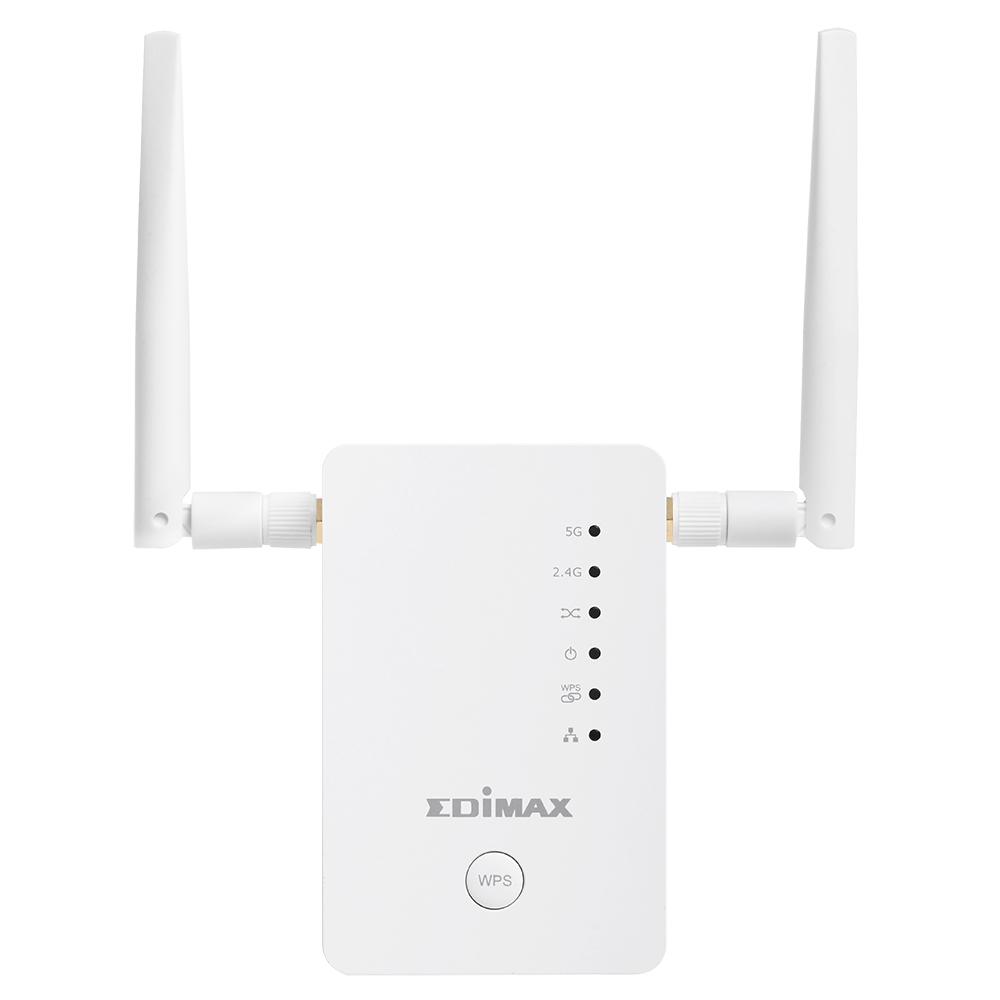

Detachable Antenna
The EW-7478AC designed with a detachable 3dBi dual-band antenna provides flexible and high performance connections for your wireless network.


Edimax EW-7478AC Smart AC1200 Wi-Fi Extender, Access Point, Wi-Fi Bridge,Universal Compatibility, detachable antennas






Green Wi-Fi Power Switch
Featuring a new hardware switch to adjust between normal and green Wi-Fi transmit power (the strength of the Wi-Fi signal) or switch off the power with one click. If you only need Wi-Fi in a smaller house, you can switch to green mode to reduce transmit power by 75% and conserve energy.
Edimax EW-7478AC Smart AC1200 Wi-Fi Extender, Access Point, Wi-Fi Bridge,Universal Compatibility, Green Wi-Fi Power Switch, green mode, normal mode, power off

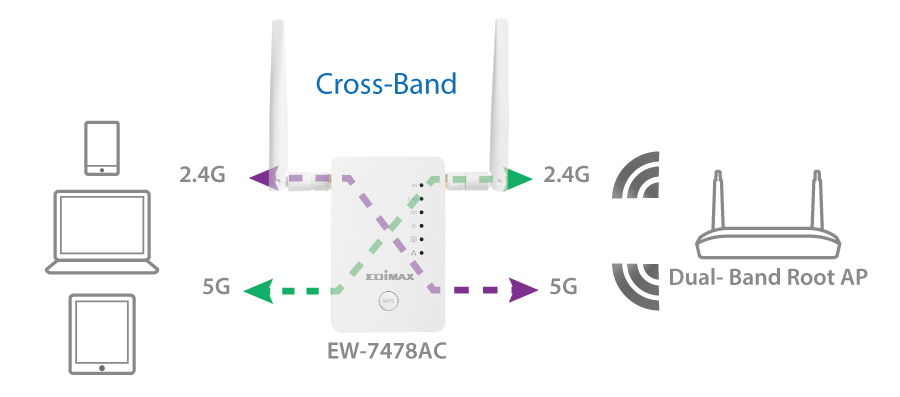

Cross-Band Technology for Maximum Speed
Edimax cross-band technology uses both frequency bands together to maintain your router’s maximum speed capacity through your extender and to your Wi-Fi device. Data is transmitted on one band and received on the other band, meaning no speed loss at your extender and a faster network with better performance. Perfect for high-speed applications such as HD video streaming or online gaming.



Edimax EW-7478AC Smart AC1200 Wi-Fi Extender, Access Point, Wi-Fi Bridge,Universal Compatibility, Green Wi-Fi Power Switch, cross-band

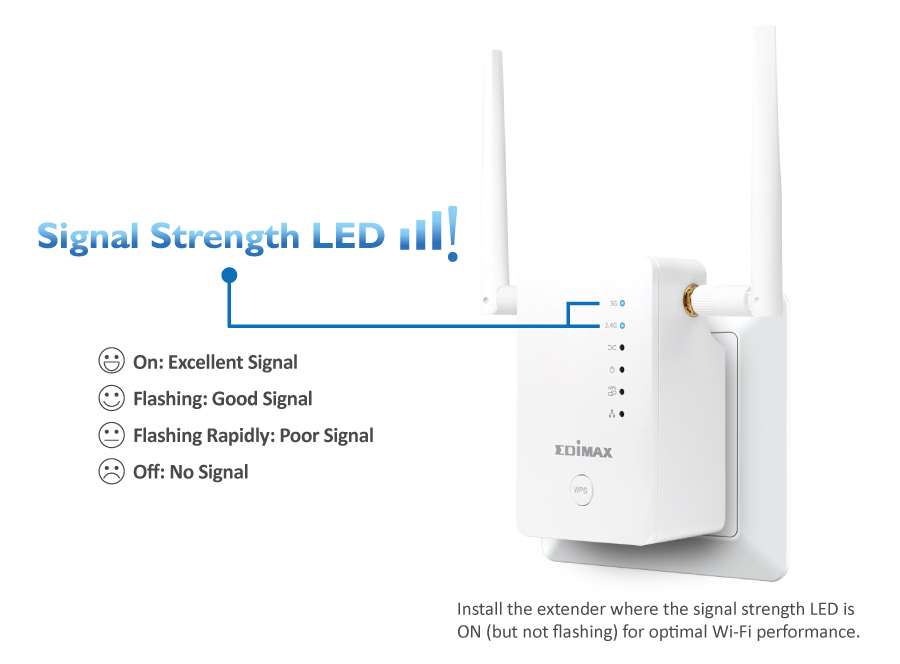

Smart Signal-Strength Indicator
Designed with a signal strength LED which lets you see the Wi-Fi signal strength received from the router* and guides you to find the best setup location.
*Extender or Wi-Fi bridge mode only.

Edimax EW-7478AC Smart AC1200 Wi-Fi Extender, Access Point, Wi-Fi Bridge,Universal Compatibility, Green Wi-Fi Power Switch, smart signal-strength Indicator

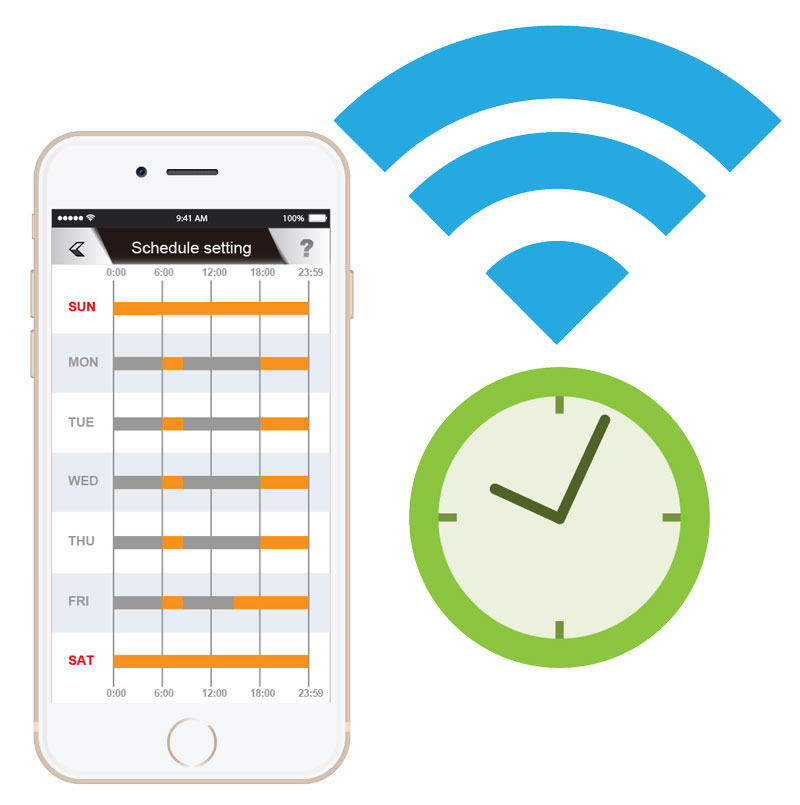

Wi-Fi Scheduling
Program intelligent schedules to manage Wi-Fi availability and power usage according to your home’s routine.


Edimax EW-7478AC Smart AC1200 Wi-Fi Extender, Access Point, Wi-Fi Bridge,Universal Compatibility, Green Wi-Fi Power Switch, Wi-Fi Scheduling

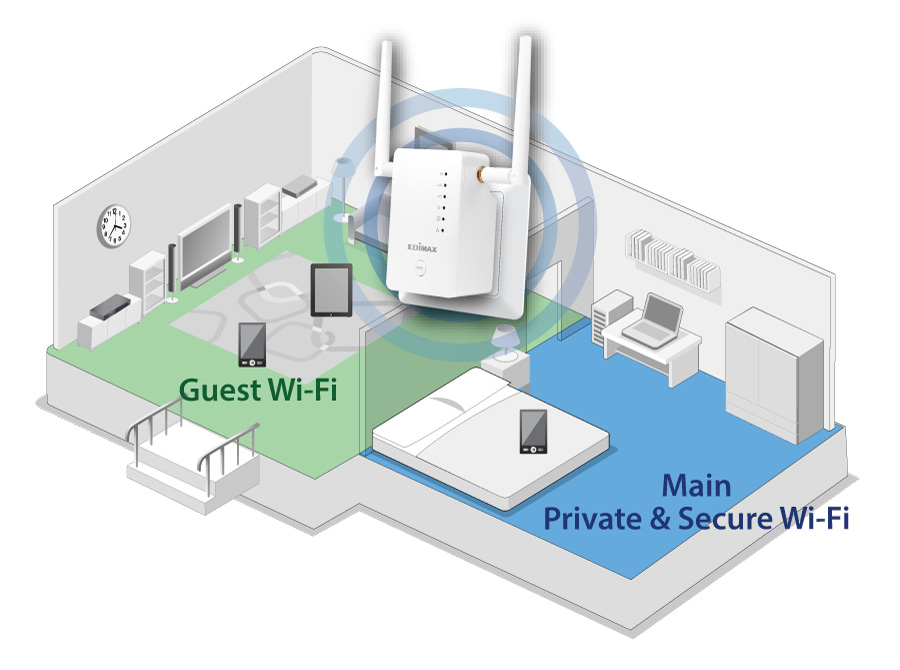

Guest Wi-Fi
The EW-7478AC also features a guest wireless network which could be used for visitors only and help to keep your home Wi-Fi private and secure.

Edimax EW-7478AC Smart AC1200 Wi-Fi Extender, Access Point, Wi-Fi Bridge,Universal Compatibility, Green Wi-Fi Power Switch, guest Wi-Fi

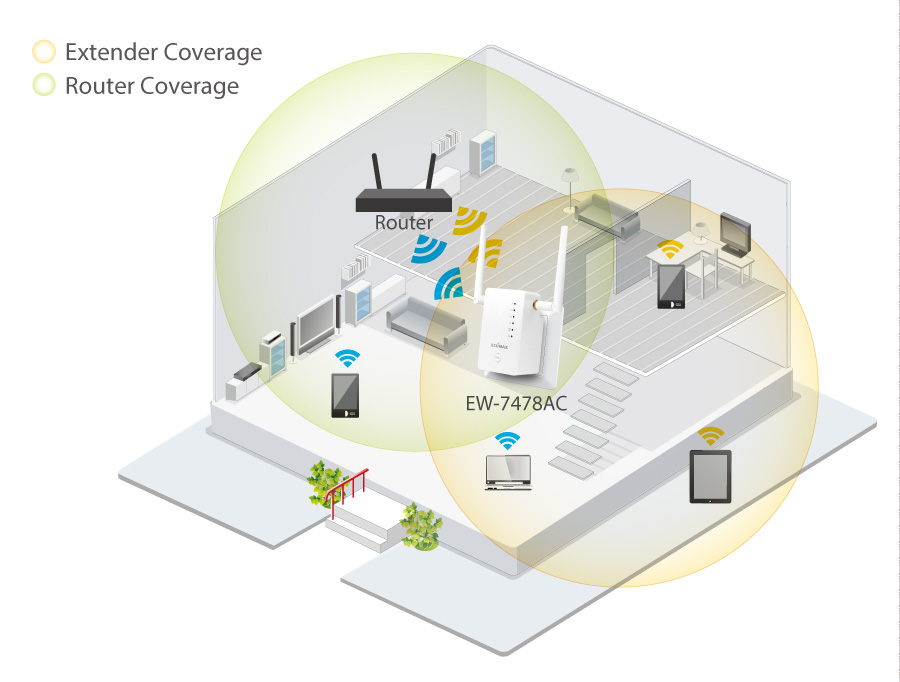

APPLICATION DIAGRAM


Edimax EW-7478AC Smart AC1200 Wi-Fi Extender, Access Point, Wi-Fi Bridge,Universal Compatibility, Green Wi-Fi Power Switch, application diagram, extend Wi-Fi Coverage


SPECIFICATIONS

FREQUENCY BAND

WIRELESS STANDARDS & DATA RATES

HARDWARE INTERFACE

•2.4GHz
•5GHz

•IEEE 802.11ac (up to 867Mbps)
•IEEE 802.11n (up to 300Mbps)
•IEEE 802.11a (up to 54Mbps)
•IEEE 802.11g (up to 54Mbps)
•IEEE 802.11b (up to 11Mbps)

•1 x 10/100Mbps Ethernet LAN port
•1 x Slide switch
•1 x
WPS button
•2 x External detachable antennas
•LEDs: 5GHz, 2.4GHz, Signal indicator, Wireless, Power, WPS, LAN
•1 x AC plug (EU, UK, US, or AU)

MANAGEMENT

SECURITY

SYSTEM REQUIREMENTS

•16-language user interface
•Upgradable firmware

•64/128-bit WEP, WPA-PSK and WPA2-PSK encryption
•802.1x authentication, User access control (in access point mode)
•WPS (Wi-Fi Protected Setup)

•Existing wireless home network (2.4GHz/5GHz) for Wi-Fi extender/Wi-Fi bridge mode, or cable/DSL modem router for access point mode
•Computer with IEEE802.11ac/a/b/g/n Wi-Fi  capability and web browser for software configuration (Internet Explorer, Google Chrome, Firefox, Opera or Safari latest version)
•iOS 6 above or Android 4.x above for mobile app

INSTALLATION

ANTENNA

POWER ADAPTER

•Multi-language iQ Setup (browser interface)
•Hardware WPS button

•2 x External detachable antennas

•Built in AC100-240V, 0.16A 50-60Hz power module

HUMIDITY

TEMPERATURE

PACKAGE CONTENTS

•10-90% (Non-condensing)

•0-40°C (32-104°F)

•EW-7437AC Wi-Fi extender
•Quick installation guide
•CD with multi-language QIG and user manual
•Access key card

DIMENSIONS

WEIGHT

 CERTIFICATIONS

•59 (W) x 91 (H) x 40 (D) mm (power plug & antennas are excluded)

•130g

•FCC
•CE




PACKAGE CONTENT
  • EW-7478AC Wi-Fi range extender
  • CD with multi-language QIG & user manual
  • Quick installation guide (QIG)
  • Access key card

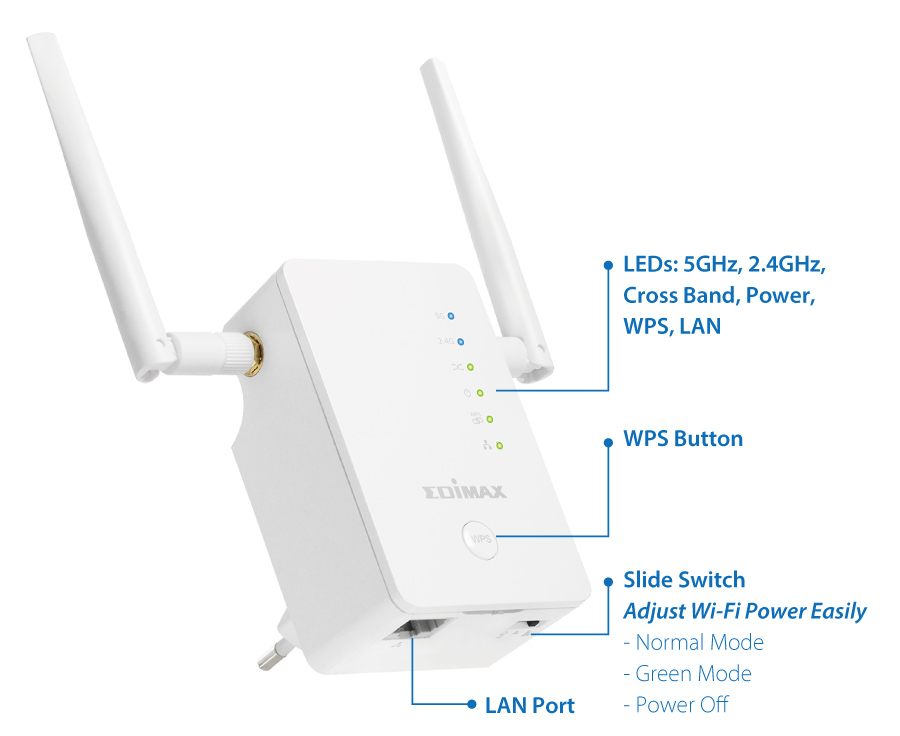

HARDWARE INTERFACE


Edimax EW-7478AC Smart AC1200 Wi-Fi Extender, Access Point, Wi-Fi Bridge, Eliminate Wi-Fi Dead Zones & Double Your Wi-Fi Coverage
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
