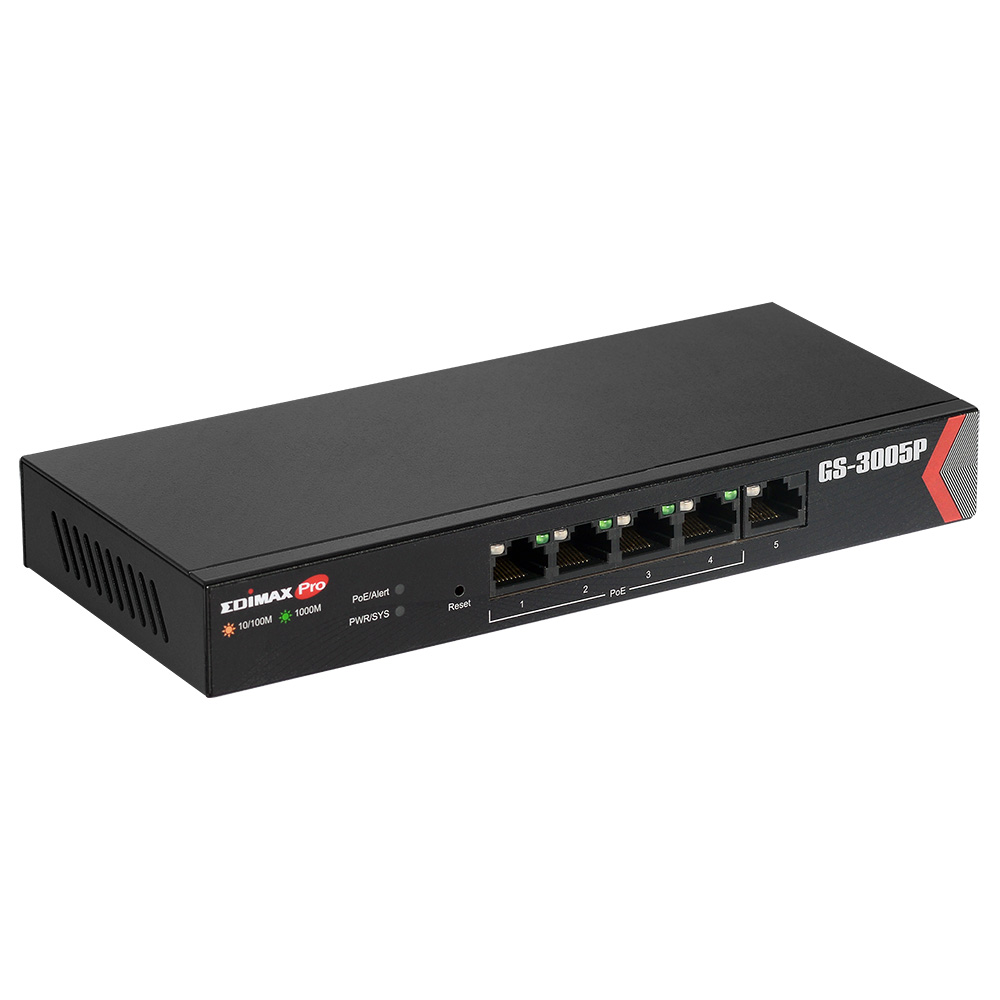

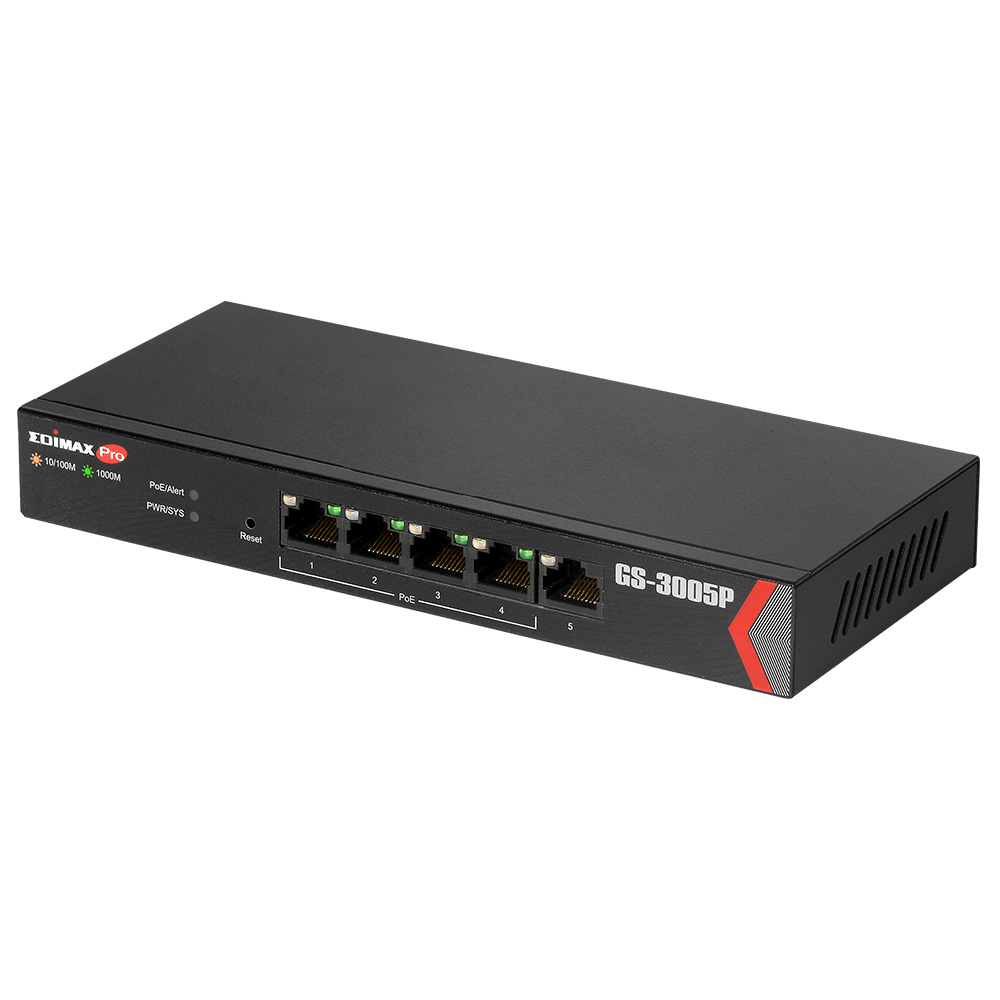

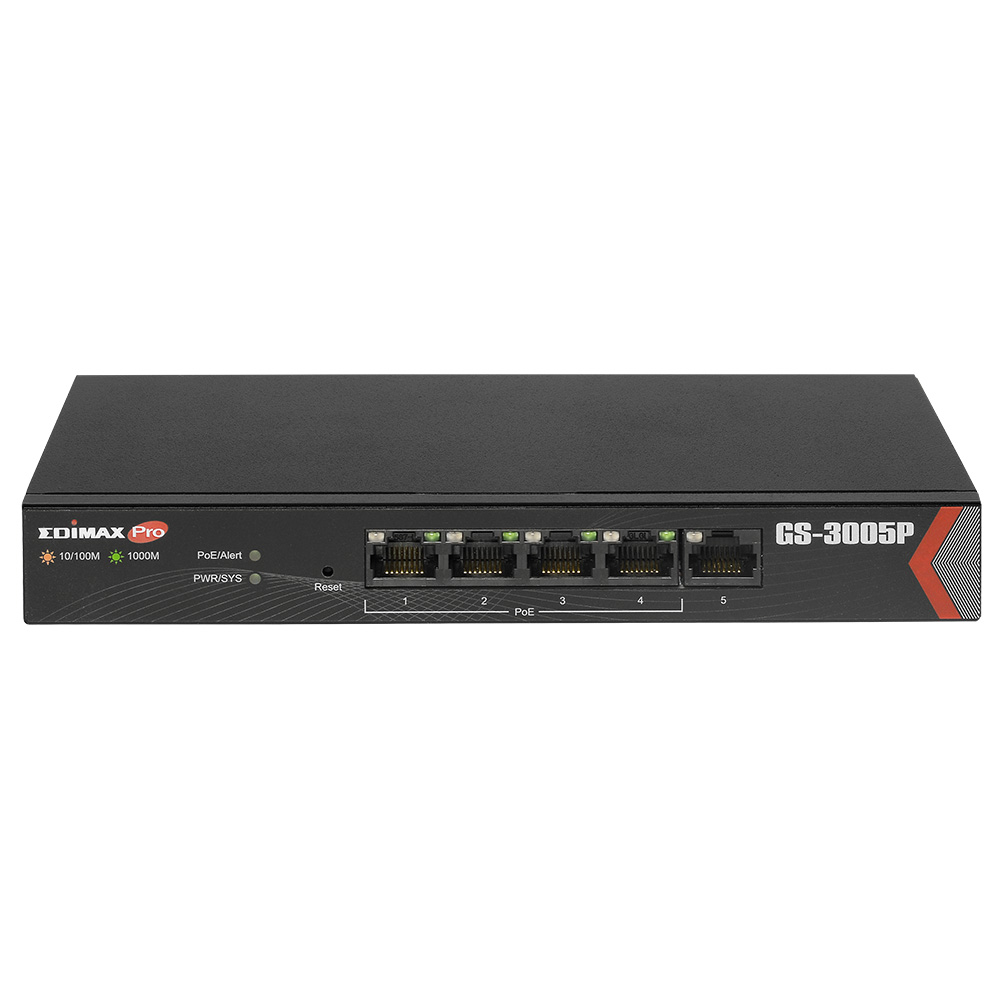

Long Range 5-Port Gigabit Web Managed Switch with 4 PoE+ Ports
GS-3005P
Edimax Pro

  • IEEE 802.3af/at PoE compliant.
  • Five Gigabit Ethernet ports with four PoE+ ports.
  • Up to 30W per port (total power budget: 72W) for powering PoE-enabled devices.
  • Long range PoE power delivery distance extending up to 200 meters.
  • Power backfeed protection support to avoid damaging the PoE ports.
  • Auto-detection of powered devices (PD) and power consumption levels.
  • Auto fault-detection on over/under current & voltage.
  • Access Control List (ACL) support.
  • Switch capacity:10Gbps & Forwarding rate: 35.712Mpps.
  • IEEE 802.1Q-based VLAN for network segmentation to improve performance and security.
  • IEEE 802.1p QoS with 4 priority queues.
  • IGMP Snooping V1 / V2 / V3 support.
  • 4K MAC address table and jumbo frame support up to 9KB.
  • Small desktop form-factor for small office and home office.



The Edimax Pro GS-3005P is a web-smart switch with 4 Gigabit PoE+ ports. Designed for small office and home office network environments, its desktop form-factor allows for integration in the most widely used SMB offices. With smart web management, PoE (Power over Ethernet) ports can be manually setup to extend PoE power delivery distance to up to 200 meters while also supporting smart control for VLAN (Virtual LAN), QoS (Quality of Service) and IGMP (Internet Group Management Protocol) snooping v1/v2 & v3. The PoE also features auto detection and power backfeed protection to efficiently provide power and, at the same time, avoid damaging the PoE ports. The Edimax GS-3005P is a superb choice to boost your network environment’s performance and efficiency.

802.3at PoE with Auto Detection & Power Backfeed Protection
The GS-3005P features 4 IEEE 802.3at Power over Ethernet (PoE+) ports which supply up to 30W of electricity per port, and has a total power supply of 60W to power any 802.3at or 802.3af compliant power device. With PoE detection capability, the GS-3005P is able to verify whether the connected device is IEEE 802.3at or 802.3af compliant. In the event that a PoE device is not detected, only network data will be transmitted through the LAN cable. Moreover, with the PoE power backfeed protection from the passive PoE injectors, the GS-3005P is able to avoid damaging the PoE ports.

PoE for Easy Installation and Better Cost Efficiency
Power over Ethernet technology enables the Ethernet cable to carry both data and power, reducing cable installation and eliminating the need for extension cords or electrical outlets on the walls and ceiling. Overall the GS-3005P can lower installation costs and simplify deployment effort. The GS-3005P can be used with different PoE products such as access points, IP cameras or VoIP devices and is an effective solution for network environments where power outlets are difficult to access.

Power and Data Distance Extension, Long Range up to 200 Meters
The GS-3005P provides extended PoE power delivery to distance up to 200 meters whereas a general PoE has Ethernet cable distance restrictions of 100 meters. For 200 meters power delivery distance, the unit operates on a per-port basis at 10Mbps duplex operation and supports up to 30-watt PoE power output. The specification creates flexibility in planning for installing PoE-enabled devices such as IP cameras.

Smart Tools for Improved Network Efficiency and Security
The GS-3005P features smart and simple network monitoring tools that allow for improved network efficiency and security. The web-based interface management features include QoS bandwidth control for better traffic management, VLAN for enhanced network security and multicast IGMP snooping v1/v2/v3 for streaming applications.


APPLICATION DIAGRAM
Edimax Pro GS-3005P 5-port Gigabit Web Management Switch with 4-port PoE+ Ports, long range PoE up to 200 Meters, power backfeed protection, VLAN, QoS, IGMP, Fanless
Edimax Pro GS-3005P 5-port Gigabit Web Management Switch with 4-port PoE+ Ports, long range PoE up to 200 Meters, power backfeed protection, VLAN, QoS, IGMP, Fanless


SPECIFICATIONS

HARDWARE
Ports 1 x RJ-45 10/100/1000Base-T Gigabit Ethernet Port
4 x RJ-45 10/100/1000Base-T Gigabit Ethernet PoE+ Ports
Transmission Method Store and forward
Button Reset button
Switch Power ON/Off switch
LED Indicators Per Port: Link/Act
PoE: Act/Status
Per Unit: Power
Fan Fanless

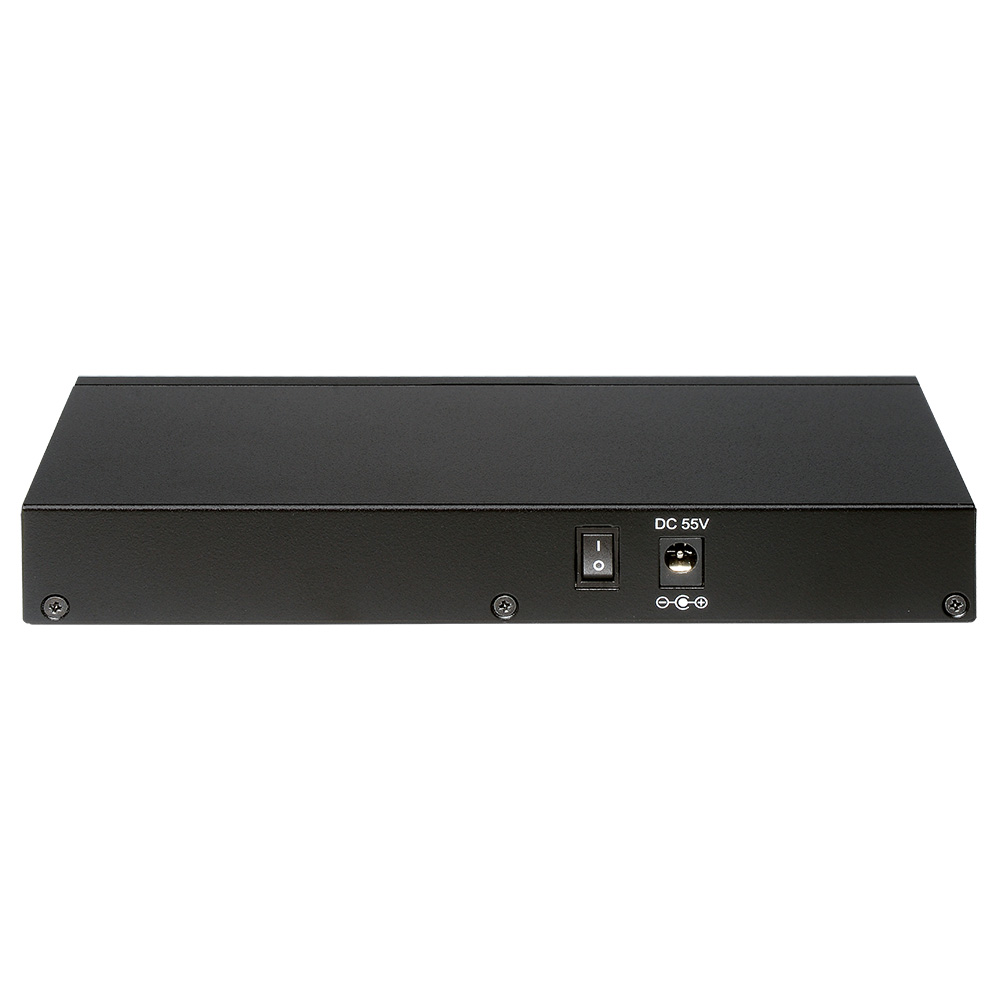

Power Input 100-240V AC, 50-60 Hz, external power supply 55V/1.3A
Total Power Budget 72W
Dimensions (L x W x H) 193 × 84 × 26 mm
Weight 0.39kg
PERFORMANCE
Switching Capacity 10Gbps
Forwarding Rate 35.712Mpps
MAC Address 4K
Buffer Memory 128KB
Jumbo Frames 9KB
Filtering/Forwarding Rates 1000Mbps port – 1,488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps
POWER OVER ETHERNET
Standard IEEE 802.3af, IEEE 802.3at
Power Output Up to 30W per port
Pin Assignment 1/2(+), 3/6(-) End-Span (mode A)
Available Power Budget 60W, Ports 1-4
Management PoE ouput on/off management
Backfeed Protection Built-in
SMART FEATURES
VLAN Up to 8 VLANs and 4096 VLAN IDs
802.1Q tag-based VLAN
Port Trunking IEEE 802.3ad LACP Trunk-Static trunk up to 1 trunk group
IGMP Snooping IGMP v1/v2/v3 snooping
Block unknown multicast traffic
Multicast groups: 128
QoS Port-based QoS, IEEE802.1p QoS, 4 Priority Queues, scheduling algorithm
Management User Interface: Web-based management
User Account: Login account configuration
Firmware Upgrade: Firmware upgrade by WEB
Loop Detection/Prevention
Security Broadcast Storm control
ENVIRONMENT
Temperature Operating: 0 ~ 40℃
Storage: -40 ~ 70℃
Humidity (Non-condensing) Operating: 10 ~ 90%
Storage: 5 ~ 90%
STANDARDS COMPLIANCE
Standards
IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
IEEE 802.3x Full-duplex and Flow Control
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1Q VLAN
IEEE 802.1p Quality of Service (QoS)
IEEE 802.3af Power Over Ethernet (PoE)
IEEE 802.3at Power Over Ethernet Plus (PoE+)
Certifications FCC Class A, CE
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
