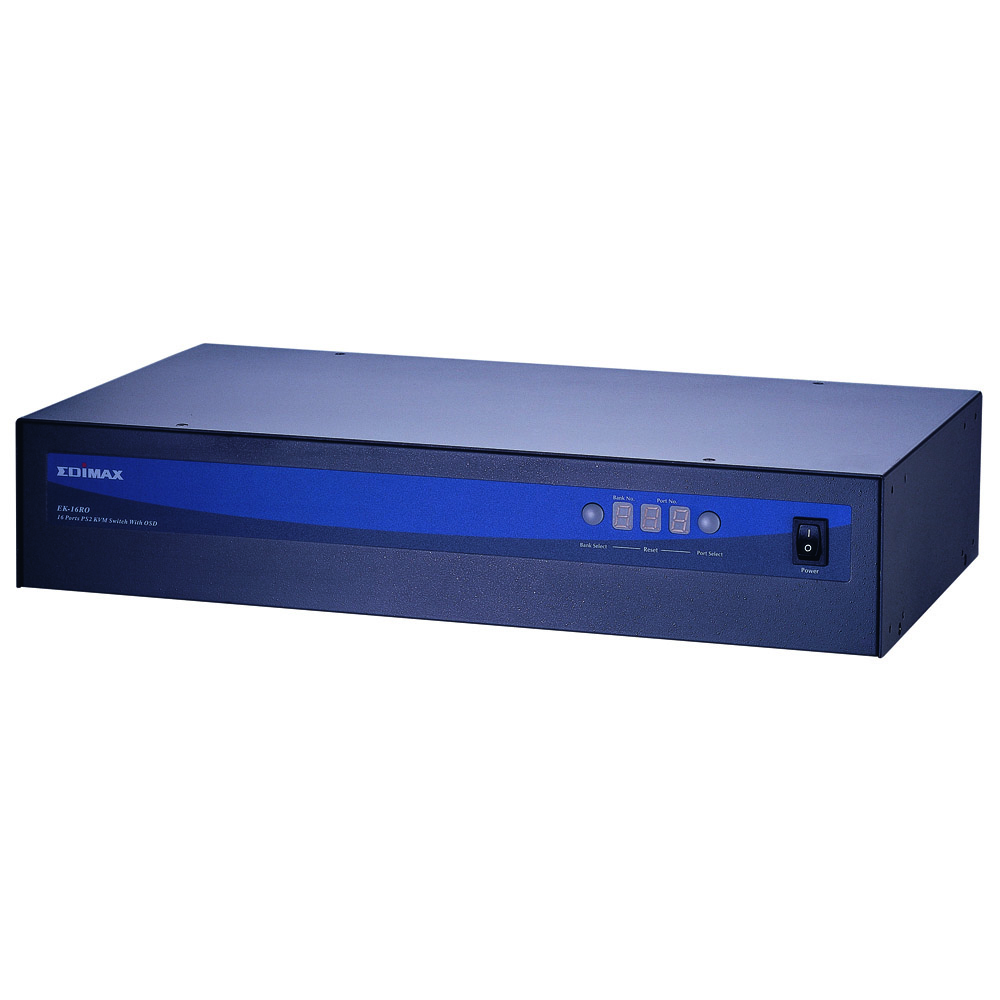

16 Port Rackmount OSD KVM Switch

EK-16RO

(End-of-Life Product)
Please find all information available below.



Key Features

  • 8 port (EK-08RO) /16 port (EK-16RO) KVM switch is 19” rack mount size design.
  • Support Microsoft Intellimouse, Microsoft Intellimouse Explorer, Logitech Net Mouse or the other fully compatible MS mouse.
  • Provide Console PS/2 to PC serial mouse conversion
  • Support DOS, Win3.X, Win95/98/98SE/2000/ME/XP, WinNT, Netware, SCO Unix, HP Unix, Linux
  • Hot Plug - Add PCs or Remove Connected PCs for Maintenance without Powering Down the KVM switch or PCs.
  • Very High Video Quality - Up To 1920X1440, Bandwidth: 200MHz
  • No Software Required - easy PC selection via On Screen Display Manual, Push Buttons, Hot Keys
  • Support eight characters password protection and search PC server name
  • Auto Scan Mode for monitoring PCs and flexible Scan time from 5~99 seconds
  • Keyboard status restored when switching PCs
  • LED Display for easy status monitoring
  • Buzzer sound for switching port confirmation.
  • Using Standard Keyboard, VGA, Mouse cable.
  • Built-in one extra daisy chain port and no waste any PC port
  • No DIP switch setting needed and auto detect daisy chain bank

EK-08RO back
Edimax EK-08RO Back
EK-16RO back
Edimax EK-16RO back

*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
