(End-of-Life Product)
Please find all information available below.
1 Cat.5 Remote + 1 Local Console
The Cat.5 Console Portpermits you to perform your administrative functions up to 500 feet away from your Dual Console KVM Switch.Once installed, you may literally control all the Servers from you desk rather at the “Server room.”It used to be that supervisory duties must be performed at the local console. Now you can do it at the Local Console or at the Cat.5 Remote Console. This innovation increase the the flexibility of installation design and eases the daily usageof the Dual Console KVM Switch. Once you have used it, you will realize how much easier it is now to perform your all Server administrative and supervisory tasks.
The advanced technology is in the Cat.5 transmitter and Receiver. The Cat.5 Transmitter is built-in to the Dual Console KVM switch. It combines the PS2 keyboard and mouse signal and the VGA monitor signal for transmission over long distance using the popular Ethernet Cat.5 cable. The Cat.5 Remote Console Receiverde-multiplexes the signal back to the PS2 keyboard and mouse signal and the VGA monitor signal.
The Cat.5 Remote ConsoleCapability is a good solution where the server room environment may be noisy or where it is unsuitable for people to work for a long time. It facilitates effective management of distributed computers at one dedicated central control room, demonstration room, meeting room or even at your desk.
Cat.5 STP cable (Shielded Twisted Pair) / UTP cable (Unshielded Twisted Pair) or enhanced cable like Cat.5E / Cat.6 cables are common to LAN in the corporate environment. The Dual Console KVM-Cat.5 Console Port uses the same existing network cabling so that ease of installation is enhanced. No special cabling is required; It just use the common everyday 10/100 BaseTCat.5 cabling already installed throughout all corporations large and small.
Specifications |

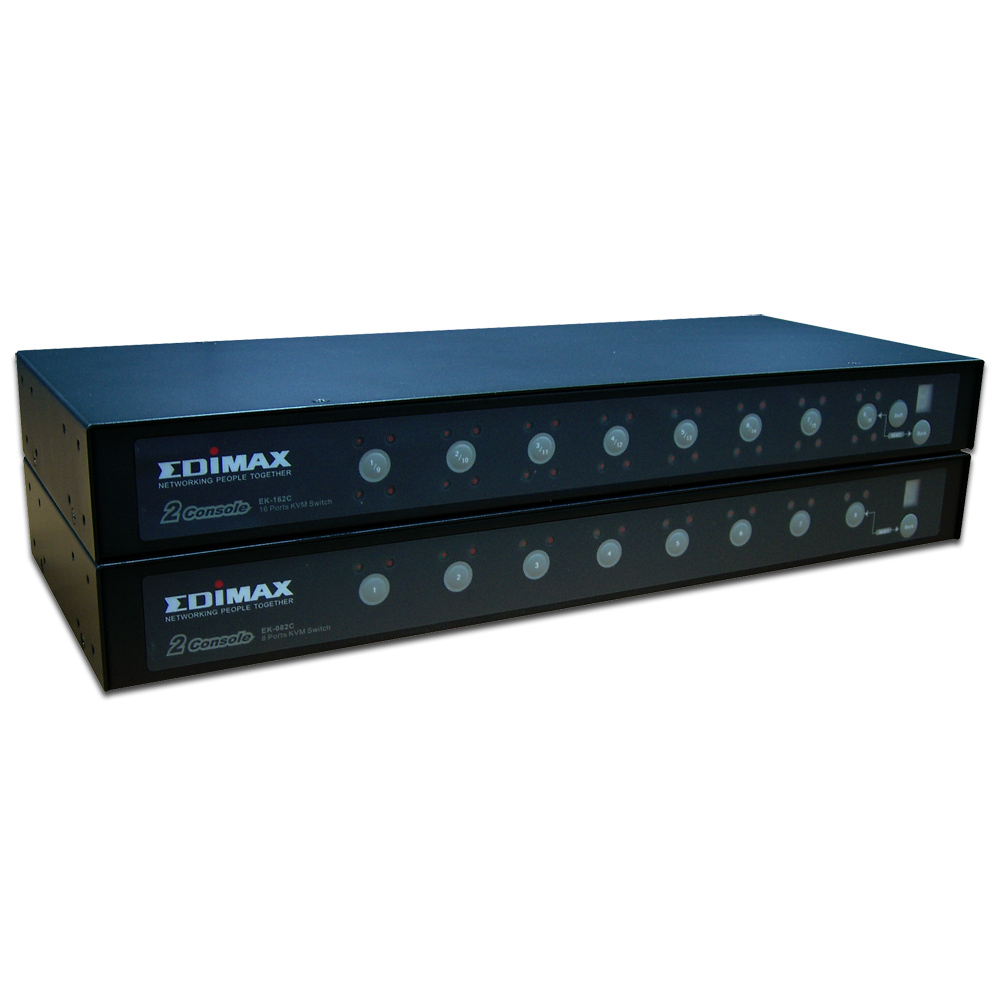

EK-082C
|
EK-162C |
Console Port | 2 (1 Local + 1 Cat.5 Remote) |
2 (1 Local + 1 Cat.5 Remote) |
MAX PC Connections | 9 (8 local and 1 remote) |
17 (16 local and 1 remote) |
PC Port Connector |
VGA HDDB 15pin
( shared with PS2 keyboard and Mouse )
|
|
Console Port Connector |
Local Console: PS2 Keyboard Mini Din PS/2
Mouse Mini Din 6 pin,
VGA HDDB 15 Pin
|
|
Daisy Chain Port Connector |
PS/2 Keyboard / Mouse mini Din 6 pin
VGA HDDB 15pin
|
|
PC selection |
On Screen Display Menu, Hot Key, Push Button
|
|
PC Port LED | 16 | 32 |
Bank 7 segment LED
|
1 | |
On Screen Display
|
YES
|
|
Scan Intervals
|
5~99 Sec
|
|
Emulation
|
PS2
|
|
VGA Resolution/ Bandwidth |
1920X1440 / 200MHz
|
|
Daisy Chain Level
|
8 levels | |
MAX PC Connection
|
121 | 129 |
Power Adapter
|
DC 9V, 500mA
|
|
Operation Temperature
Humidity
|
0~50 0C
0~95% Non-Condensing
|
|
Weight (g) | 2.13Kg | 2.34Kg |
Dimension (mm) | 41(L) X 16.4(W) X 4.5(H) |
