500Mbps Nano PowerLine Adapter with Integrated Power Socket

HP-5102AC

  • 500Mbps high speed ideal for HD video streaming
  • Utilizes existing electrical wires to transmit network data
  • Integrated power socket with noise filter
  • Easy plug-n-play setup and 128 bit AES security
  • Powerline transmission range up to 300 meters
  • Backward compatible with 200Mbps powerline adapters
  • Features energy saving mode to reduce power consumption
Share


Transmit Network Data via Existing Electrical Wires
The Edimax HP-5102AC transforms the existing electrical wires in your home or office into a high-speed network. Complicated, disruptive and unsightly cabling is no longer necessary - if your home or office doesn’t have an existing Ethernet cable infrastructure, the HP-5102AC enables you to create a network environment easily and cost-effectively.


Edimax HP-5102AC Easy Create and Extend Network via Existing Electrical Wires












Integrated Power Socket with Noise Filter
With the Edimax HP-5102AC, no electrical outlet goes to waste. It is built with an integrated power socket, which you can use with any electrical device. So even when the HP-5102AC is plugged into a socket, you can still plug another electrical device into the HP-5102AC and have your usual socket capacity. The in-built noise filter also ensures that you do not experience a sudden drop of network speed when a high power consuming electrical device is being used.











​

500Mbps HomePlug AV Standard & IGMP Support
The Edimax HP-5102AC not only complies with the HomePlug AV standard but also supports IGMP managed multicast streams. The HP-5102AC can transmit network data over existing electrical wires at speeds of up to 500Mbps. It is also backward compatible with the 200Mbps HomePlug AV standard and has a transmission range of up to 300 meters. IGMP can be used for online gaming and video streaming applications, and allows for more efficient use of network resources. With the HP-5102AC, you can transfer high-definition video and digital audio quickly and easily.



Edimax 500Mbps Nano PowerLine Adapter HP-5102_HP-5102AC up to 500Mbps












Compatible with HomePlug 1.0 & 1.0 Turbo Devices
The HP-5102AC is designed to ensure efficient coexistence with HomePlug 1.0 and 1.0 Turbo devices, providing guaranteed QoS to all devices present in a heterogeneous powerline network. In such an architecture, the HP-5102AC and other HomePlug 1.0 stations share the CSMA/CA allocations, thus providing fair access to HomePlug 1.0 stations based on traffic priority.

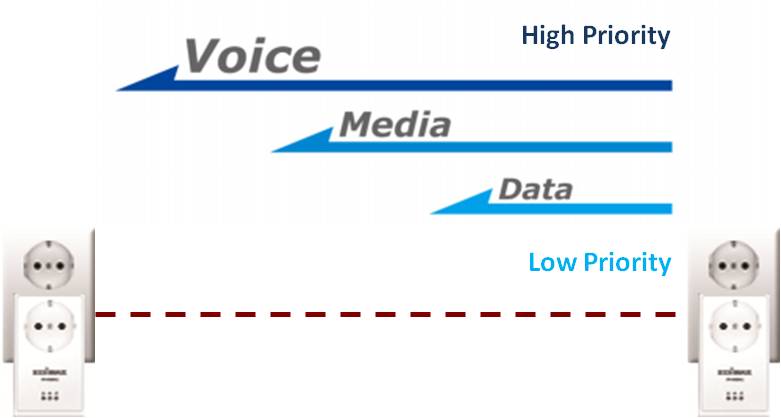

Edimax HP-5102AC 500Mbps Nano PowerLine Adapter with QoS








​


Hardware Combo Group/Reset Button
The Edimax HP-5102AC has a combo group/reset button for simplified group and reset configurations. Press the group/reset button and the HP-5102AC will help you set up a password for your network automatically, or reset the device to factory defaults.


Edimax HP-5102AC 500Mbps Nano PowerLine Adapter with Group Setting Button












APPLICATION DIAGRAM


  • Plug a HP-5102AC into a power outlet and connect it to a broadband router.
  • Plug another HP-5102AC into a power outlet and connect it to a computer's Ethernet port to establish a powerline connection.



Edimax HP-5102AC 500Mbps Nano PowerLine Adapter Application Diagram

*Powerline adapters must be deployed in sets of two or more.

500/200Mbps is the maximum theoretical communication speed at the physical layer via electric power lines based on the IEEE 1901 standard.
Share


SPECIFICATIONS
​

Hardware

Standards

Effect Data Rate

•1 x Power jack
•1 x Power socket
•1 x 10/100Mbps Ethernet LAN port
•1 x Group/Reset button
•LED indicators: power, Ethernet, powerline

•IEEE 1901
•IEEE 802.3
•IEEE 802.3u
•HomePlug AC compliant

•TCP: Up to 95 Mbps effective throughput
•UDP: Up to 95 Mbps effective throughput

Frequency Band

Modulation Schemes

Operating Range

•2-68MHz (with Mask)

•OFDM symbol modulation on line synchronization 1024/256/64/16/8-QAM, QPSK, BPSK, ROBO modulation

•Up to 300 meters

QoS

Nodes

IGMP

•4 levels priority based contention access, and multi segment bursting
•8 levels VLAN priority field, TOS field
•QoS classification by destination MAC address and IP port

•Up to 15 slaves with 1 master, 16 total devices
•Max 8 bridged devices per station

•Support for IPv4/IGMPv1,v2,v3 snooping
•Support for IPv6 and MLDv1, v2 snooping
•Max 16 source addresses and group members

IC / Memory

Security

 Temperature & Humidity

•AR7420+1540
•1MB Flash
•8MB SDRAM

•128-bit AES link encryption with key management

•0-45 degrees Celsius
•10-90% (non-condensing)

Power Outlet

Power Source

 Power Consumption

•Line Voltage: 100 to 240VAC
•Noise Filter Insertion Loss: Up to 35dB at 1MHz – 40MHz

•100-240V AC, 50-60Hz

•4W

Dimensions

Weight

 Certifications

•102 x 64 x 43mm

•184g

•CE, FCC, LVD




PACKAGE CONTENTS

  • Powerline adapter x 1
  • Quick installation guide x 1
  • CD with setup wizard, user manual & multi-language QIG x 1
  • Ethernet cable x 1


HARDWARE INTERFACE
Edimax HP-5102AC 500Mbps Nano PowerLine Adapter with Group Setting Button
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
