USB 2.0 Fast Ethernet Adapter

EU-4208

  • Complies with IEEE 802.3/802.3u standards
  • Complies with USB 2.0/1.1 specifications
  • Supports 10/100Mbps auto-negotiation
  • Low power consumption in idle mode and low traffic conditions
  • No external power adapter required
  • Supports Windows XP/Vista/7/8/8.1, Linux and Mac OS X 10.x


The Edimax EU-4208 is a compact USB Fast Ethernet adapter for an Ultrabook or Macbook Air with no Ethernet ports, or for desktop and notebooks that need an additional Fast Ethernet port. It’s an ideal portable accessory or replacement network adapter, and with full 10/100Mbps Fast Ethernet USB 2.0 performance, it’s faster than most wireless connections. Connect to a 10/100Mbps network from a USB enabled desktop or notebook, save costs and replace an old or broken internal network card, or use it as an additional network interface for high-speed peer-to-peer file sharing. No external power adapter is required and the green, energy-saving design minimizes power usage when the device is idle.



Ideal for Ultrabooks
Designed to give Fast Ethernet connectivity to your Ultrabook, Macbook Air or any computer without an Ethernet port. Simply plug the adapter into a USB 2.0 port and instantly utilize a stable 10/100Mbps Ethernet connection. The EU-4208 is also a quick and convenient way to add Ethernet connectivity to a desktop computer without the hassle of internal installation. It’s backward compatible with USB 1.1 and works with Microsoft Windows XP/Vista/7/8/8.1, Linux and Mac OS X 10.x.



Edimax USB 2.0 Fast Ethernet Adapter EU-4208_convert_usb_to_ethernet.png









USB 2.0 for Full 10/100Mbps Ethernet Performance
Compared to USB 1.1 adapters which only offer 12Mbps transmission speeds, the EU-4208 is designed with the USB 2.0 standard which supports data transfer speeds up to 480Mbps, ensuring full 10/100Mbps Ethernet performance without any compromise.



Edimax USB 2.0 Fast Ethernet Adapter EU-4208_full_duplex.png

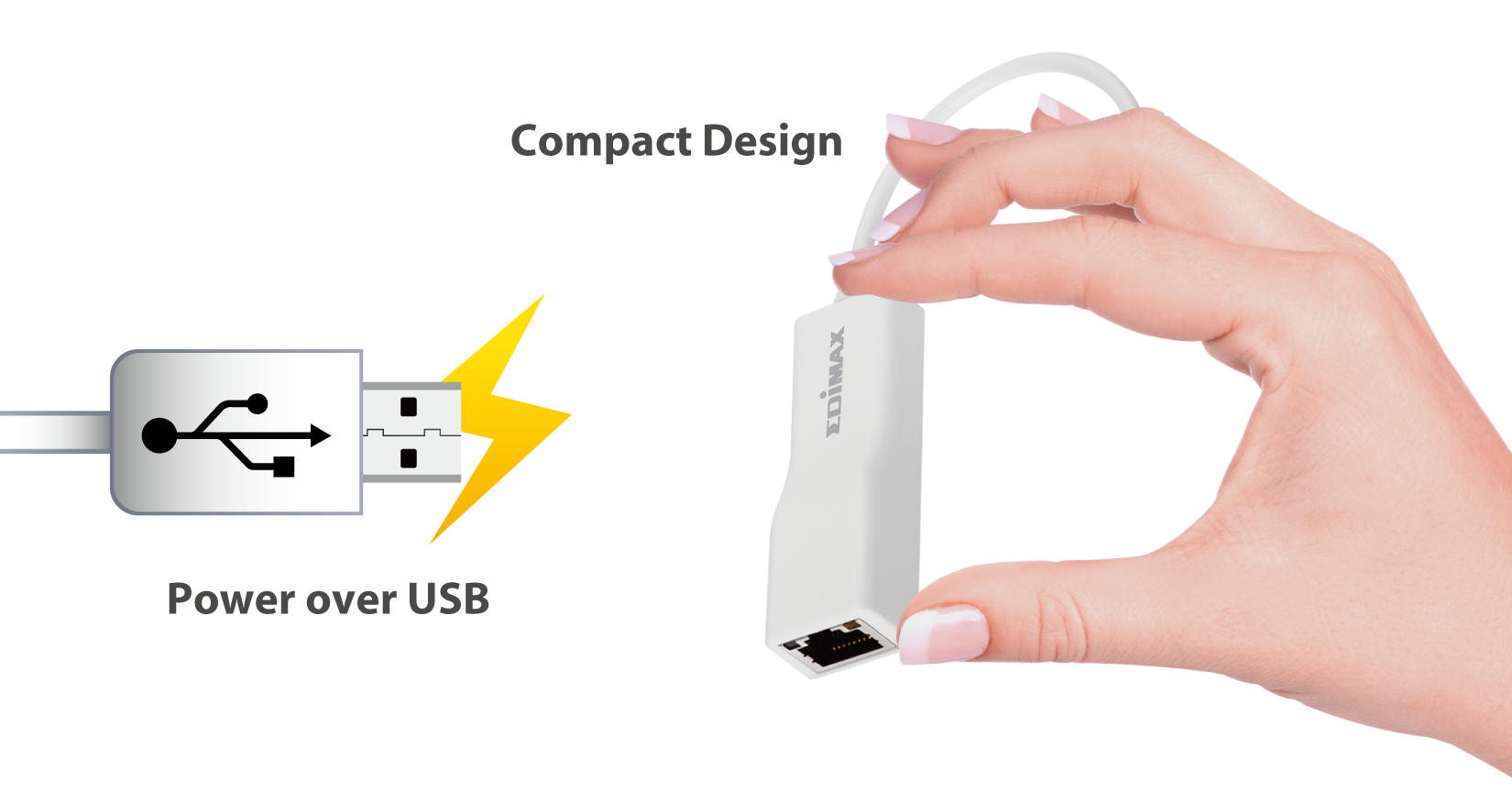

Compact Design & Power over USBT
he Edimax EU-4208 features a compact design, making it easy to use in a crowded workspace. And with power over USB support, the EU-4208 works without the need for an additional power adapter.


Edimax USB 2.0 Fast Ethernet Adapter EU-4208_compact_design_power_over_USB.png









Low Power Consumption
The Edimax EU-4208 is designed to use power efficiently and prevent unnecessary waste of power. It can dynamically adjust its power supply for reduced power usage in idle mode and low traffic conditions.


Edimax USB 2.0 Fast Ethernet Adapter EU-4208_Power_Saving.jpg










Windows 8.1 & Mac OS X 10.x
Full compatibility with Windows 8.1 and Mac OS X 10.x for hassle-free use with brand new devices and future-proof peace of mind.


Edimax USB 2.0 Fast Ethernet Adapter EU-4208_compatibility_with_win8_Mac.png









 APPLICAITON DIAGRAMS



Edimax USB 2.0 Fast Ethernet Adapter EU-4208_USB_Adapter_applicaiton_diagram.png





SPECIFICATIONS

Hardware

Standards

RAM

•1 x USB 2.0 (USB 1.1 backward compatible)
•1 x RJ-45 10/100Mbps LAN port
•Power and link LED indicators

•IEEE 802.3
•IEEE 802.3u

•Embedded 20KB SRAM for RX and 20KB SRAM for TX packet buffering

Power Consumption

Power Management

Operating Temperature

•600mW (full loading)
•46.1mW (idle with remote wake up)
•0.7mW (idle without remote wake up)

•Idle mode (remote wake up enabled)
•Idle mode (remote wake up disabled)

•0-70 degrees Celsius

Operating System

Dimensions & Weight

Certification

•Windows  XP, Vista, 7, 8, 8.1
•Linux
•Mac OS X 10.x

•66 x 22 x 15 mm (L x W x H)
•23.5g

•FCC, CE




PACKAGE CONTENTS
  • USB 2.0 Fast Ethernet Adapter x 1
  • Quick installation guide x 1
  • CD with setup wizard, user manual & multi‐language QIG x 1
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
